SIMON 82 DETAIL Stair switch (mechanism) 16AX 230V 1 click 7700211-039
local index:
MPS011KONT
Catalog No:
7700211-039
EAN code:
8421053080092
Price:
8,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

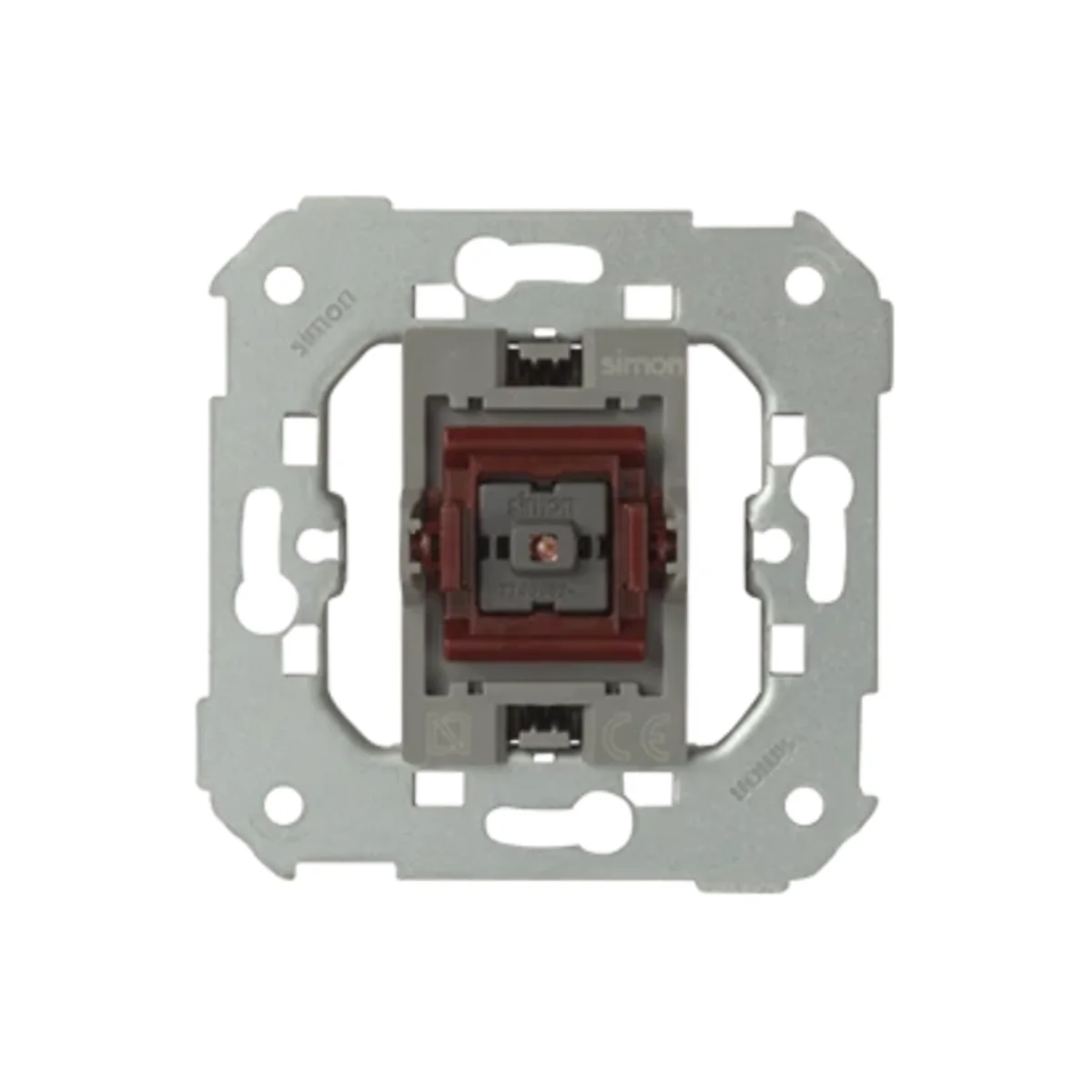

Stair switch mechanism from the Simon 82 series, from the manufacturer Contact Simon. The product part number is 7700211-039.
- 1 click (insert the wire without stripping and tighten).
- Do to obtain IP44 splash-proof class, use a frame gasket.
- Optional backlight, not included.
- Dedicated to keys: 82010-..; 82017-..; 82018-..; 82063-...
- Switch bistable.
Technical data
-
Depth [mm]40
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Surface protectionNatural
-
Mounting depth [mm]29
-
PKWIU27.33.11.0
-
Number of keys1
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 82
-
Width [mm]75
-
Height [mm]75
-
BacklightNO
-
For the frame systemYes
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element
-
MaterialMetal
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps16 AX
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Surface protectionUntreated
-
Nominal voltage250 V
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,059 | 0,059 | 0,680 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,040 | 0,160 | 0,100 |
