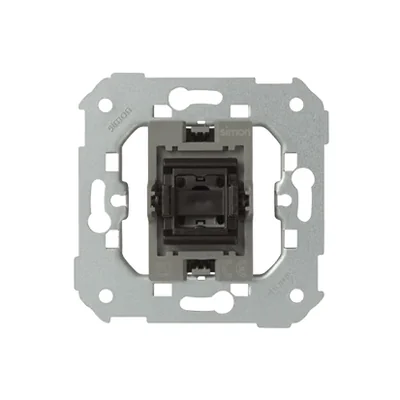

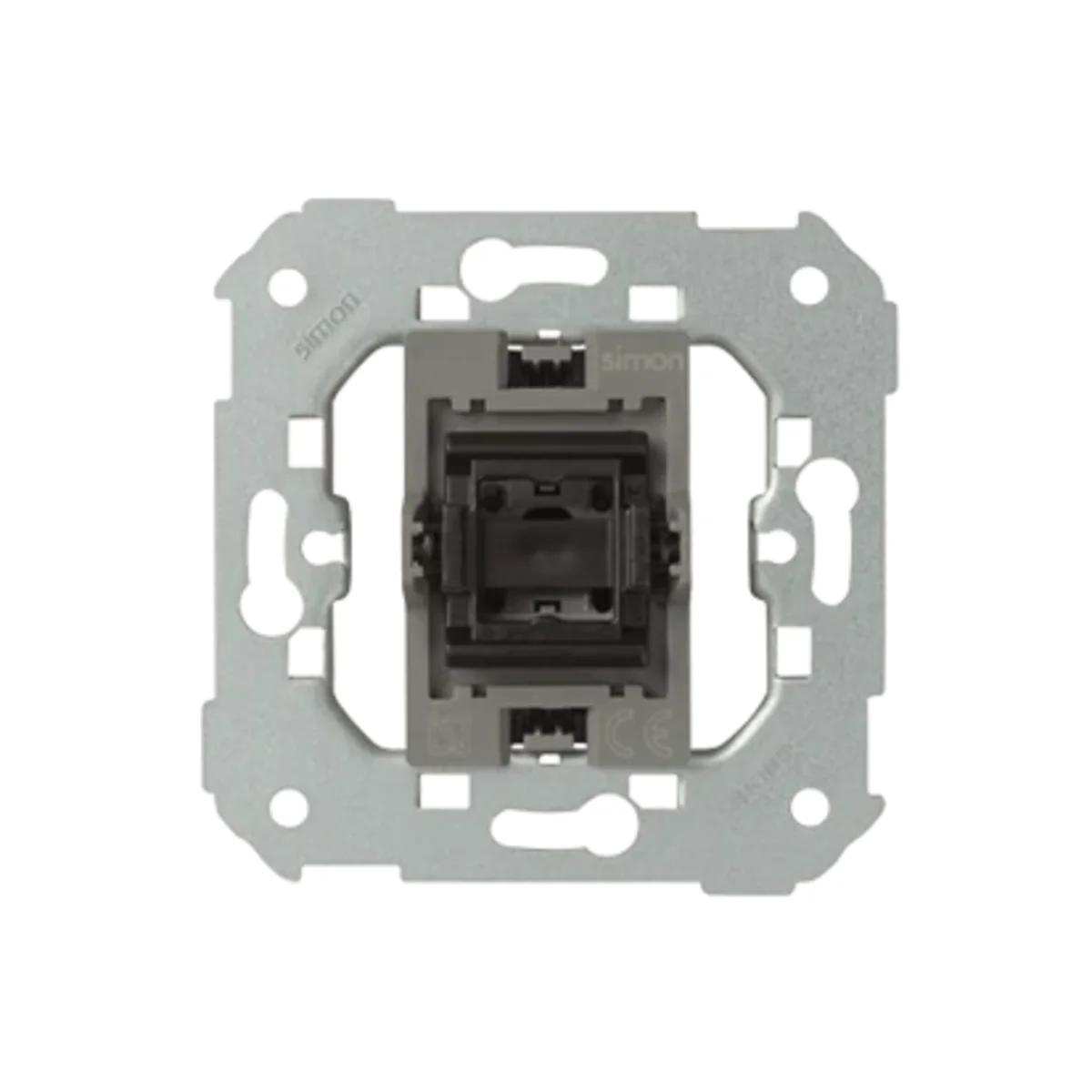

SIMON 82 DETAIL Stair switch (mechanism) 10AX 230V 1 click 7700201-039

local index:
MPS010KONT
Catalog No:
7700201-039
EAN code:
8421053075807
Manufacturer: KONTAKT-SIMON
Depth [mm]: 40
Number of keys: 1
Shape: Square
Price:
7,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch mechanism from the Simon 82 series, from the manufacturer Contact Simon. Product part number is 7700201-039.

  • 1 click (insert wire without stripping and crimp).
  • Do to obtain IP44 splash-proof class, use a frame gasket.
  • Optional backlight, not included.
  • Dedicated to keys: 82010-..; 82017-..; 82018-..; 82063-...
  • Switch bistable.

Technical data

  • Depth [mm]
    40
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Surface protection
    Natural
  • Mounting depth [mm]
    29
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 82
  • Width [mm]
    75
  • Height [mm]
    75
  • Backlight
    NO
  • For the frame system
    Yes

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element
  • Material
    Metal
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Nominal voltage
    250 V

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,059 0,059 0,680
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,040 0,160 0,100
