SIMON 82 Antenna socket R-TV-SAT final/end attenuation 1dB 75466Z-69

Name: SIMON 82 Antenna socket R-TV-SAT final/end attenuation 1dB
Brand: KONTAKT-SIMON
SKU: MJA002KONT
Price: 14.72 PLN

local index:

MJA002KONT

Catalog No:

75466Z-69

EAN code:

5902787856748

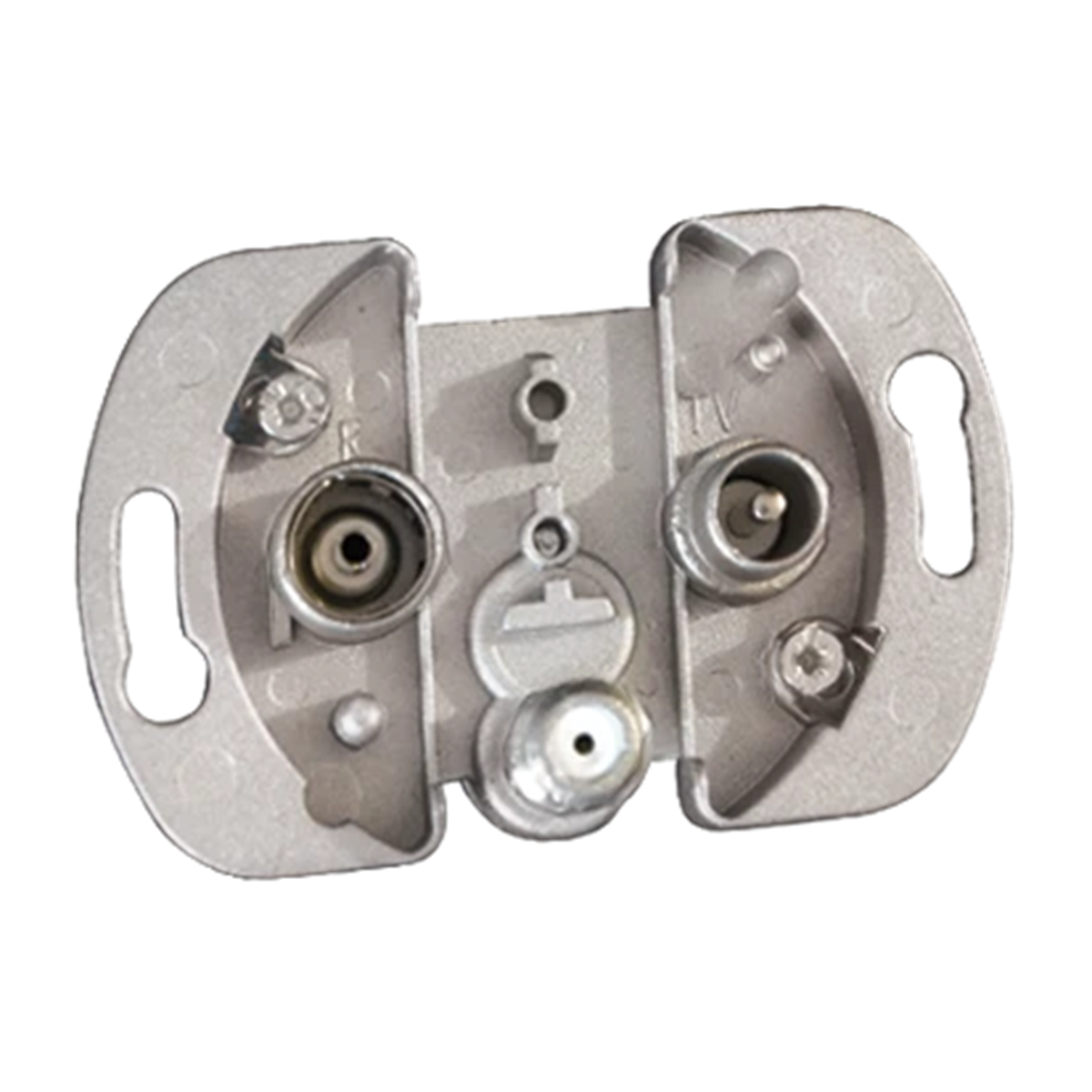

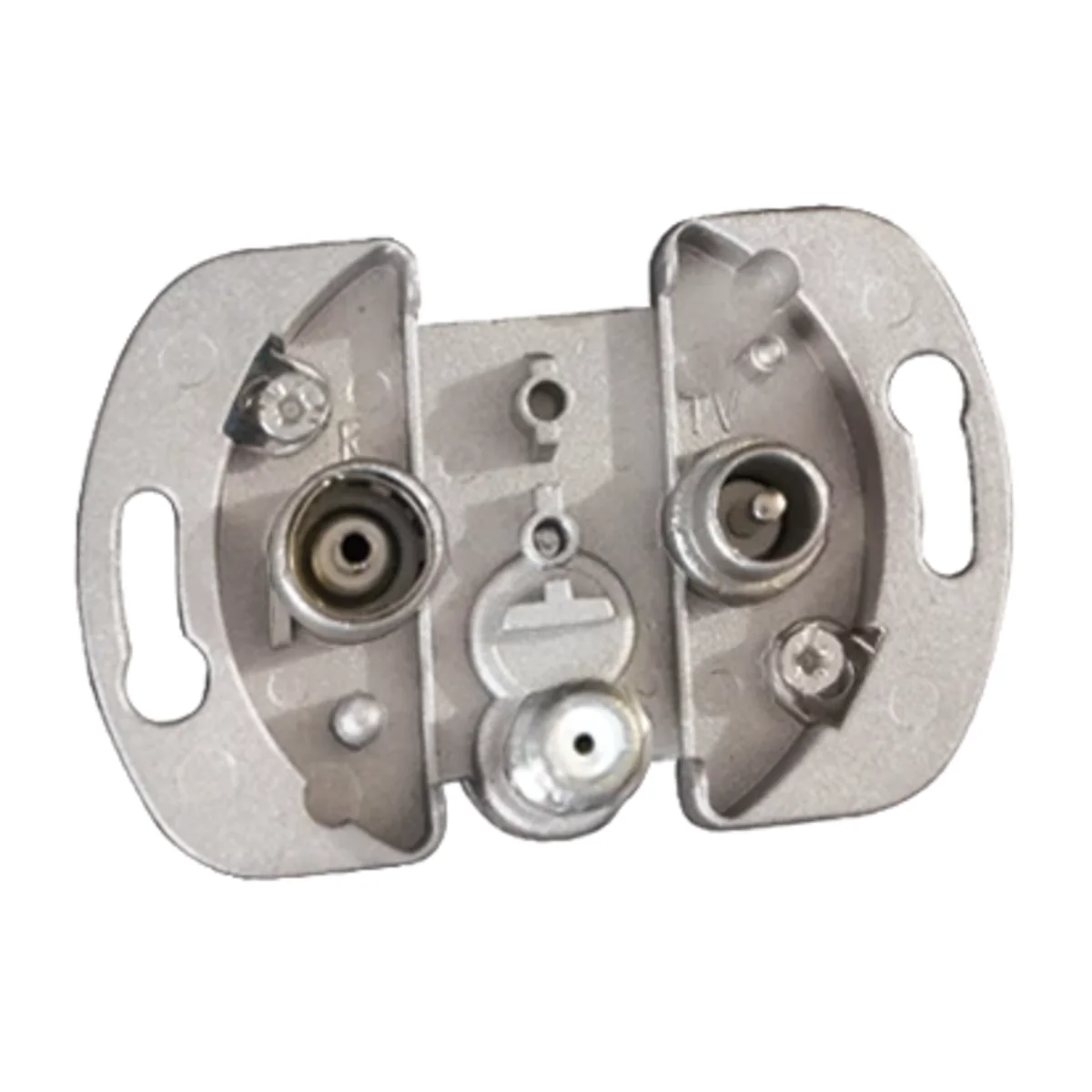

SIMON 82 Antenna socket R-TV-SAT final/end attenuation 1dB

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Depth [mm]: 41

Number of sockets: 3

Shape: Rectangular

See full description

Price:

14,72 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Mechanism of the antenna socket from the Simon 82 series, from the manufacturer Contact Simon. The product catalog number is 75466Z-69.

FEATURES

R-TV-SAT .
End/end.
Connection type/terminal type: plug, screw terminals.

Technical data

Depth [mm]

41
Shape

Rectangular
Fixing

claws Screws
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 1 Connections for 2150 MHz: 2
Version

Final Final
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
F-type input

NO
PKWIU

27.33.13.0

Number of sockets

3
Material

Metal
Installation

Flush-mounted
Family

Simon 82
Width [mm]

71
Type

Socket mechanism
Height [mm]

46
Frequency Range [MHz]

5-2400
Mounting depth [mm]

31
Variant

R TV sat
For the frame system

Yes

Other technical data

Model

End socket
Tap loss at 2150 MHz

2 dB
Suitable for remote power supply

Yes

Tap loss at 860 MHz

1 dB
Number of outlets

3
Frequency

5 ... 2400 MHz

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,092	0,092	1,010
Width (m)	0,046	0,110	0,190
Length (m)	0,071	0,050	0,230
Depth (m)	0,041	0,160	0,100
