SIMON 54Rotators for single, three-position shutter switch 1-0-2, white SZW1KM
local index:
MPO005KONT
Catalog No:
SZW1KM
EAN code:
5902787847234
Price:
7,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

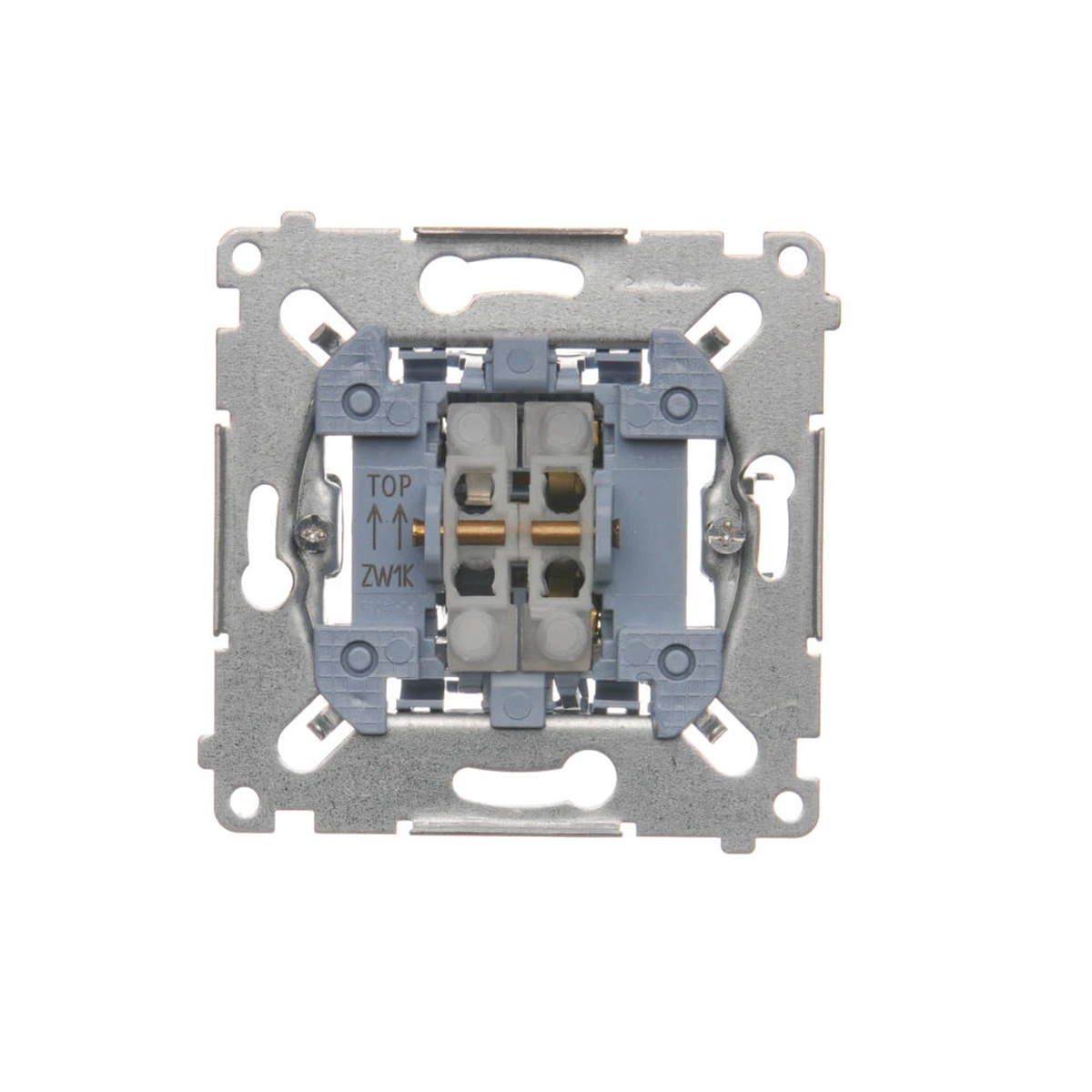

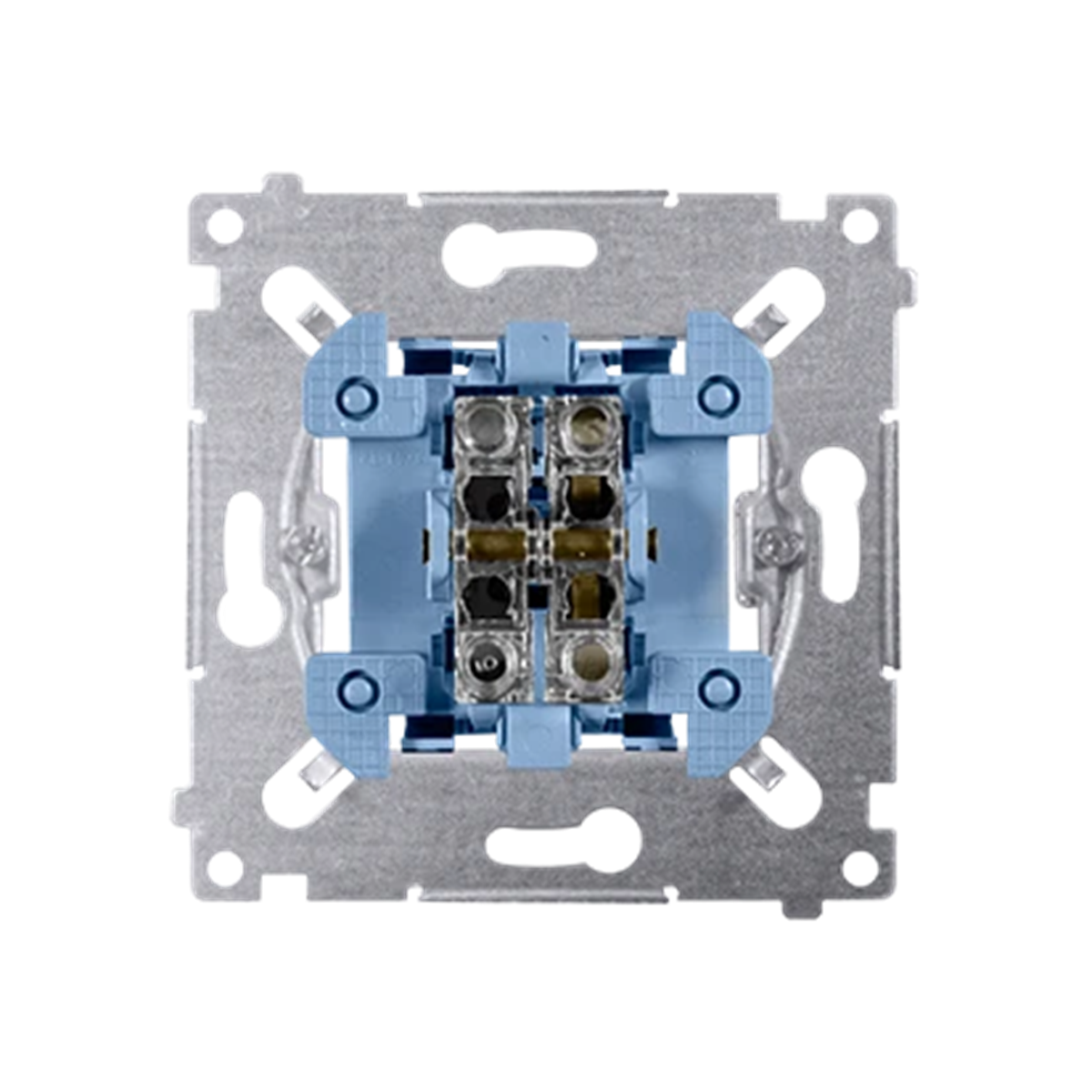

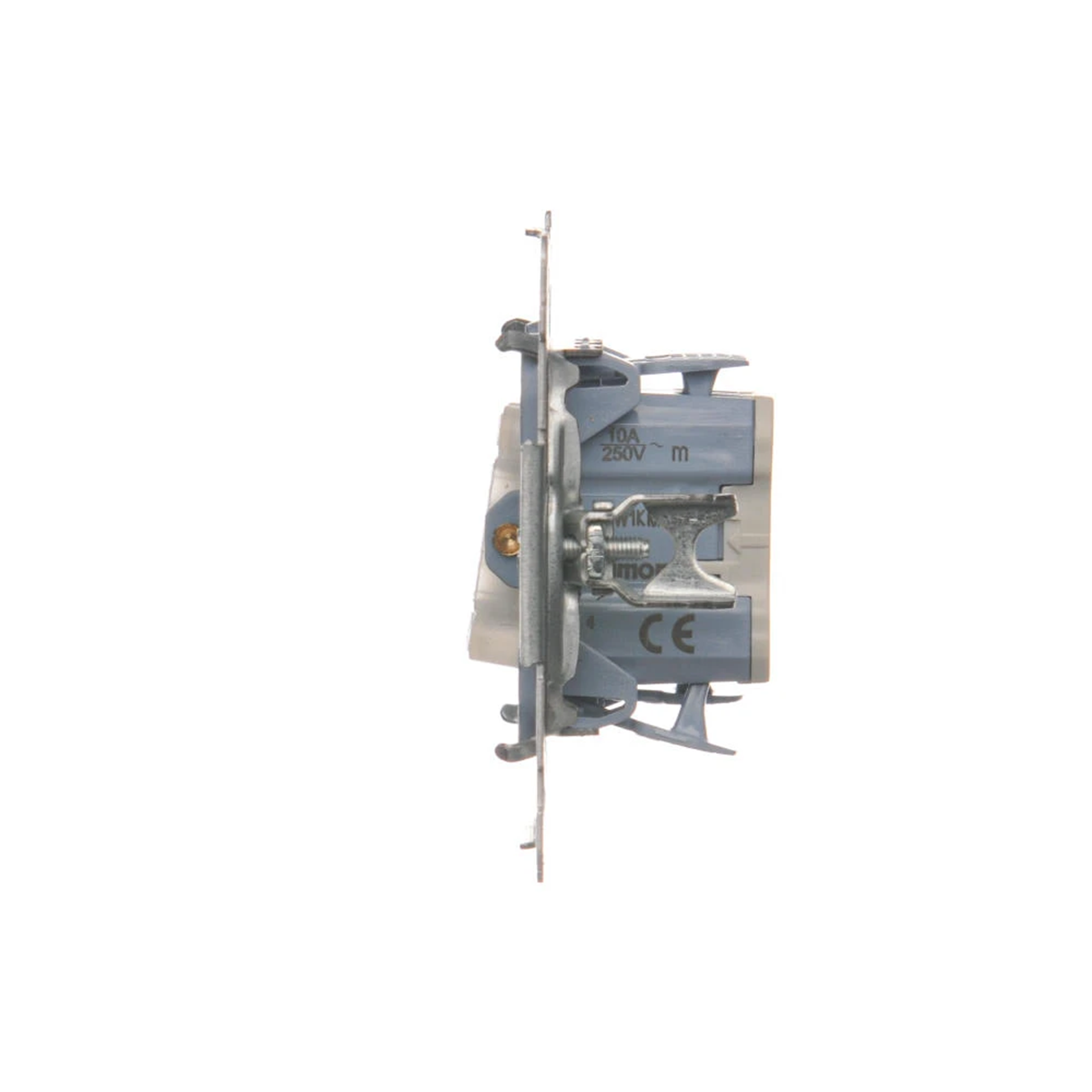

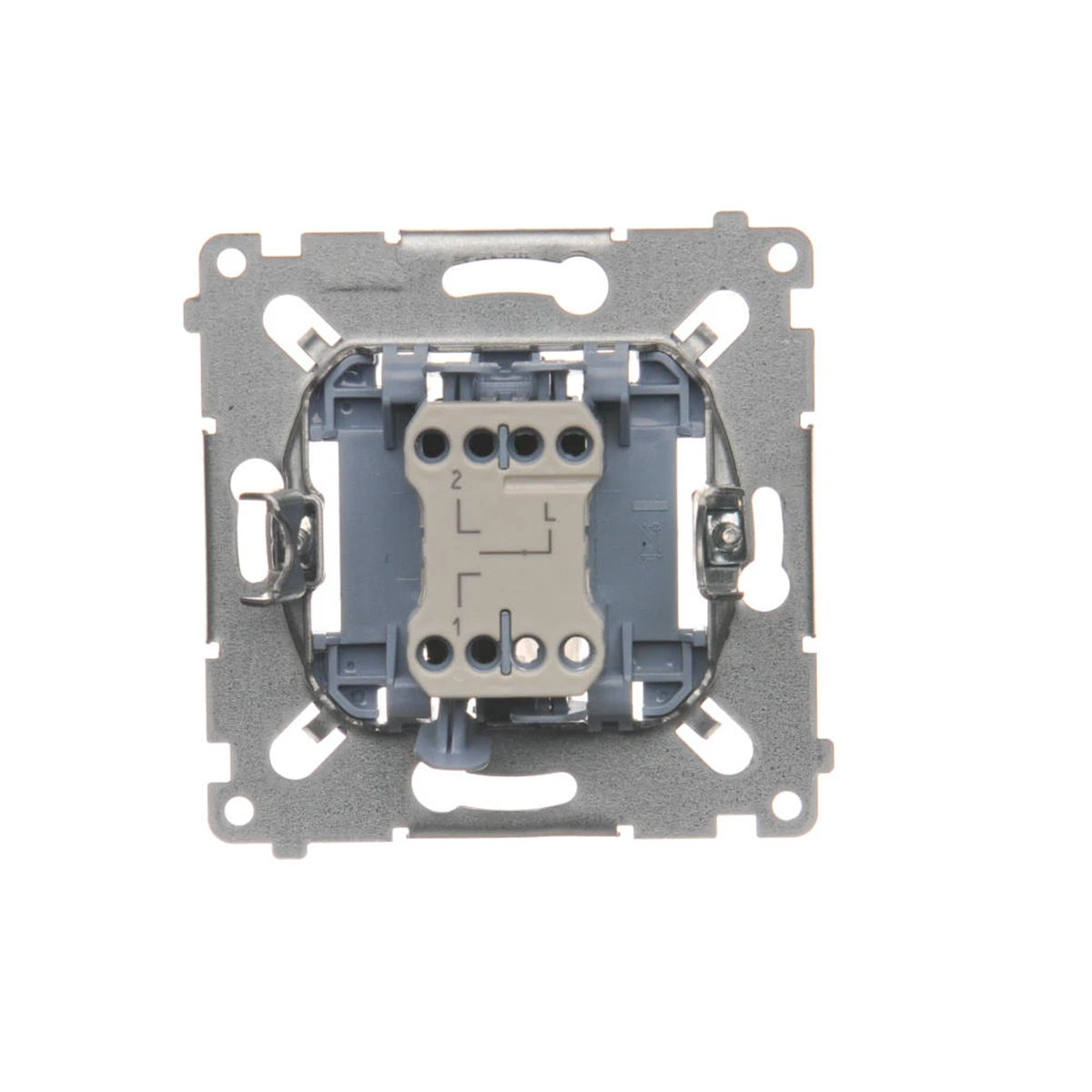

The mechanism of the three-position shutter switch (1-0-2) from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is SZW1KM.
FEATURES:
- Screw terminals. < li>Dedicated to: DKZW1K/.. shutter switch - 6 colors, DKZW1K/AB11 shutter switch - antibacterial white.
- 2-pole switch (bistable).
- Rocker switch.
- Mechanical control.
SERIES DESCRIPTION
Simon 54 is a series of modern installation accessories, distinguished by reliable and easy to install mechanisms and a variety of colors. The mechanism of the shutter connector characterizes the features of this unique series.
Technical data
-
Depth [mm]32
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
FamilySimon 54
-
Width [mm]75
-
VersionSingle
-
Surface protectionNatural
-
Mounting depth [mm]26
-
VariantThree-position
-
PKWIU27.33.11.0
-
Number of keys1
-
MaterialMetal
-
InstallationFlush-mounted
-
TypeShutter
-
Level of securityIP20
-
TypeThe linkage mechanism
-
Height [mm]75
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element
-
Mechanical controllableYes
-
MaterialMetal
-
Suitable for degree of protection (IP)IP20
-
ModelOther
-
Mounting methodFlush-mounted
-
Surface protectionUntreated
-
Nominal voltage250 V
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,078 | 0,078 | 0,874 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,037 | 0,230 |
| Depth (m) | 0,032 | 0,160 | 0,100 |
