SIMON 54 Triple switch with LED backlight (module) 10AX 230V white DW31L.01/11

Name: SIMON 54 Triple switch with LED backlight (module) 10AX 230V white
Brand: KONTAKT-SIMON
SKU: MMW023KONT
Price: 13.22 PLN

local index:

MMW023KONT

Catalog No:

DW31L.01/11

EAN code:

5902787854386

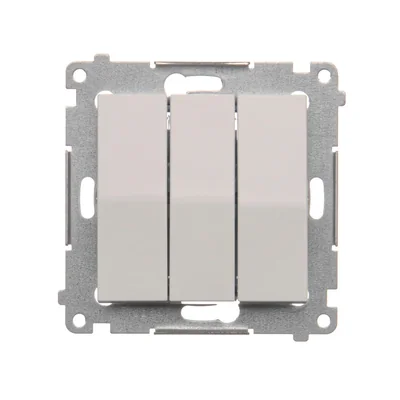

SIMON 54 Triple switch with LED backlight (module) 10AX 230V white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 34

Number of keys: 3

See full description

Price:

13,22 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Triple connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW31L.01/11.

FEATURES

3x1-pole connector ( bistable).
With built-in LED backlight (not replaceable).
Quick connectors.
Rocker switch.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. < strong>The triple connector characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

3
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Multi-key
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Depth [mm]

34
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

20
For the frame system

Yes
Backlight type

LED
PKWIU

27.33.11.0

Other technical data

Wiring system

Off switch 3x1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,067	0,067	0,760
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,040	0,230
Depth (m)	0,034	0,160	0,100
