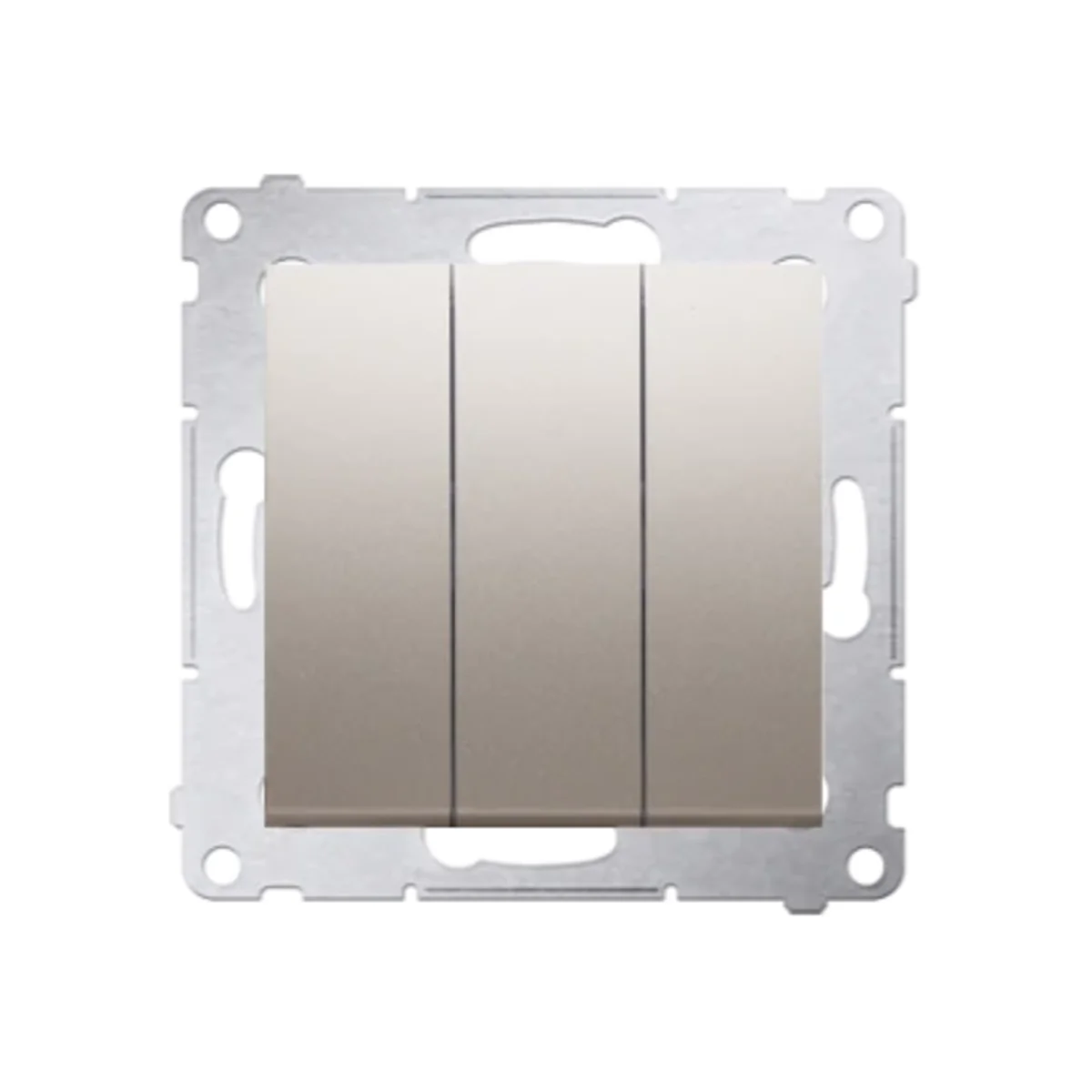

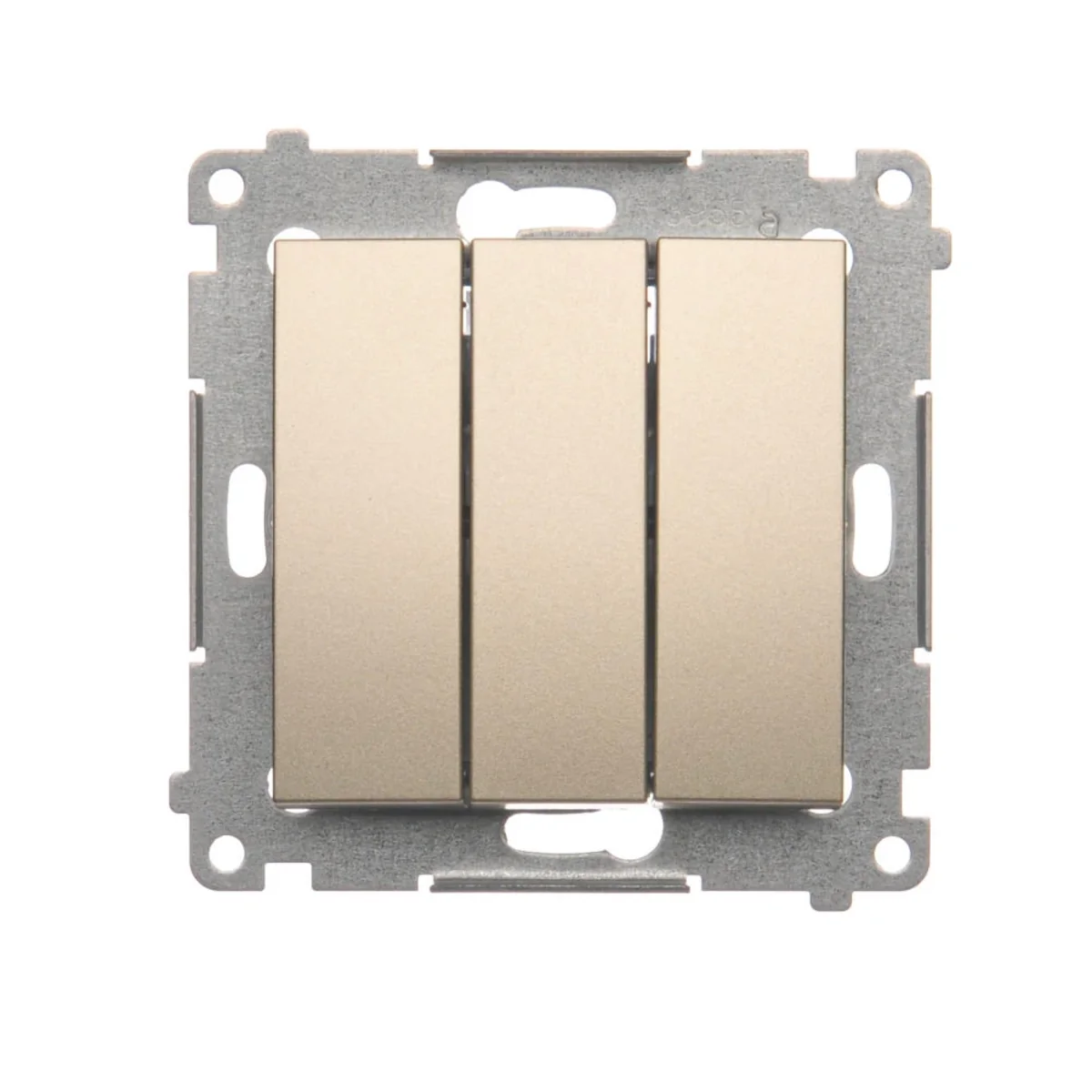

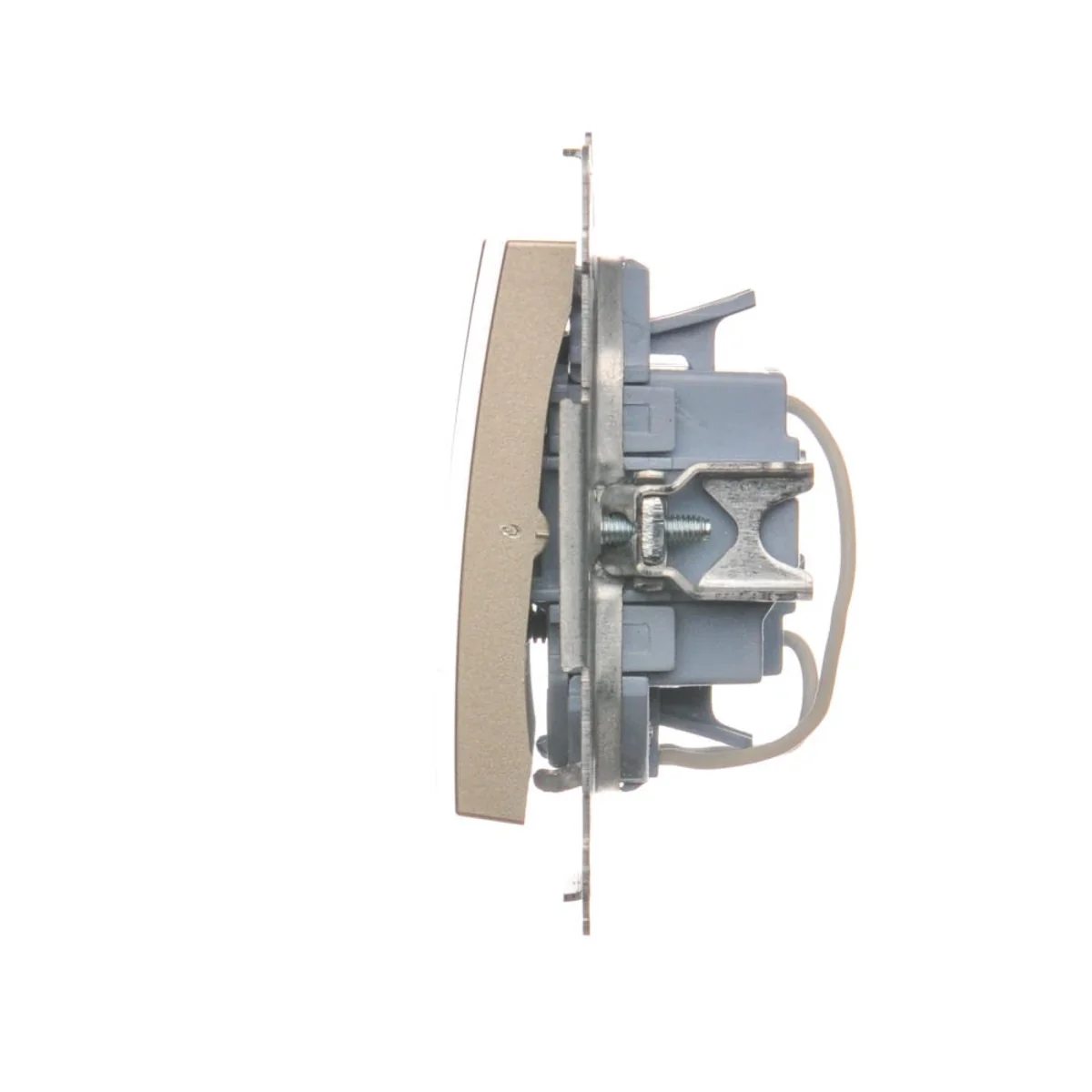

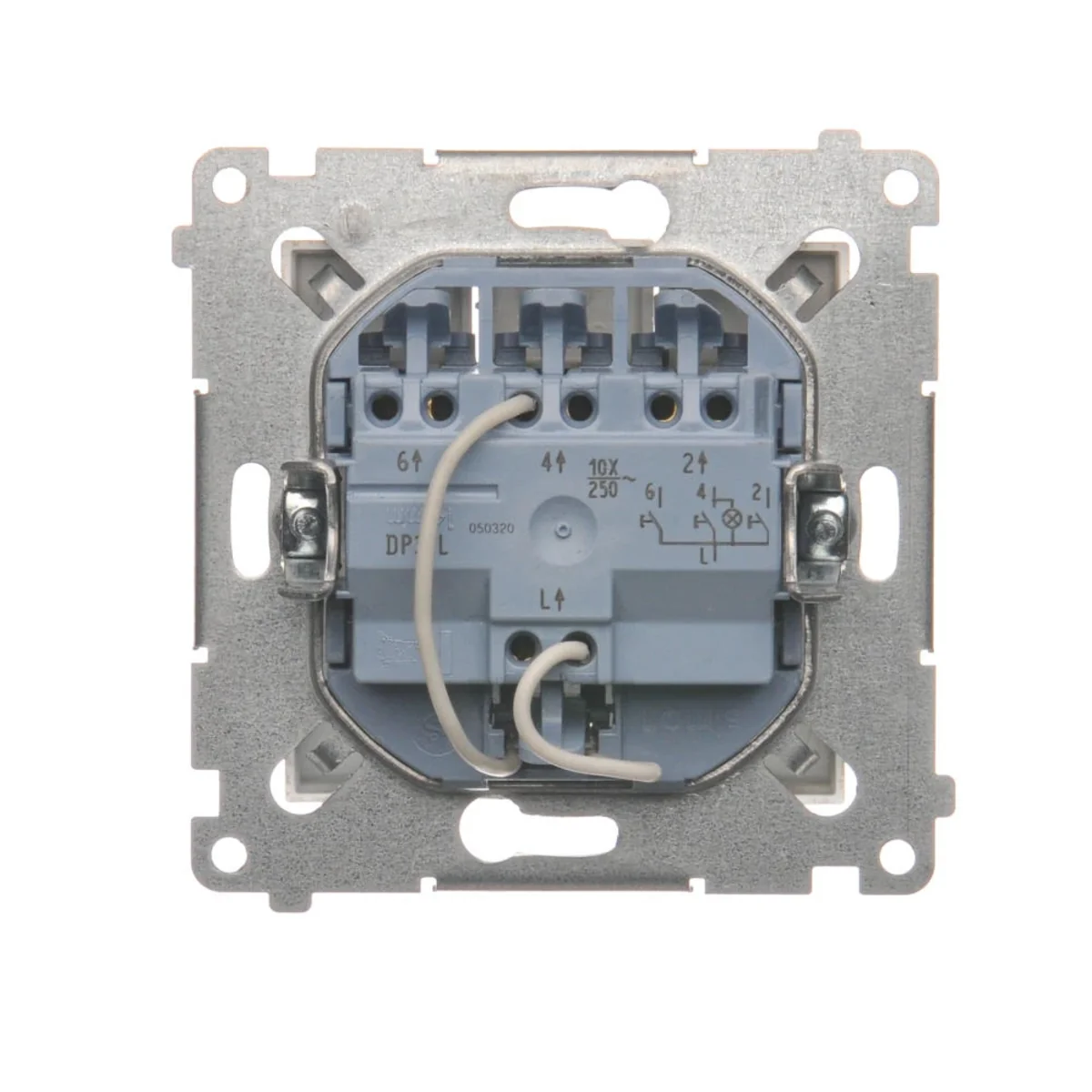

SIMON 54 Triple button with backlight (module) 10AX 250V quick connectors golden matt metallized DP31L.01/44

Místní index:
MMZ225KONT
Katalogové číslo.:
DP31L.01/44
EAN kód:
5902787857332
Výrobce: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 34
Number of keys: 3
Cena:
79,25 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Triple button with backlight, series Simon 54, from the manufacturer Contact Simon. Product catalog number it's DP31L.01/44. Gold matt, metallic colour.



FEATURES

  • Quick connectors.
  • 3x1-pole pushbutton (monostable)
  • Built-in LED backlight (non-replaceable), blue.



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.

Technické údaje

  • Halogen free
    Yes
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    Yes
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Depth [mm]
    34
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Gold metallic matt
  • Mounting depth [mm]
    20
  • Variant
    Ordinary
  • Exact material
    PC
  • Backlight color
    Blue

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Paczka Karton
Množství 1 kusů. 10 kusů.
Hmotnost (kg) 0,068 0,760
Šířka (m) 0,110 0,190
Délka (m) 0,040 0,230
Hloubka (m) 0,160 0,100
