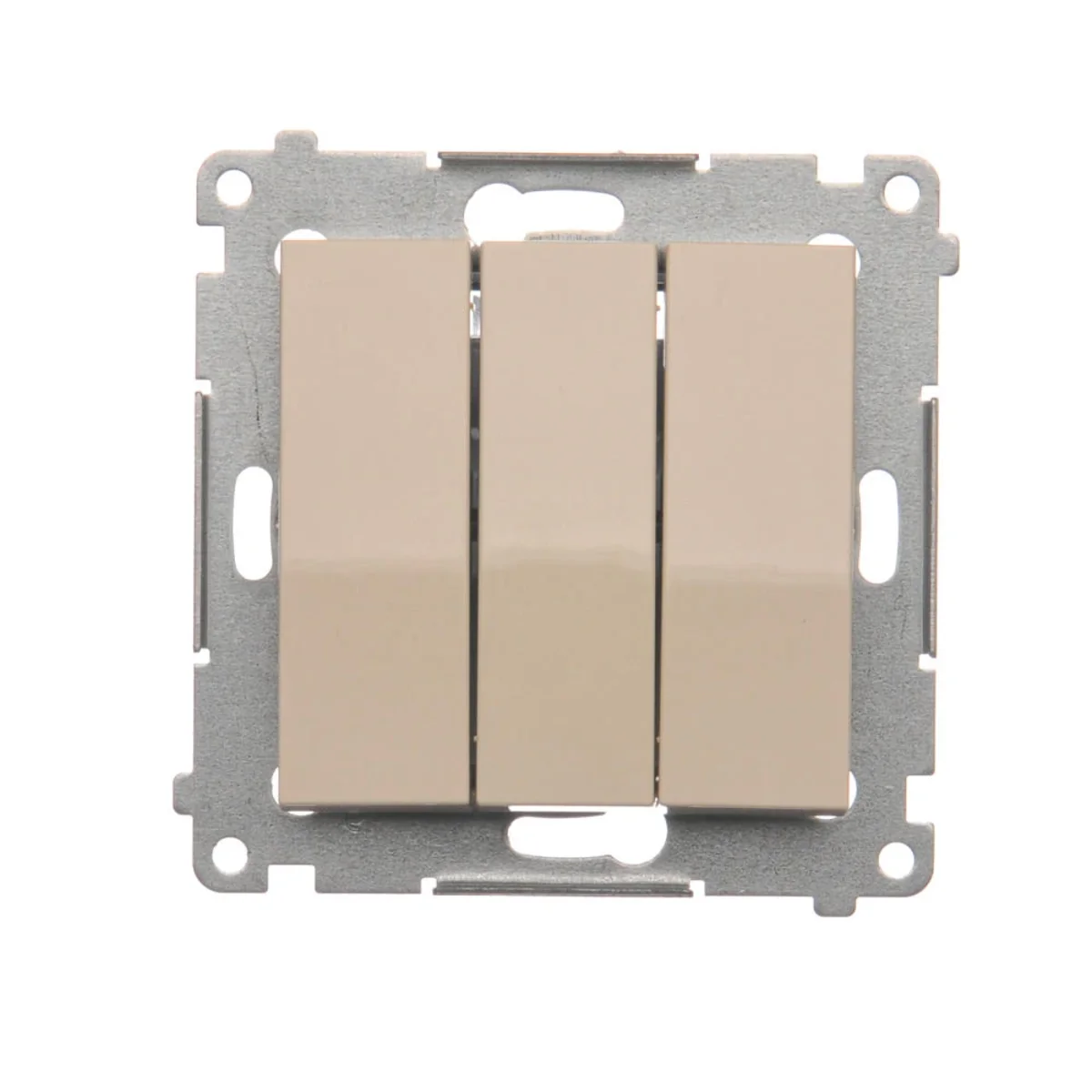

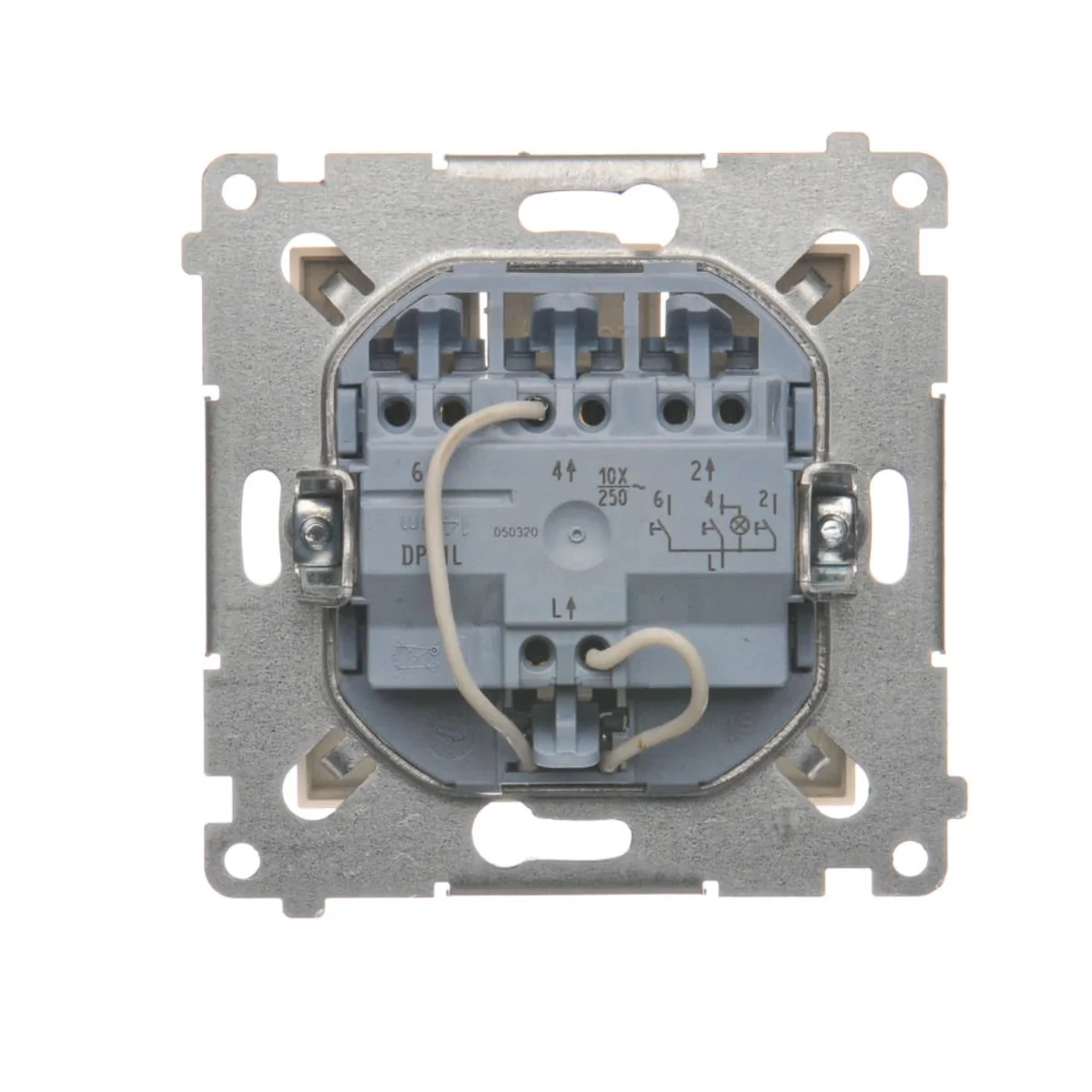

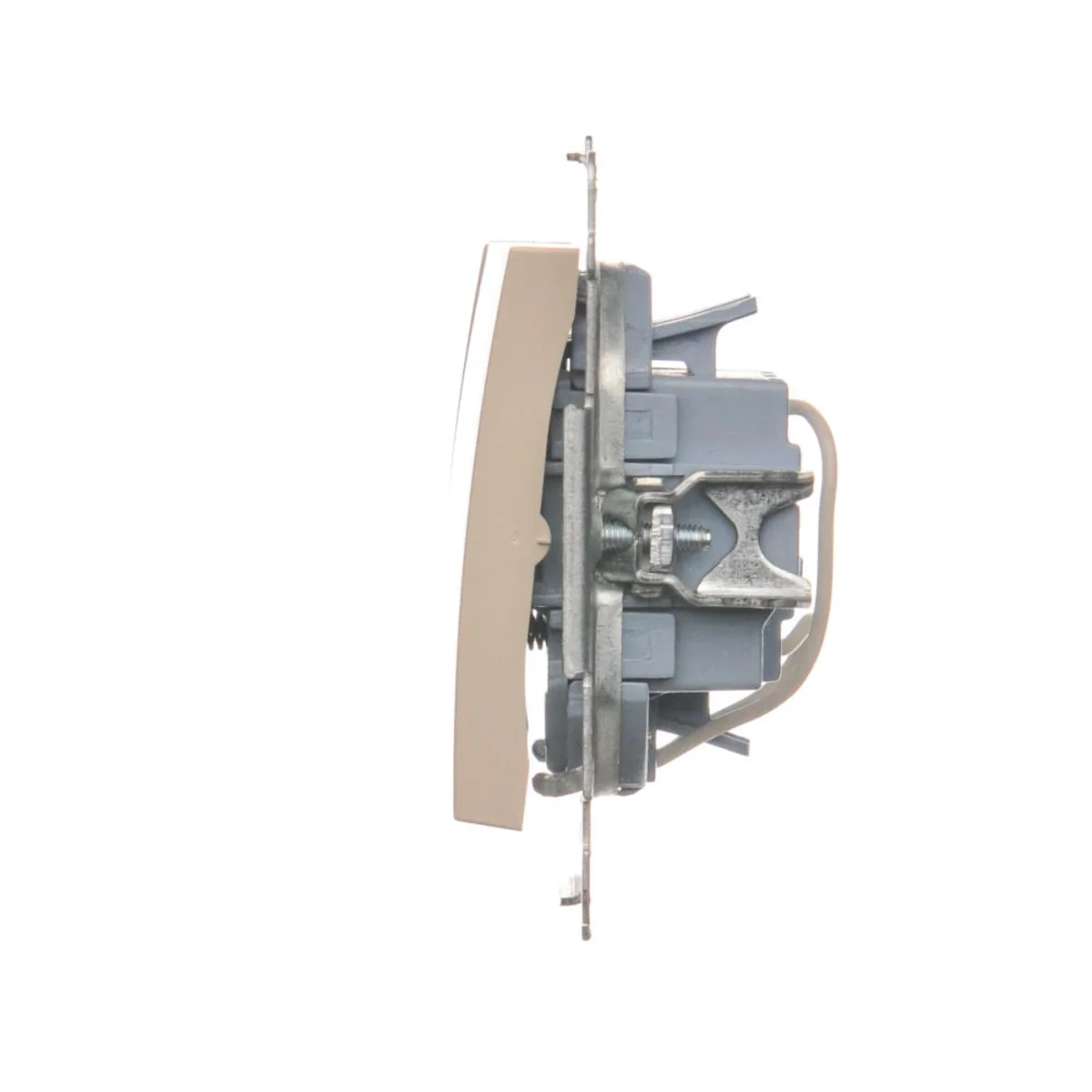

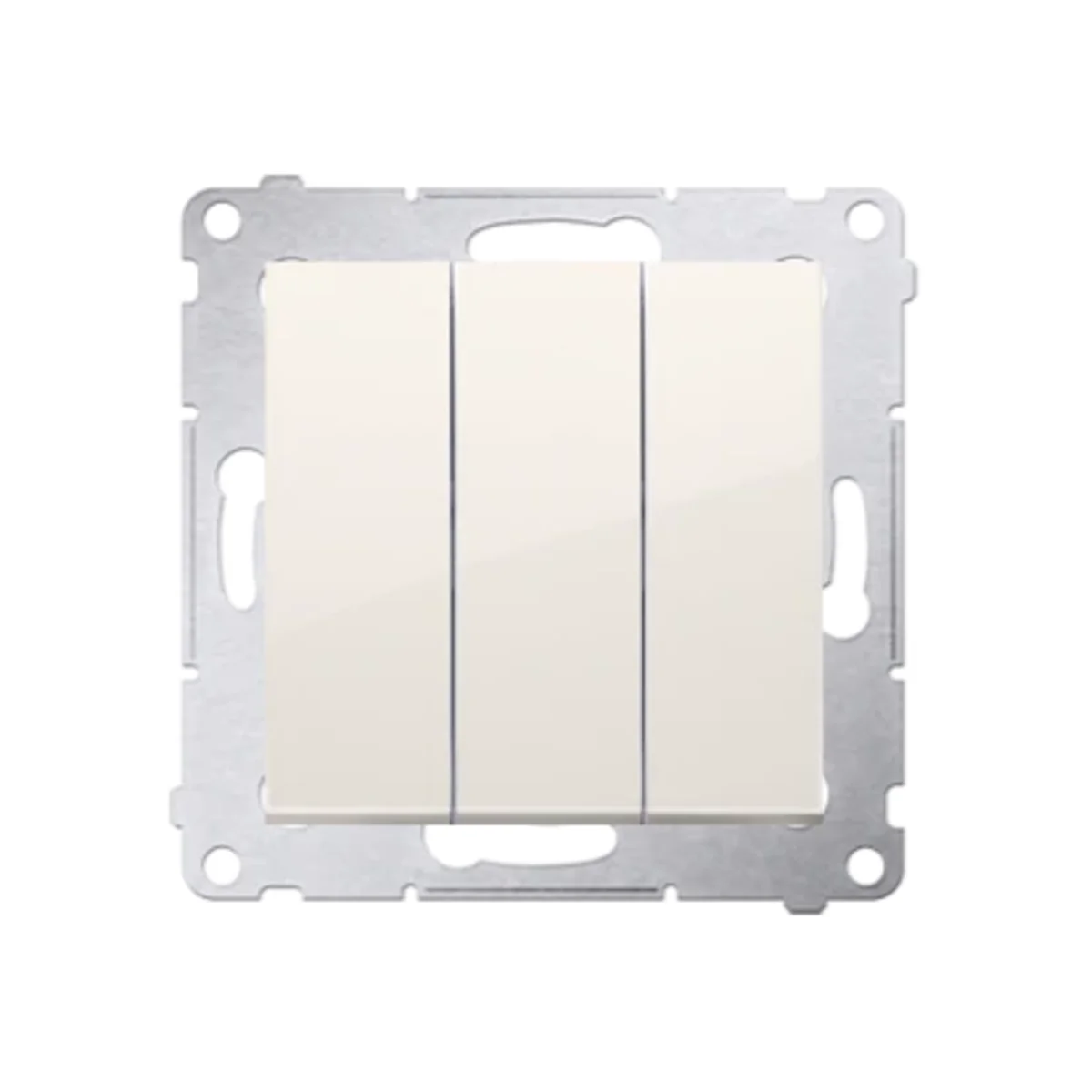

SIMON 54 Triple button with backlight (module) 10AX 250V quick connectors cream DP31L.01/41
local index:
MMZ223KONT
Catalog No:
DP31L.01/41
EAN code:
5902787857318
Price:
13,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Triple button with backlight, series Simon 54, from the manufacturer Contact Simon. Product catalog number it's DP31L.01/41. Cream color.
FEATURES
- Quick connectors.< /li>
- 3x1-pole pushbutton (monostable)
- Built-in LED backlight (non-replaceable), blue.
SERIES DESCRIPTION
SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.
Technical data
-
Halogen freeYes
-
Number of keys3
-
ShapeSquare
-
FixingScrews
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]75
-
Surface finishShiny
-
BacklightYes
-
Terminal typeThreadless
-
For the frame systemYes
-
Backlight typeLED
-
PKWIU27.33.11.0
-
Depth [mm]34
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySimon 54
-
Width [mm]75
-
VersionConfident
-
Surface protectionNatural
-
Accurate colorCreamy
-
Mounting depth [mm]20
-
VariantOrdinary
-
Exact materialPC
-
Backlight colorBlue
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,068 | 0,068 | 0,760 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,040 | 0,230 |
| Depth (m) | 0,034 | 0,160 | 0,100 |
