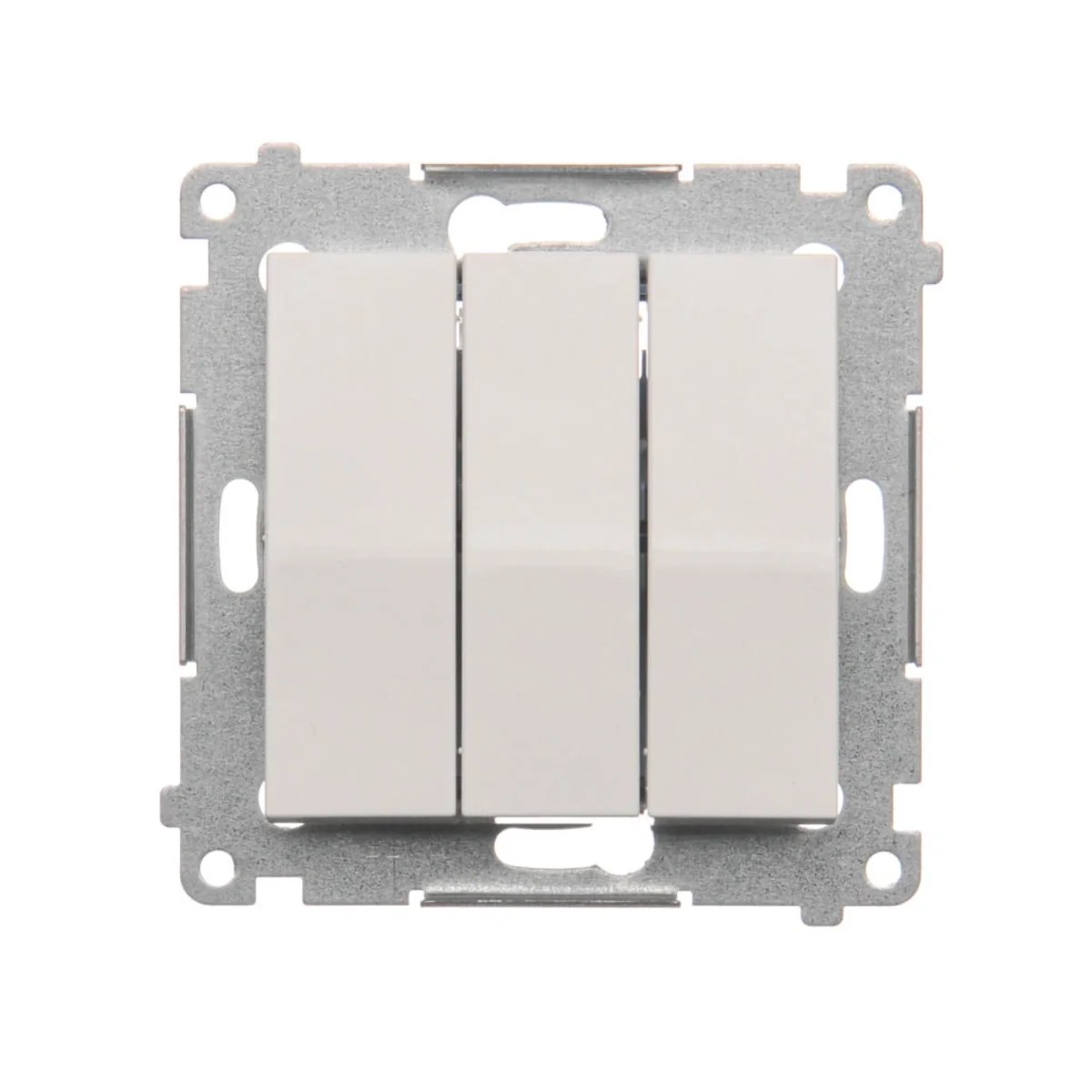

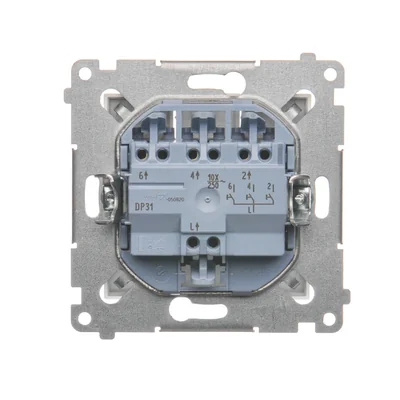

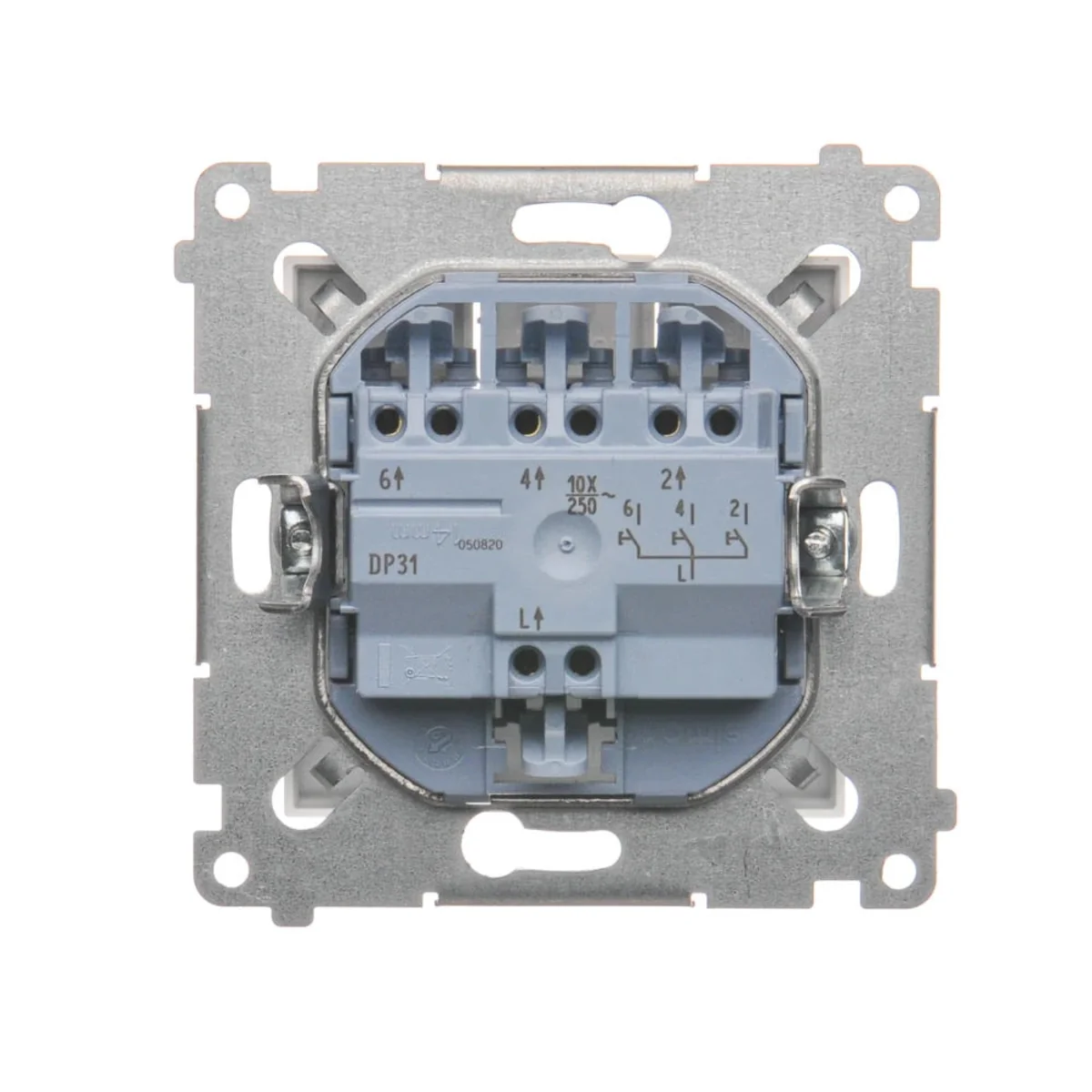

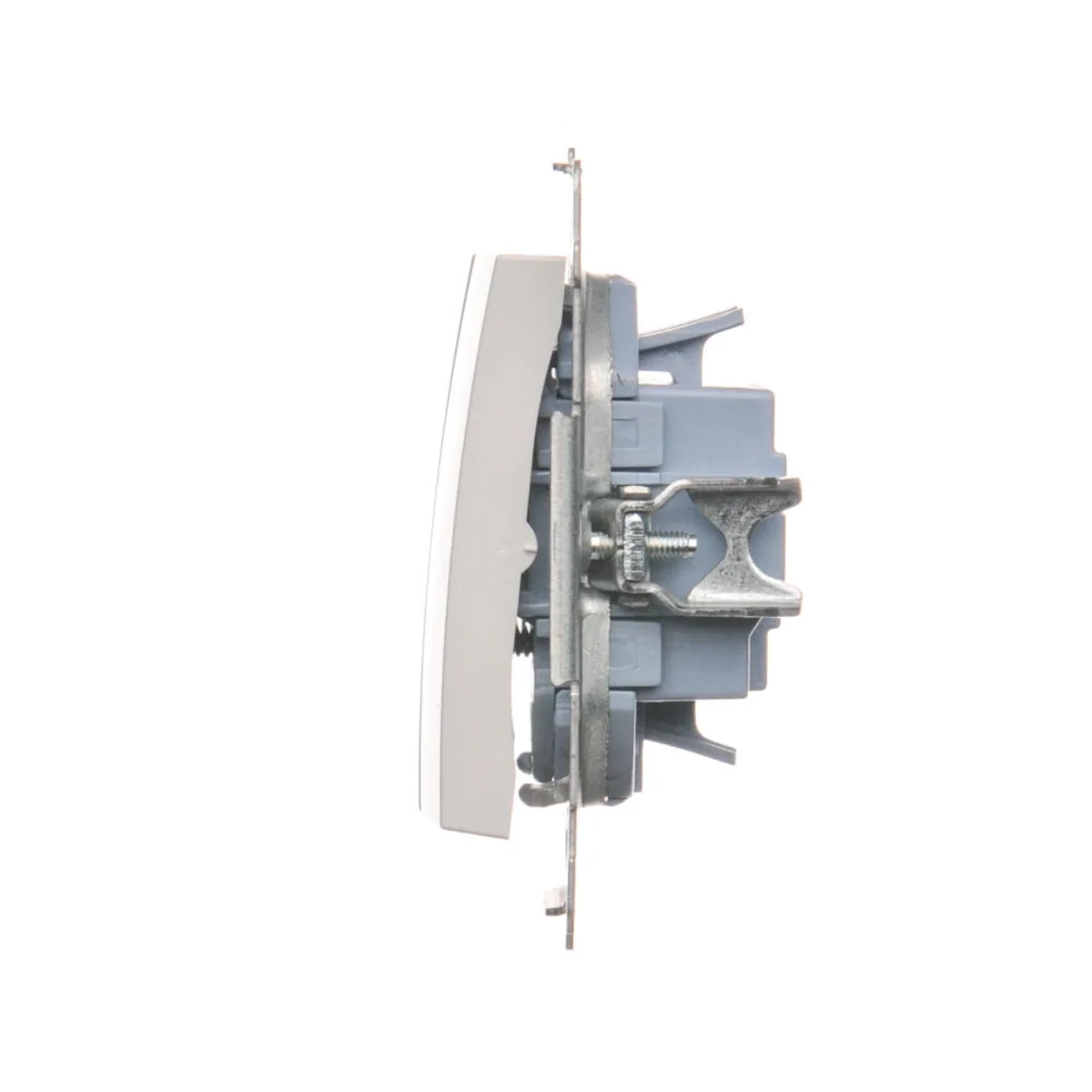

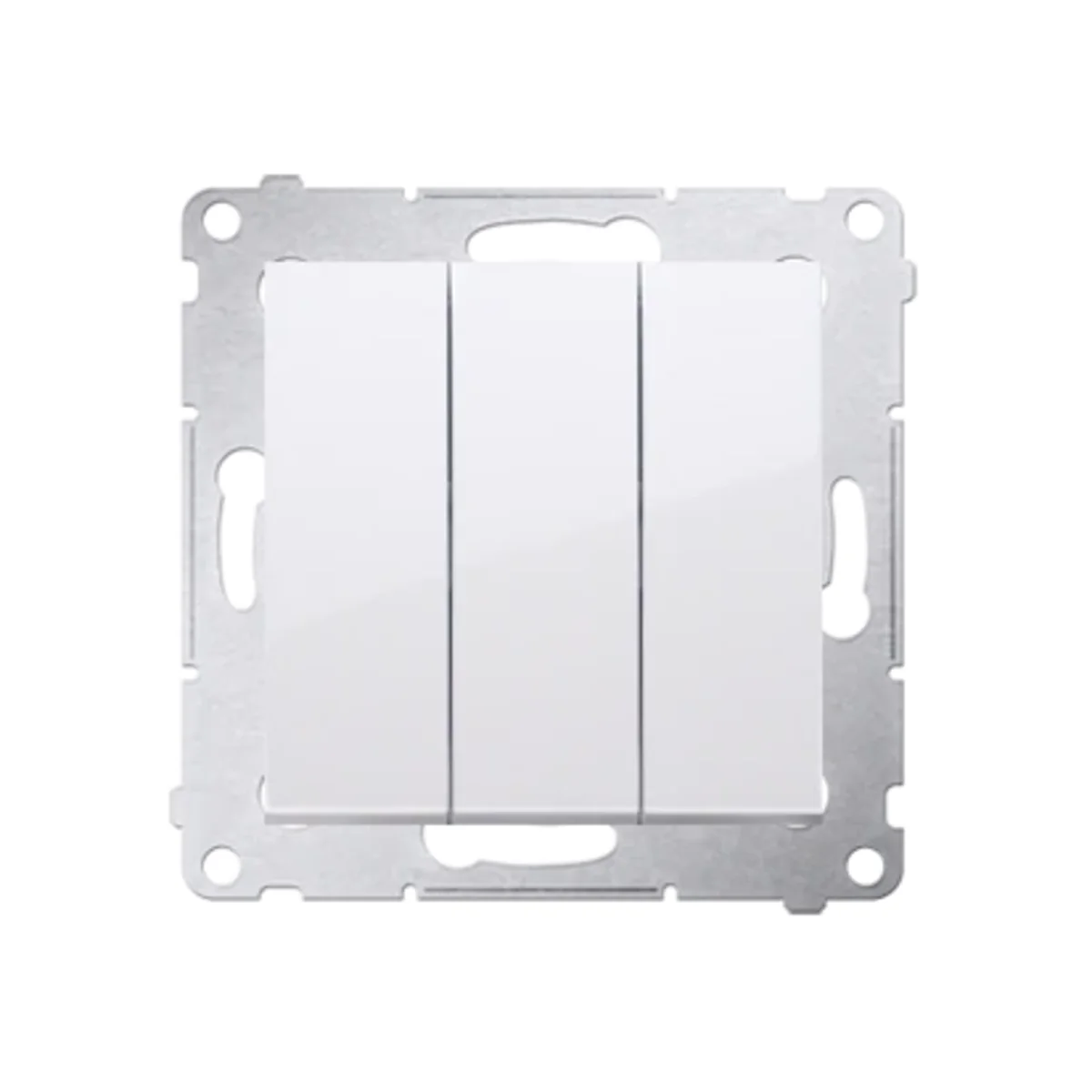

SIMON 54 Triple button (module) 10AX 250V white DP31.01/11

local index:
MMZ216KONT
Catalog No:
DP31.01/11
EAN code:
5902787857240
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 34
Number of keys: 3
Price:
11,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Triple button Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DP31.01/11. In white.



FEATURES

  • Quick connectors.
  • 3x1-pole pushbutton (monostable).



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    20
  • Variant
    Ordinary
  • Exact material
    PC
  • Depth [mm]
    34
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 10 pcs. 1 pcs.
Weight (kg) 0,066 0,740 0,066
Width (m) 0,110 0,190 0,075
Length (m) 0,040 0,230 0,075
Depth (m) 0,160 0,100 0,034
