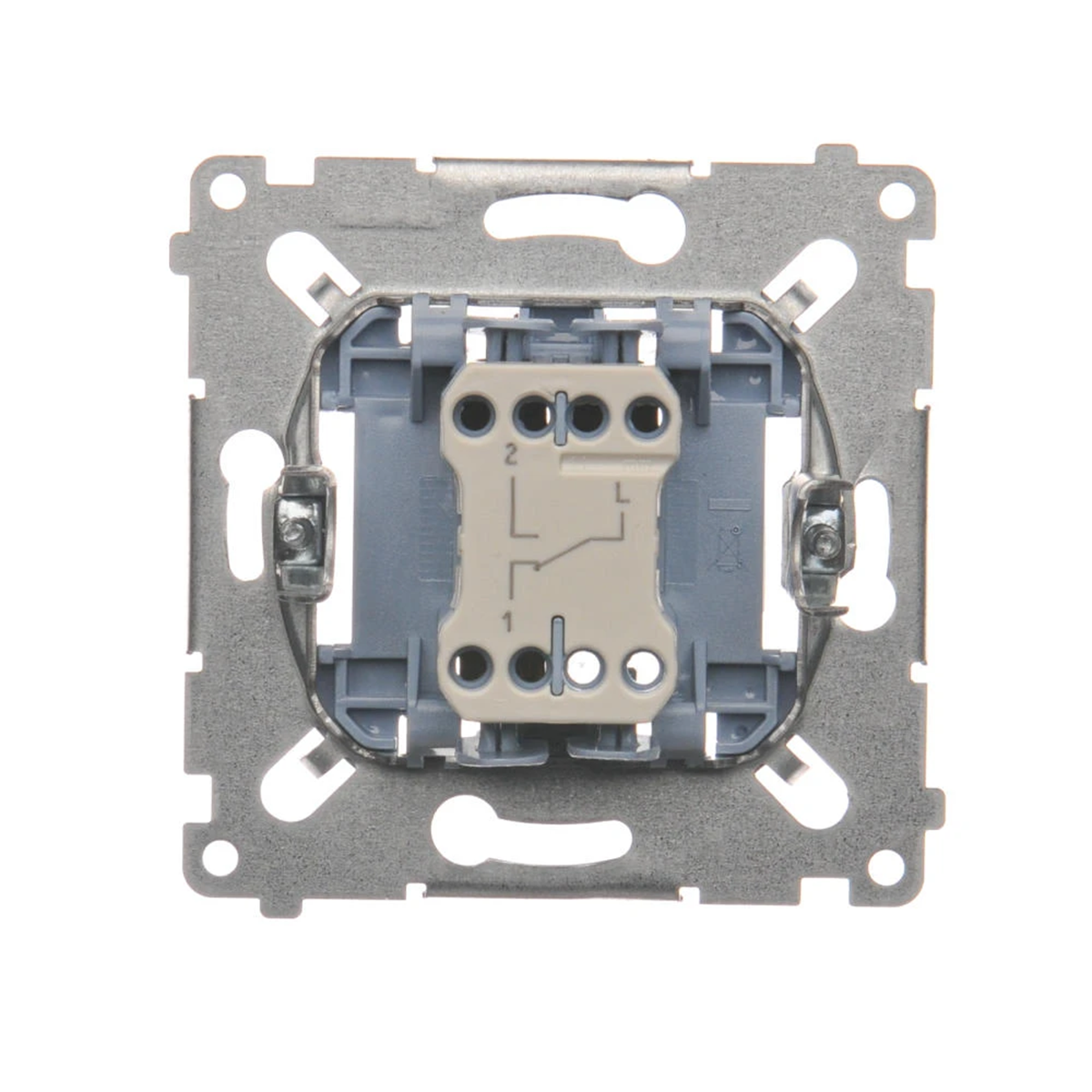

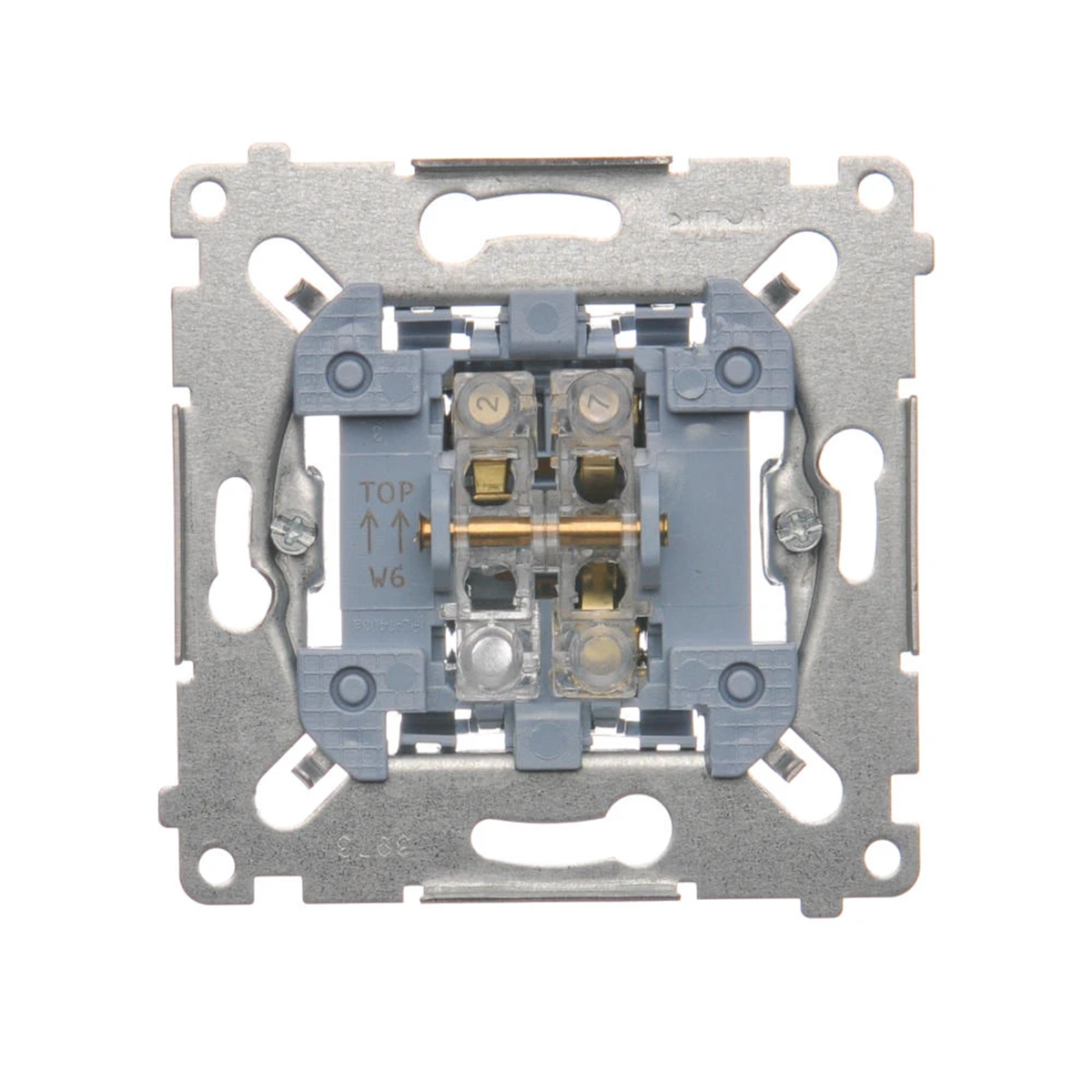

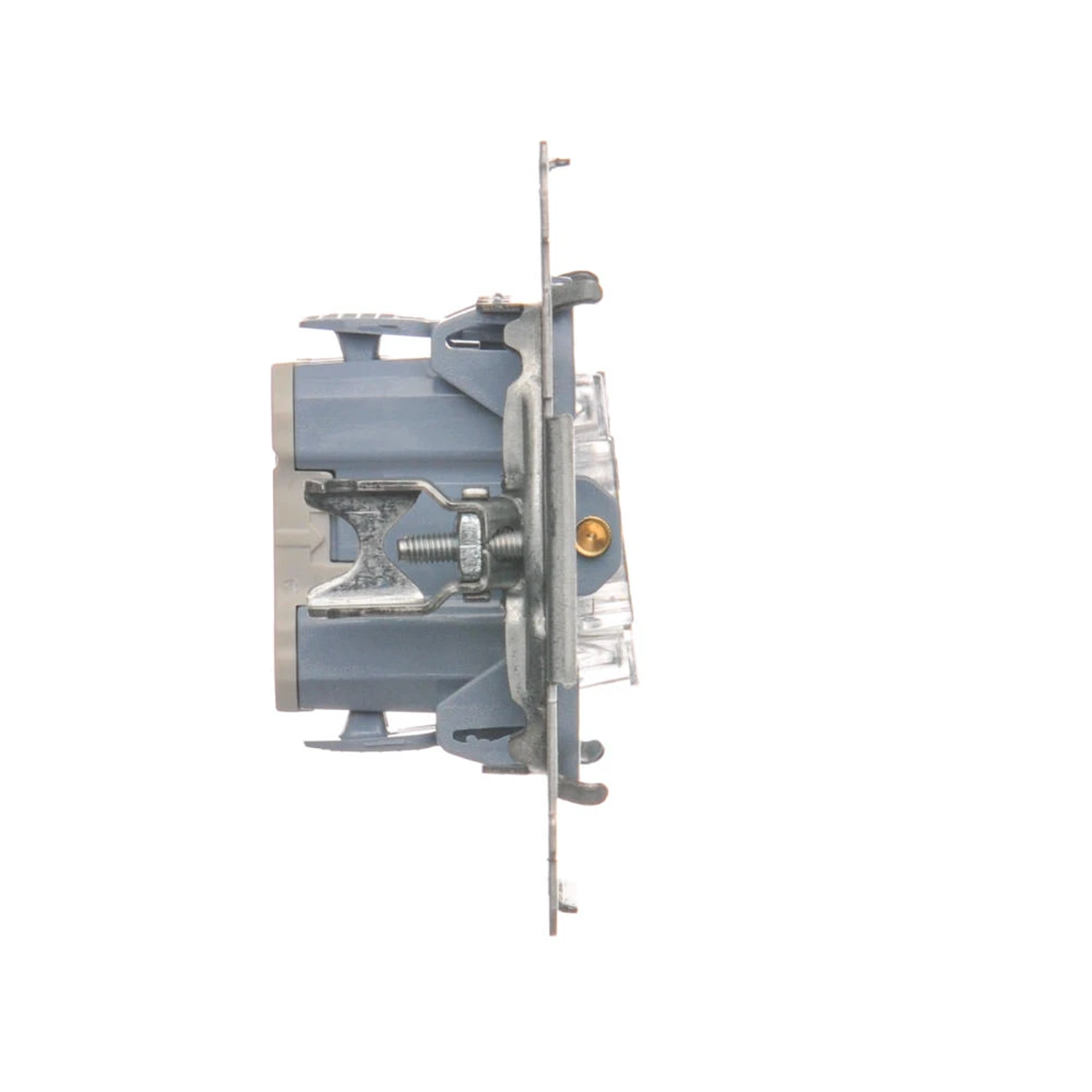

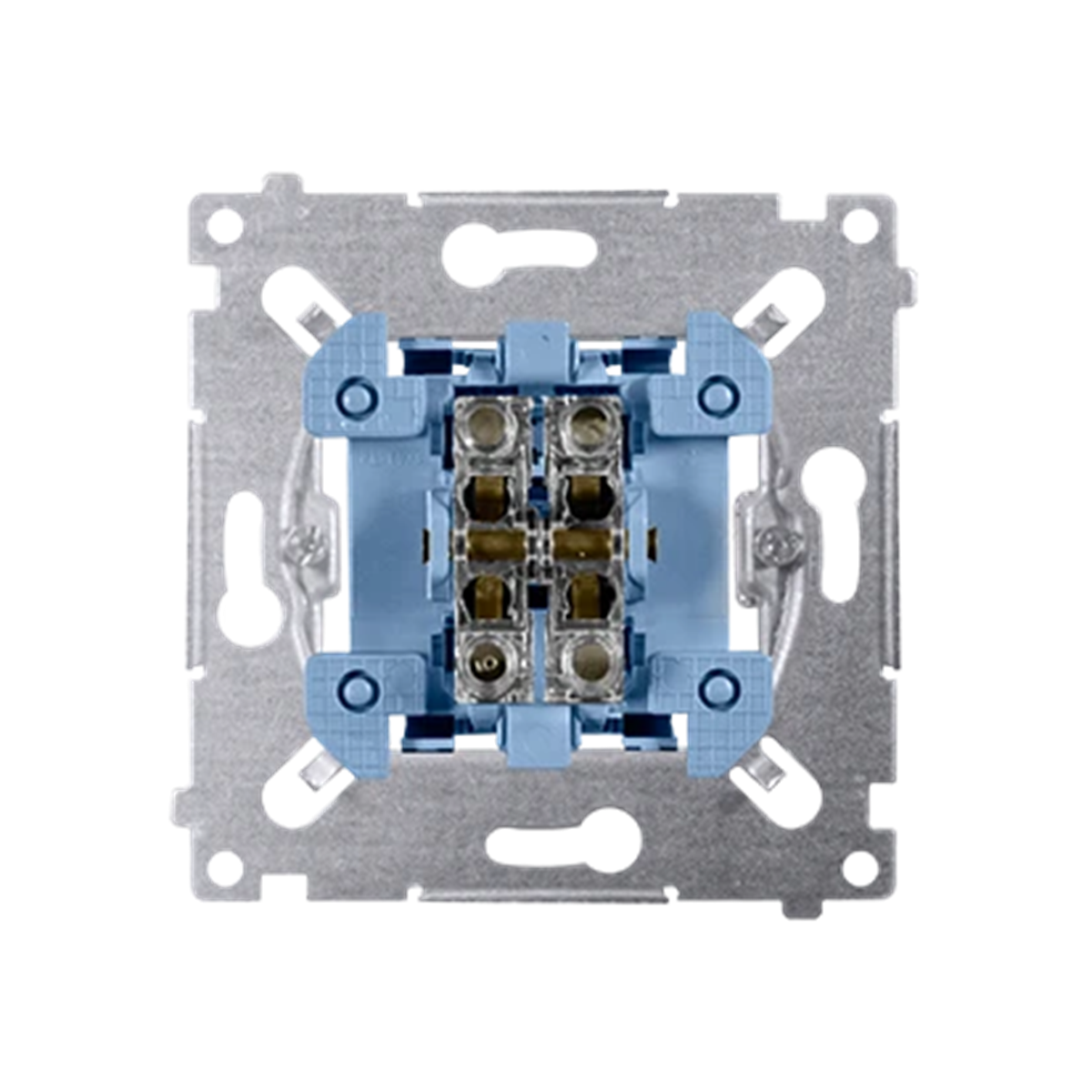

Name: SIMON 54 Stair switch (mechanism) 10AX 230V
Brand: KONTAKT-SIMON
SKU: MPS013KONT
Price: 4.70 PLN

Stair switch mechanism from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is SW6M.

FEATURES:

Quick connectors.
To obtain a product with a backlight, you must additionally purchase the "DUL - 1 pc" backlight system.
To obtain IP44 splash-proof class, use a frame gasket.
Dedicated to: DKW1/. single key - 9 colors, DKW1/AB11 single key - antibacterial white, DKW1L/.. single key with eyelet - 6 colors, DKW1L/AB11 single push button with eyelet - Antibacterial white.
Optional backlight, not included.
Toggle switch.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Mechanism of the stair connector characterize the features of this unique series.

Depth [mm]

32
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

stairs
Level of security

IP20
Type

The linkage mechanism
Surface protection

Natural
Mounting depth [mm]

26
For the frame system

Yes

Number of keys

1
Material

Metal
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Backlight

NO
Terminal type

Threadless
PKWIU

27.33.11.0

Other technical data

Wiring system

Two-way switch
Assembly arrangement

Basic element
Material

Metal
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Surface protection

Untreated
Nominal voltage

250 V
Connection type

Push-in clamp

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,053	0,053	0,620
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,037	0,230
Depth (m)	0,032	0,160	0,100
