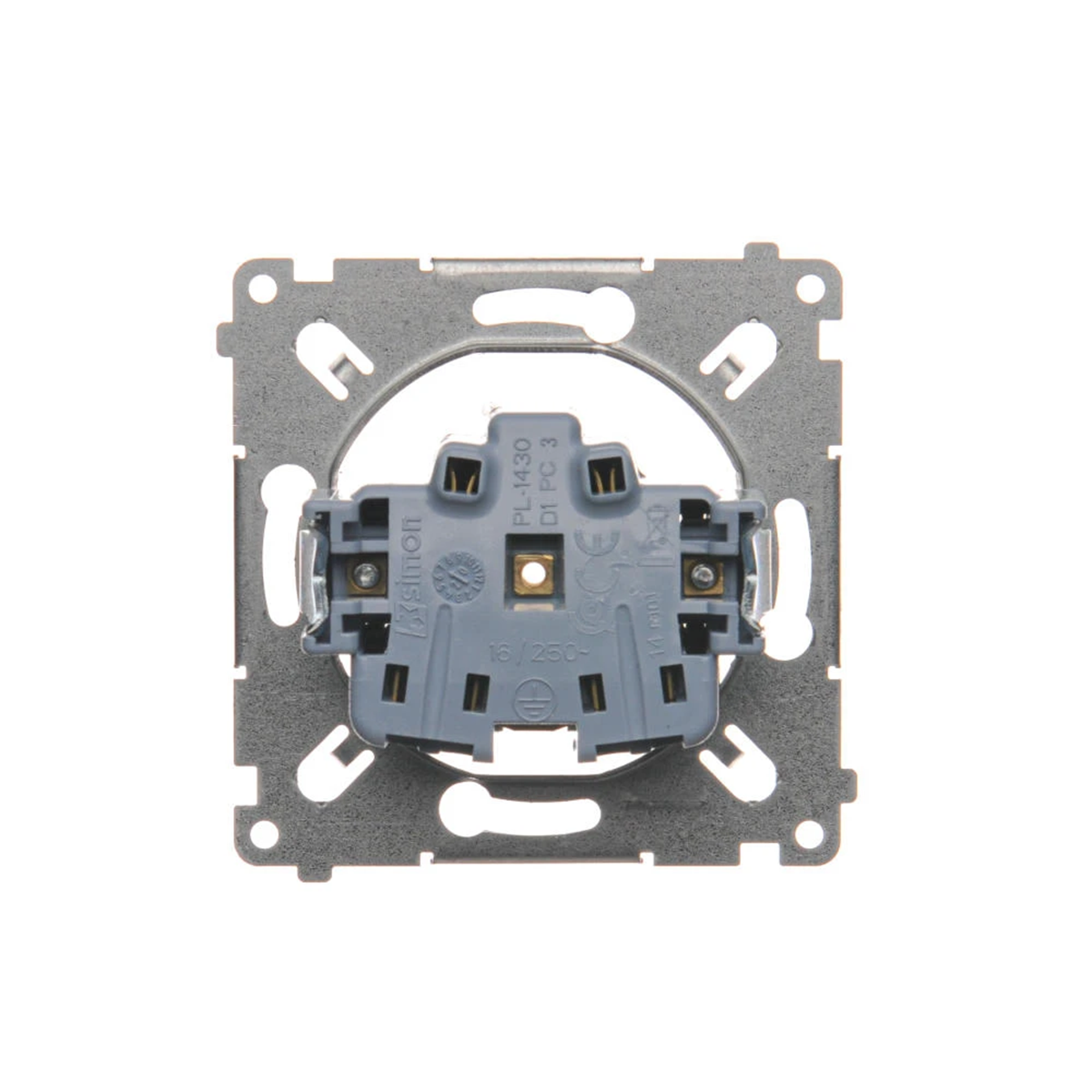

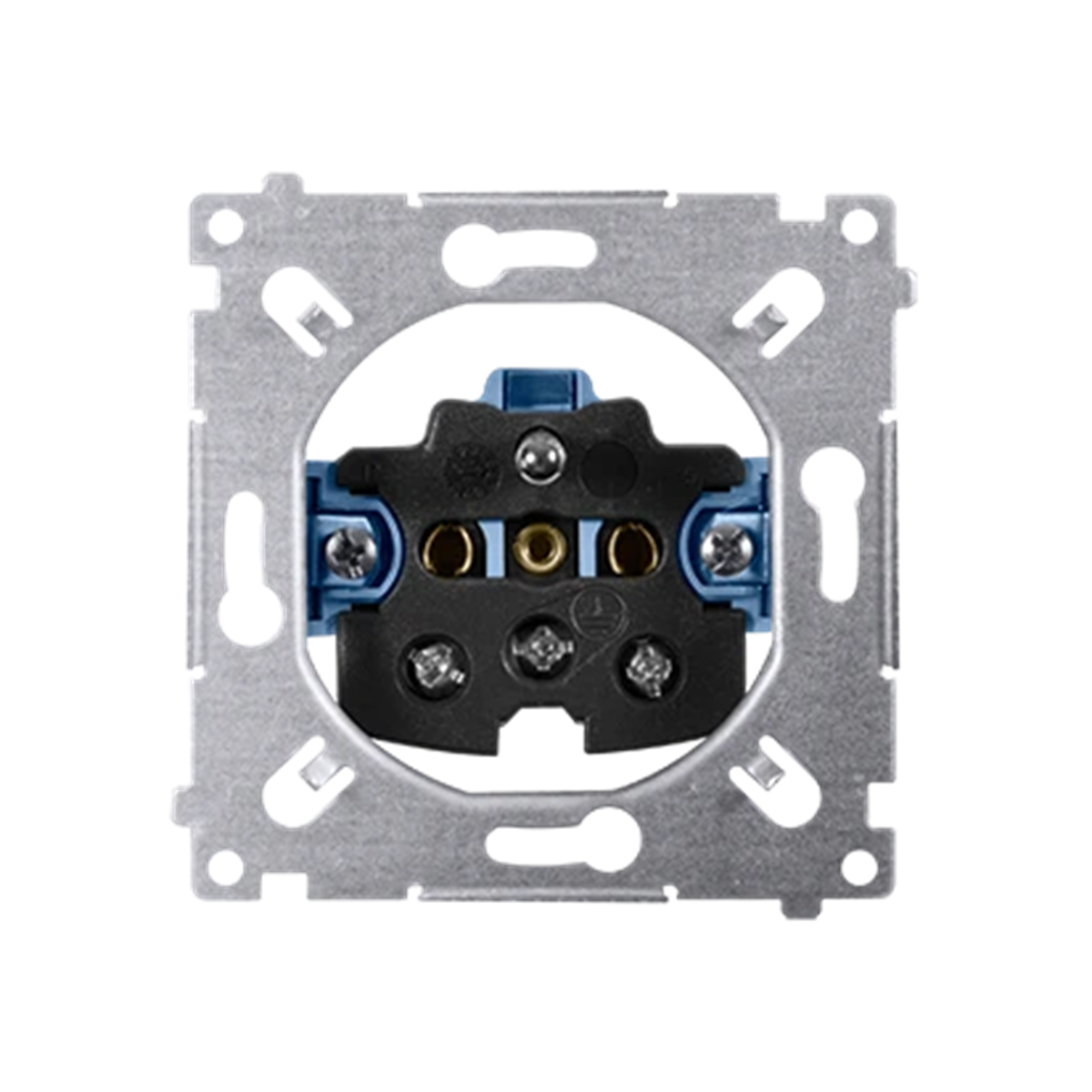

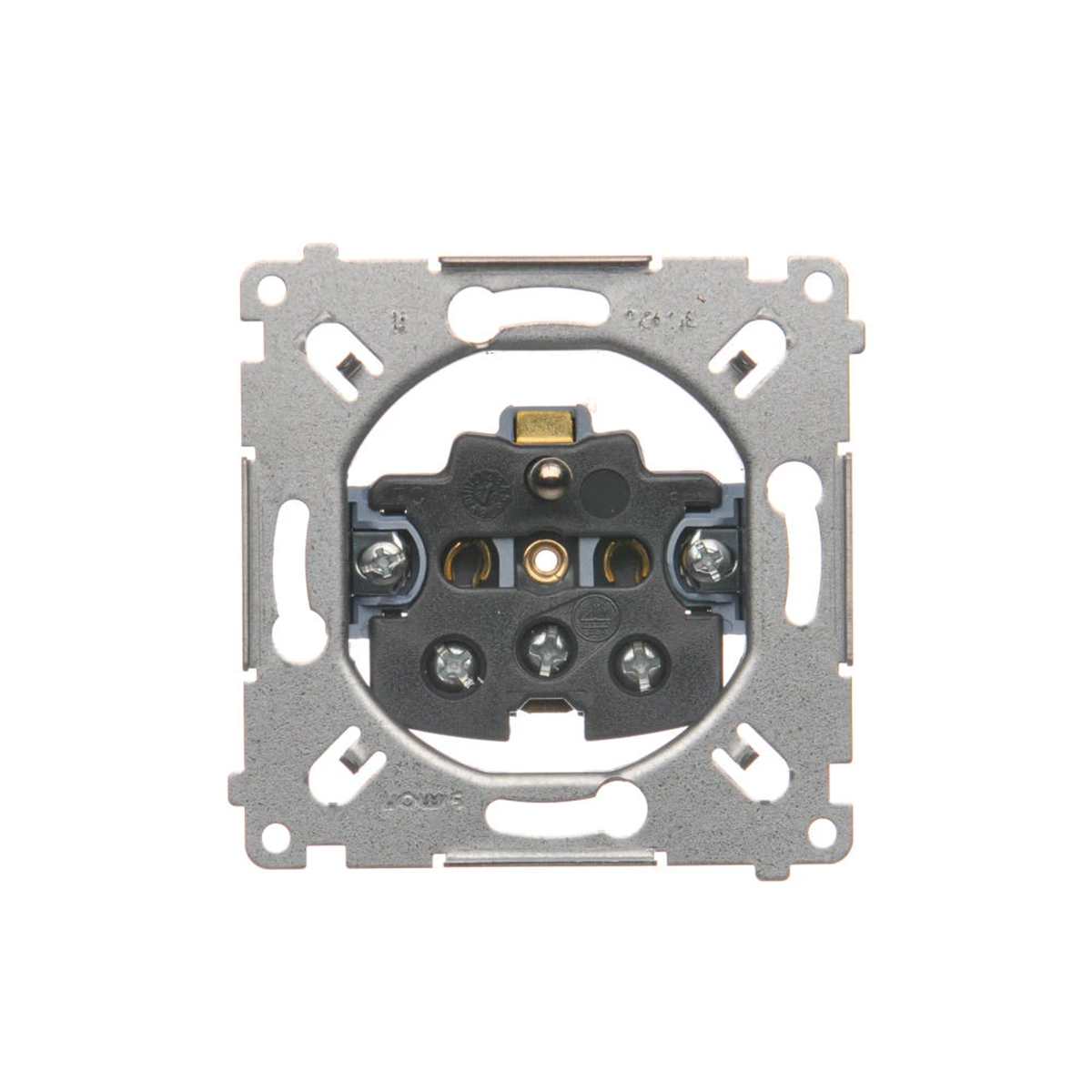

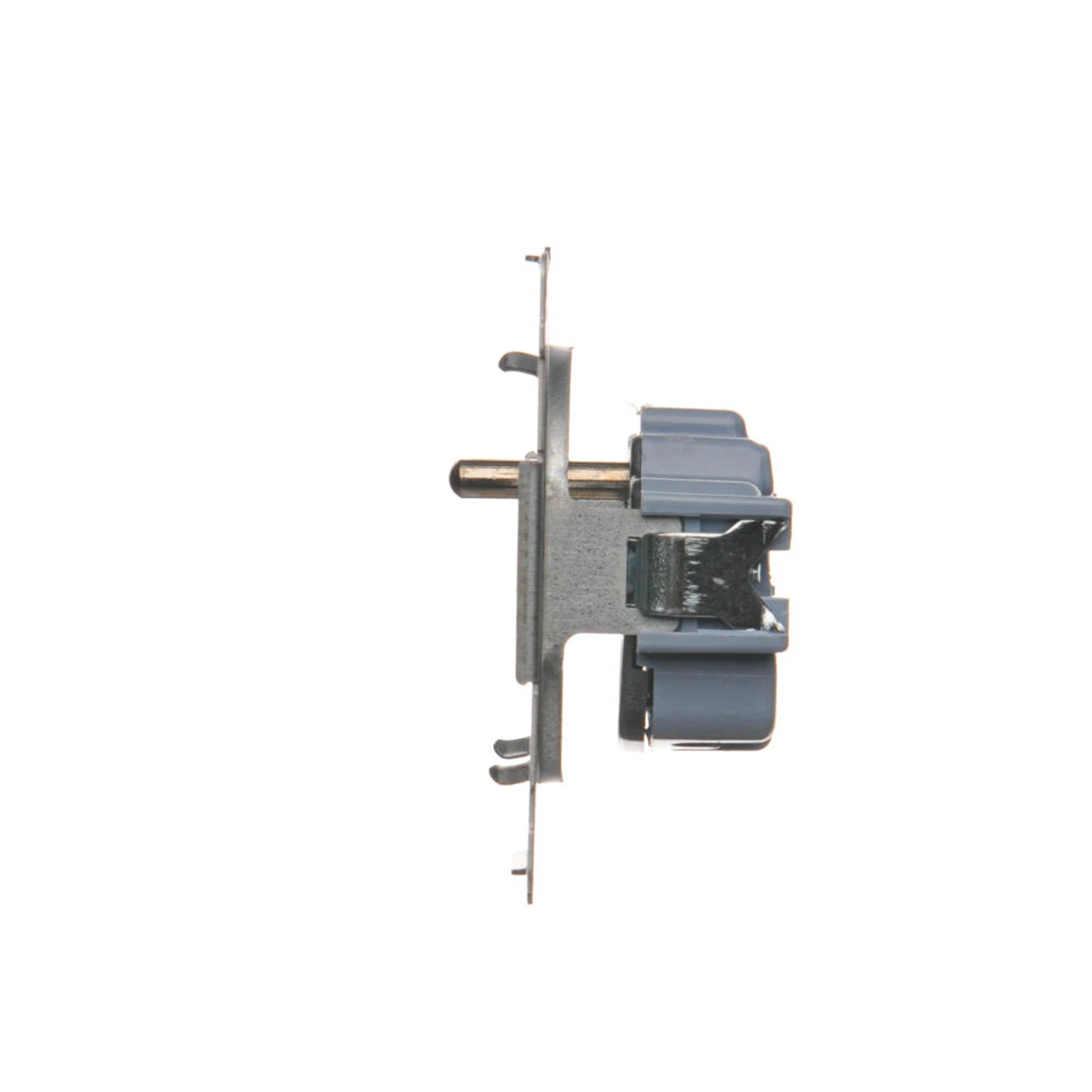

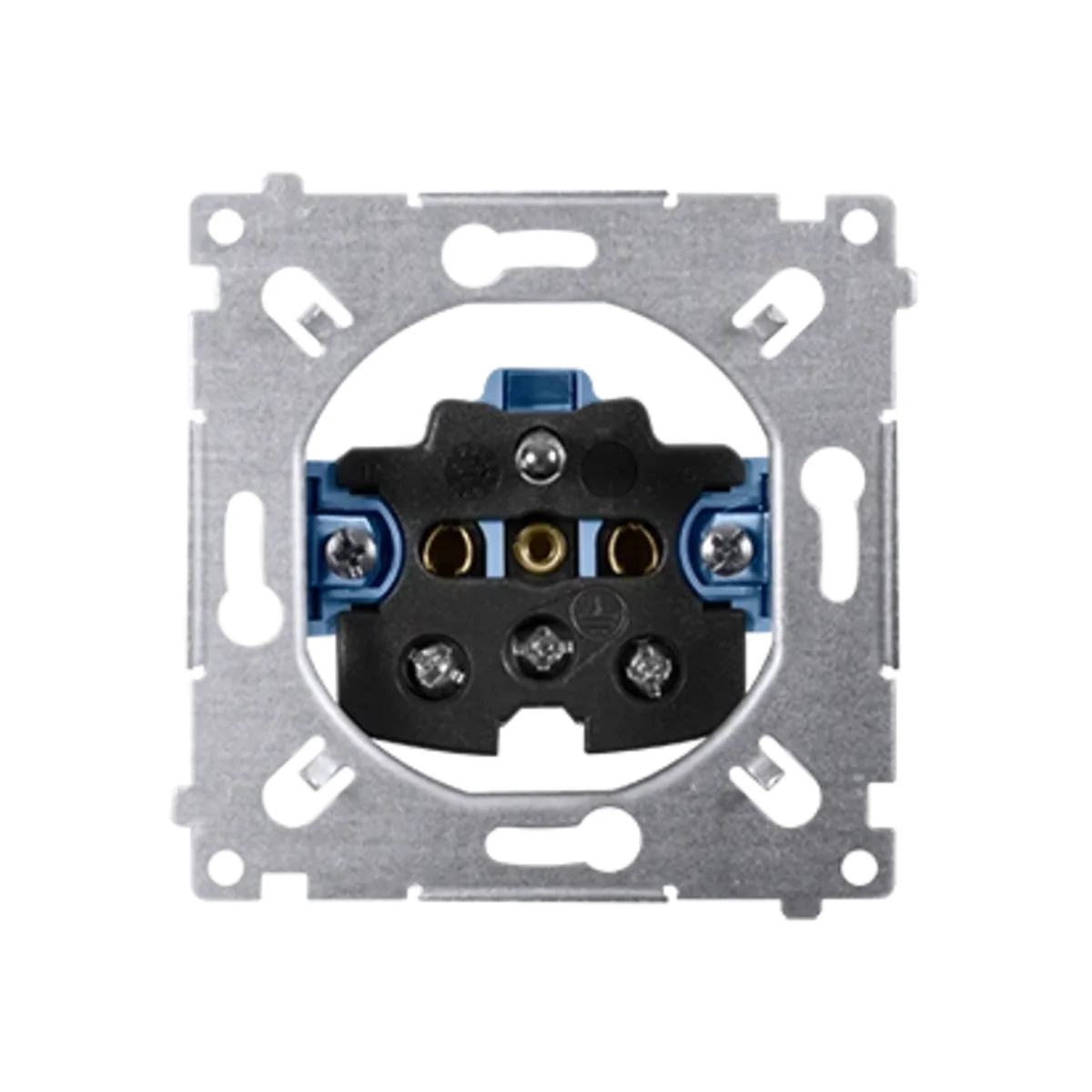

SIMON 54 Single socket-outlet with grounding (mechanism) 46A, 250V SGZ1M

local index:
MJE015KONT
Catalog No:
SGZ1M
EAN code:
5902787847029
Manufacturer: KONTAKT-SIMON
Number of sockets: 1
Shape: Square
Material: Metal
Price:
3,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket mechanism from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is SGZ1M.



FEATURES

  • Single socket.
  • Grounded; ground pin.
  • Screw terminals.
  • Rated current 16 A.
  • Rated voltage 230 V.
  • Dedicated to: DGZ1ZP/AB11 single socket cover with grounding - antibacterial white, DGZ1ZP/.. single socket cover with grounding - various colours.
  • < /ul>



    SERIES DESCRIPTION

    SIMON 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Electric socket mechanism characterizes the features of this unique series.

Technical data

  • Number of sockets
    1
  • Material
    Metal
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Socket mechanism
  • Height [mm]
    75
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Shape
    Square
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 54
  • Width [mm]
    75
  • Ground
    Hurt
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Width (m) 0,075 0,110 0,190
Length (m) - - 0,230
Depth (m) 0,075 0,160 0,100
