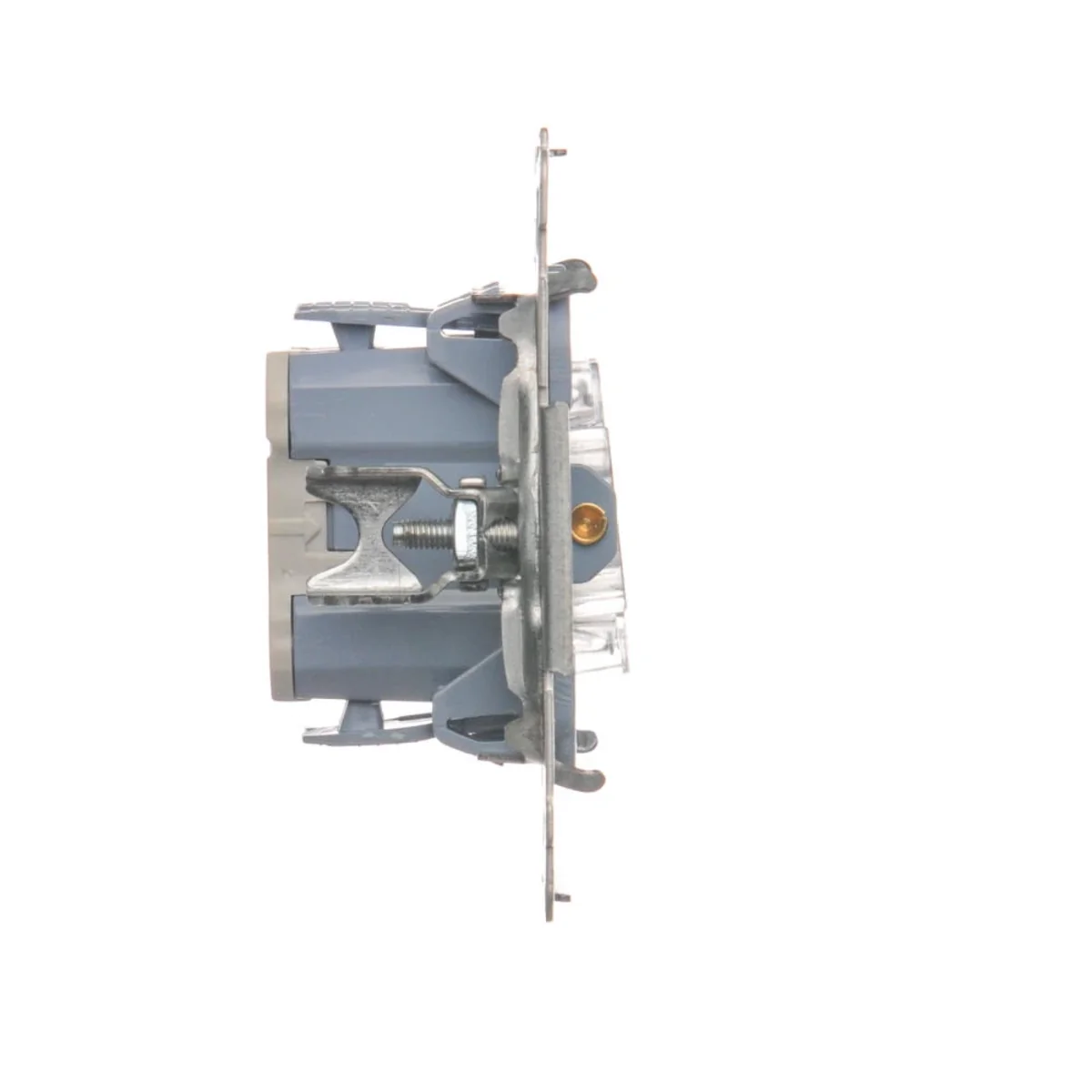

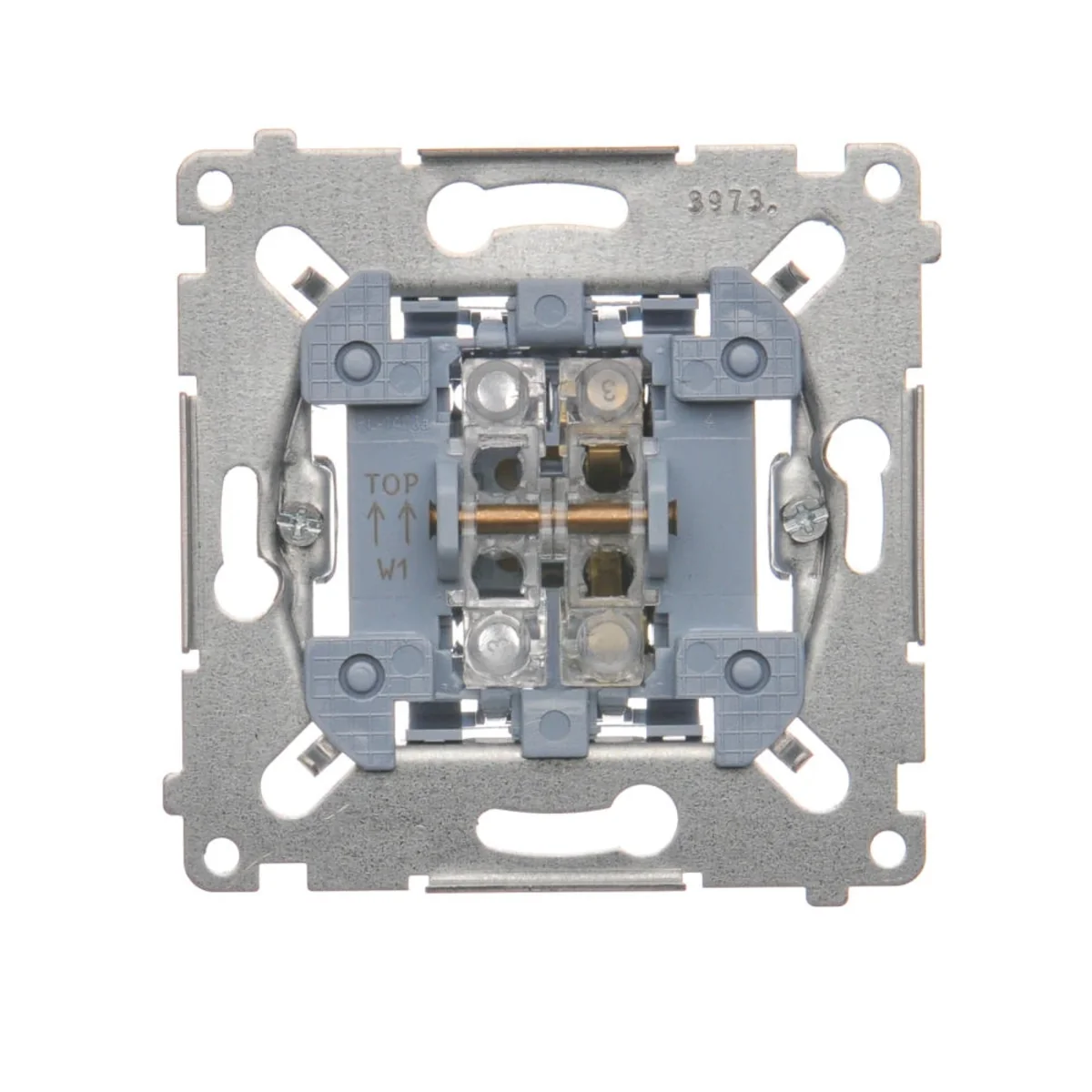

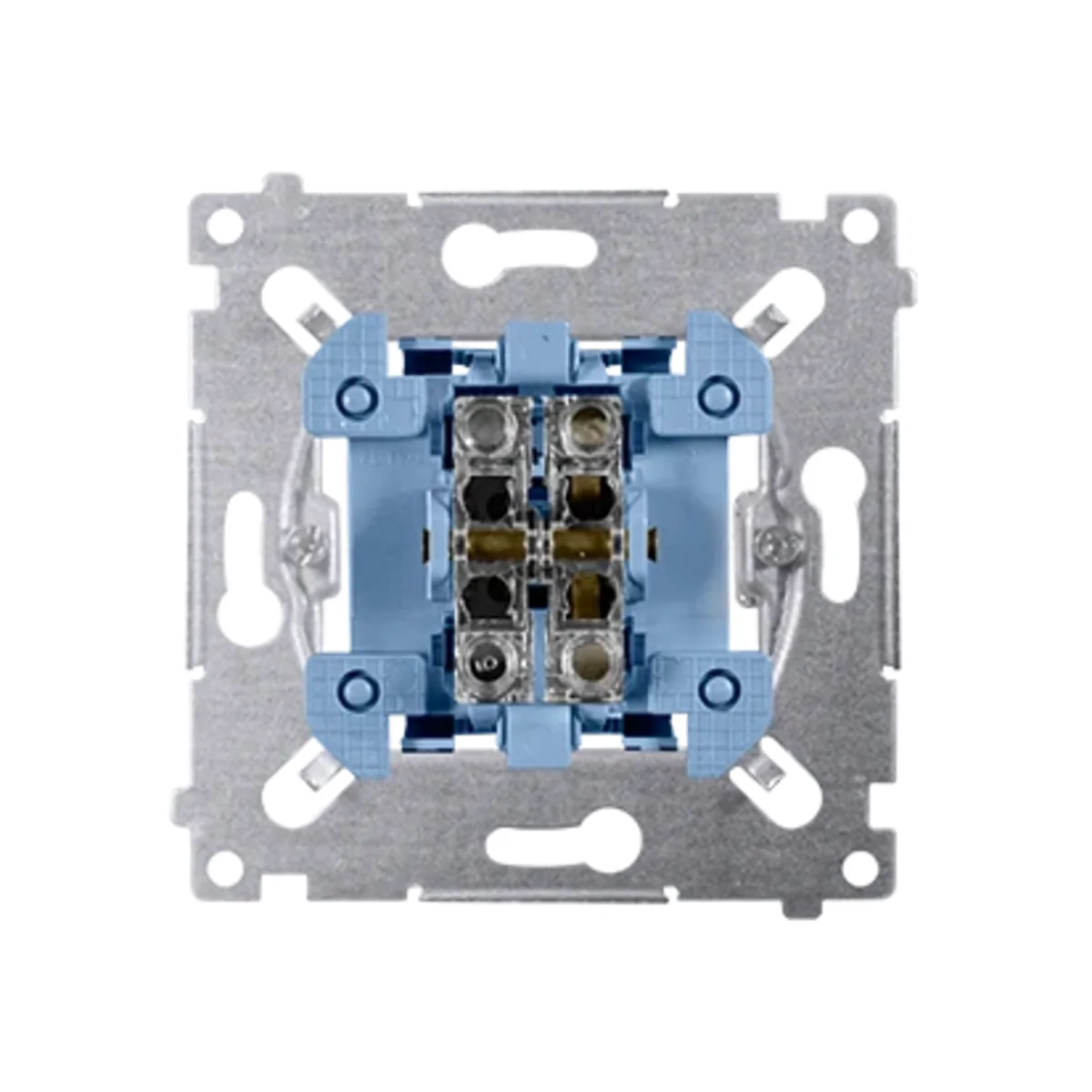

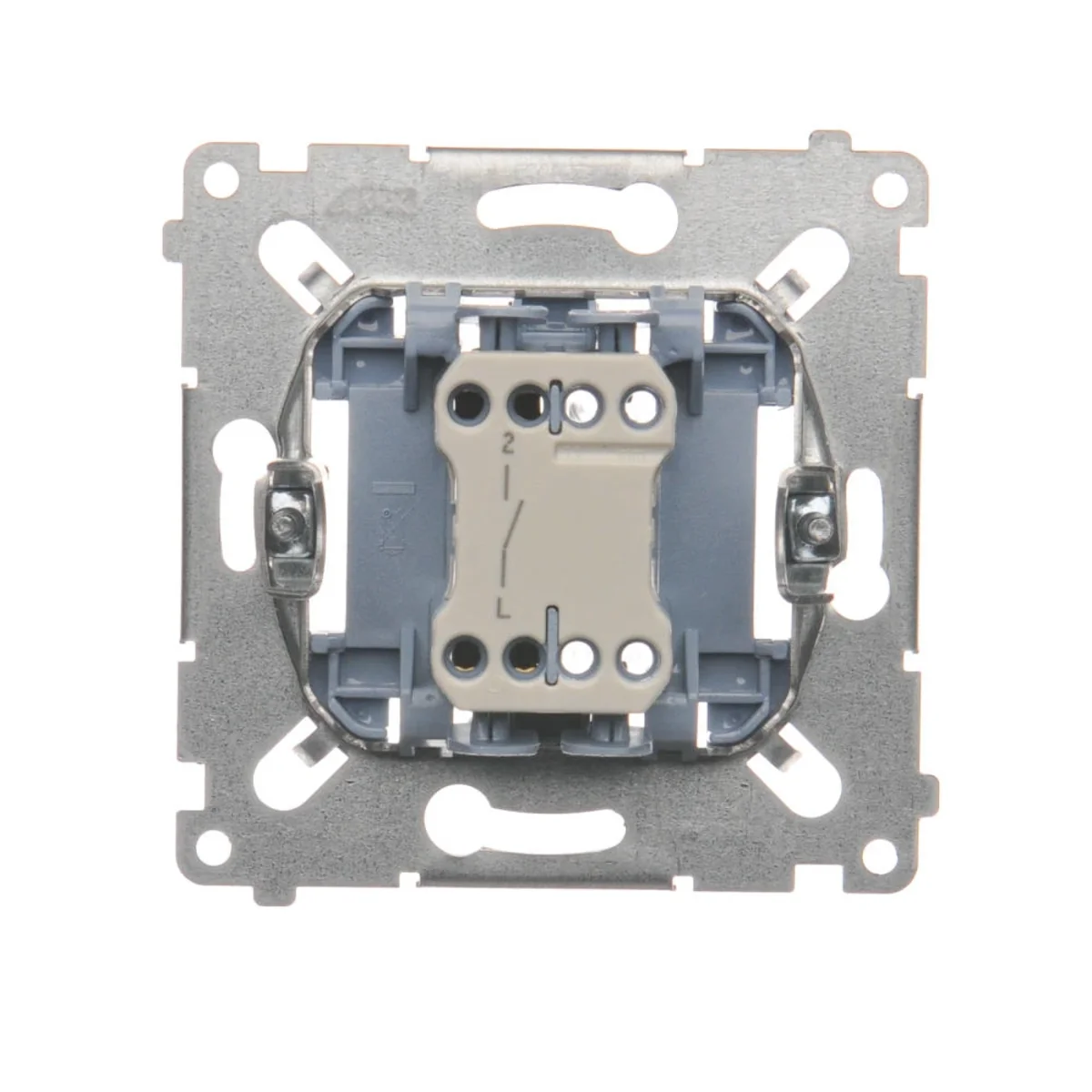

SIMON 54 Single pole switch (mechanism) 10AX 230V SW1M

local index:
MPP007KONT
Catalog No:
SW1M
EAN code:
5902787847036
Manufacturer: KONTAKT-SIMON
Depth [mm]: 32
Number of keys: 1
Shape: Square
Price:
3,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-pole switch mechanism from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is SW1M.



FEATURES:

  • Screw terminals.
  • < li>To obtain a product with a backlight, you must additionally purchase the "DUL - 1 pcs" backlight system.
  • To obtain IP44 splash-proof class, use a frame gasket.
  • Backlight optional, orienting, not included .
  • Dedicated to: DKW1/.. single key - 9 colors, DKW1/AB11 single key - antibacterial white, DKW1L/.. single key with eyelet - 6 colors, DKW1L/ AB11 single push button with eyelet - Antibacterial white.
  • Toggle switch.



SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The single-pole switch mechanism characterizes the features of this unique series.

Technical data

  • Depth [mm]
    32
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Surface protection
    Natural
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • Number of keys
    1
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Width [mm]
    75
  • Height [mm]
    75
  • Backlight
    NO
  • Terminal type
    Threaded
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element
  • Material
    Metal
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Connection type
    Push-in clamp

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,051 0,051 0,600
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,037 0,230
Depth (m) 0,032 0,160 0,100
