SIMON 54 Rotary dimmer for dimmable LEDs (module) 230V 5-250W white DS9L.01/11

Name: SIMON 54 Rotary dimmer for dimmable LEDs (module) 230V 5-250W white
Brand: KONTAKT-SIMON
SKU: MMC001KONT
Price: 46.86 PLN
Availability: InStock

Indeks lokalny:

MMC001KONT

Nr katalogowy:

DS9L.01/11

Kod EAN:

5902787825959

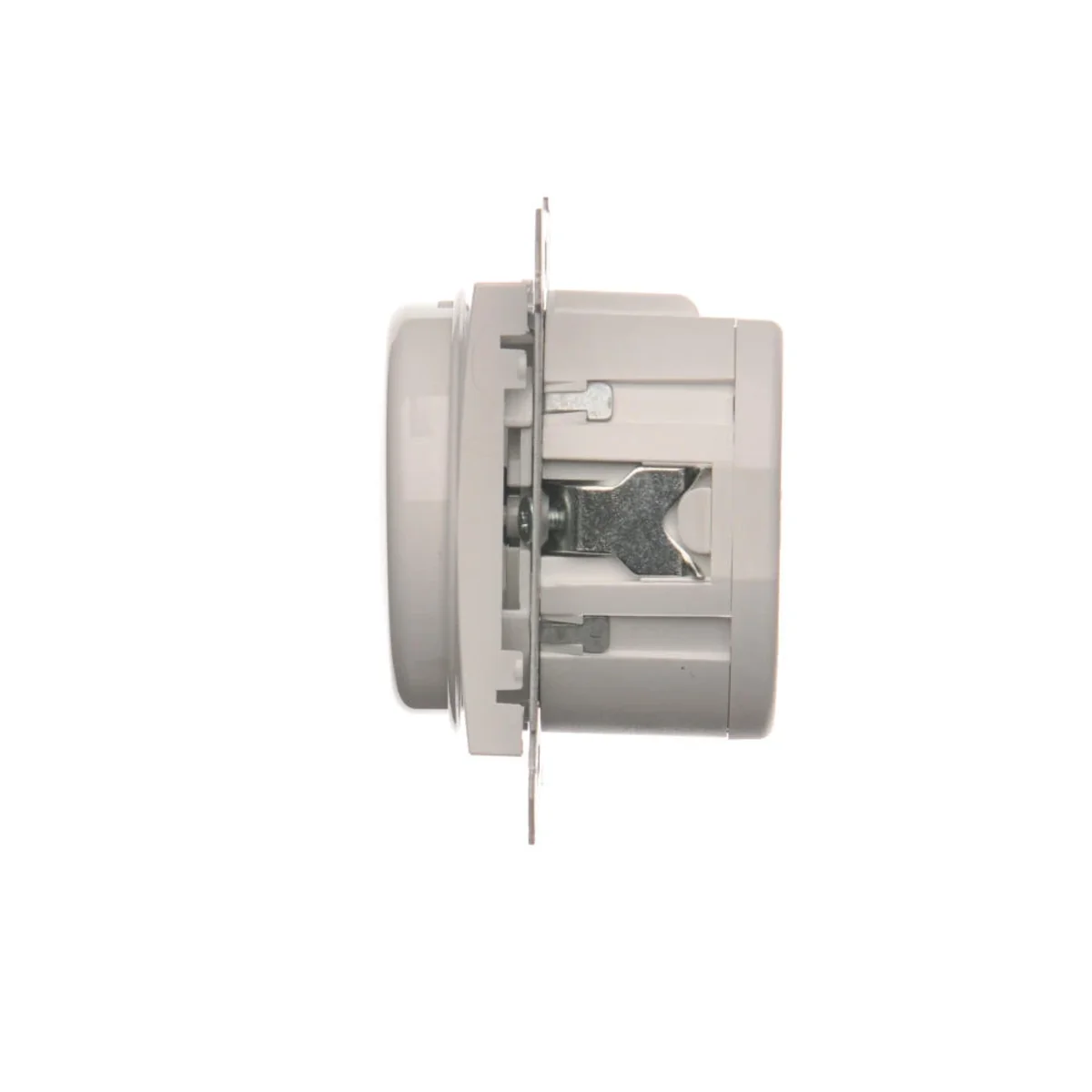

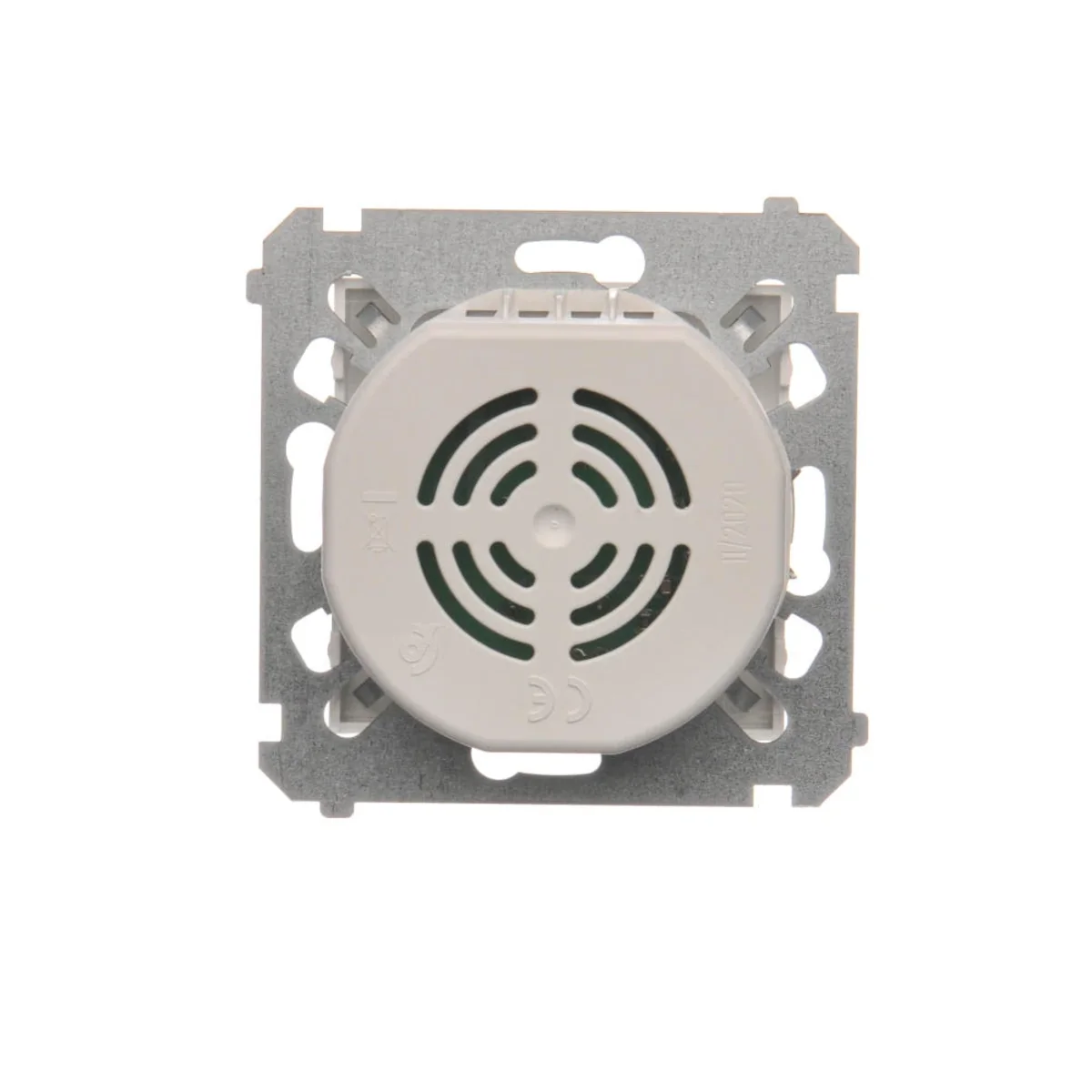

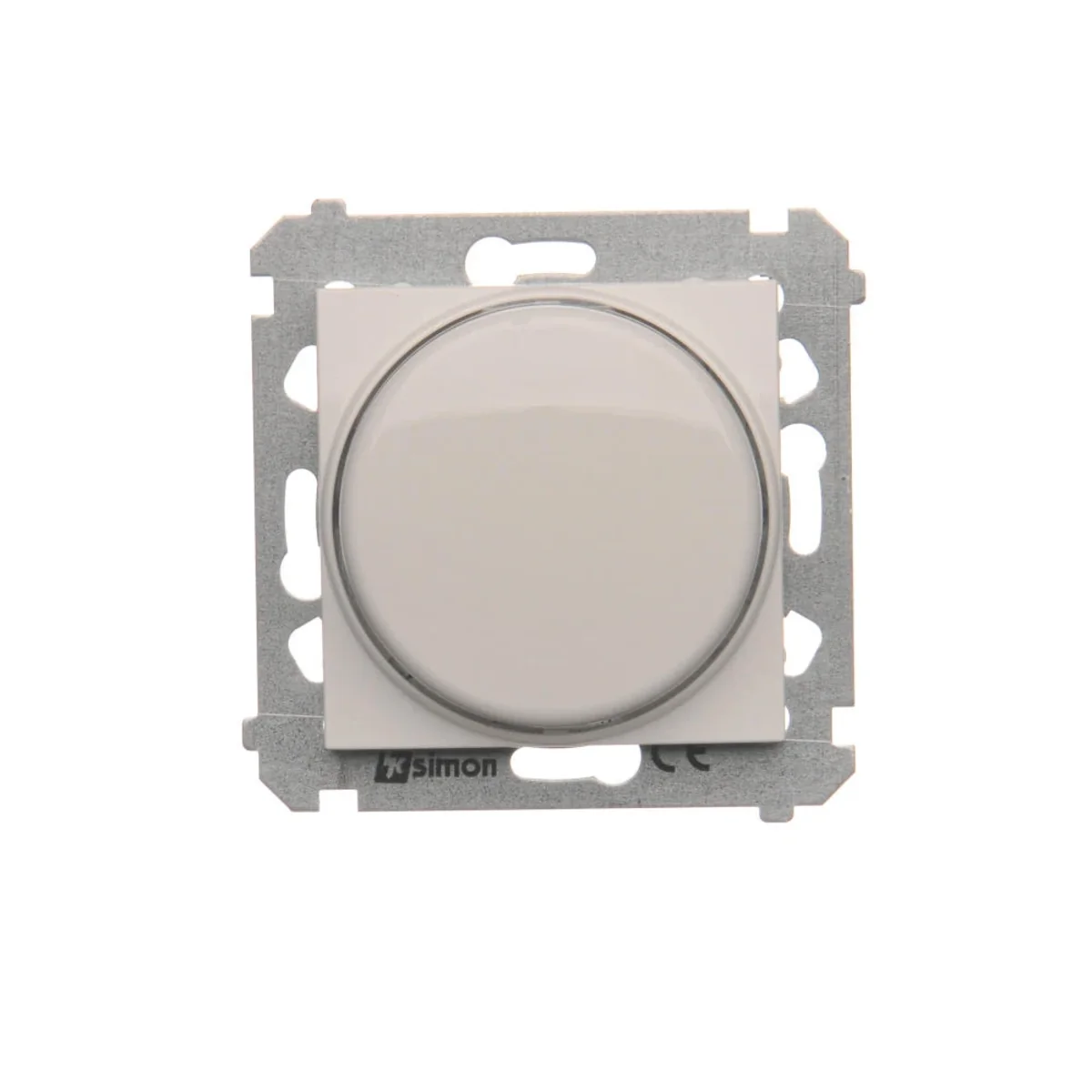

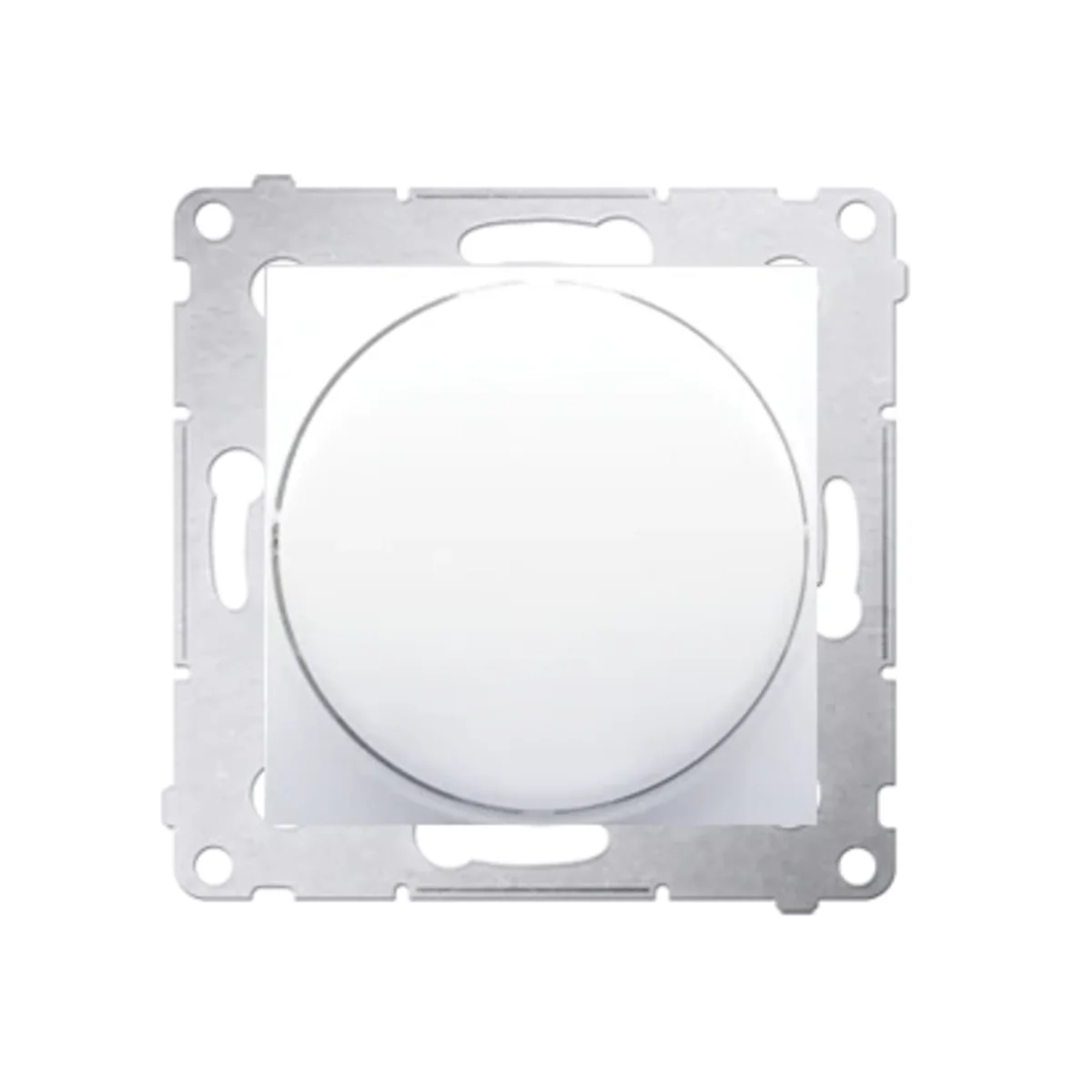

SIMON 54 Rotary dimmer for dimmable LEDs (module) 230V 5-250W white

Kliknij zdjęcie, aby powiększyć

Producent: KONTAKT-SIMON

Halogen free: Yes

Additional features: With the function of a stair switch

Depth [mm]: 46

Zobacz cały opis

Cena:

46,86 €

gross / szt.

(w tym VAT 23%)

Dostępne 1 szt.

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Dimmer from the Simon 54 series, from the manufacturer Contact Simon. Product part number is DS9L.01/11.

FEATURES

Rotatable.
Single-pole.
Screw terminals.
With brightness level memory.
Type of load: capacitive, resistive.
W staircase layout.
For light sources:
- Dimmable LED (DIM) 230V.
- 230V bulbs.
- Incandescent bulbs 230V halogen plugs.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The dimmer characterizes the features of this unique series.

Dane techniczne

Halogen free

Yes
Depth [mm]

46
Color

White
Material

Plastic
Installation

Flush-mounted
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

28
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Additional features

With the function of a stair switch
Number of keys

Knob
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Family

Simon 54
Width [mm]

75
Version

For incandescent lighting For halogen lighting For LED
Surface protection

Natural
Backlight

NO
load power [W]

2-250
Variant

Rotary
Exact material

PC

Pozostałe dane techniczne

Assembly arrangement

Basic element with central cover plate
Substation input

No
Applicable with button

No
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Serial dimmer

Yes
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Material

Plastic
Surface protection

Untreated
Colour

White
Frequency

50 ... 50 Hz

Dane producenta

Producent

Kontakt-Simon S.A.
Adres

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Opakowania zbiorcze

Rodzaj opakowania	Paczka	Karton
Ilość	1 szt.	10 szt.
Waga (kg)	0,116	1,300
Szerokość (m)	0,098	0,190
Długość (m)	0,100	0,290
Głębokość (m)	0,150	0,100
