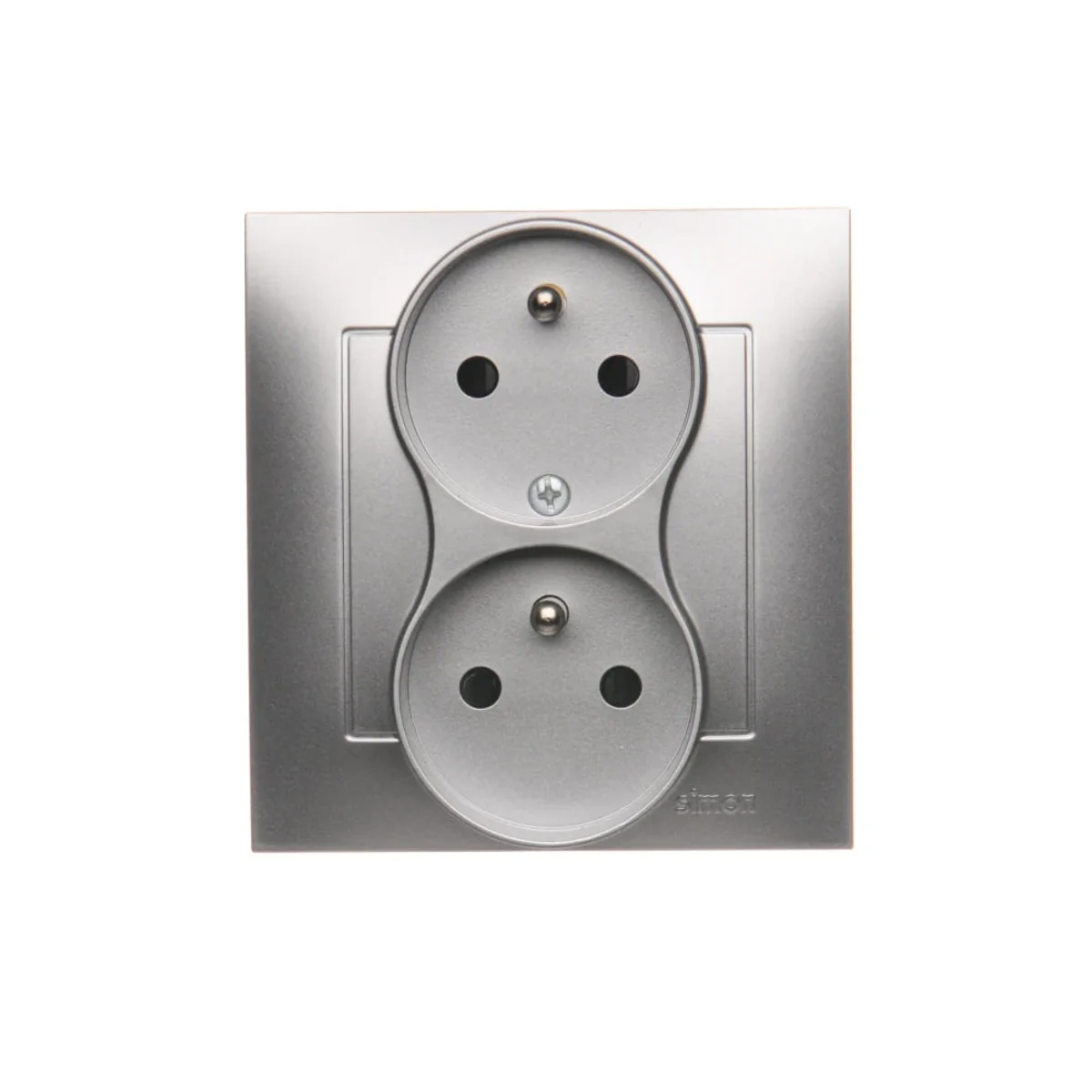

SIMON 54 PREMIUM Double earthed socket outlet with phase invariance function with shutters 16A 230V complete silver matt DGZ2TZ/43

Name: SIMON 54 PREMIUM Double earthed socket outlet with phase invariance function with shutters 16A 230V complete silver matt
Brand: KONTAKT-SIMON
SKU: MEE349KONT
Price: 6.67 PLN

local index:

MEE349KONT

Catalog No:

DGZ2TZ/43

EAN code:

5902787852955

SIMON 54 PREMIUM Double earthed socket outlet with phase invariance function with shutters 16A 230V complete silver matt

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 44

Number of sockets: 2

See full description

Price:

6,67 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Socket from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DGZ2TZ/43.

FEATURES

Double.
Earthed, earth pin.
With phase invariance.
With track shutters current.
Complete; with frame.
Screw terminals.
Color silver matt, metallic.< /li>
Rated current 16A.
Rated voltage 230V.
Ingress protection IP20.

flushmount.

Dimensions: 87 x 82 mm (height x width).

Material < strong>PC.
Requires Ø 68 mm (Czech).
Not possible to mount in multiple frames.

SERIES DESCRIPTION

< strong>SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Rectangular
Fixing

claws Screws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Flush-mounted
Height [mm]

87
Surface finish

matte
Backlight

NO
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

NO
Phase invariance function

Yes

Depth [mm]

44
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

82
Ground

Hurt
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

26
Standard

European
On the DATA key

NO
Exact material

PC
PKWIU

27.33.13.0

Other technical data

Number of units

2
Colour

Silver
Material

Plastic
Surface protection

Lacquered
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Frequency

50 ... 50 Hz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,077	0,077	0,862
Width (m)	0,087	0,110	0,190
Length (m)	0,082	0,050	0,230
Depth (m)	0,044	0,160	0,100
