SIMON 54 "Light" button with LED backlight (module) 16AX 230V golden mat DS1AL.01/44

Name: SIMON 54 \"Light\" button with LED backlight (module) 16AX 230V golden mat
Brand: KONTAKT-SIMON
SKU: MMZ241KONT
Price: 11.18 PLN

local index:

MMZ241KONT

Catalog No:

DS1AL.01/44

EAN code:

5902787559311

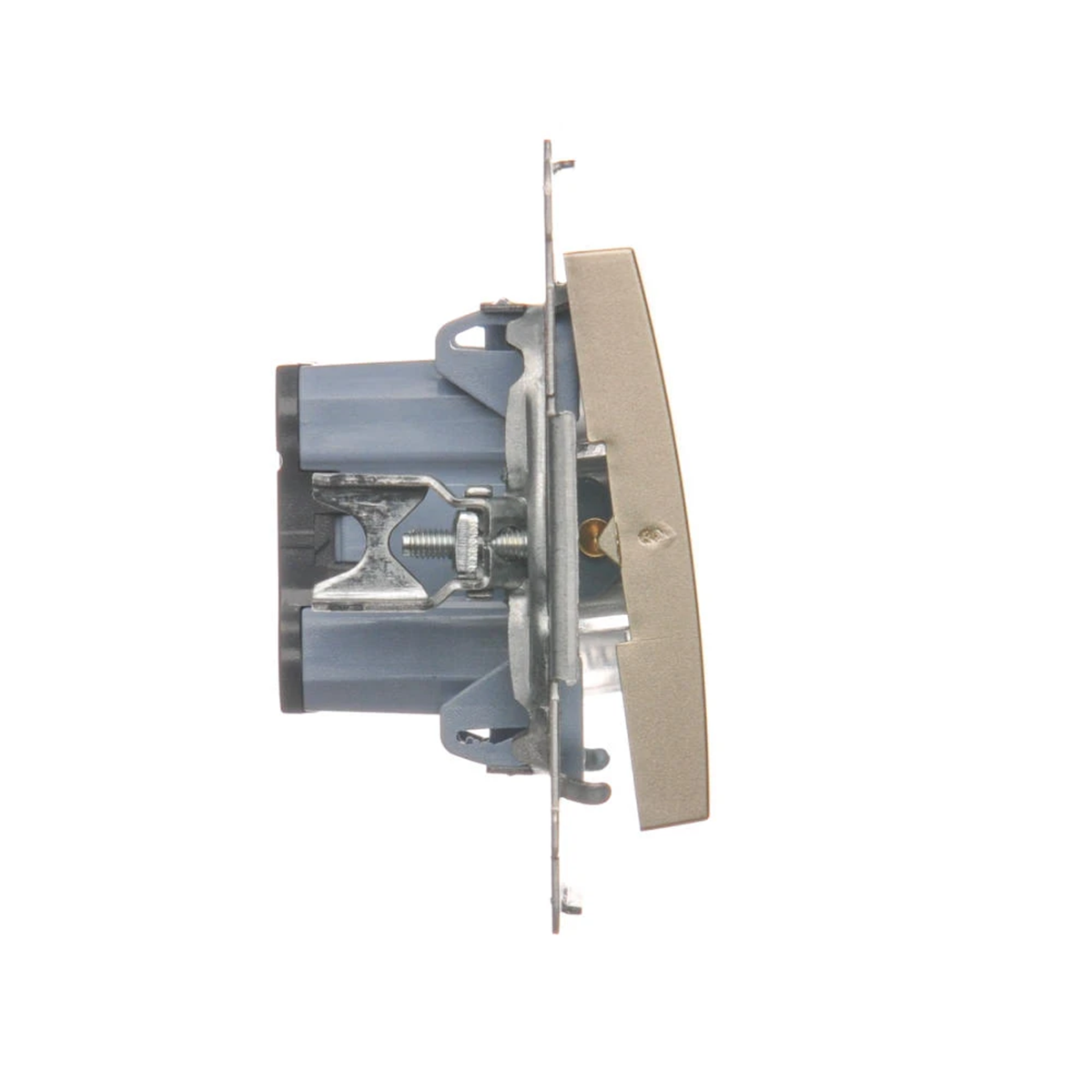

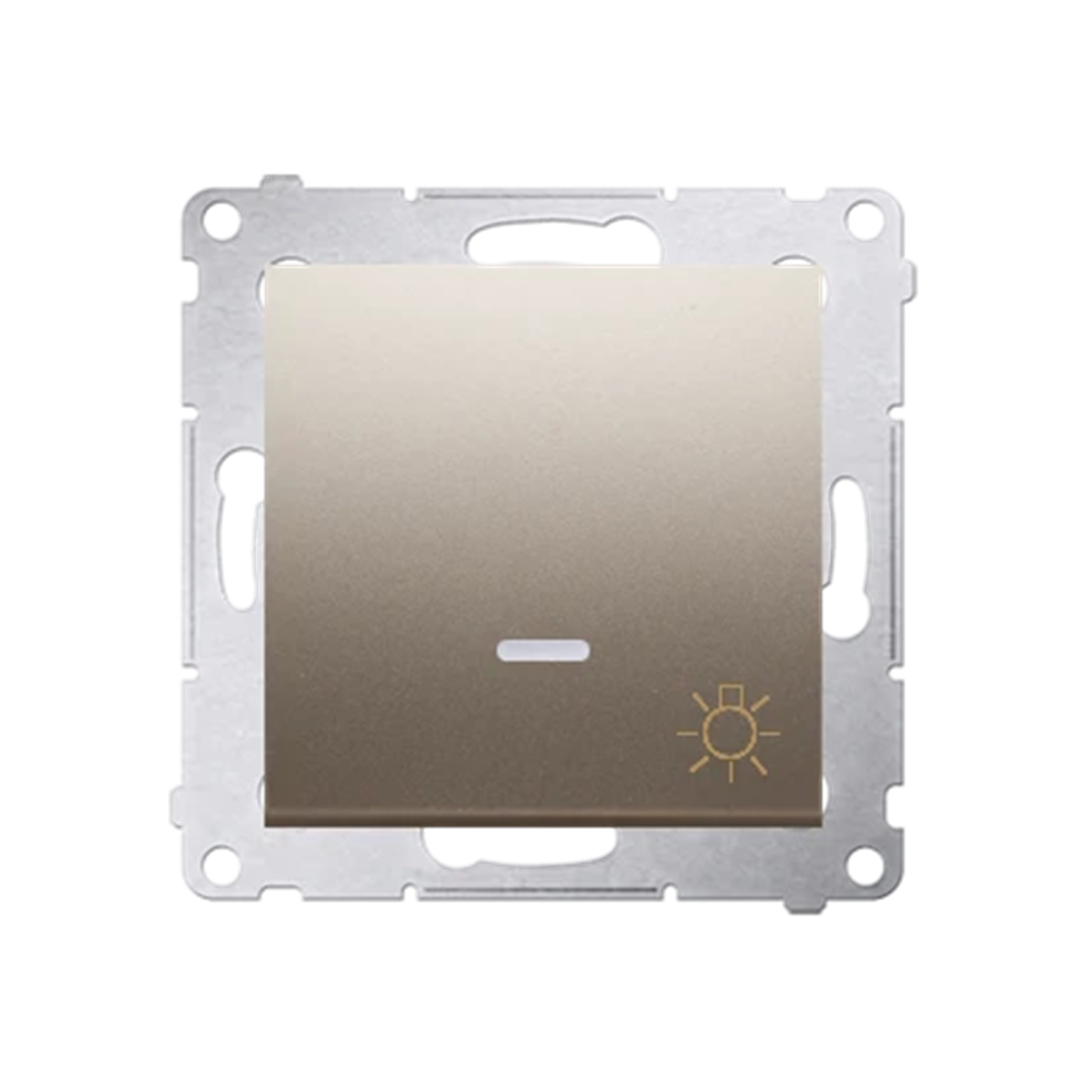

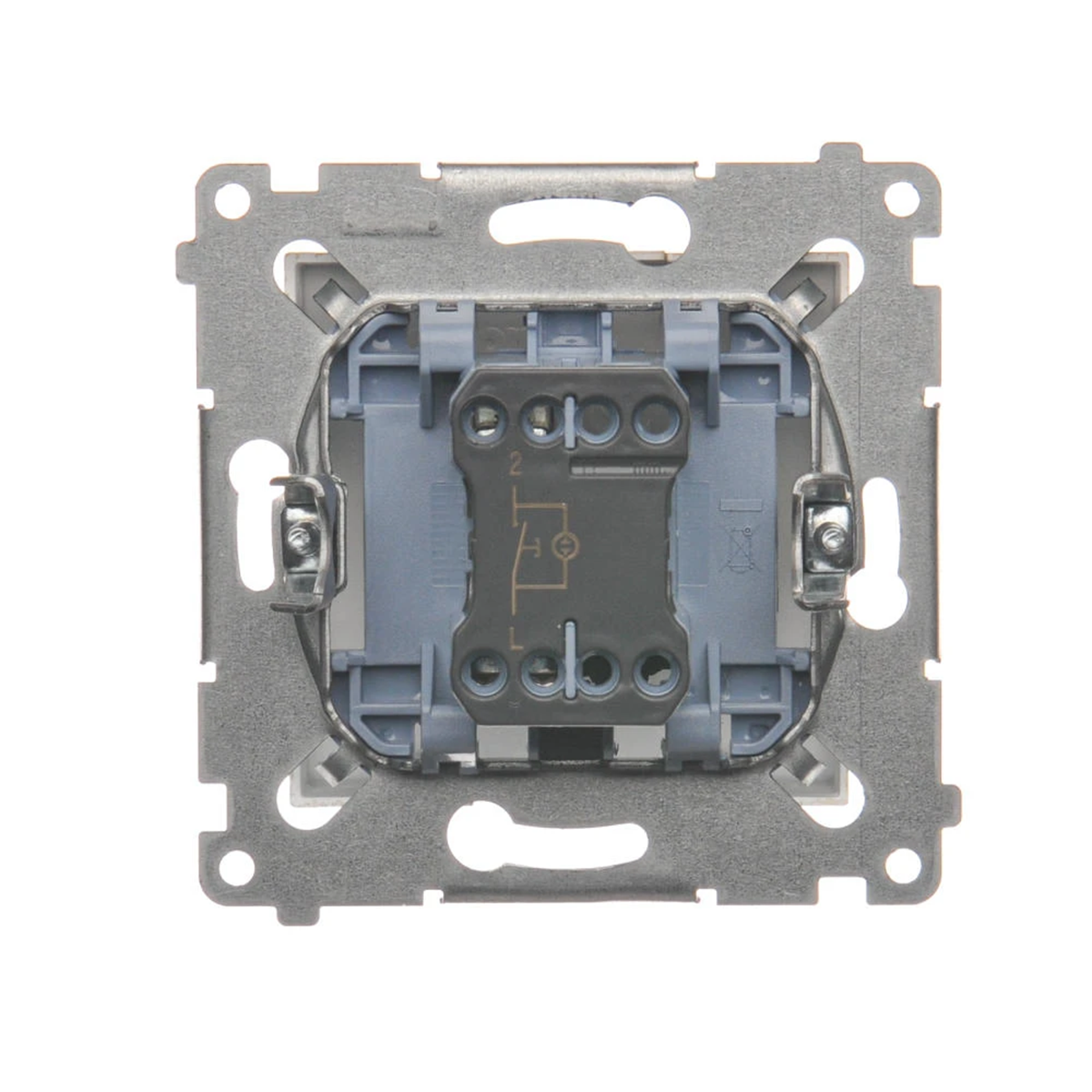

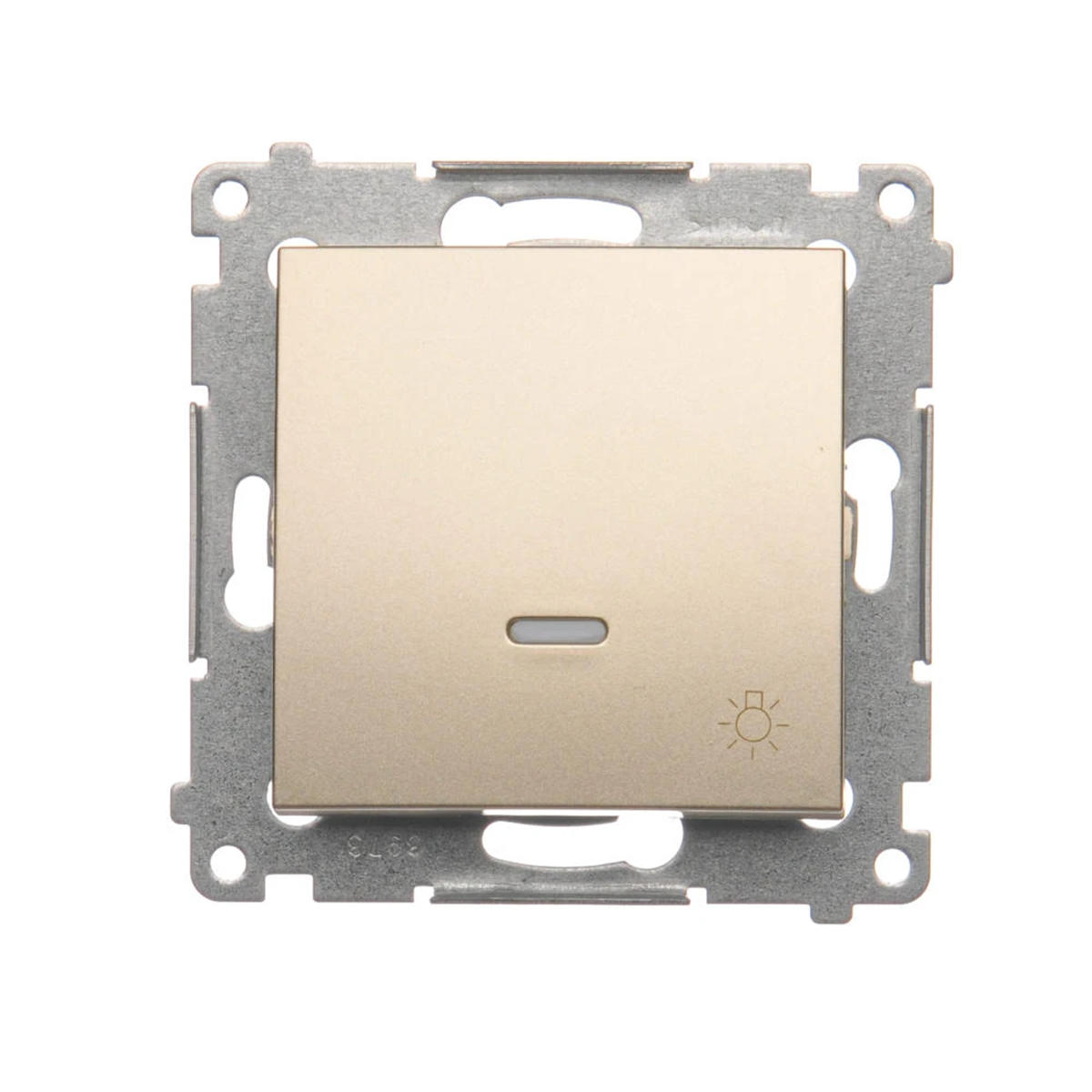

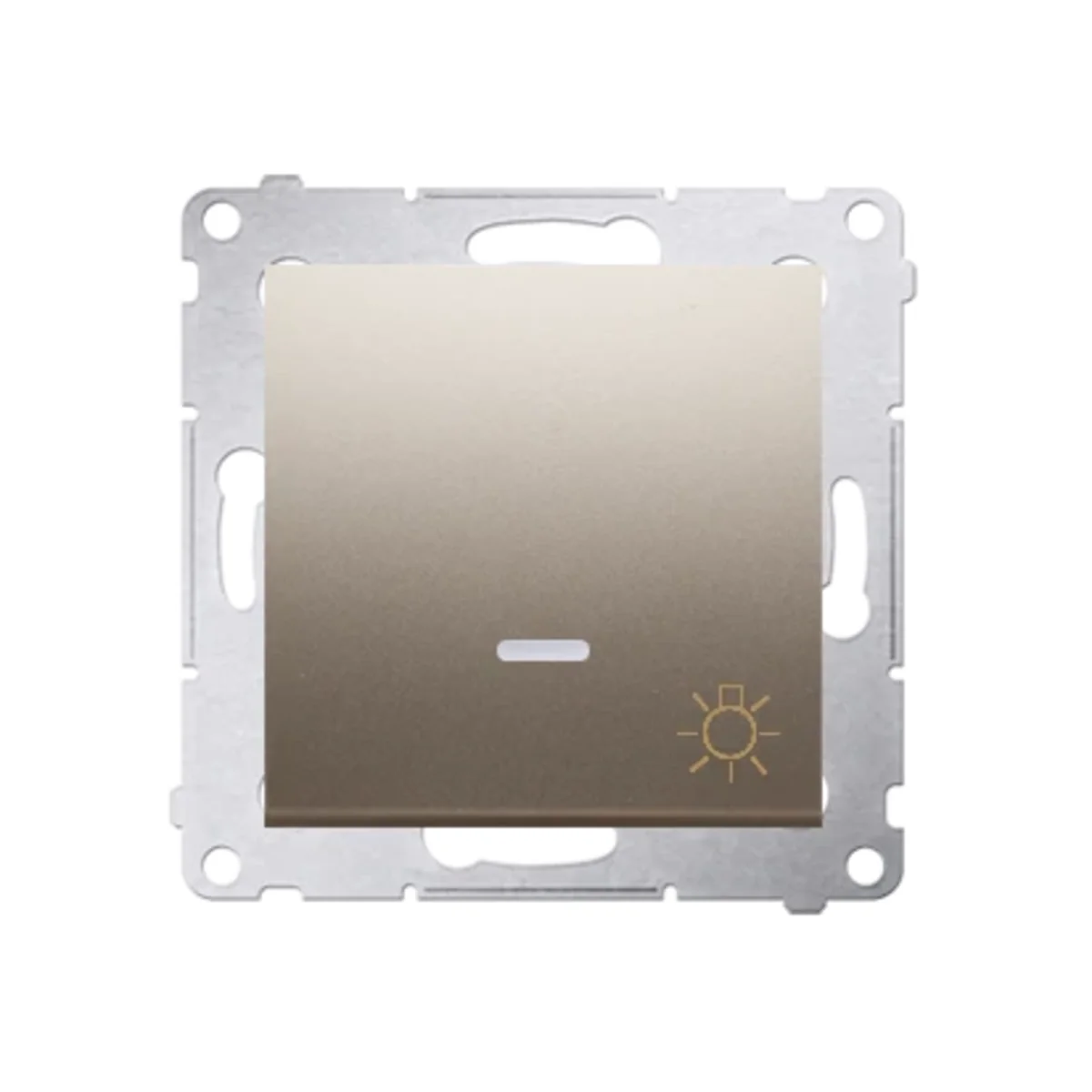

SIMON 54 "Light" button with LED backlight (module) 16AX 230V golden mat

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

11,18 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

"Light" button with backlight, Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DS1AL.01/44. Gold matte, metallised.

FEATURES

"Light" symbol on the key.
Built-in, blue LED backlight (replaceable).
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Width [mm]

75
Version

Confident
Surface protection

varnishing
Accurate color

Gold metallic matt
Mounting depth [mm]

26
Variant

Light
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Golden
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Symbol

Light
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threaded
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V

Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,061	0,061	0,705
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
