SIMON 54 Double stair switch (mechanism) 10AX 230V SW6/2M

Name: SIMON 54 Double stair switch (mechanism) 10AX 230V
Brand: KONTAKT-SIMON
SKU: MPS002KONT
Price: 7.50 PLN

local index:

MPS002KONT

Catalog No:

SW6/2M

EAN code:

5902787847210

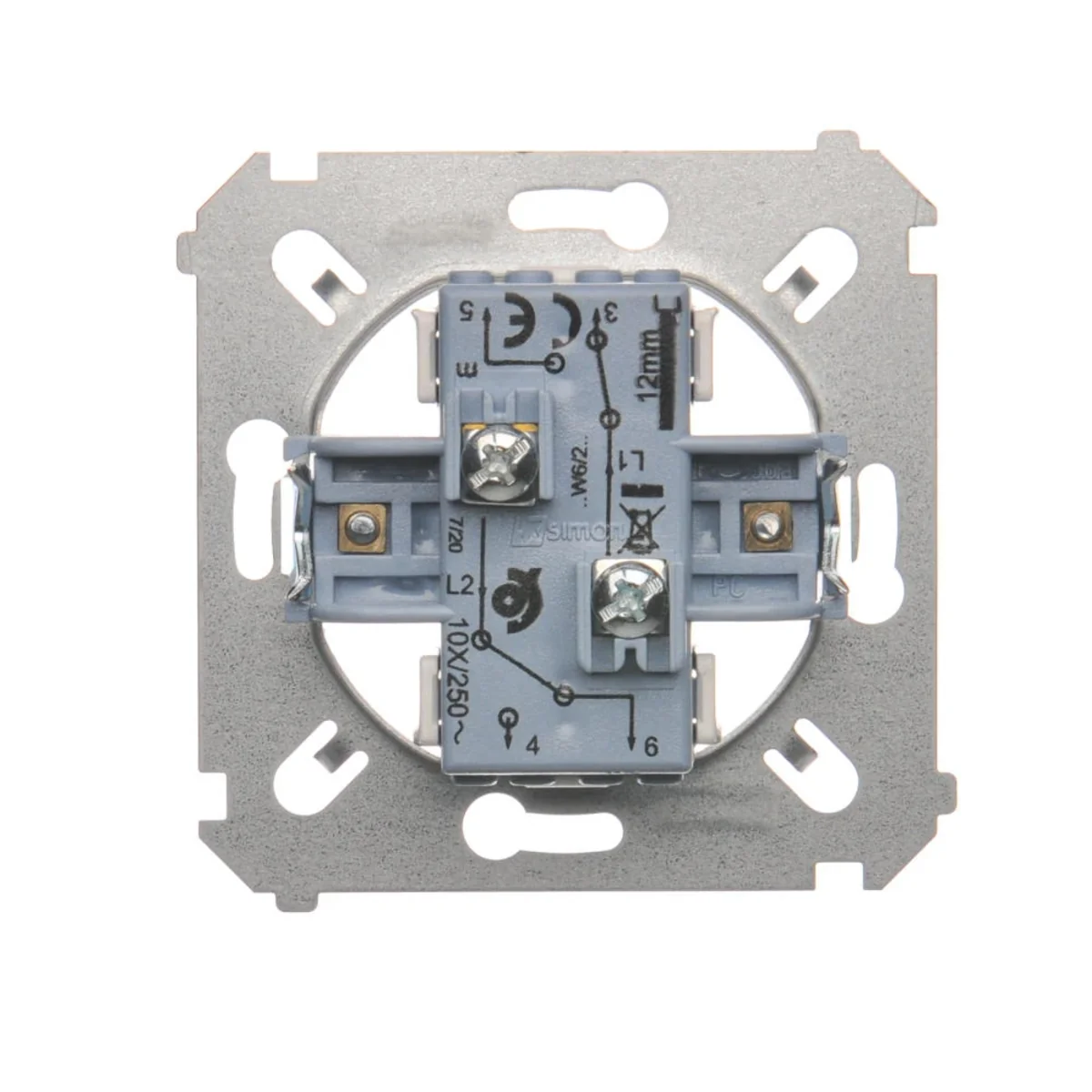

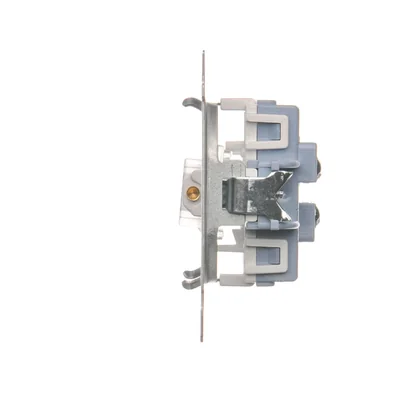

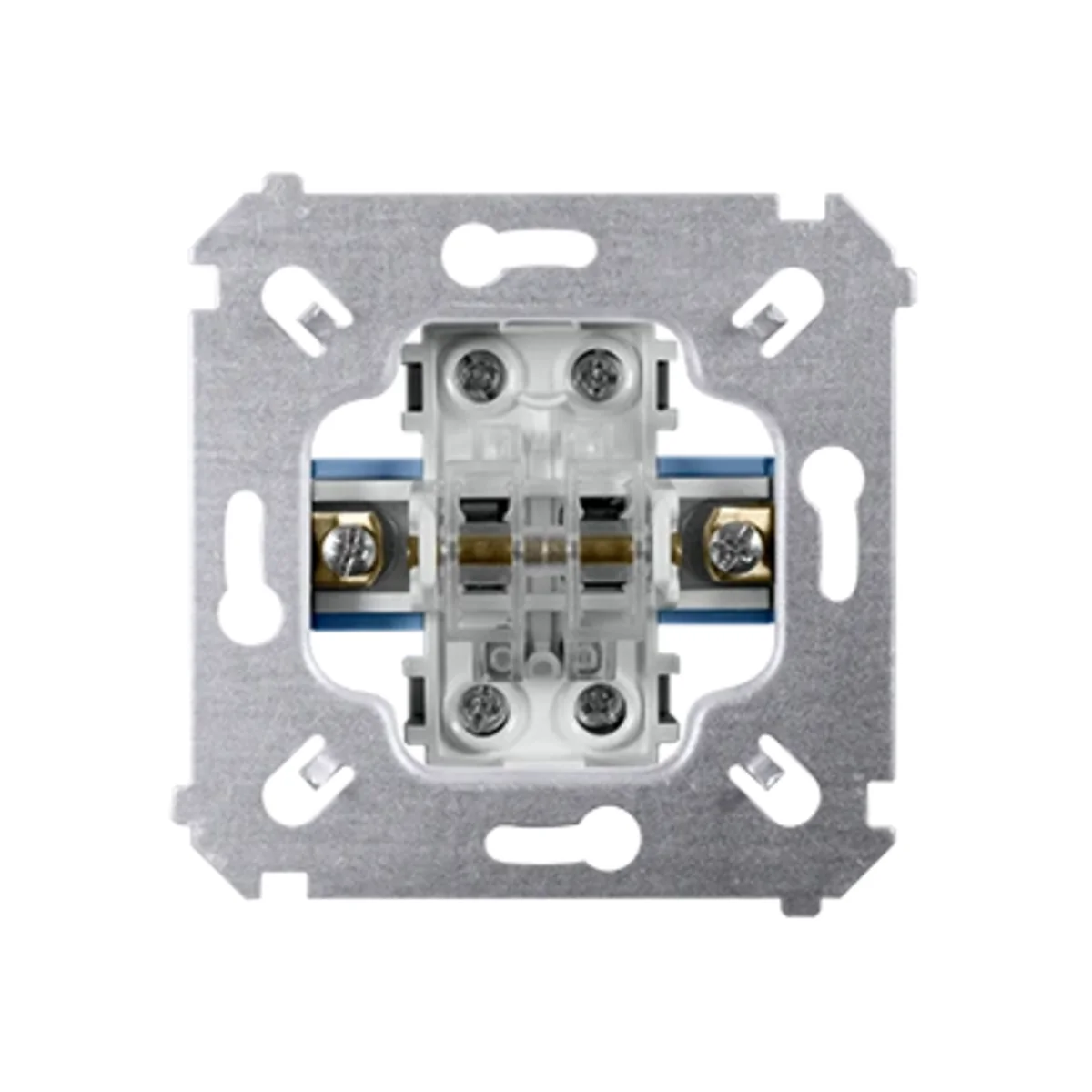

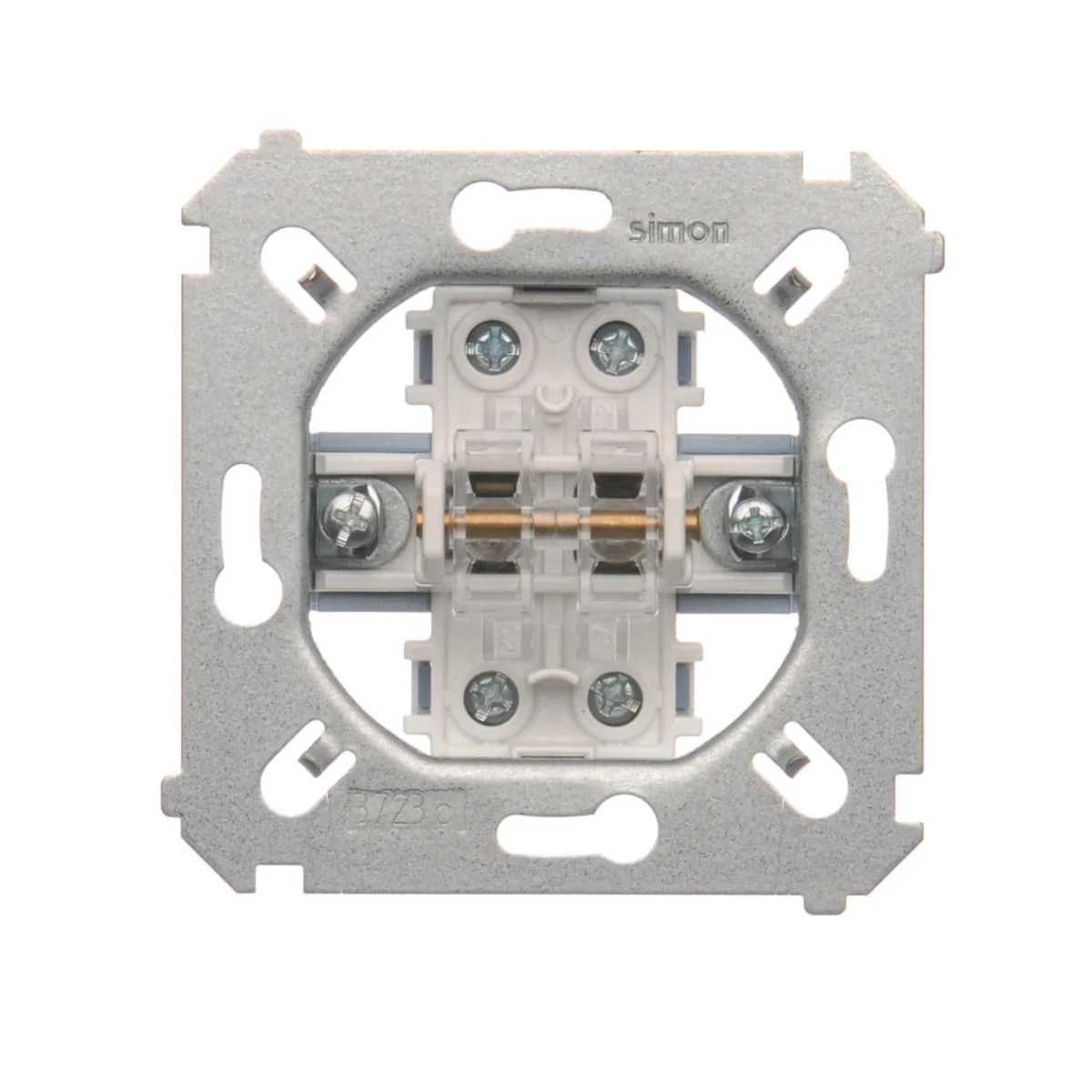

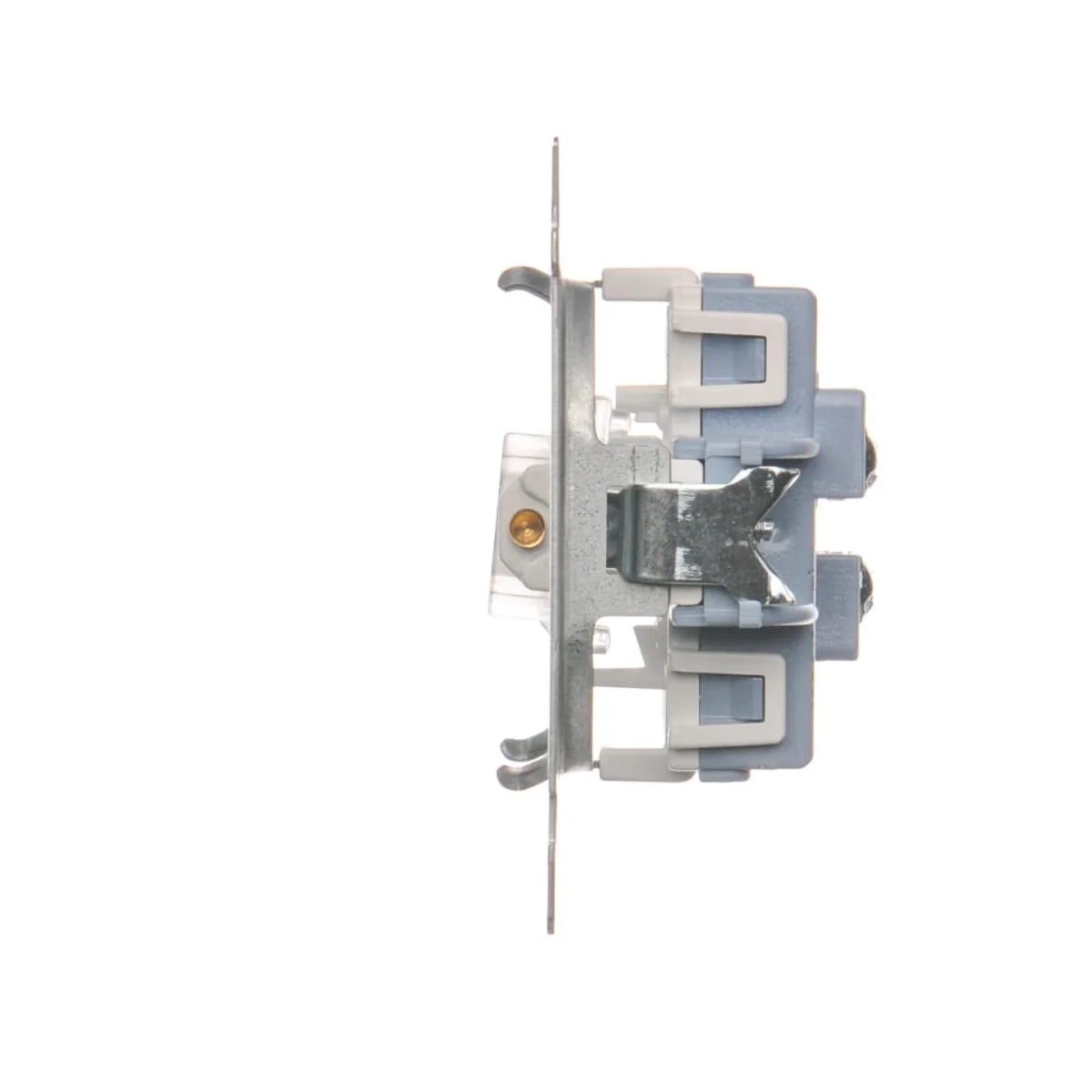

SIMON 54 Double stair switch (mechanism) 10AX 230V

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Depth [mm]: 37

Number of keys: 2

Shape: Square

See full description

Price:

7,50 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Double stair switch mechanismfrom the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is SW6/2M.

FEATURES:

Screw terminals.
Dedicated to: DKW6/2/.. keys for double stair switch - 6 colors, DKW6/2/AB11 keys for double stair switch - Antibacterial white.
Bistable switch.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, ;different by reliable and easy-to-install mechanisms and a variety of colors. The stair connector mechanism characterizes the features of this unique series.

Technical data

Depth [mm]

37
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

stairs
Level of security

IP20
Type

The linkage mechanism
Surface protection

Natural
Mounting depth [mm]

31
For the frame system

Yes

Number of keys

2
Material

Metal
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Backlight

NO
Terminal type

Threaded
PKWIU

27.33.11.0

Other technical data

Wiring system

Two-way switch
Assembly arrangement

Basic element
Material

Metal
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Surface protection

Untreated
Nominal voltage

250 V
Connection type

Screwed terminal

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,068	0,068	0,783
Width (m)	0,075	0,095	0,190
Length (m)	0,075	0,042	0,230
Depth (m)	0,037	0,145	0,100
