SIMON 54 Double loudspeaker socket with description field white DGL32.01/11
local index:
MEG043KONT
Catalog No:
DGL32.01/11
EAN code:
5902787825652
Price:
12,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

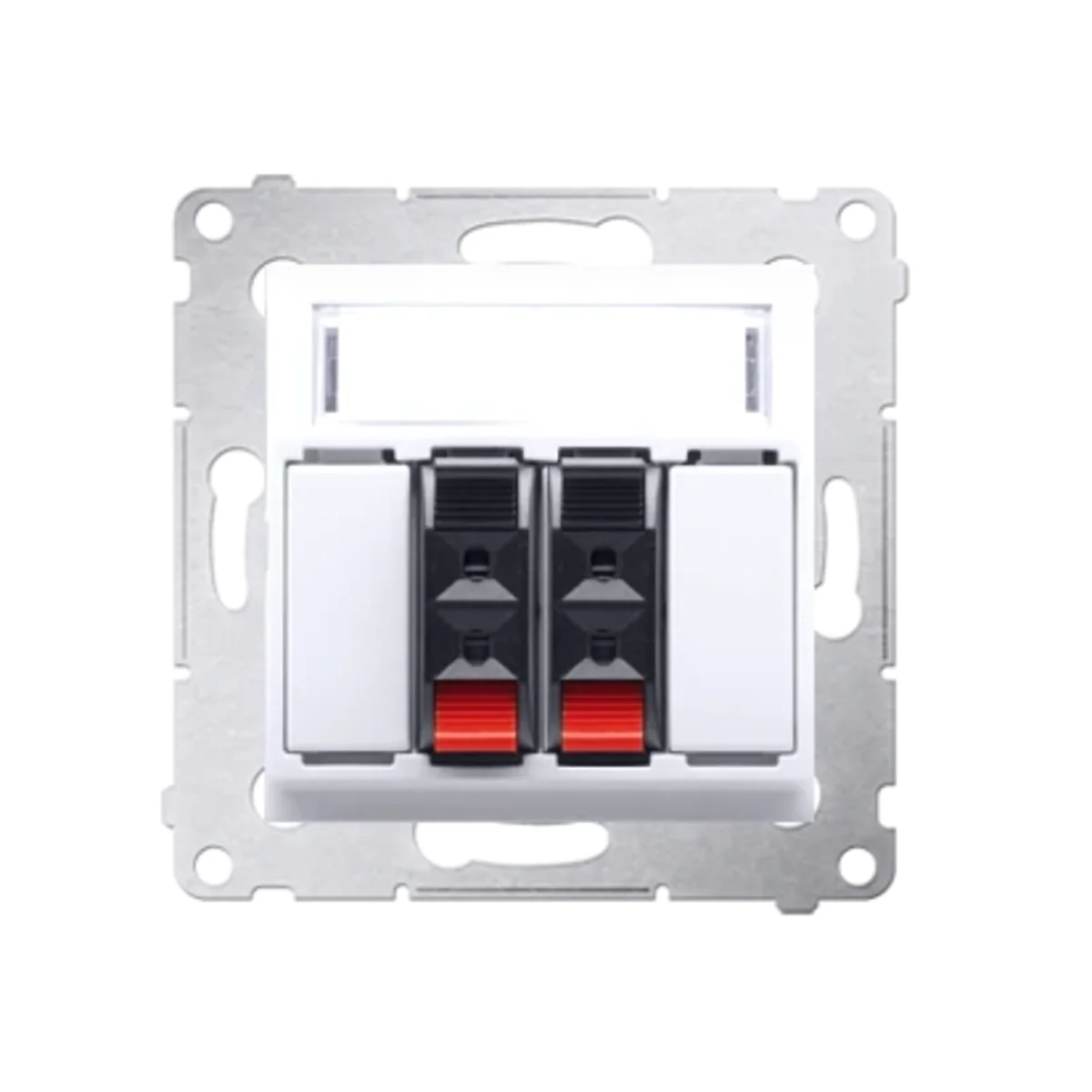

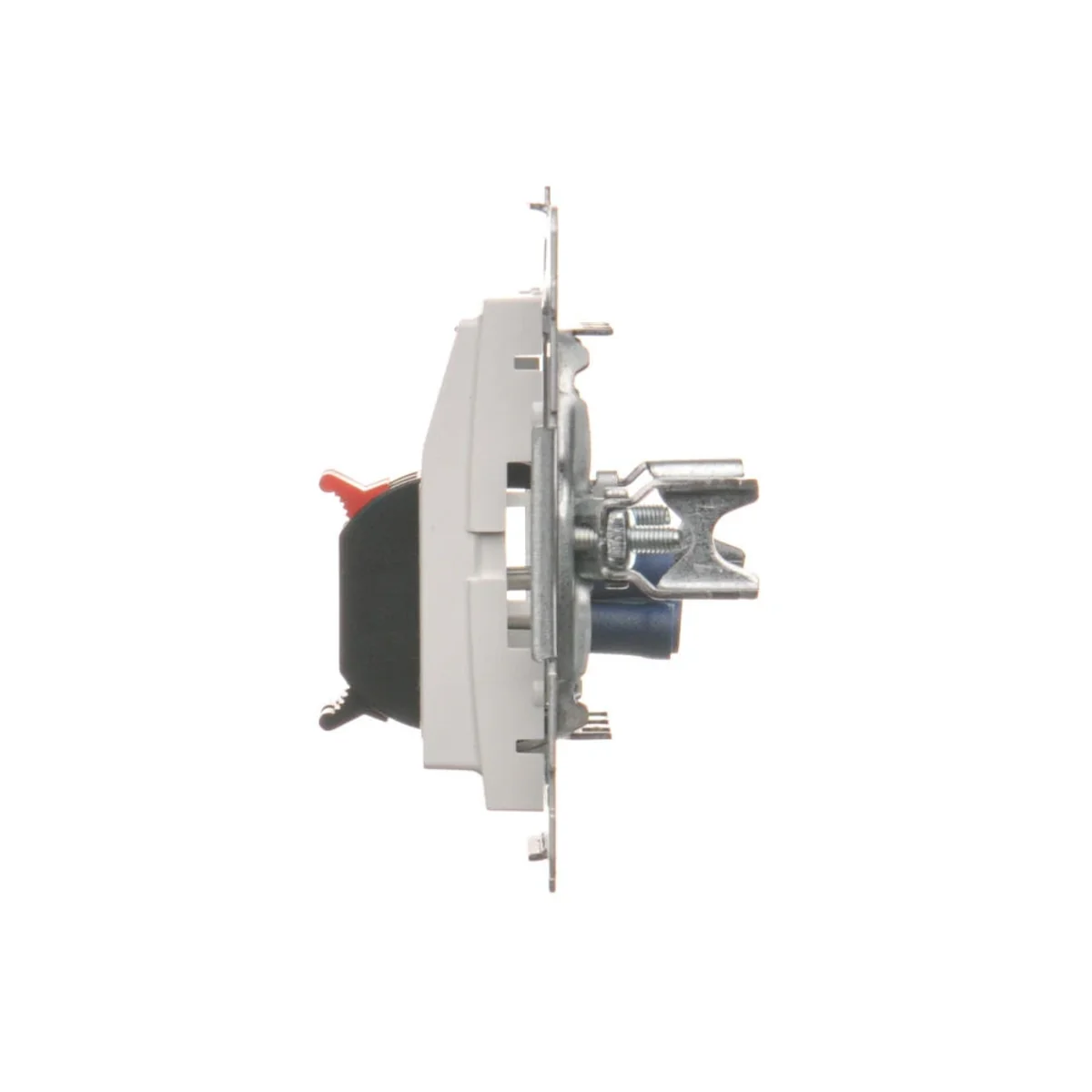

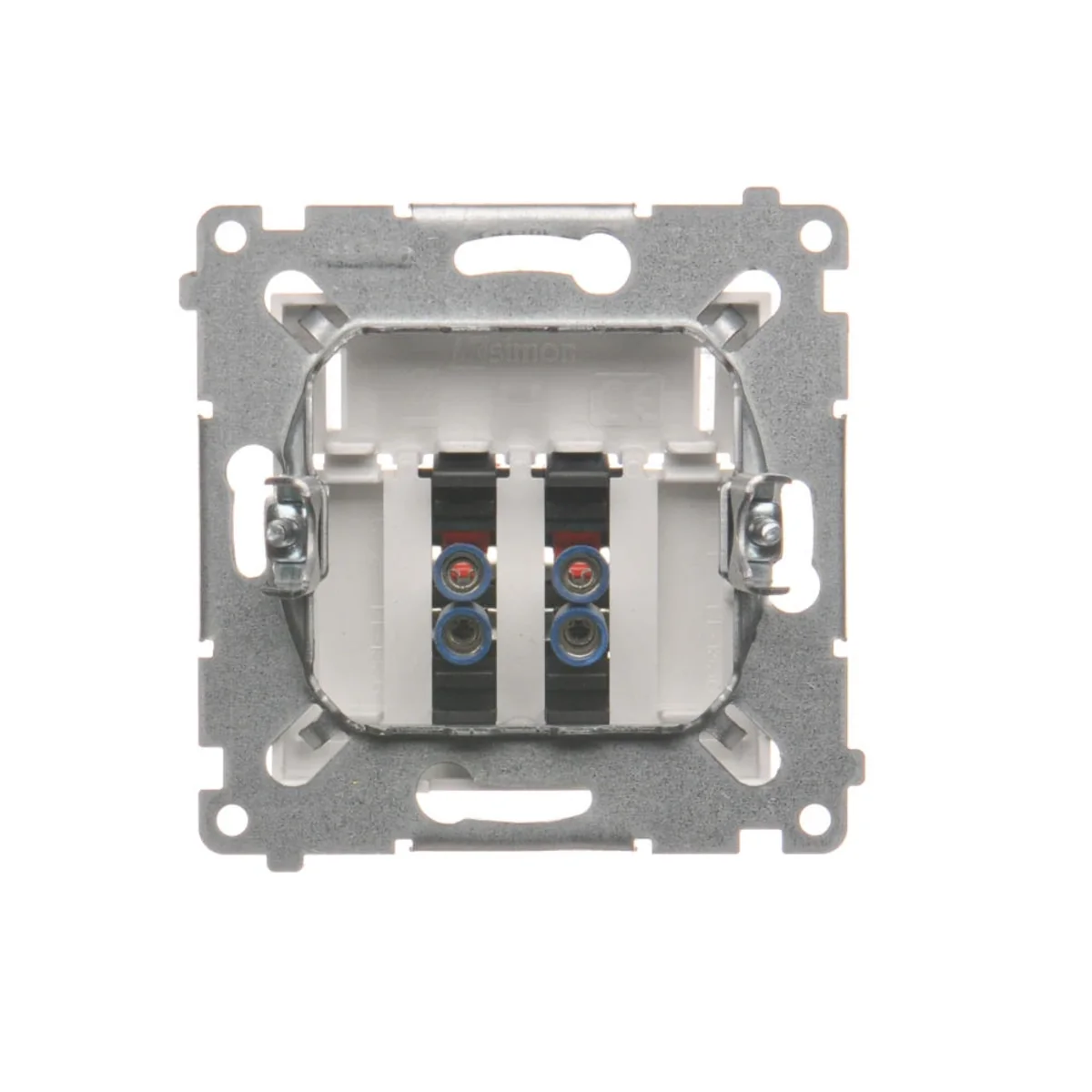

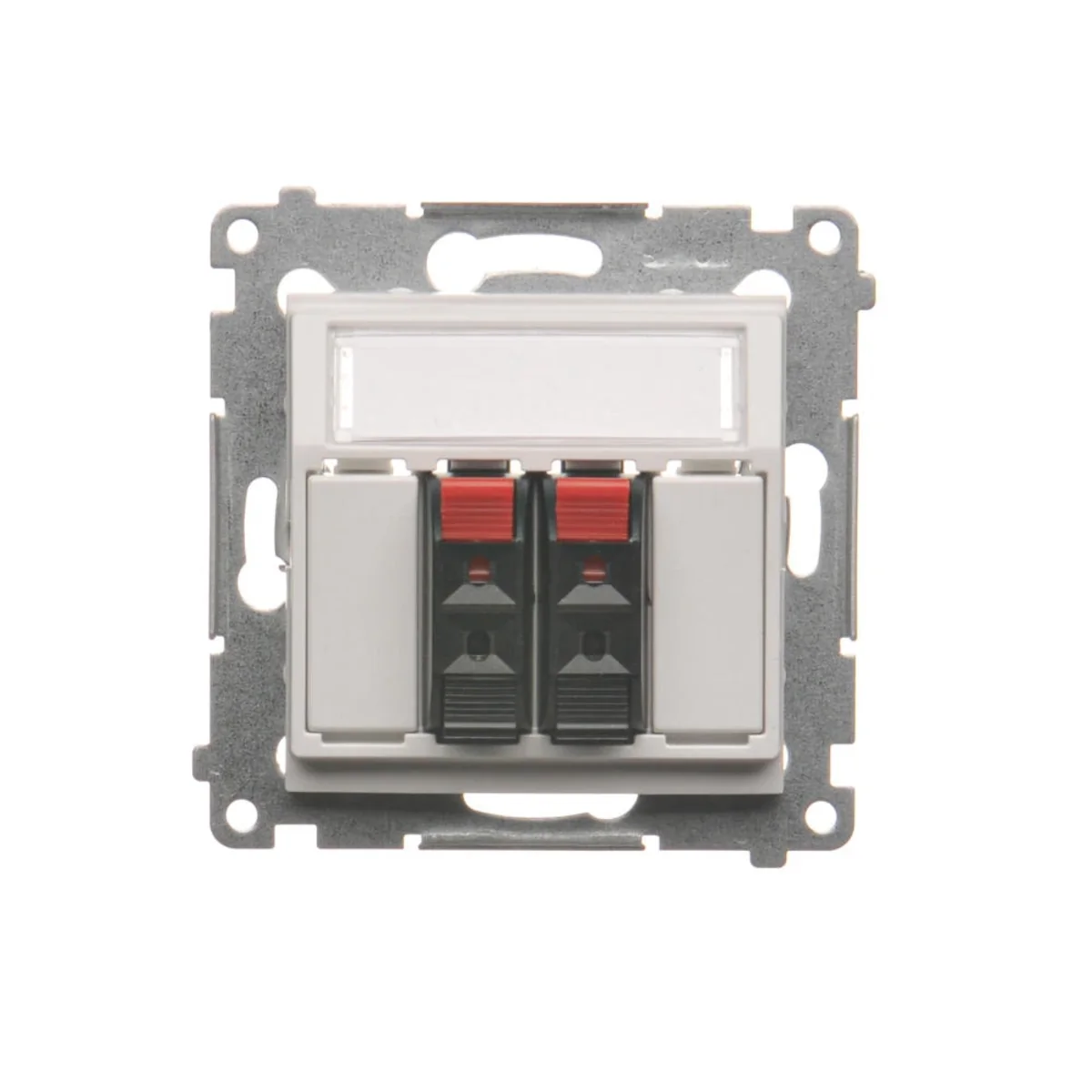

Speaker socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGL32.01/11.
FEATURES
- For connecting 2 loudspeakers.
- Module without frame.
- Crimp (clamp).
- Colour white.
- Flushmount.
- Made of PC.
- Cable cross section for input and output 2.5mm2.
- Expandable with an additional loudspeaker terminal.
SERIES DESCRIPTION
SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by noble form and rich colors. The loudspeaker socket has all the features of this unique series.
Technical data
-
Halogen freeYes
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws Screws
-
Descriptive fieldYes
-
FamilySimon 54
-
Width [mm]75
-
Height [mm]75
-
Surface finishShiny
-
BacklightNO
-
VariantPin-type plugs
-
Extra socketBlank space
-
PKWIU27.33.13.0
-
Depth [mm]48
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Typespeaker
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Wire cross-section [mm²]2.5
-
Mounting depth [mm]22
-
For the frame systemYes
-
Exact materialPC
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
Imprintable labelWith indication plate
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourWhite
-
UtilizationLoudspeaker connection
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Suitable for degree of protection (IP)IP20
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,052 | 0,052 | 0,613 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,054 | 0,230 |
| Depth (m) | 0,048 | 0,160 | 0,100 |
