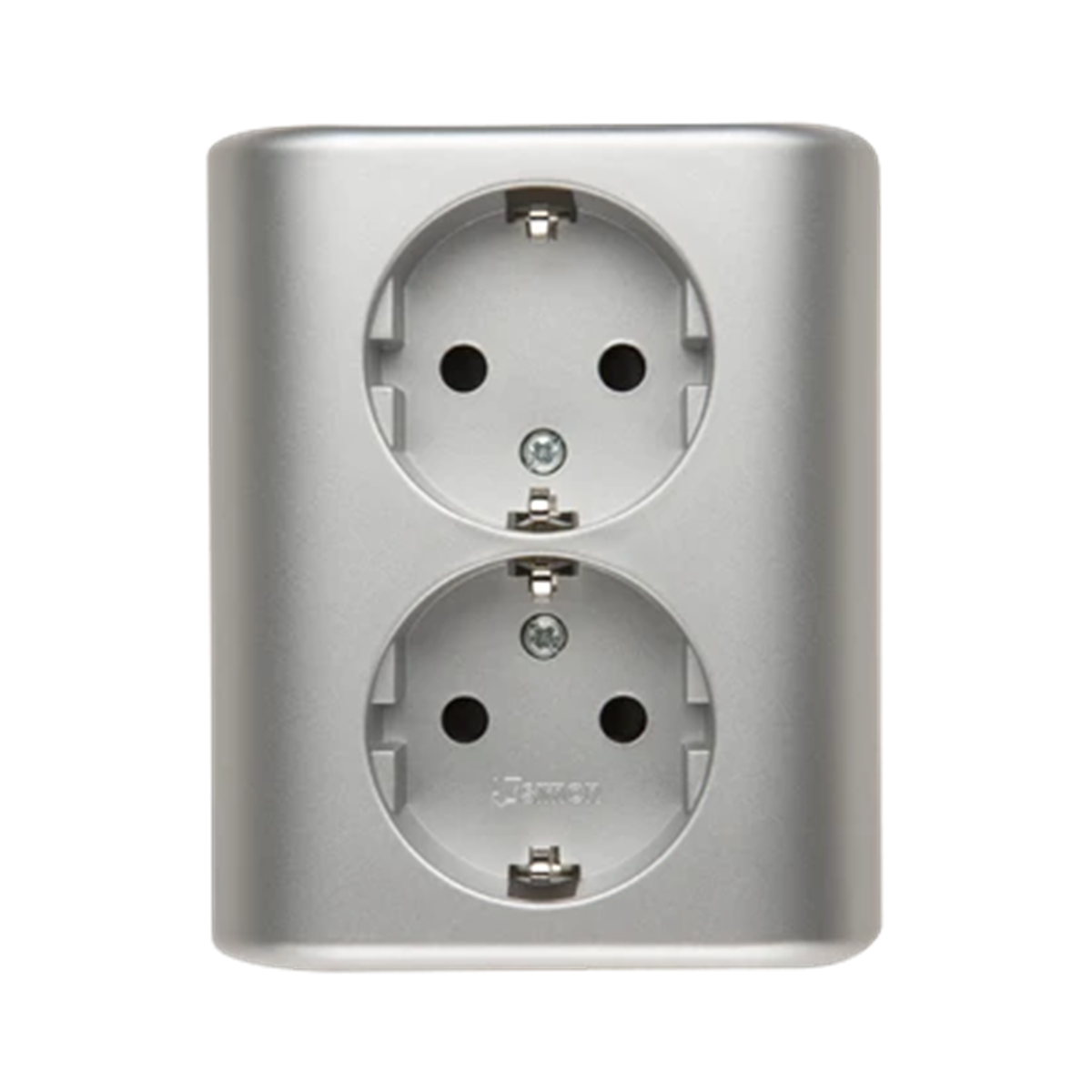

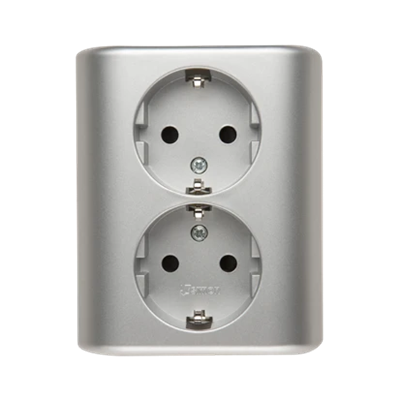

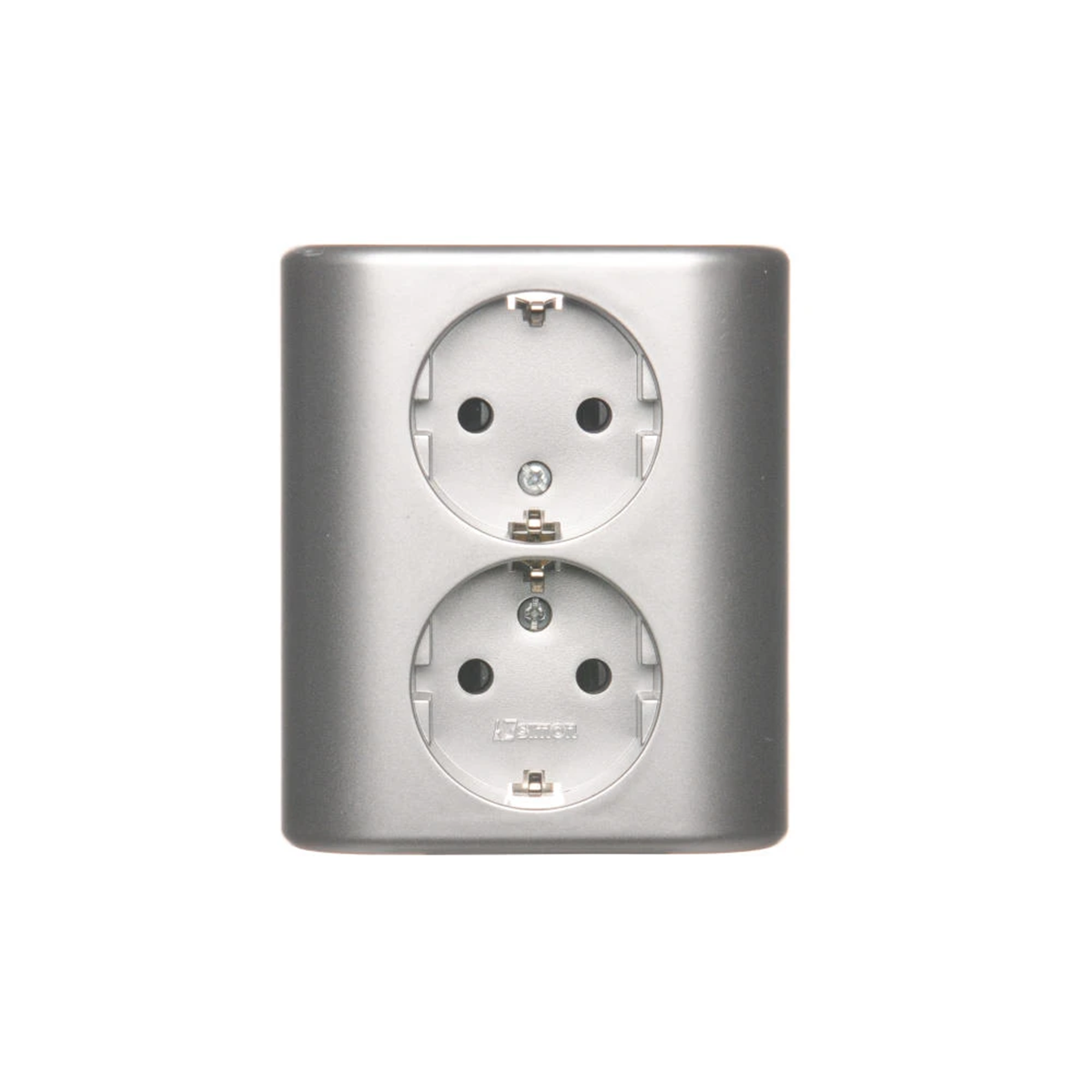

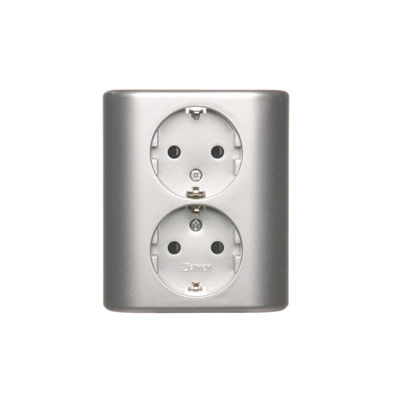

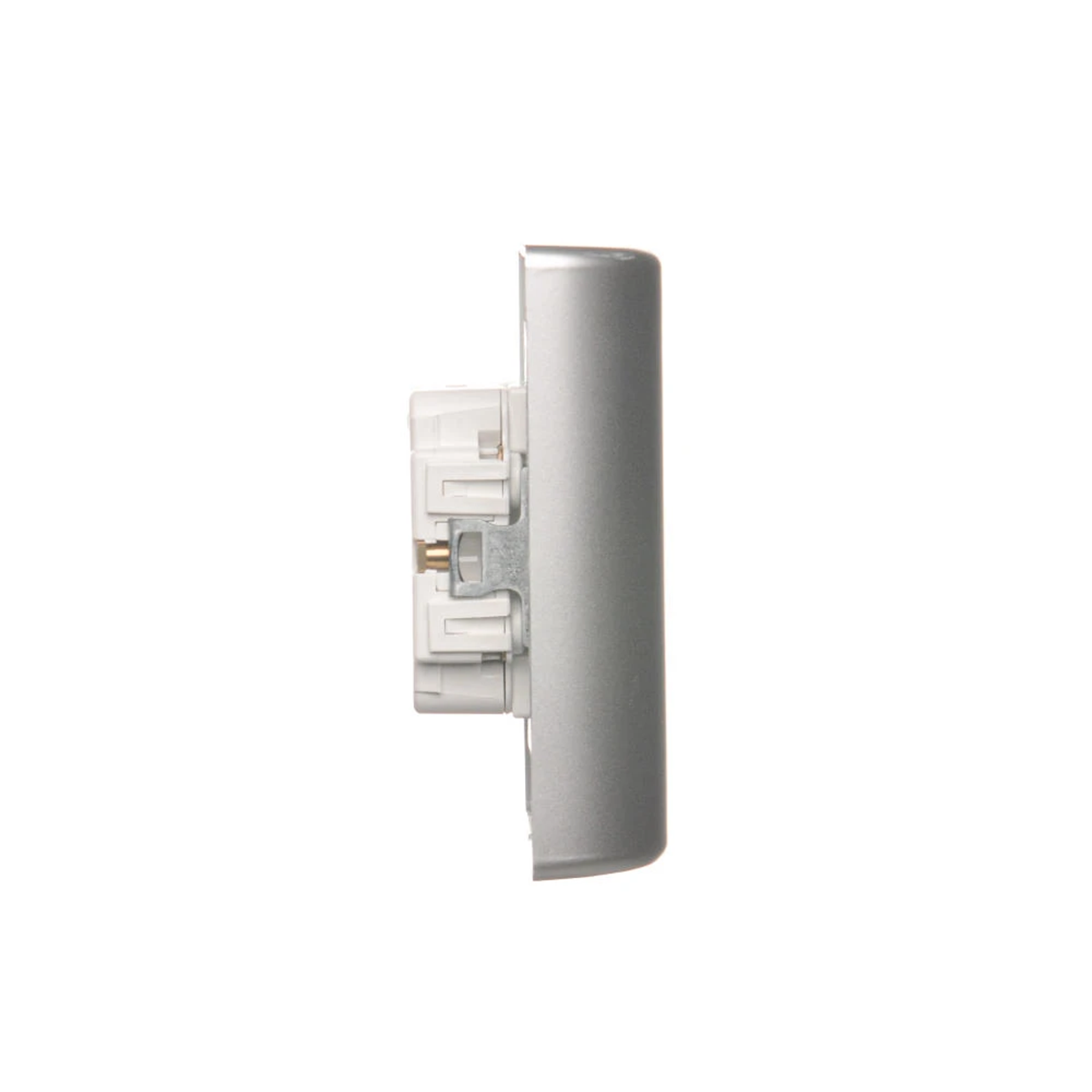

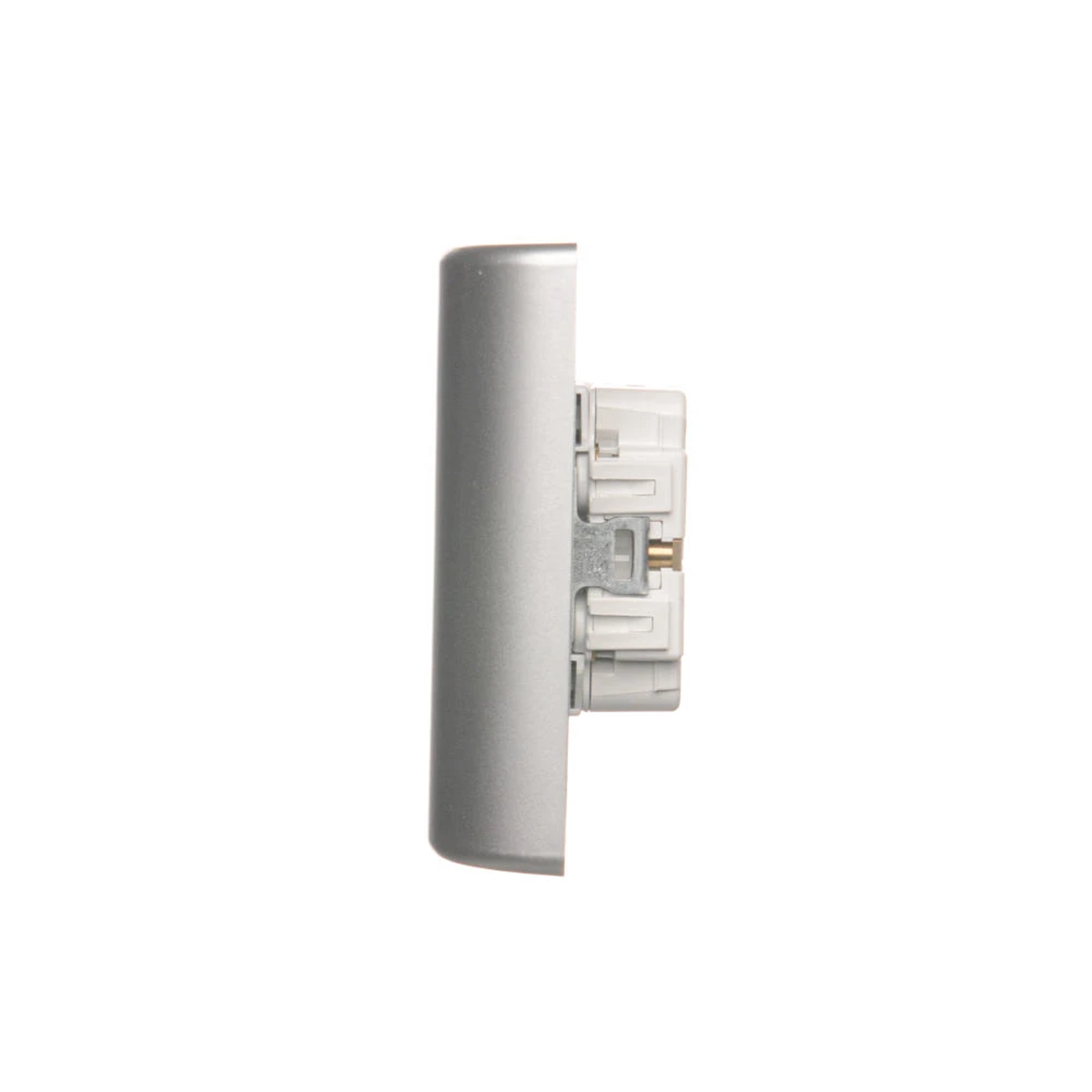

SIMON 54 Double flush-mounted socket outlet with earthing schuko with shutters Scandinavian version 16A 230V screw terminals silver matt EGSZ2PZ/43

local index:
MEE354KONT
Catalog No:
EGSZ2PZ/43
EAN code:
5902787836870
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of sockets: 2
Price:
11,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is EGSZ2PZ/43.



FEATURES

  • Double.
  • With schuko grounding.
  • With shutters for current paths.
  • Scandinavian version.
  • Screw terminals.
  • Color silver mat, metallic.
  • Current rated 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 97 x 80 mm (height x width).
  • Material PC

    SERIES DESCRIPTION

    SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    97
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 54
  • Width [mm]
    80
  • Ground
    schuko
  • Surface protection
    varnishing
  • Accurate color
    Silver metallic matt
  • Mounting depth [mm]
    21.5
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,119 0,119 1,209
Width (m) 0,097 0,110 0,190
Length (m) 0,080 0,046 0,230
Depth (m) 0,041 0,160 0,100
