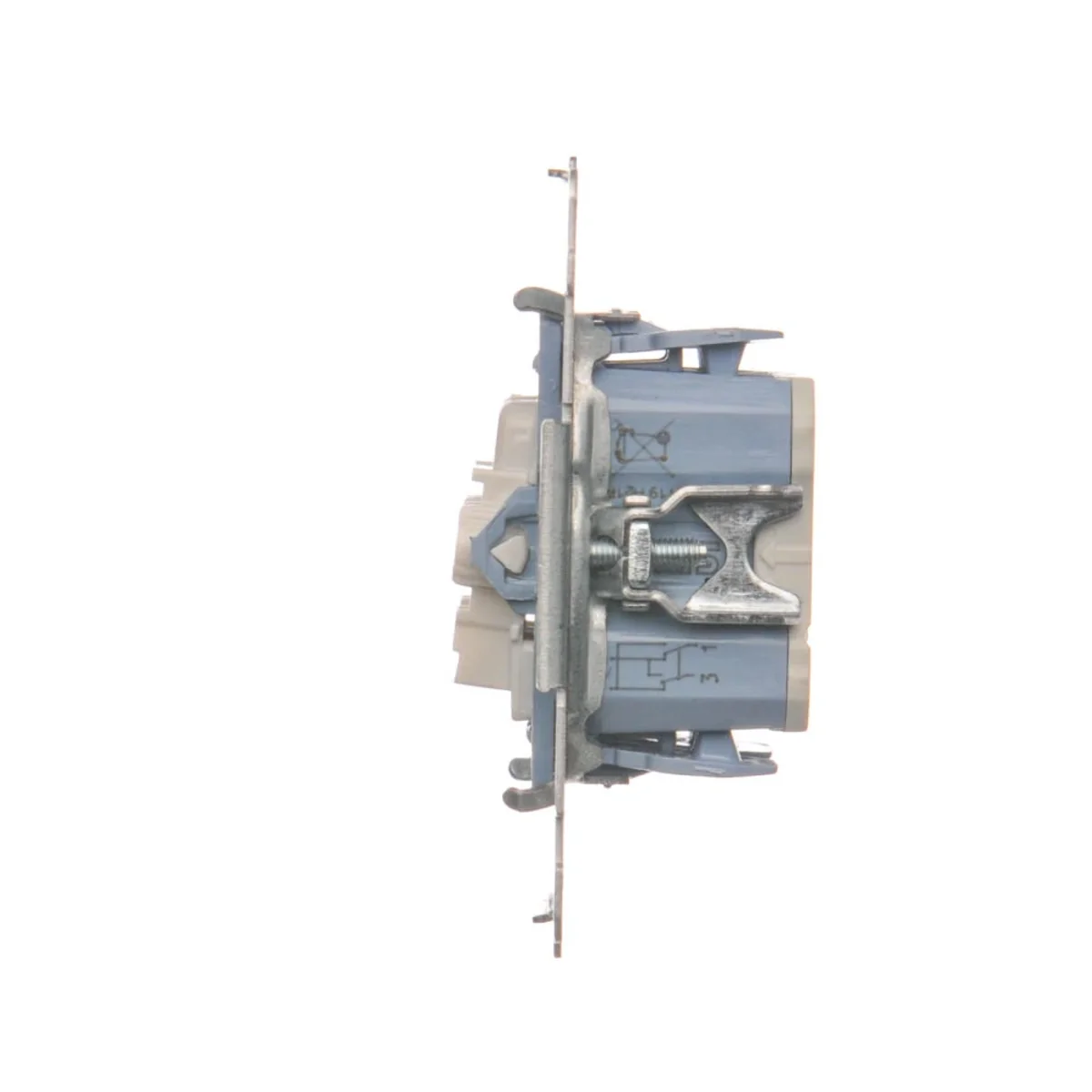

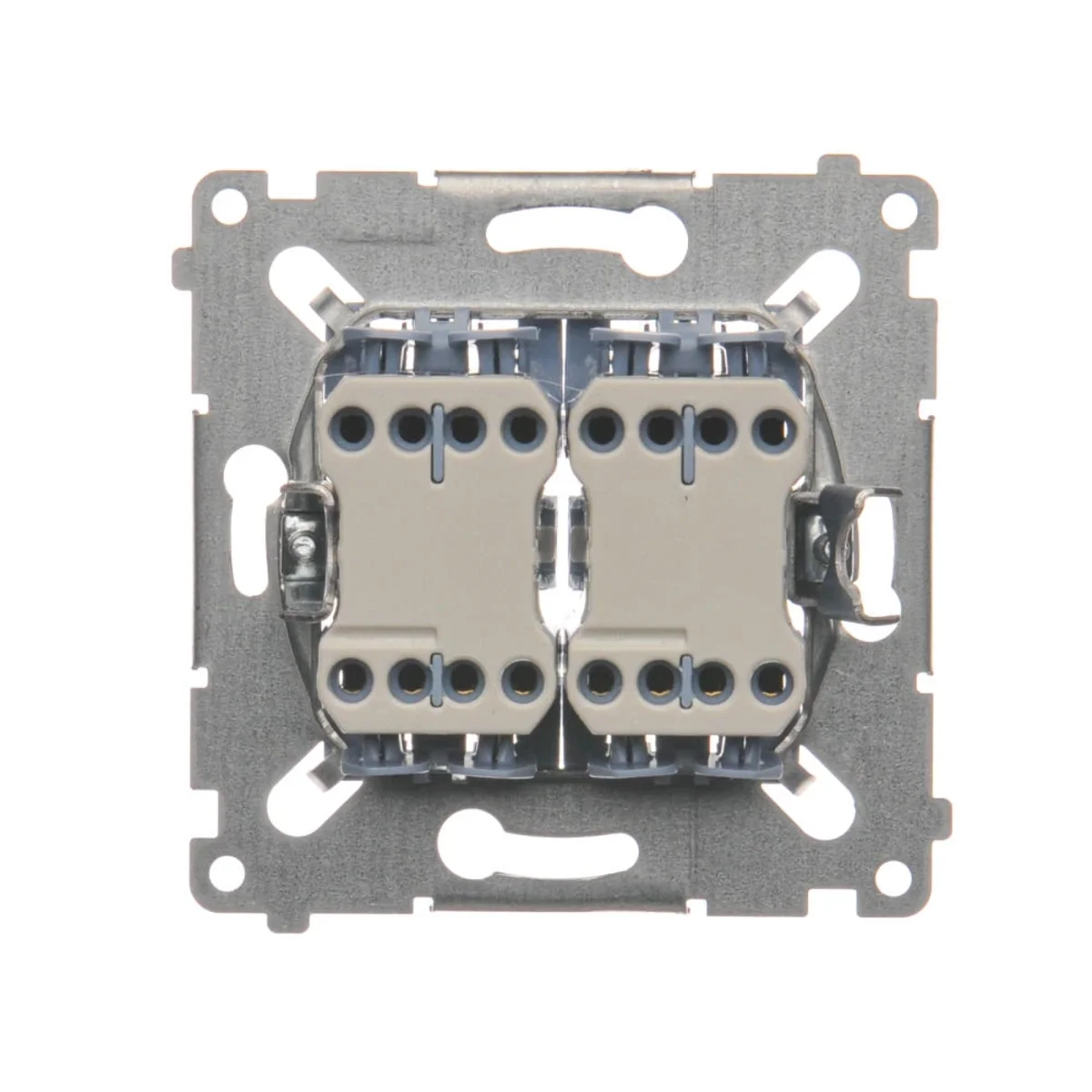

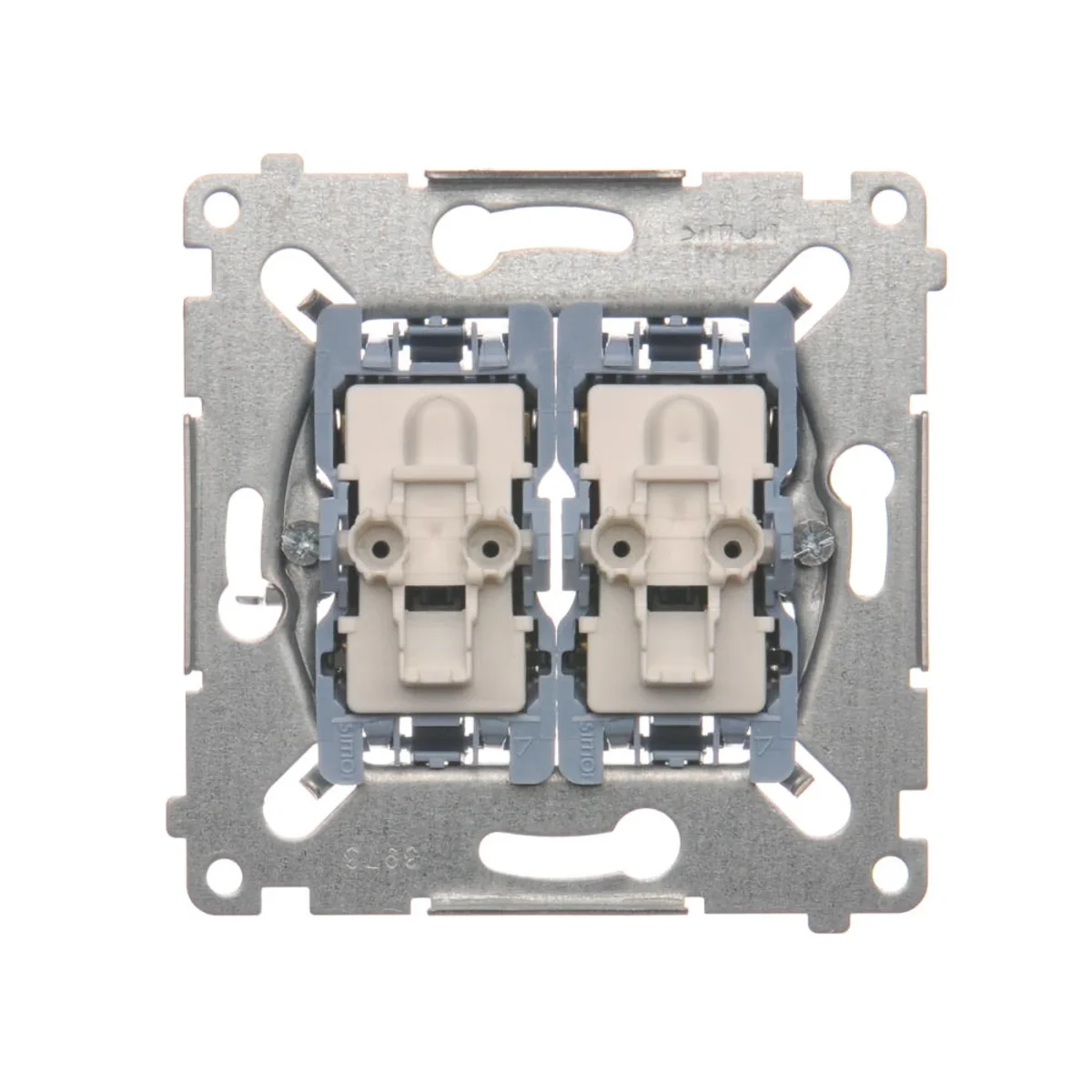

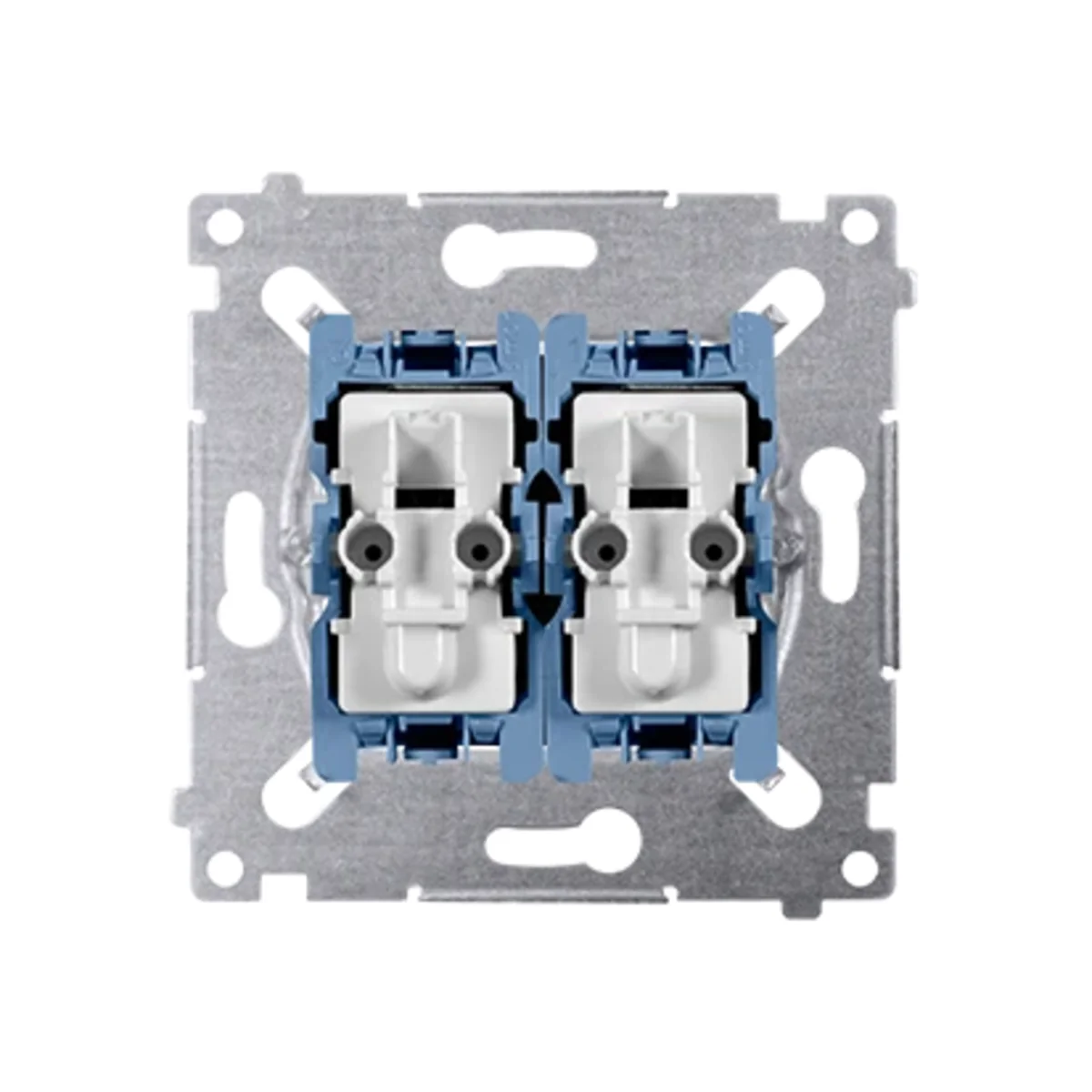

Name: SIMON 54 Double cross switch (mechanism) 10AX 230V
Brand: KONTAKT-SIMON
SKU: MPK001KONT
Price: 16.58 PLN

Cross connector mechanism from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is SW7/2XM.

FEATURES:

Double.
Quick connectors.
To obtain the IP44 splash-proof class, use a gasket under the keys and a frame gasket.
To obtain a product with a backlight, you must additionally purchase the "DUL - 2 pcs" backlight system ;.
Backlight optional, orienting, not included.
Dedicated to: DKW9/.. double keys - 6 colors, DKW9/AB11 double keys - Antibacterial white, DKW9L/.. double keys with eyelet - 6 colors, DKW9L/AB11 double keys with eyelet - Antibacterial white.

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. Mechanism cross connector characterize the features of this unique series.

Depth [mm]

32
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Type

The linkage mechanism
Surface protection

Natural
Mounting depth [mm]

26
For the frame system

Yes

Number of keys

2
Material

Metal
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Backlight

NO
Terminal type

Threadless
PKWIU

27.33.11.0

Other technical data

Wiring system

Intermediate switch
Assembly arrangement

Basic element
Material

Metal
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Surface protection

Untreated
Nominal voltage

250 V
Connection type

Push-in clamp

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,066	0,066	0,747
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,037	0,230
Depth (m)	0,032	0,160	0,100
