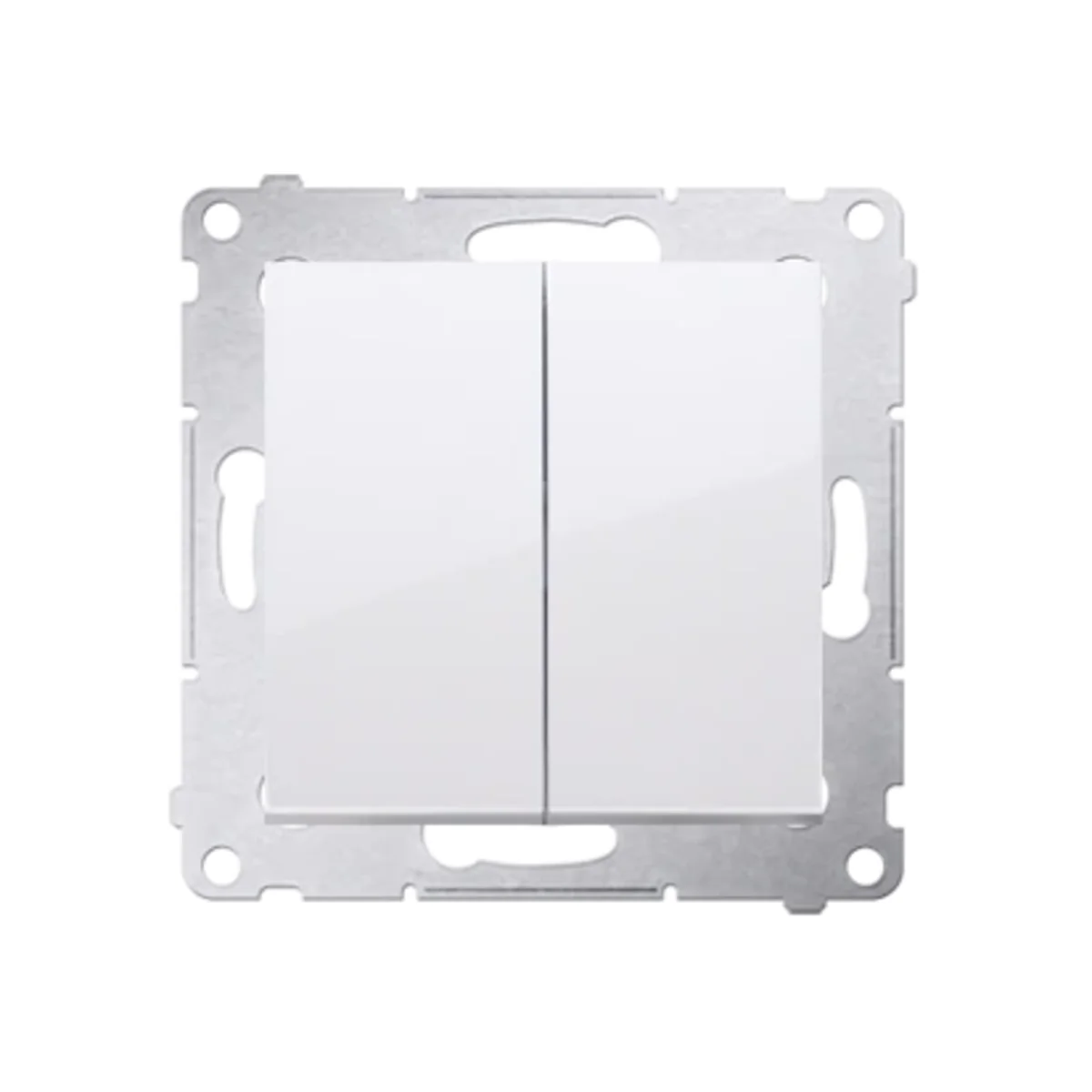

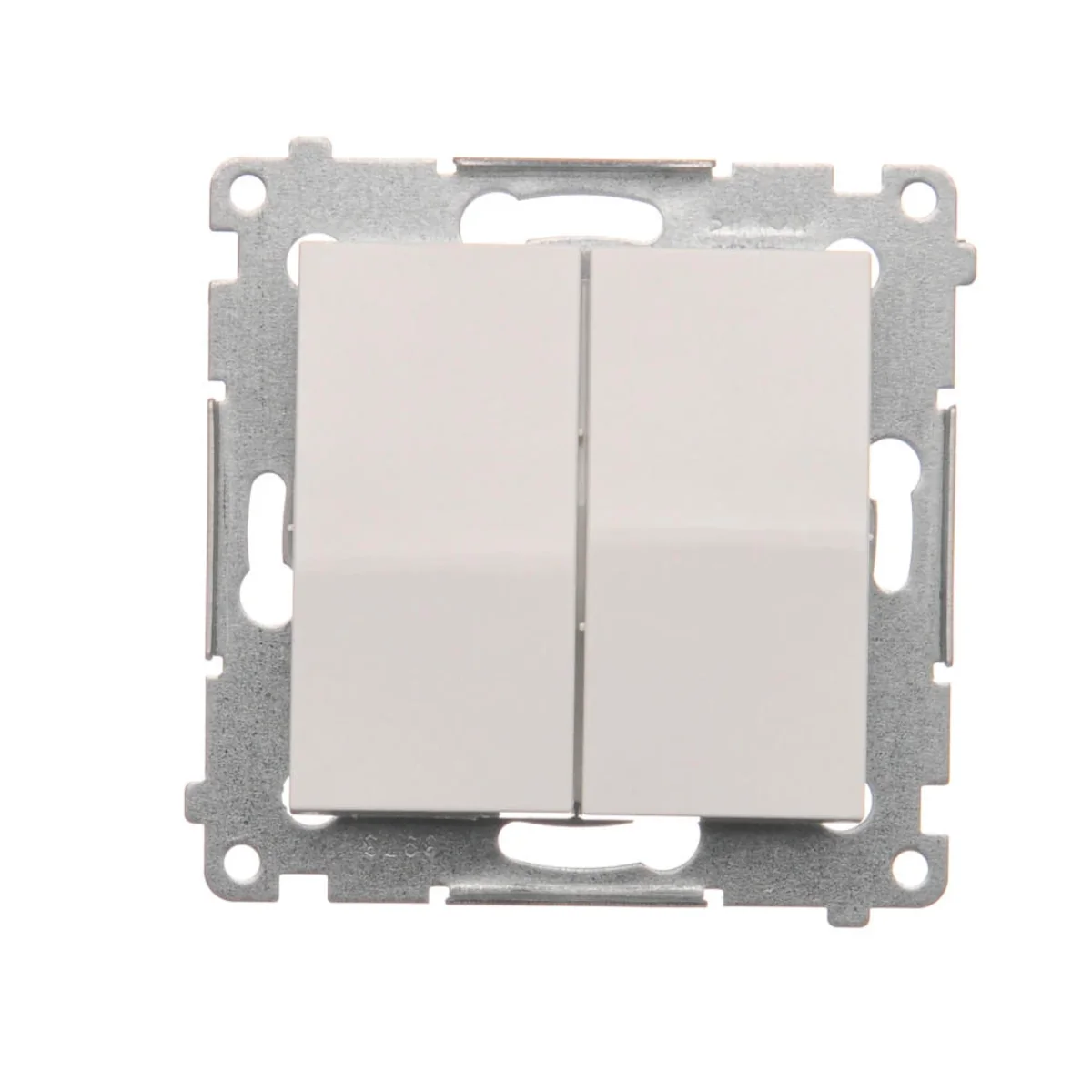

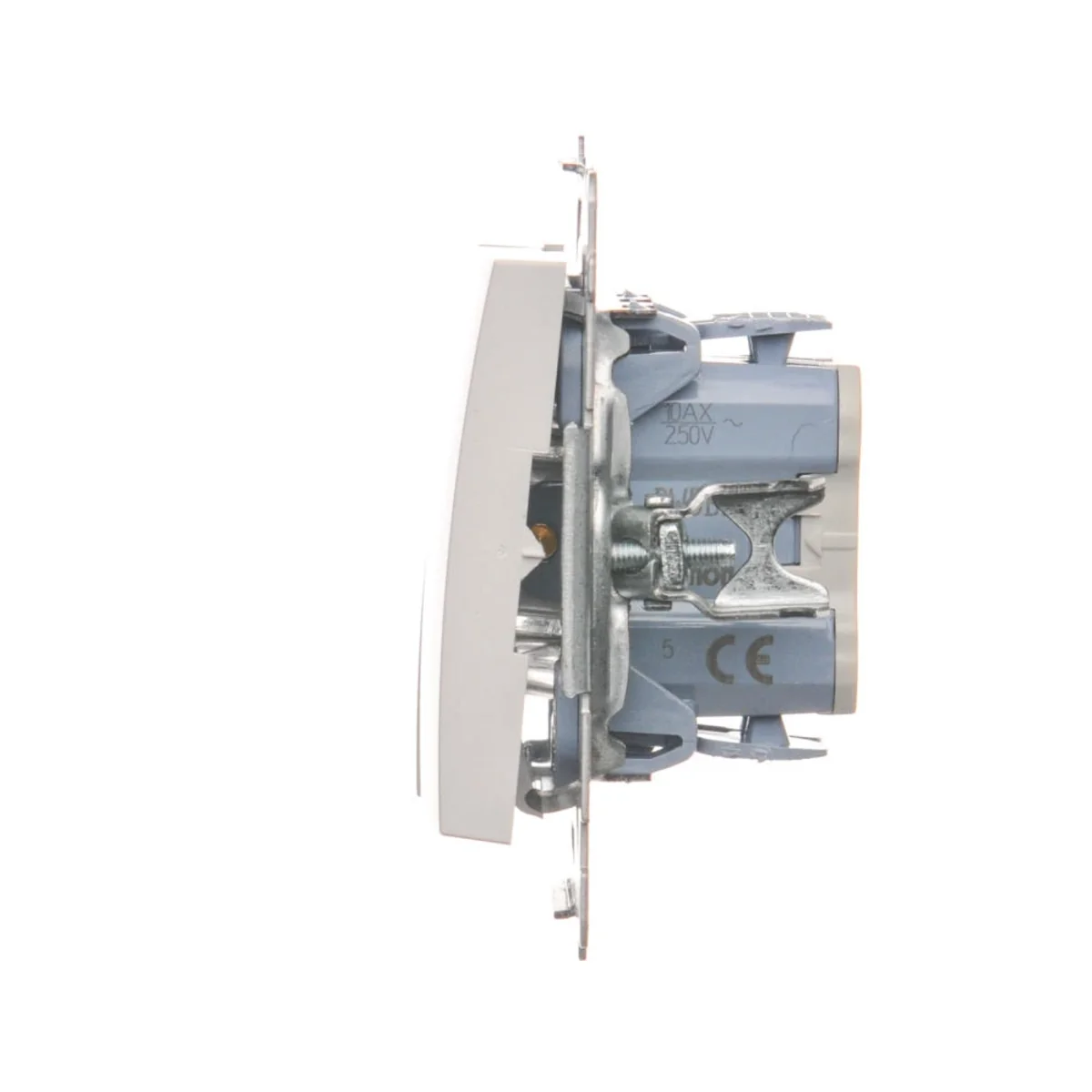

SIMON 54 Candlestick connector for IP44 version (module) 10AX 250V quick connectors white DW5B.01/11

local index:
MMT018KONT
Catalog No:
DW5B.01/11
EAN code:
5902787822255
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 2
Price:
7,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candlestick connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW5B.01/11.



FEATURES

  • Up to IP44 version .
  • Module without frame.
  • Quick connectors.
  • Color  white.
  • Rated current of fluorescent lamps 10AX.
  • Rated voltage 230V.
  • Flushmount.
  • Dimensions: 75 x 75 mm (H x W).
  • Material PC.

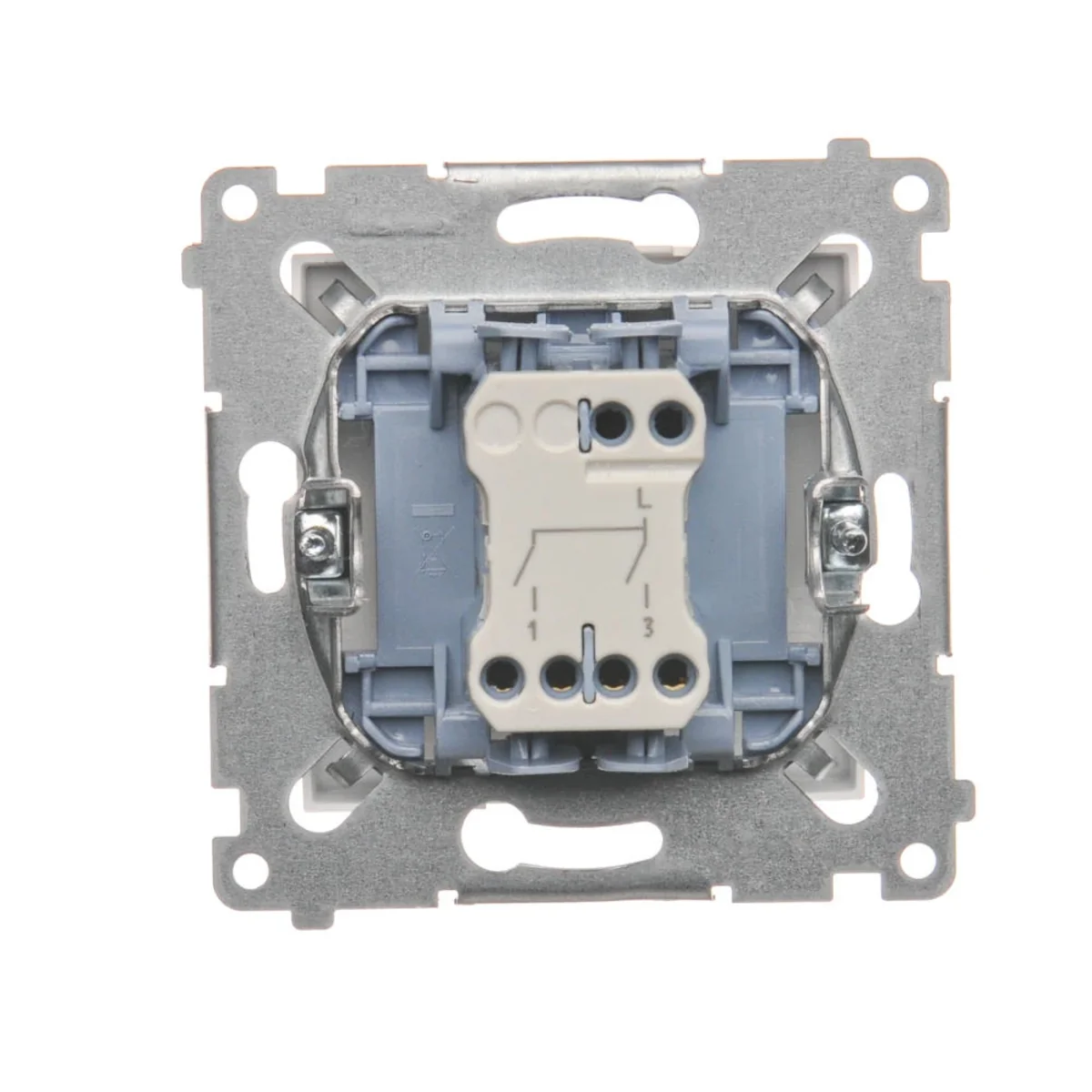

  • 2x1-pole (bistable) connector.
  • To obtain IP44 splash-proof class, use a frame gasket.
  • It has a sealing insert under the keys.



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms , distinguished by a noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Connection type
    Push-in clamp
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP44
  • Switching current for fluorescent lamps
    10 AX

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,058 0,058 0,679
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
