SIMON 54 Candlestick connector for IP44 version (module) 10AX 250V quick connectors silver matt metallized DW5B.01/43

Внутрішній артикул:
MMT020KONT
№ каталоговий:
DW5B.01/43
Код EAN:
5902787822279
Виробник: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 2
Ціна:
10,23 €
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 2 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати в буфер обміну
Роздрукувати

Опис товару

Candlestick connector from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW5B.01/43.



FEATURES

  • Up to IP44 version .
  • Module without frame.
  • Quick connectors.
  • Color  silver matt, metallised.
  • Rated current for fluorescent lamps 10AX.
  • Rated voltage 230V .
  • flush mounting.
  • Dimensions: 75 x 75 mm (height x width).
  • Material PC.

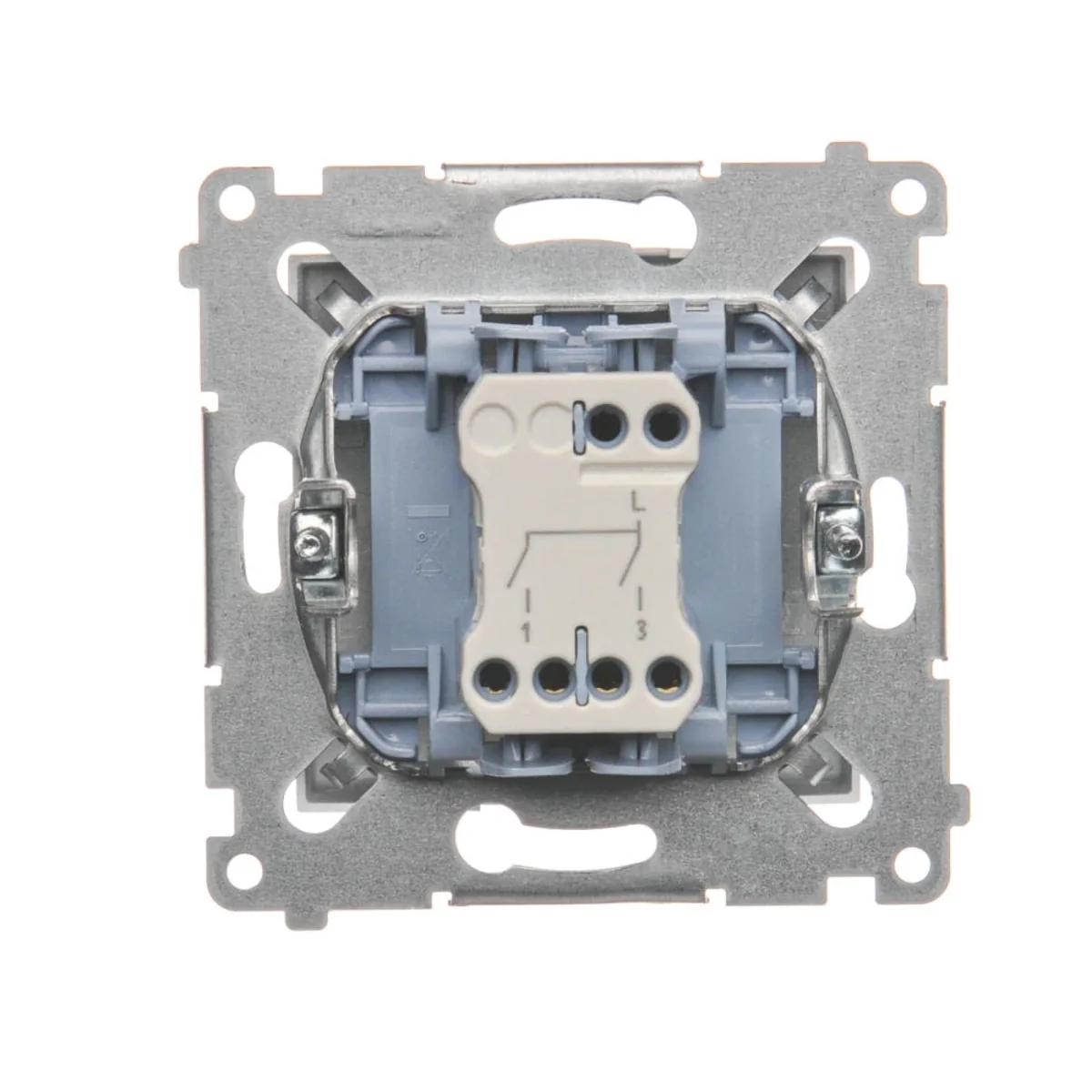

  • 2x1-pole (bistable) connector.
  • Use a frame gasket to obtain IP44 splash-proof class.
  • It has a sealing insert under the keys.



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and user-friendly mechanisms to be assembled, distinguished by a noble form and rich colors.

Технічні дані

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP44
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Silver metallic matt
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 54
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    PC

Інші технічні дані

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Nominal voltage
    250 V
  • Connection type
    Push-in clamp
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP44
  • Switching current for fluorescent lamps
    10 AX

Інформація про виробника

  • Виробник
    Kontakt-Simon S.A.
  • Адреса
    43-500 Czechowice-Dziedzice Bestwińska 21 Polska
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Paczka Karton
Кількість 1 шт. 1 шт. 10 шт.
Вага (кг) 0,058 0,058 0,679
Ширина (м) 0,075 0,110 0,190
Довжина (м) 0,075 0,045 0,230
Глибина (м) 0,041 0,160 0,100
