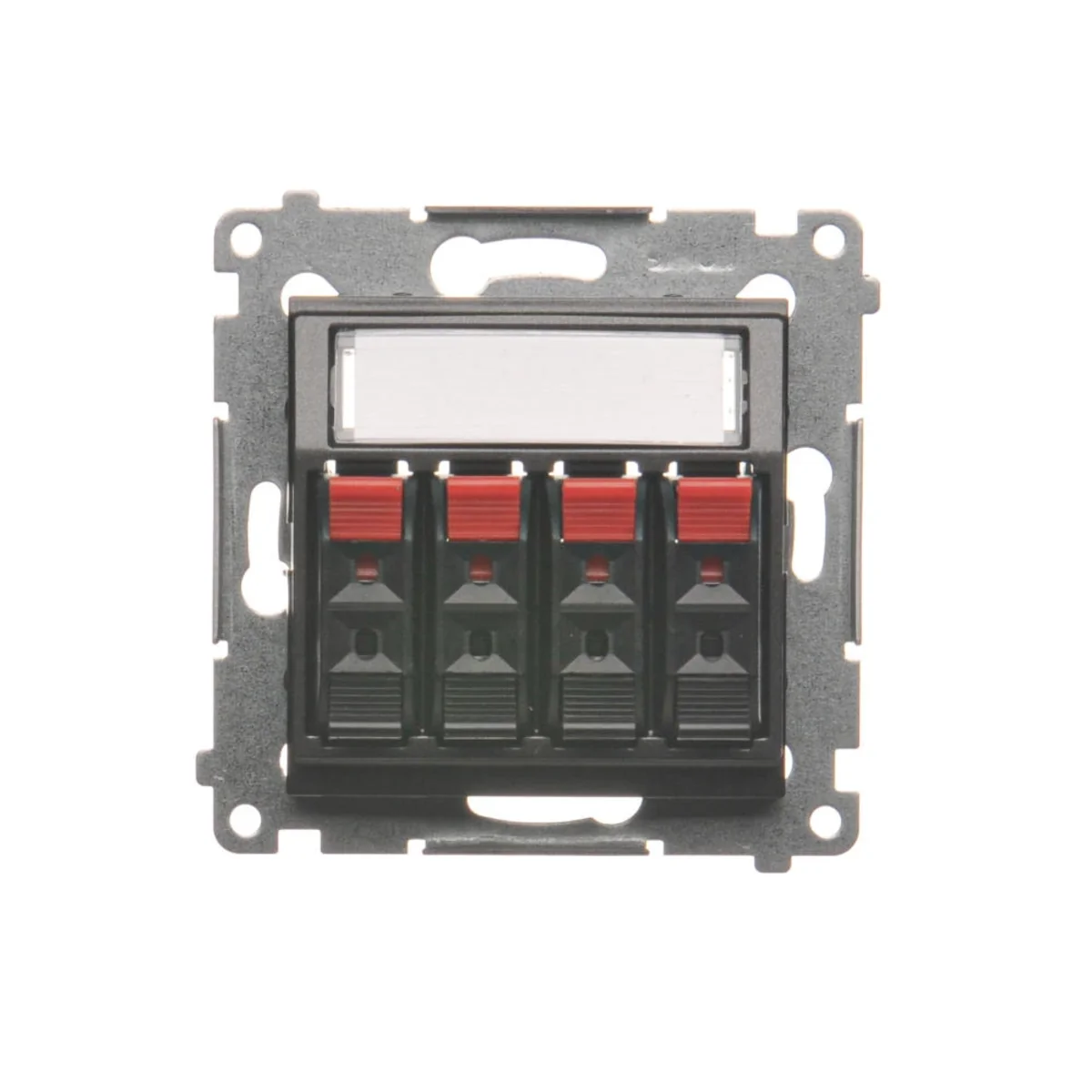

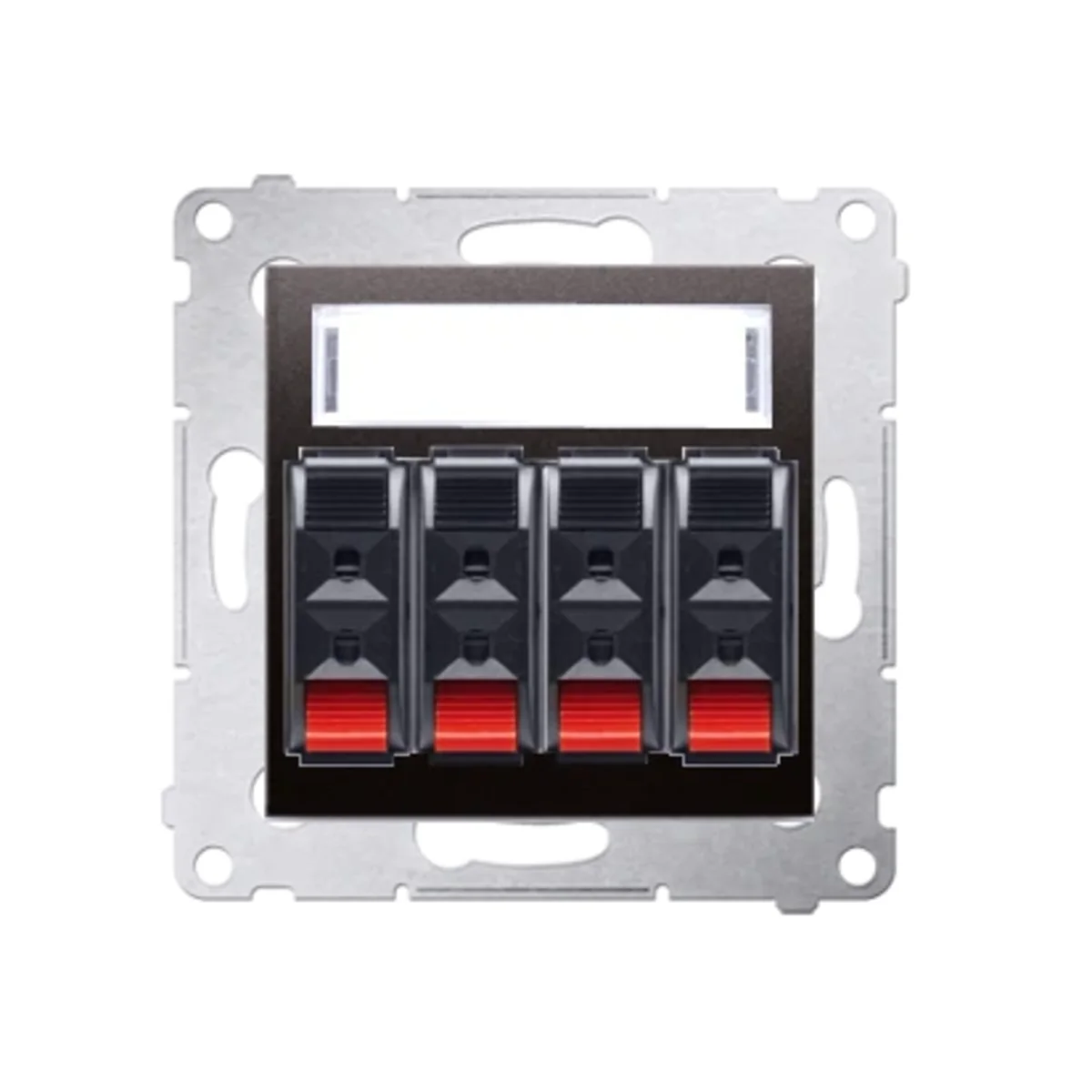

SIMON 54 4-gang loudspeaker socket with description field, metallic anthracite DGL34.01/48

local index:
MEG054KONT
Catalog No:
DGL34.01/48
EAN code:
5902787825744
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 48
Number of sockets: 4
Price:
20,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Speaker socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGL34.01/48.



FEATURES

  • For connecting 4  ;loudspeakers.
  • Module without frame.
  • Crimp (clamp).
  • Color anthracite, metallised.
  • flush mounting.
  • Made of PC

    SERIES DESCRIPTION

    SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors. The loudspeaker socket has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    4
  • Shape
    Square
  • Fixing
    claws Screws
  • Descriptive field
    Yes
  • Family
    Simon 54
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Wire cross-section [mm²]
    2.5
  • Mounting depth [mm]
    22
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    48
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Metallized anthracite
  • Backlight
    NO
  • Variant
    Pin-type plugs
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Utilization
    Loudspeaker connection
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Anthracite

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,061 0,061 0,698
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,054 0,230
Depth (m) 0,048 0,160 0,100
