SIMON 10 Single socket without grounding, white, 16A CG1.01/11
local index:
MEE385KONT
Catalog No:
CG1.01/11
EAN code:
5902787842109
Price:
2,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

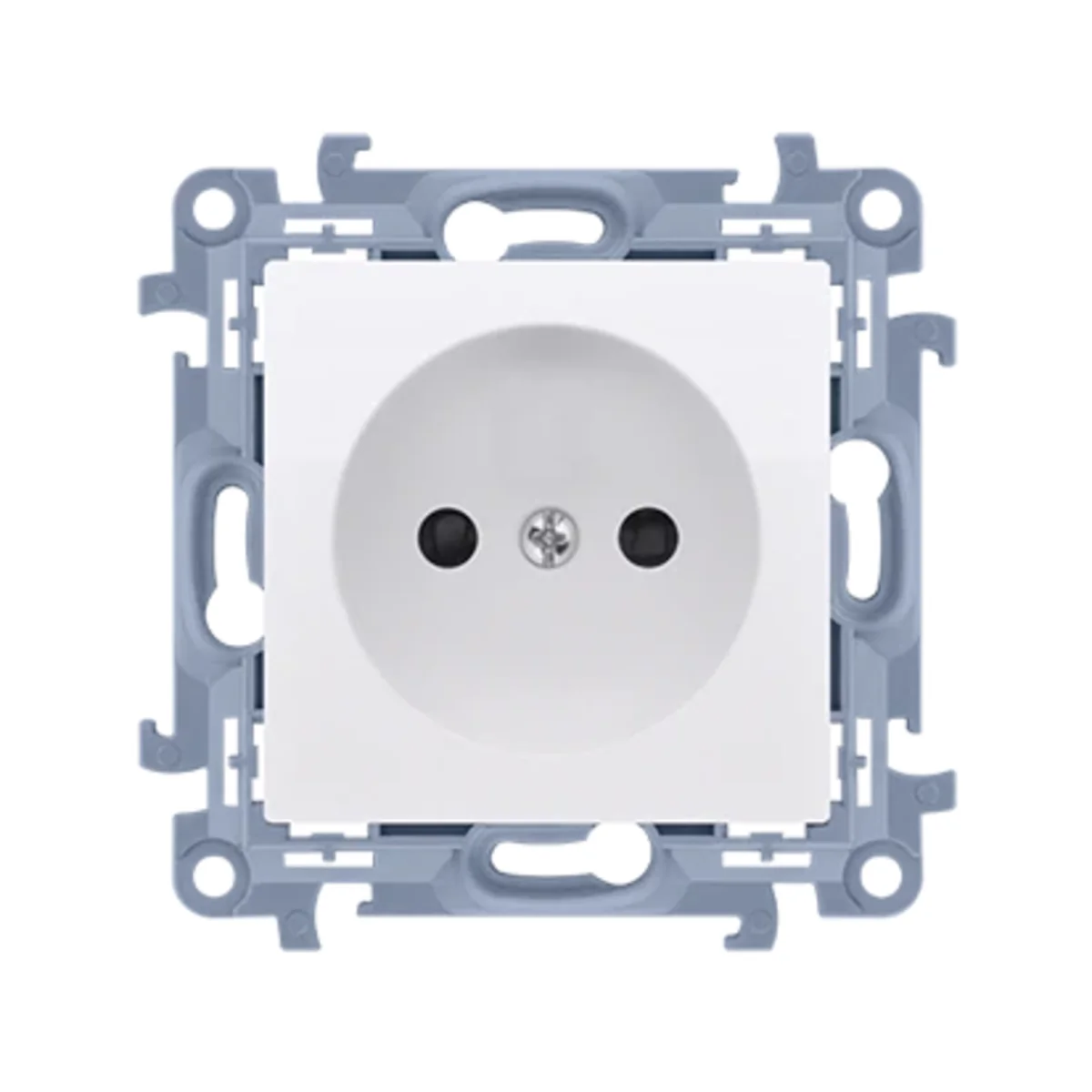

Electric socket from the Simon 10 series, from the manufacturer Contact Simon. The product part number is CG1.01/11.
FEATURES
- Single< /strong>.
- Ungrounded.
- Screw terminals.
- Module without frame.
- Color white.
- Rated current 16A.
- Rated voltage 230V.
- flush mounting.
- Made of PC.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]77
-
Surface finishShiny
-
Mounting depth [mm]26.5
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPC
-
Depth [mm]37.5
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 10
-
Width [mm]77
-
GroundLack
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Number of units1
-
ColourWhite
-
MaterialPlastic
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Connection typeScrewed terminal
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Frequency50 ... 60 Hz
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,048 | 0,048 | 0,569 |
| Width (m) | 0,077 | 0,110 | 0,190 |
| Length (m) | 0,077 | 0,043 | 0,230 |
| Depth (m) | 0,038 | 0,160 | 0,100 |
