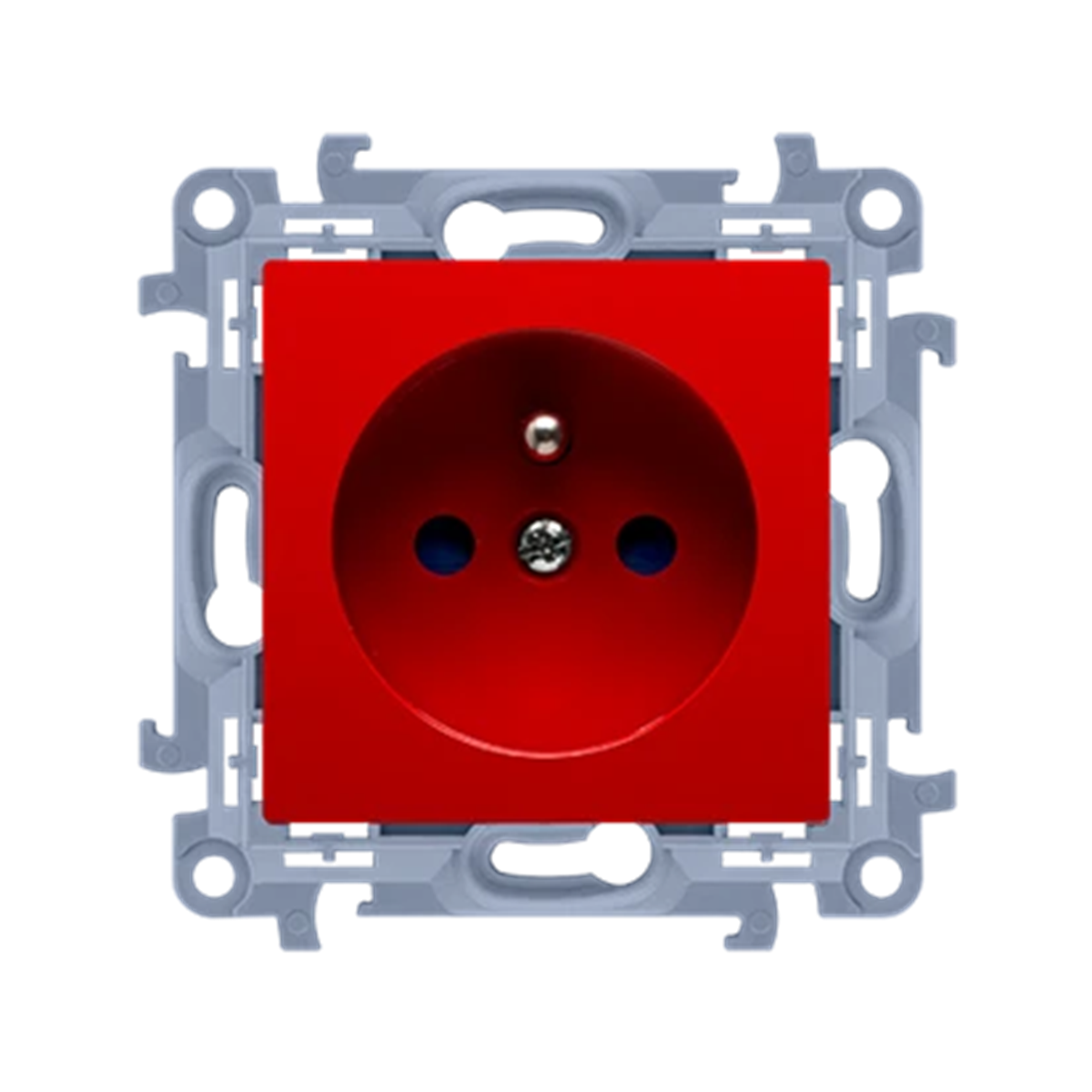

SIMON 10 Single socket-outlet with earthing and shutters for current paths (module) 16A 230V red CGZ1Z.01/22
local index:
MEE273KONT
Catalog No:
CGZ1Z.01/22
EAN code:
5902787842093
Price:
4,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Plug series Simon 10, from the manufacturer Contact Simon. The product catalog number is CGZ1Z.01/22.
FEATURES
- Single.
- With grounding, grounding pin.
- With shutters for current paths.
- Screw terminals< /strong>.
- Borderless module.
- Color red.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20. < li>flush mounting.
- Dimensions: 77 x 77 mm (H x W).
- Material PC.
- Second backup power supply (red).
SERIES DESCRIPTION
Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]77
-
Surface finishShiny
-
Mounting depth [mm]26.5
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPC
-
Depth [mm]37.5
-
ColorRed
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 10
-
Width [mm]77
-
GroundHurt
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
Number of units1
-
ColourRed
-
MaterialPlastic
-
Surface protectionUntreated
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Connection typeScrewed terminal
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Frequency50 ... 60 Hz
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,567 | 0,567 | 0,655 |
| Width (m) | 0,077 | 0,110 | 0,190 |
| Length (m) | 0,077 | 0,043 | 0,230 |
| Depth (m) | 0,038 | 0,160 | 0,100 |
