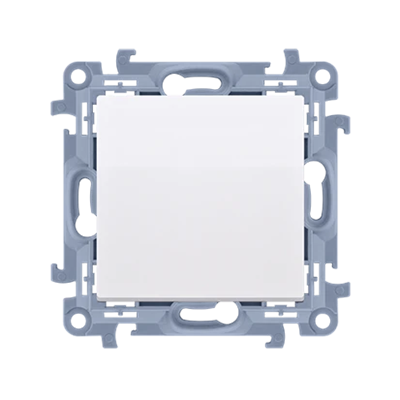

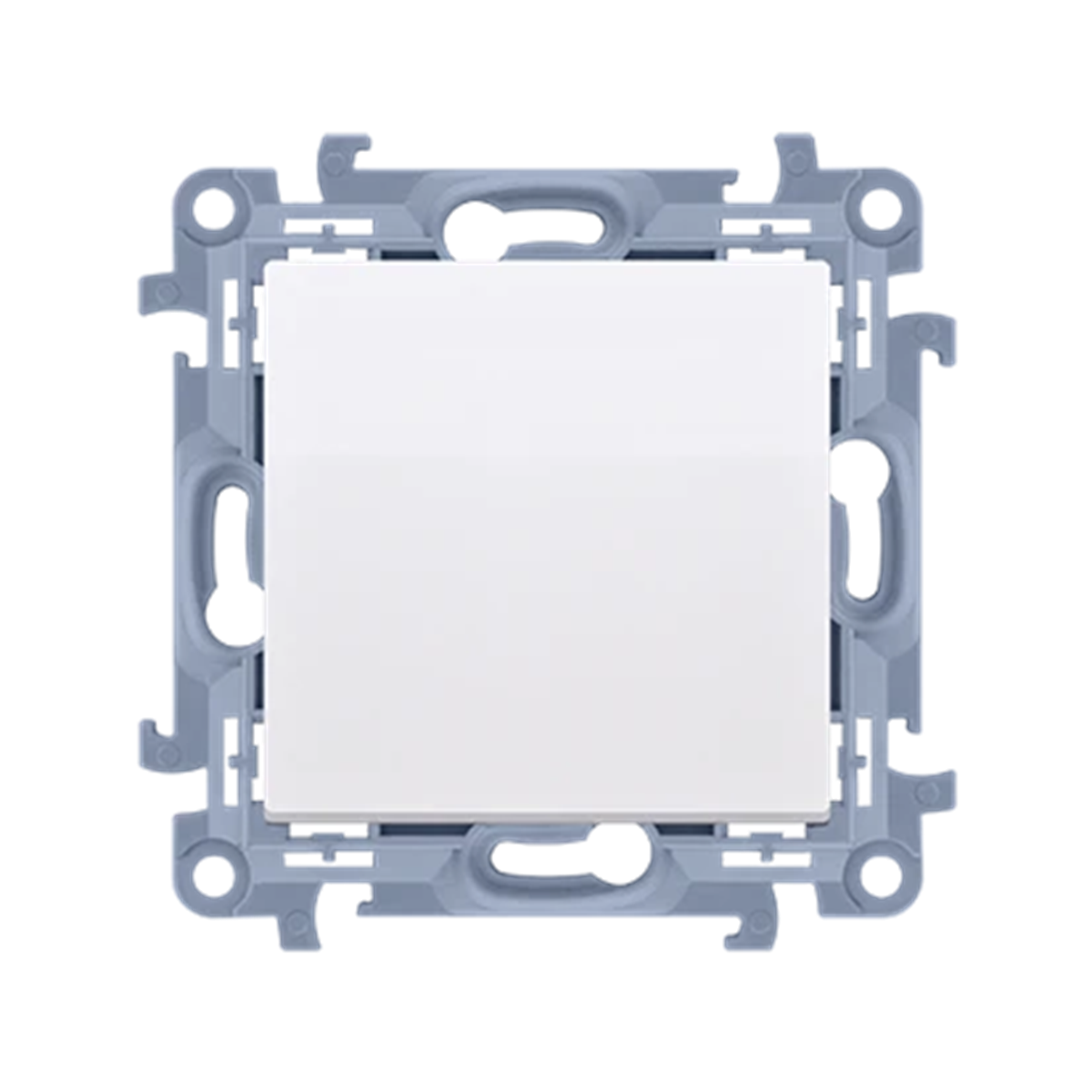

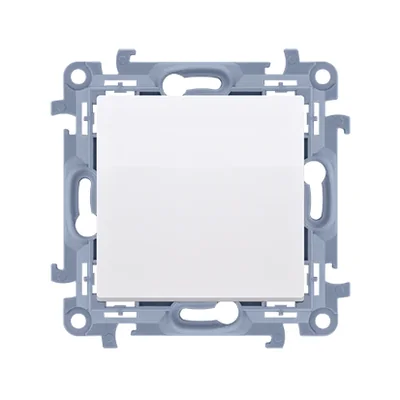

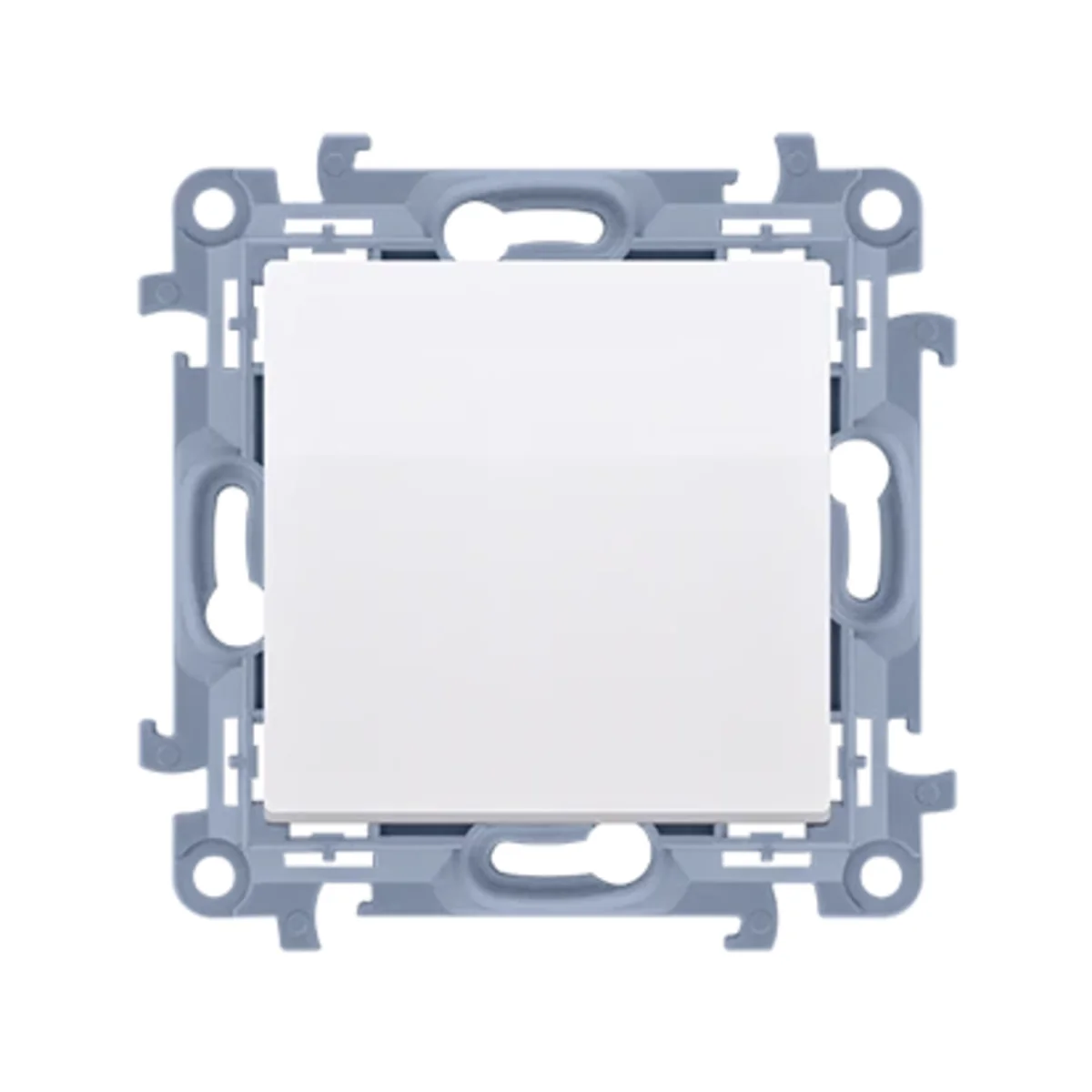

SIMON 10 Single NO pictogram button, white, 10AX CP1.01/11

local index:
MMZ160KONT
Catalog No:
CP1.01/11
EAN code:
5902787841898
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 42
Number of keys: 1
Price:
3,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 24 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Operating button single from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CP1 .01/11. White.



FEATURES

  • No pictogram.
  • < li>To obtain IP44 splash-proof class, use a frame gasket.



SERIES DESCRIPTION

Simon 10 is economical modular series for investments where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    77
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26
  • Variant
    Ordinary
  • Exact material
    PC
  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 10
  • Width [mm]
    77
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Contacts
    1 make contact (NO)
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 10 pcs. 1 pcs.
Weight (kg) 0,051 0,597 0,051
Width (m) 0,110 0,190 0,077
Length (m) 0,047 0,230 0,077
Depth (m) 0,160 0,100 0,042
