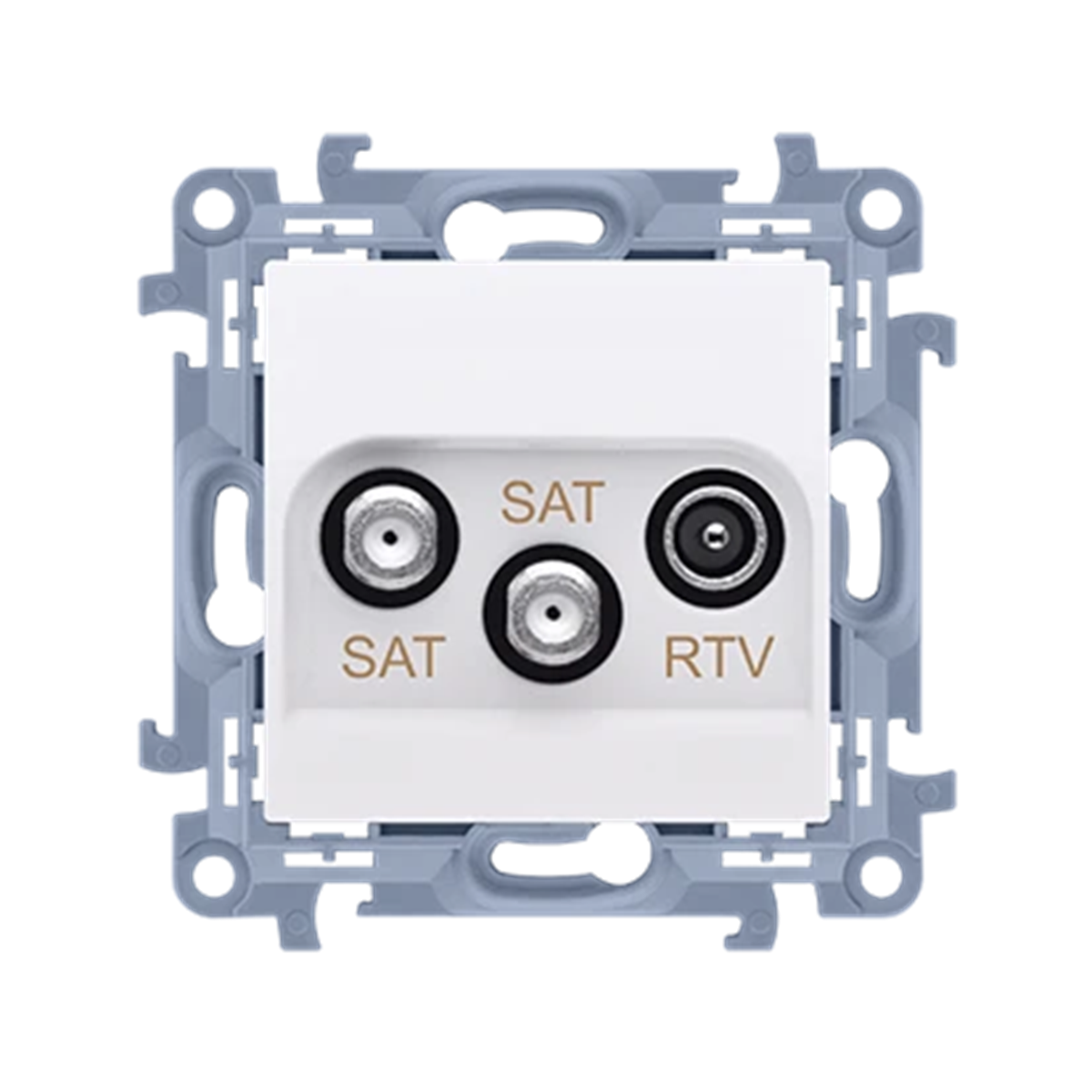

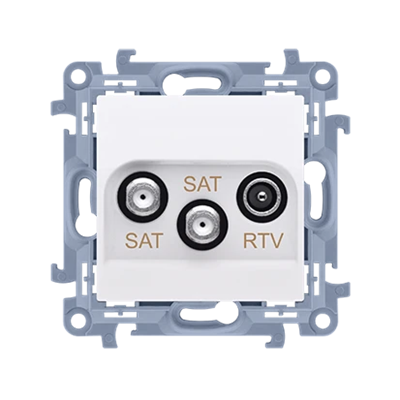

SIMON 10 SAT-SAT-RTV satellite double antenna socket, white CASK2.01/11

local index:
MEA144KONT
Catalog No:
CASK2.01/11
EAN code:
5902787842970
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of sockets: 3
Price:
21,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SAT-SAT-RTVsatellite double socket



SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    Simon 10
  • Width [mm]
    77
  • Type
    Flush-mounted
  • Height [mm]
    77
  • Frequency Range [MHz]
    5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 1 Connections for 2150 MHz: 2
  • Version
    Final
  • Surface protection
    Natural
  • Surface finish
    Shiny
  • Mounting depth [mm]
    29
  • Variant
    RTV sat sat2
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    TWIN end socket
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for remote power supply
    Yes
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    3
  • Frequency
    5 ... 2400 MHz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,105 0,105 1,141
Width (m) 0,077 0,110 0,190
Length (m) 0,077 0,046 0,230
Depth (m) 0,041 0,160 0,100
