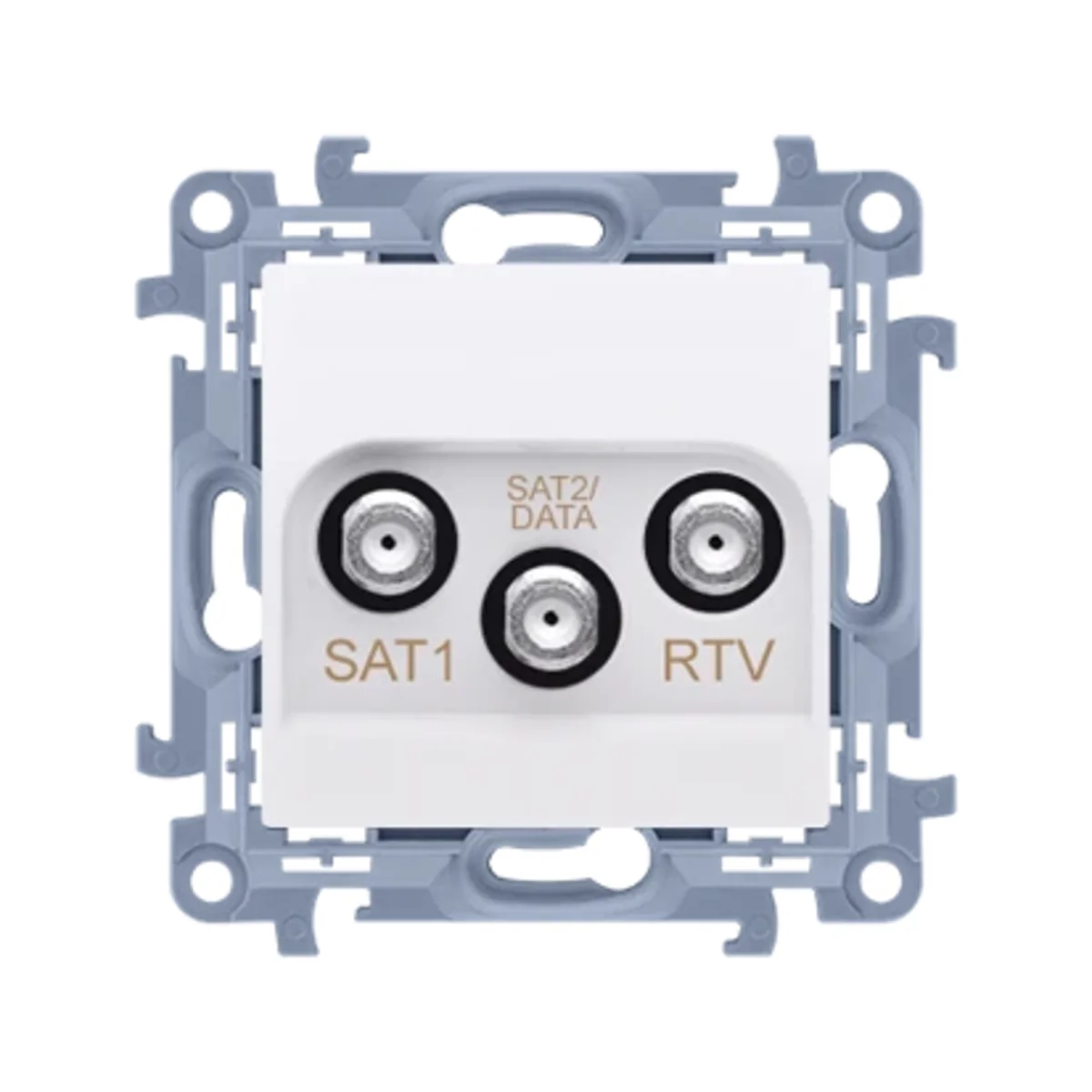

SAT-SAT-RTVsatellite double socket

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Halogen free

Yes
Number of sockets

3
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

Simon 10
Width [mm]

77
Type

Flush-mounted
Height [mm]

77
Frequency Range [MHz]

5-2400
Backlight

NO
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 1 Connections for 2150 MHz: 2
Version

Final
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

29
Variant

RTV sat SAT2 DATE
Exact material

PC

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,105	0,105	1,141
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,046	0,230
Depth (m)	0,041	0,160	0,100
