SIMON 10 RTV-SAT terminal socket, attenuation 1dB, white CASK.01/11

Name: SIMON 10 RTV-SAT terminal socket, attenuation 1dB, white
Brand: KONTAKT-SIMON
SKU: MEA237KONT
Price: 16.61 PLN
Availability: InStock

local index:

MEA237KONT

Catalog No:

CASK.01/11

EAN code:

5902787842895

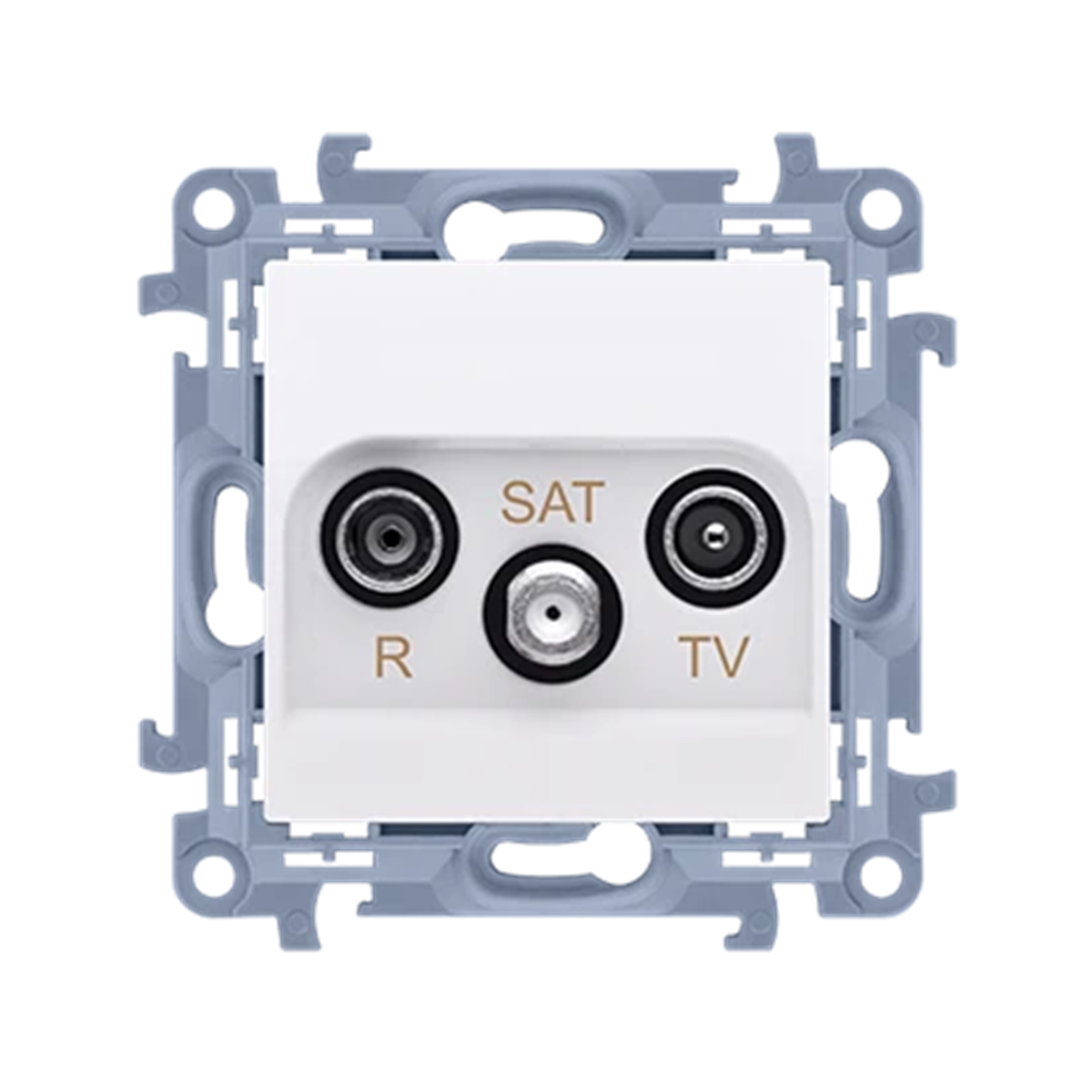

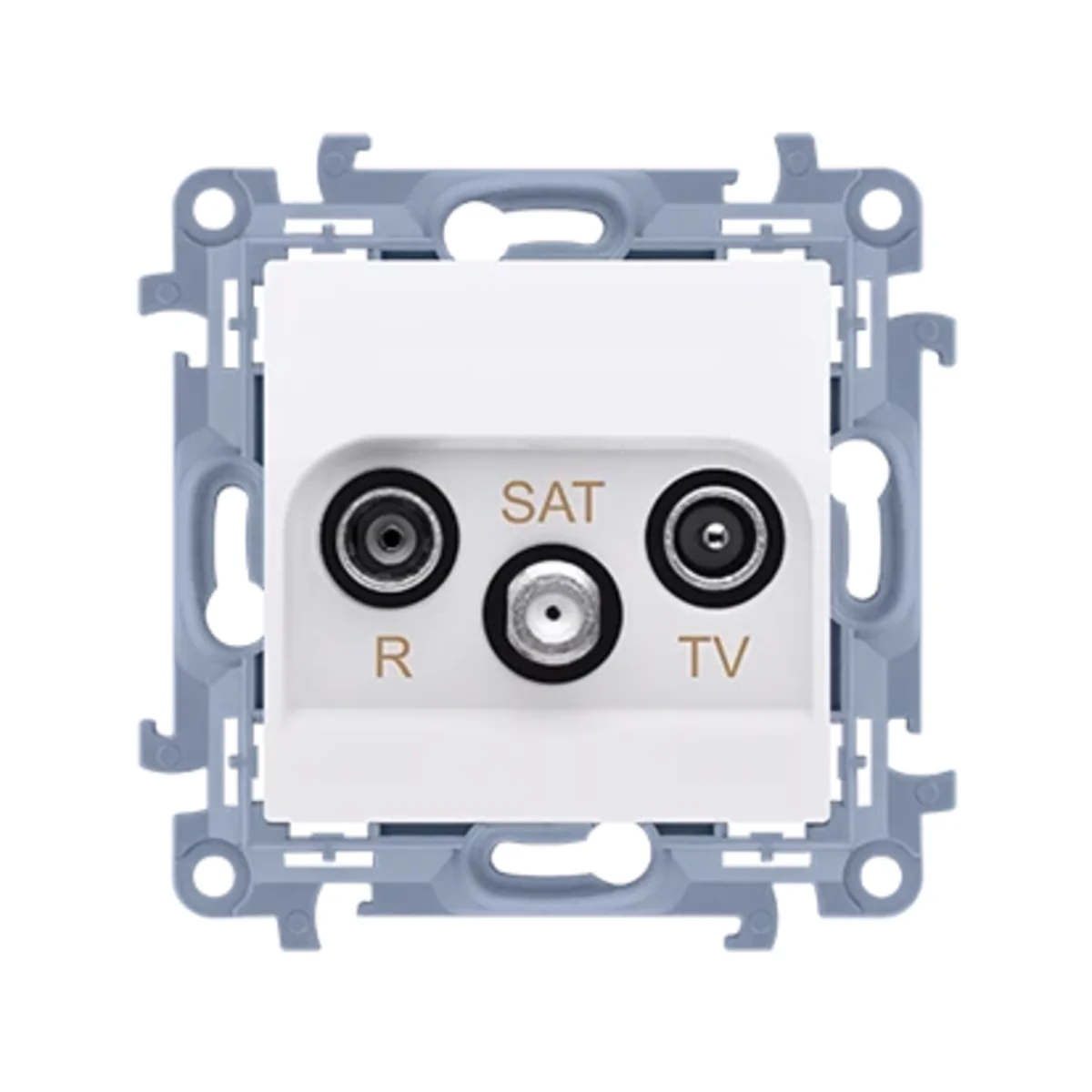

SIMON 10 RTV-SAT terminal socket, attenuation 1dB, white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 3

See full description

Price:

16,61 €

gross / pcs.

(including VAT 23%)

Accessible 11 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Antenna socket from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CASK.01/11.

FEATURES

R-TV -SAT.
Module without frame.
Color white.

SERIES DESCRIPTION

Simon 10 is an economical series of electrical equipment, the colors of which are limited to white and cream. The antenna socket has all the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

3
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

Simon 10
Width [mm]

77
Type

Flush-mounted
Height [mm]

77
Frequency Range [MHz]

5-2400
Accurate color

Creamy
Mounting depth [mm]

29
Variant

R TV sat
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 1 Connections for 2150 MHz: 2
Version

Final
Surface protection

Natural
Surface finish

Shiny
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Other technical data

Model

End socket
Tap loss at 2150 MHz

2 dB
Frequency

5 ... 2400 MHz

Tap loss at 860 MHz

1 dB
Number of outlets

3

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,103	0,103	1,115
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,046	0,230
Depth (m)	0,041	0,160	0,100
