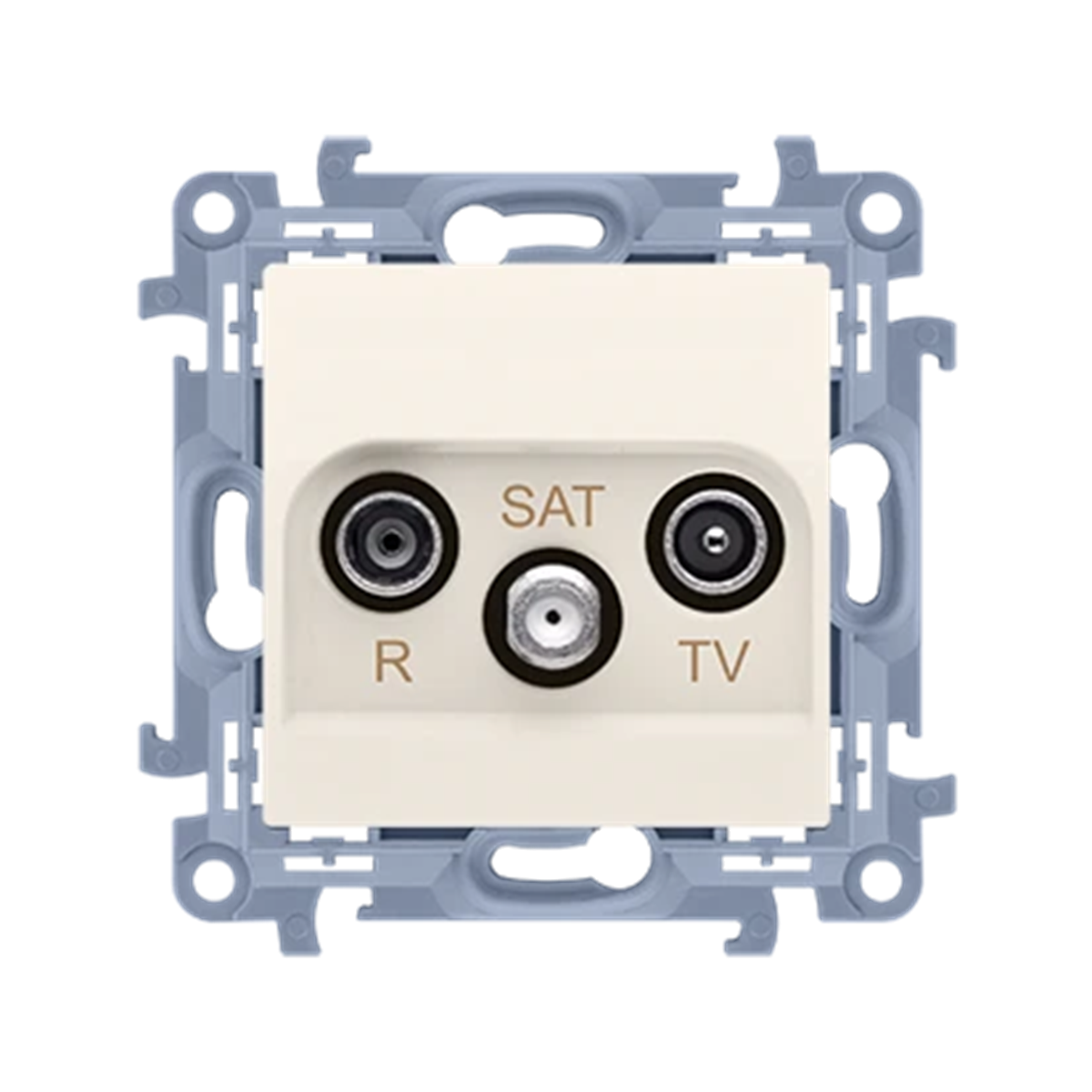

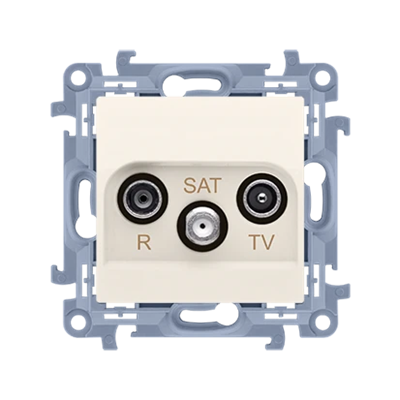

SIMON 10 R-TV-SAT pass-through antenna socket, cream CASP.01/41

local index:
MEA149KONT
Catalog No:
CASP.01/41
EAN code:
5902787842949
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of sockets: 3
Price:
21,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

R-TV-SAT antenna socket



SERIES DESCRIPTION

Simon 10 is an economical modular series for investment where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    Simon 10
  • Width [mm]
    77
  • Type
    Flush-mounted
  • Height [mm]
    77
  • Frequency Range [MHz]
    5-2400
  • Accurate color
    Creamy
  • Mounting depth [mm]
    29
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    41
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 10 Passthroughs for 860 MHz: 4 Connections for 2150 MHz: 8 Passthrough for 2400 MHz: 6
  • Version
    through
  • Surface protection
    Natural
  • Surface finish
    Shiny
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    PC

Other technical data

  • Model
    Loop-through socket
  • Tap loss at 2150 MHz
    8 dB
  • Through loss at 860 MHz
    4 dB
  • Frequency
    5 ... 2400 MHz
  • Tap loss at 860 MHz
    10 dB
  • Number of outlets
    3
  • Through loss at 2150 MHz
    6 dB

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,104 0,104 1,133
Width (m) 0,077 0,110 0,190
Length (m) 0,077 0,046 0,230
Depth (m) 0,041 0,160 0,100
