SIMON 10 Pass-through R-TV antenna socket white CAP10.01/11

Name: SIMON 10 Pass-through R-TV antenna socket white
Brand: KONTAKT-SIMON
SKU: MEA137KONT
Price: 13.00 PLN

local index:

MEA137KONT

Catalog No:

CAP10.01/11

EAN code:

5902787842819

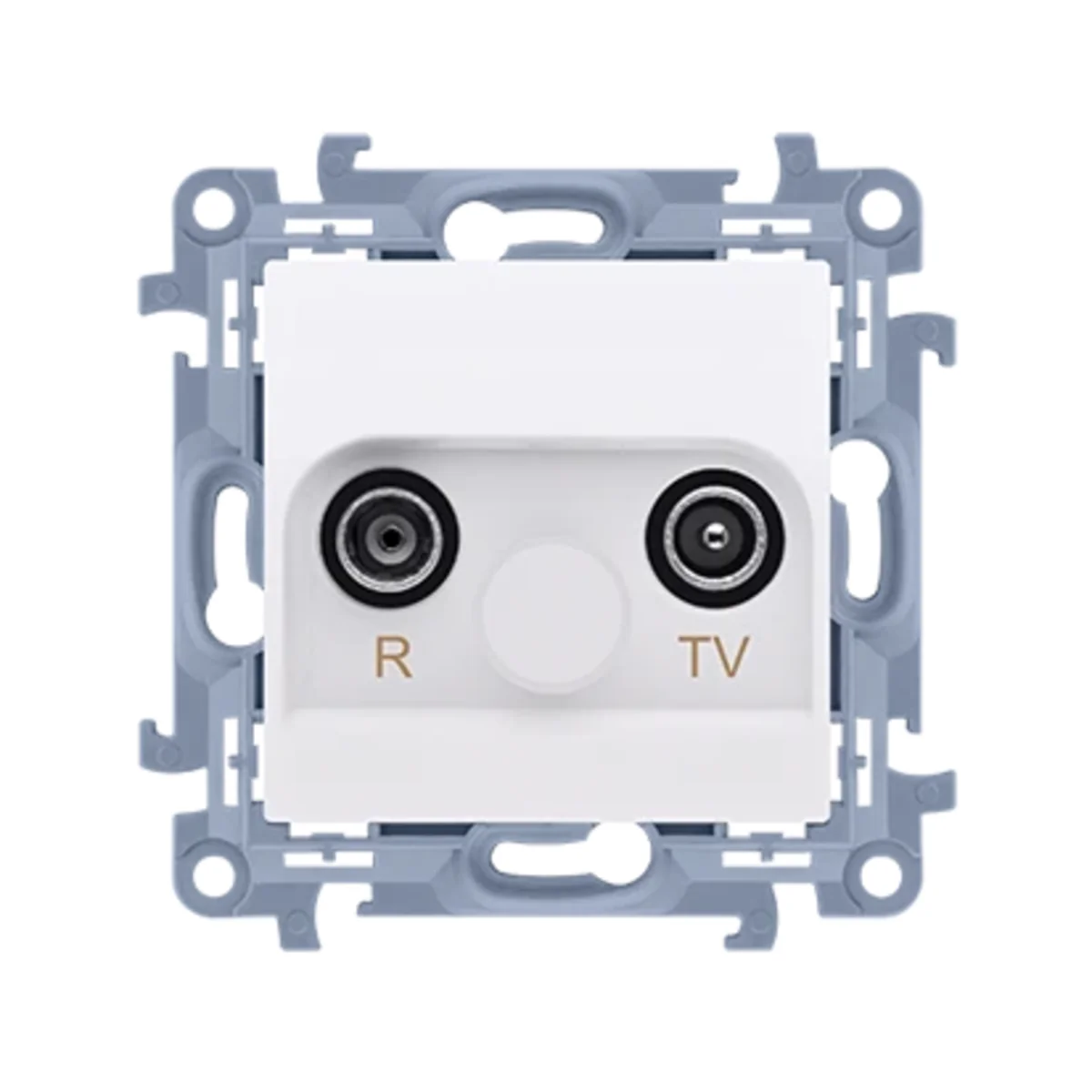

SIMON 10 Pass-through R-TV antenna socket white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 37.5

Number of sockets: 2

See full description

Price:

13,00 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

R-TV antenna socket

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments, which different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

Simon 10
Width [mm]

77
Type

Flush-mounted
Height [mm]

77
Frequency Range [MHz]

5-862
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Depth [mm]

37.5
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10 Passthrough for 860 MHz: 1.5
Version

through
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

29
Variant

R TV
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

Loop-through socket
Number of outlets

2
Suitable for remote power supply

No

Tap loss at 860 MHz

10 dB
Through loss at 860 MHz

1.5 dB
Frequency

5 ... 862 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,101	0,101	1,099
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,043	0,230
Depth (m)	0,038	0,160	0,100
