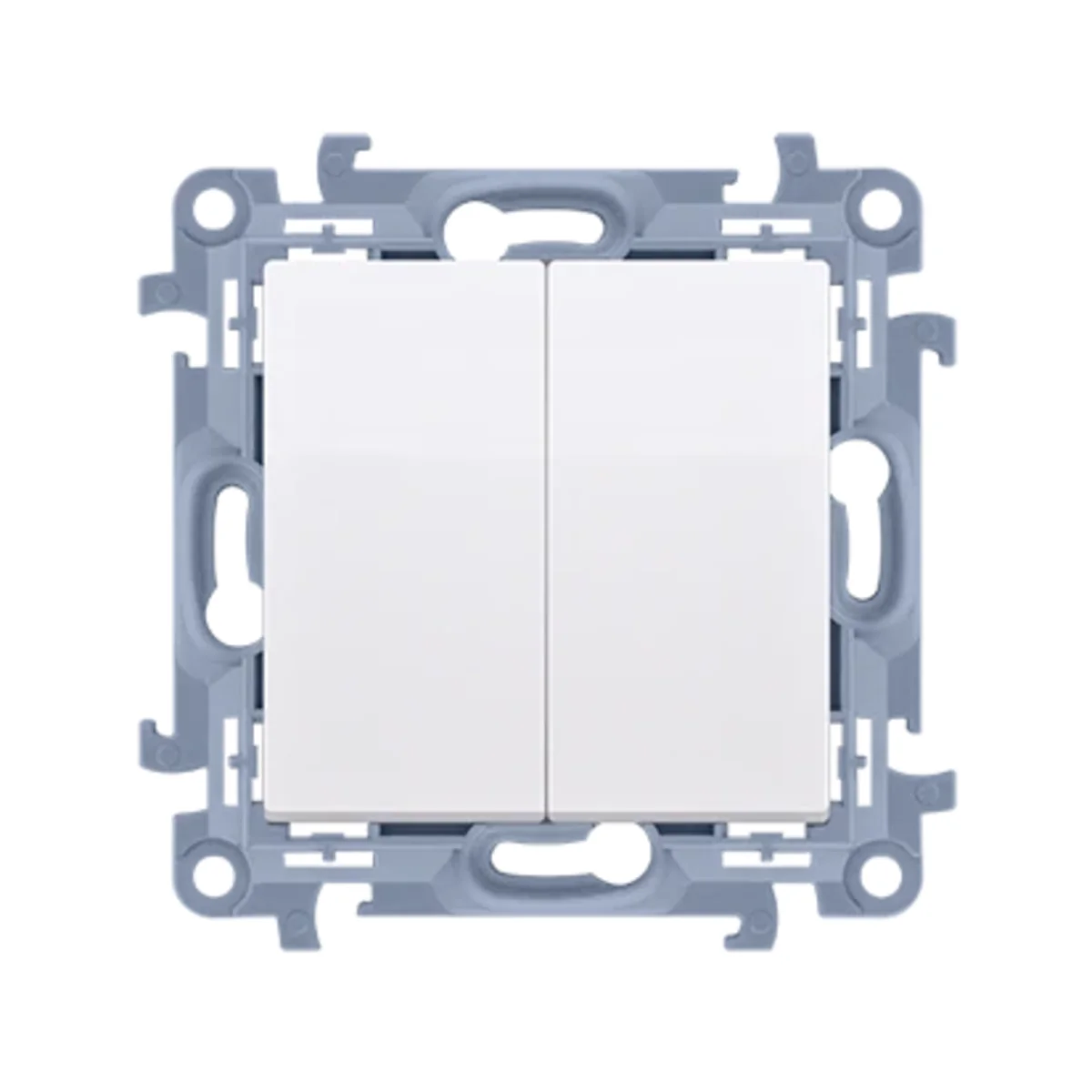

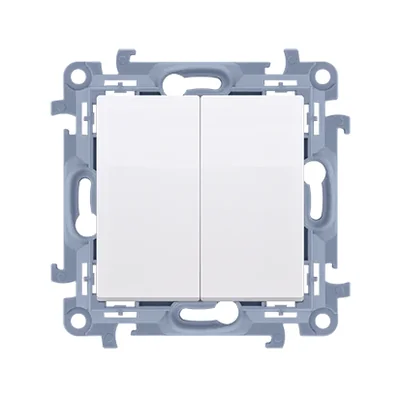

Double closing pushbutton Simon 10 series, from the manufacturer Contact Simon. The product catalog number is < strong>CP2.01/11. White color.

FEATURES

2x1-pole pushbutton ( monostable).
2 make contacts (NO).
To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Type

Flush-mounted
Height [mm]

77
Surface finish

Shiny
Mounting depth [mm]

26
Variant

Ordinary
Exact material

PC

Depth [mm]

42
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 10
Width [mm]

77
Version

Confident
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Contacts

2 make contacts (NO)
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,057	0,057	0,656
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,045	0,230
Depth (m)	0,042	0,160	0,100
