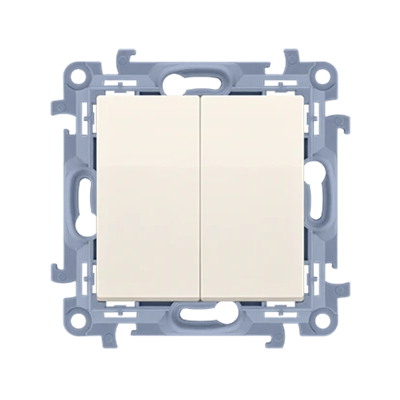

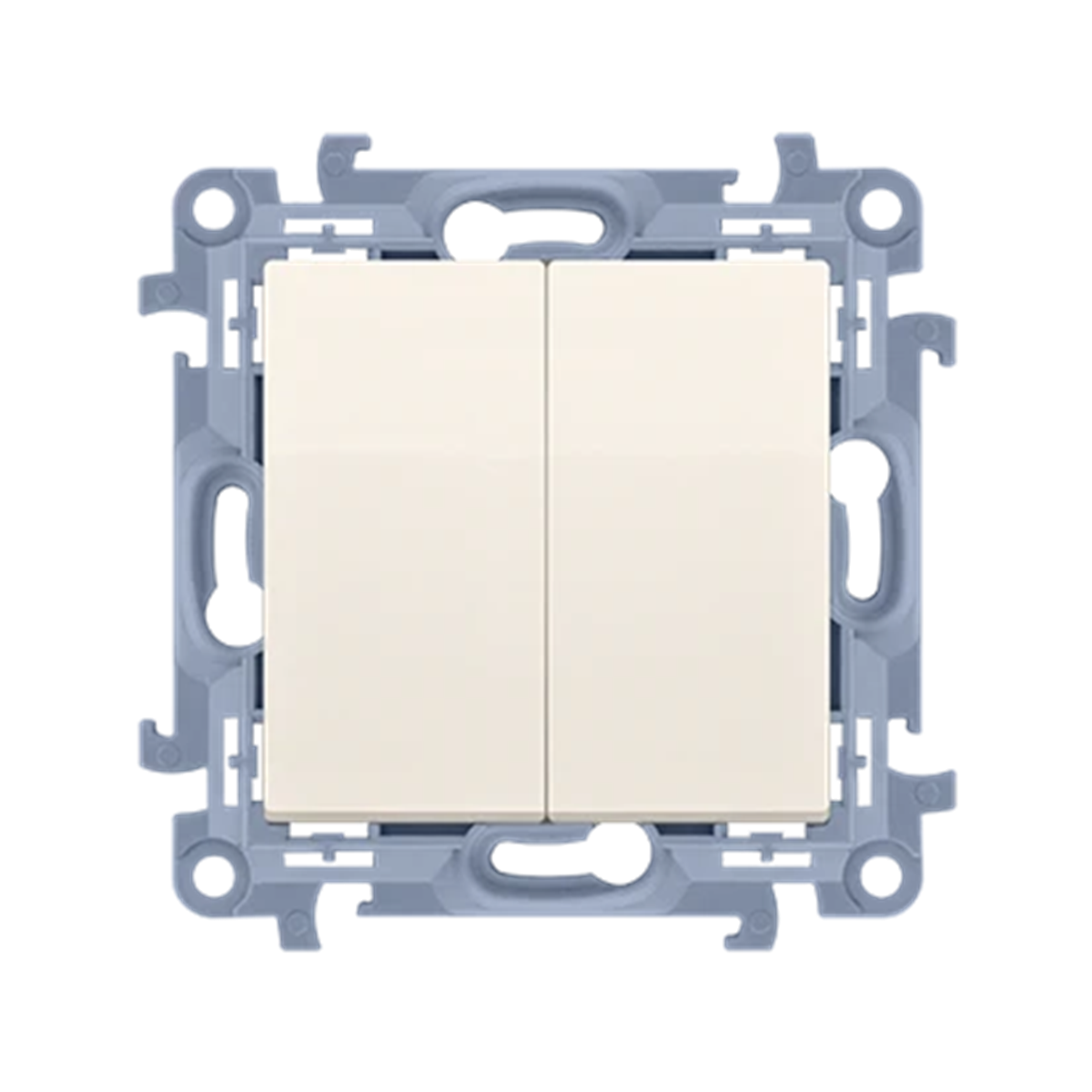

SIMON 10 Candlestick switch with LED backlight cream 10AX CW5BL.01/41

Candlestick connector from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CW5BL.01/41.

FEATURES

• With built-in backlight , orientation, white (replaceable LED).
• Module without frame.
• Screw terminals.
• Colour cream.
• Fluorescent tube current rating10AX.
• Voltage rating 230V.
• Ingress protection IP20.
• flush mounting.
• Dimensions: 77 x 77 mm (H x W).
• Material PC.
• 2x1-pole switch (bistable).
< li>To obtain IP44 splash-proof class, use a frame gasket.
• It has a sealing insert under the keys.

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.
