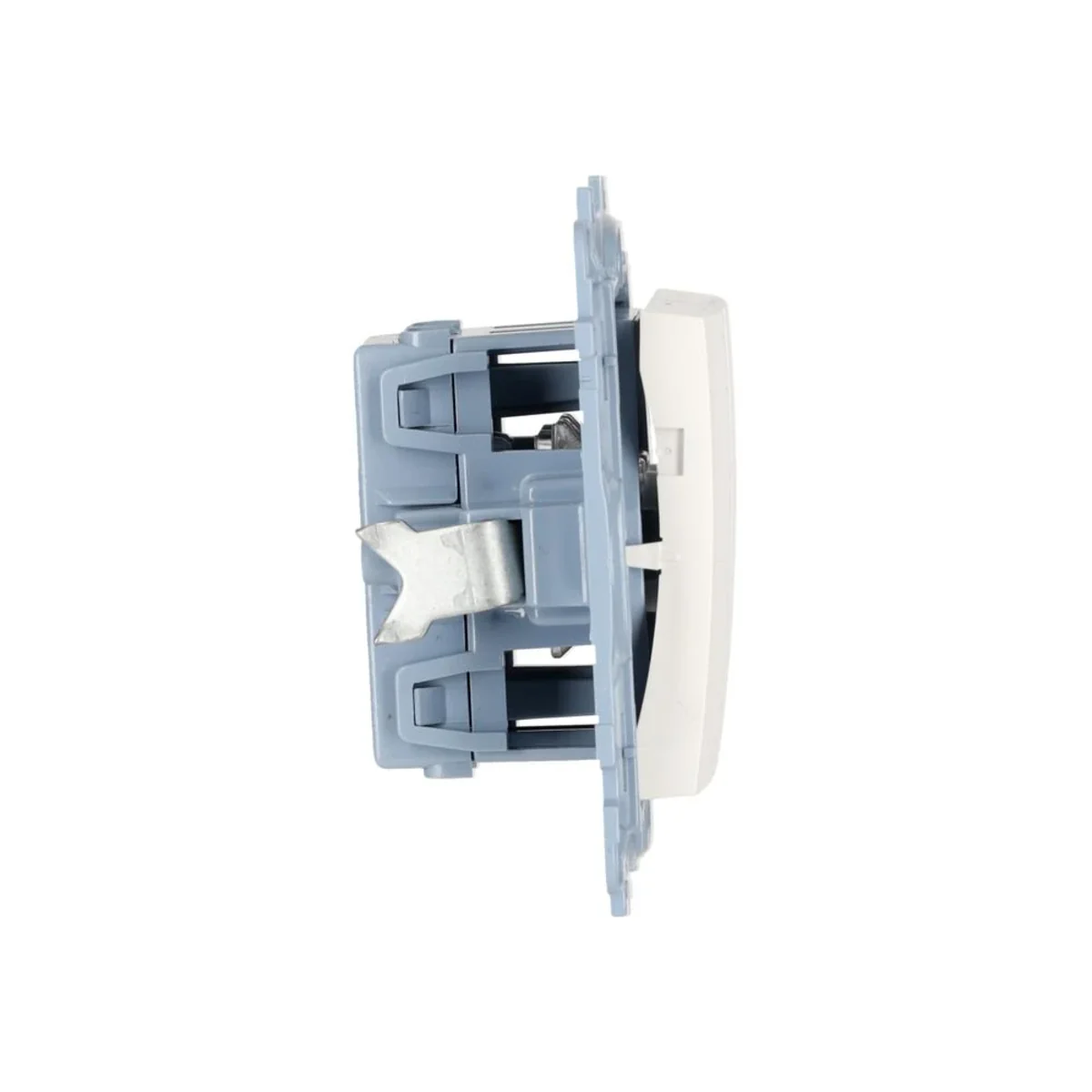

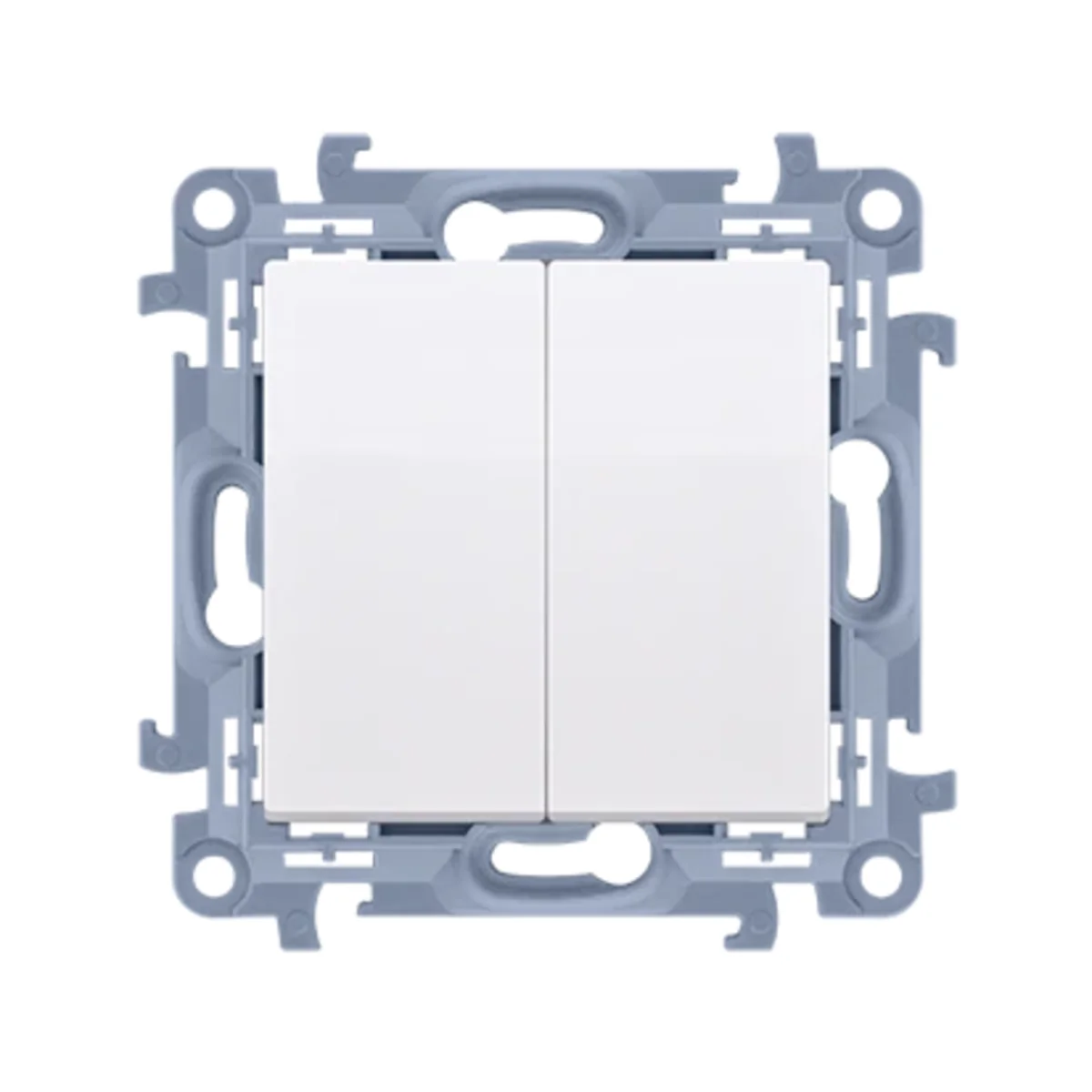

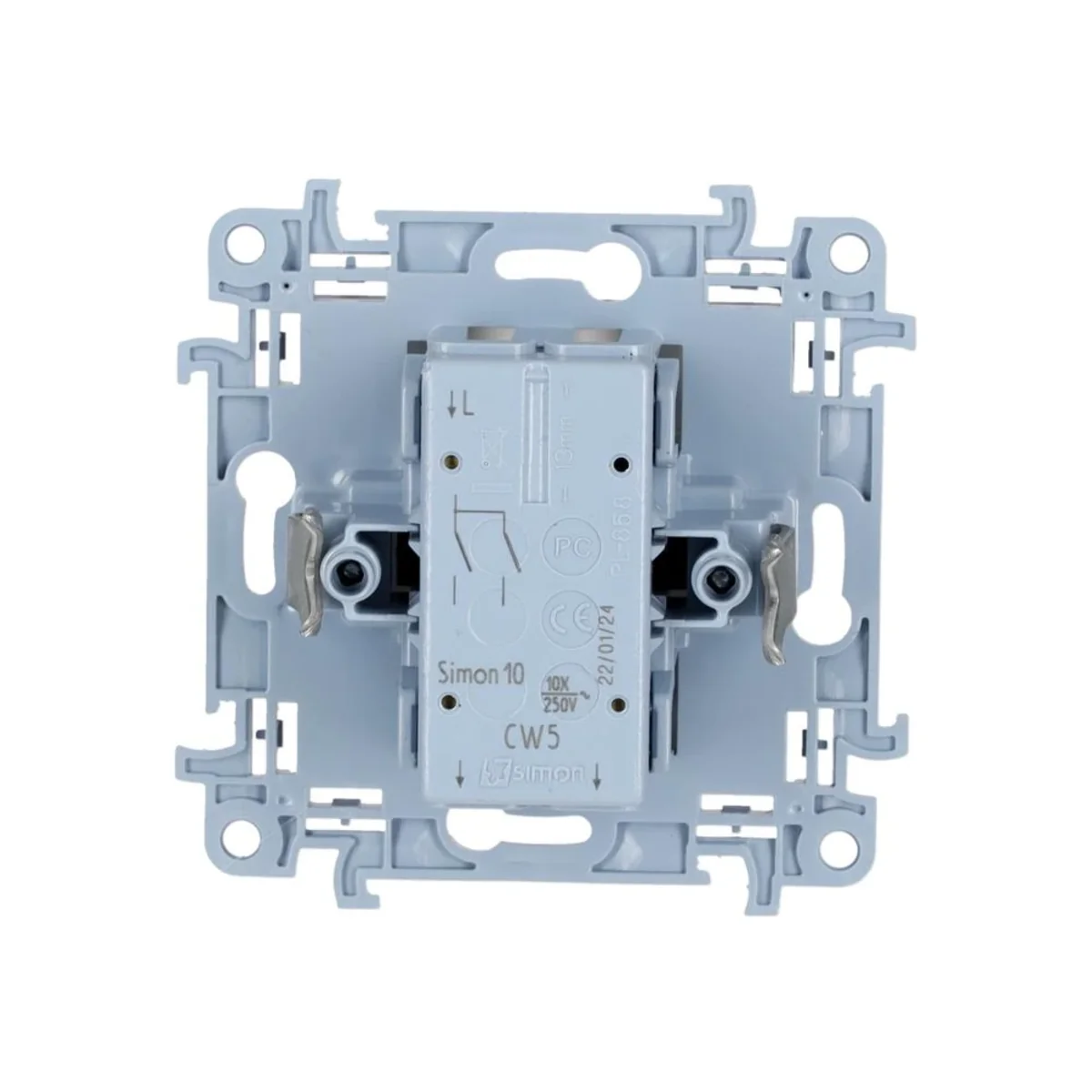

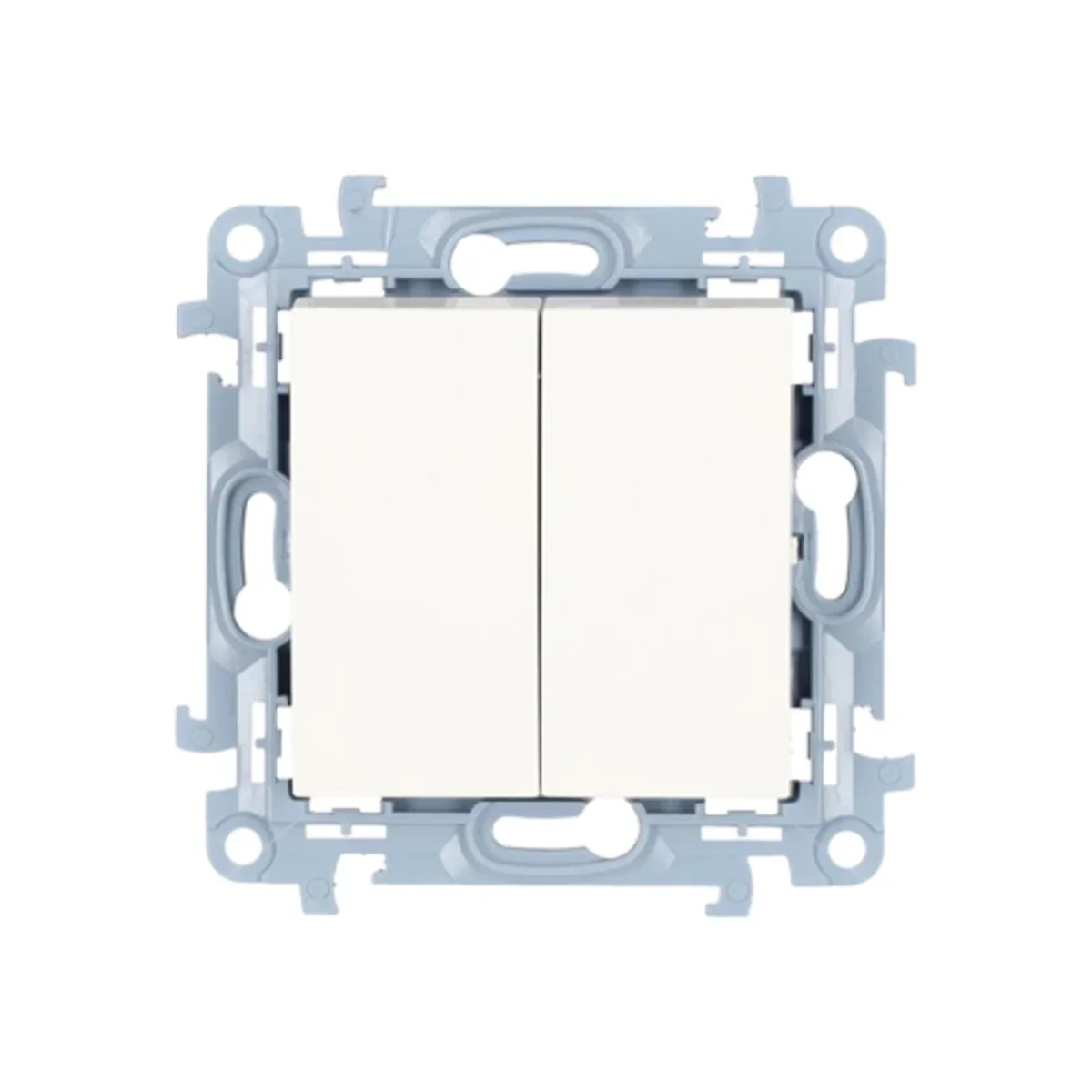

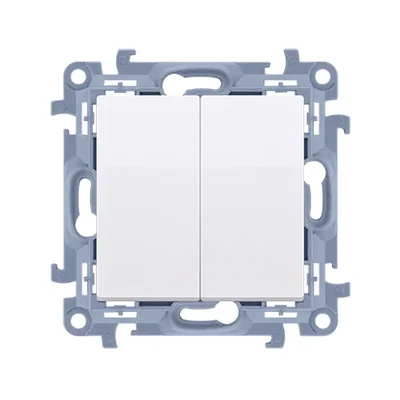

SIMON 10 Candlestick switch (module) 10AX 230V white CW5.01/11

local index:
MMT083KONT
Catalog No:
CW5.01/11
EAN code:
5902787841256
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 42
Number of keys: 2
Price:
3,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 39 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candlestick connector from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CW5.01/11.



FEATURES

  • Module without frame .
  • Screw terminals.
  • Color white.
  • Rated current 10AX.
  • Rated voltage 230V.
  • Ingress protection IP20.< /li>
  • flushmount.
  • Dimensions: 77 x 77 mm (H x W).
  • Material PC.
  • 2x1-pole switch (bistable).
  • To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.



SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    PC
  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 10
  • Width [mm]
    77
  • Height [mm]
    77
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,055 0,055 0,642
Width (m) 0,077 0,110 0,190
Length (m) 0,077 0,047 0,230
Depth (m) 0,042 0,160 0,100
