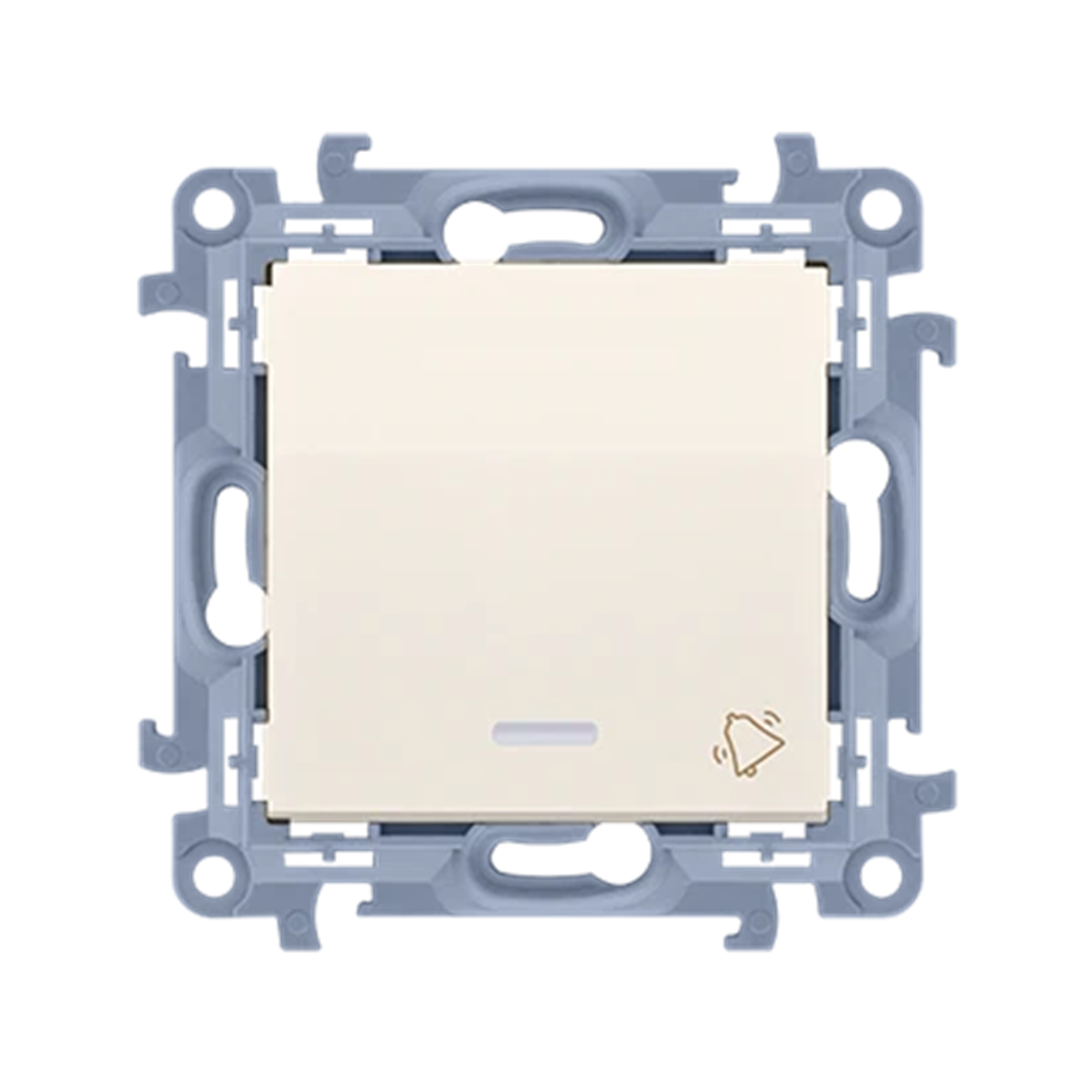

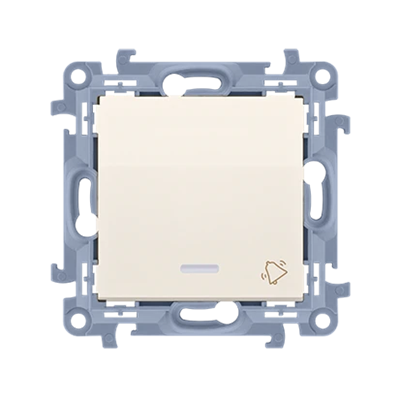

"bell button" with backlight, Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CD1L.01/41. Cream color.

FEATURES

Built-in, white LED orientation backlight (replaceable).
Symbol "bell" on the key.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Width [mm]

77
Version

Confident
Surface protection

Natural
Accurate color

Creamy
Mounting depth [mm]

26
Variant

Bell
Exact material

PC
Backlight color

White

Depth [mm]

42
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 10
Symbol

Bell
Type

Flush-mounted
Height [mm]

77
Surface finish

Shiny
Backlight

Yes
Terminal type

Threaded
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Untreated
Colour

Kremowy
Nominal voltage

250 V

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,049	0,049	0,581
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,047	0,230
Depth (m)	0,042	0,190	0,100
