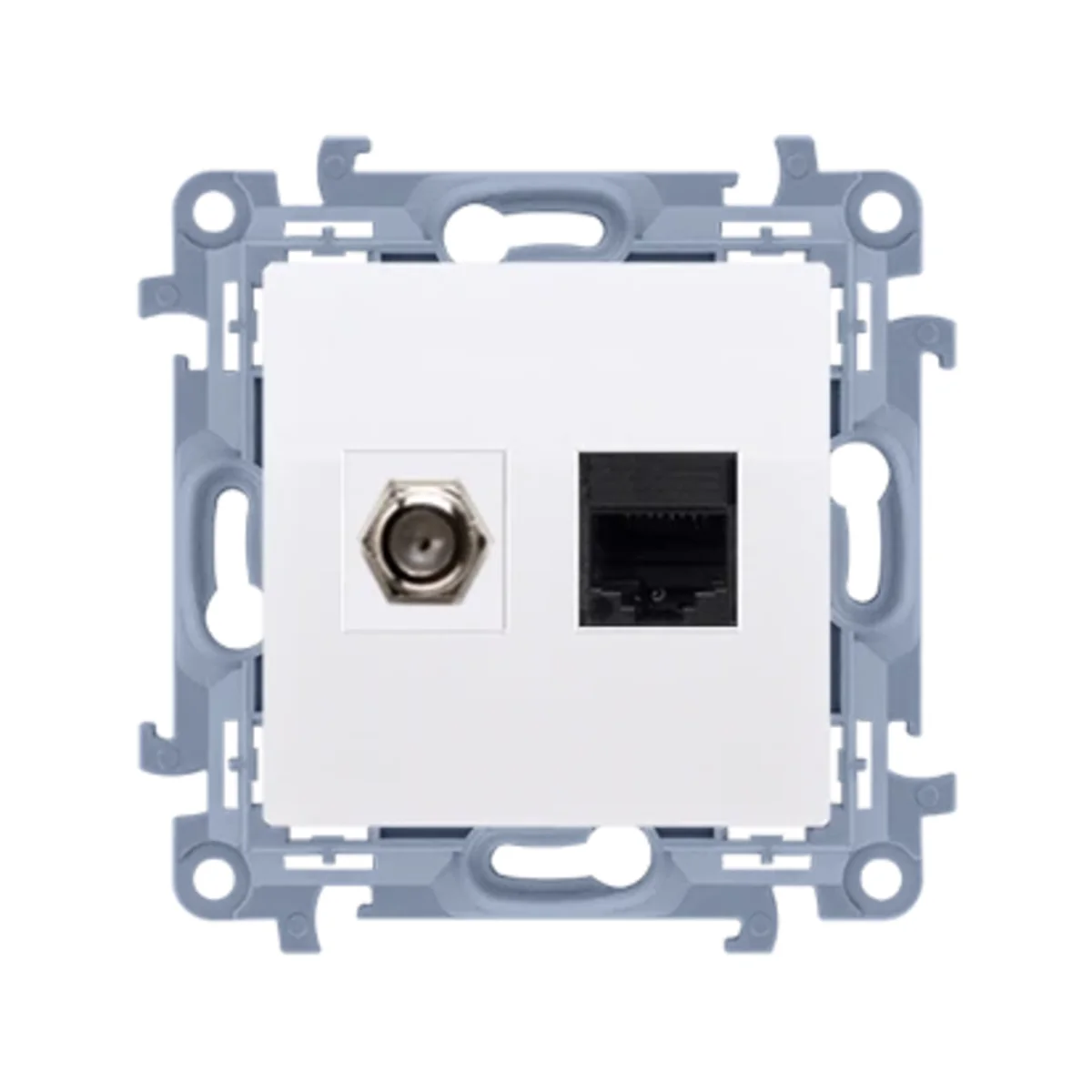

Computer socketRJ45 category 5e + “F” type antenna. For individual installations only.

SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required . Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Halogen free

Yes
Category

5e
Shape

Square
Fixing

claws Screws
Type

Internet
Level of security

IP20
Type

Flush-mounted
Height [mm]

77
Surface finish

Shiny
Variant

RJ45 (twisted pair)
Number of internet sockets

1
Extra socket

sat
PKWIU

27.33.13.0

Depth [mm]

43
Color

White
Material

Plastic
Installation

Flush-mounted
Family

Simon 10
Width [mm]

77
Version

UTP
Surface protection

Natural
Mounting depth [mm]

24
For the frame system

Yes
Dust cover

NO
Exact material

PC

Other technical data

Model

End socket
Suitable for remote power supply

Yes

Number of outlets

2

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,042	0,042	0,506
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,048	0,230
Depth (m)	0,043	0,160	0,100
