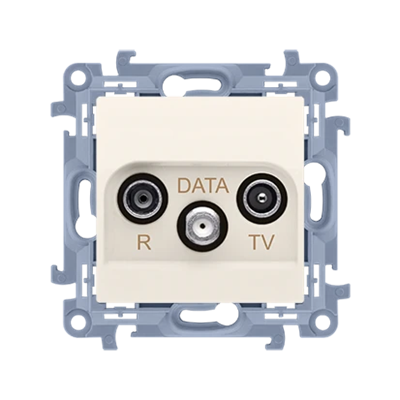

SIMON 10 Antenna socket R-TV-DATA cream CAD.01/41

Name: SIMON 10 Antenna socket R-TV-DATA cream
Brand: KONTAKT-SIMON
SKU: MEA126KONT
Price: 19.25 PLN

local index:

MEA126KONT

Catalog No:

CAD.01/41

EAN code:

5902787843021

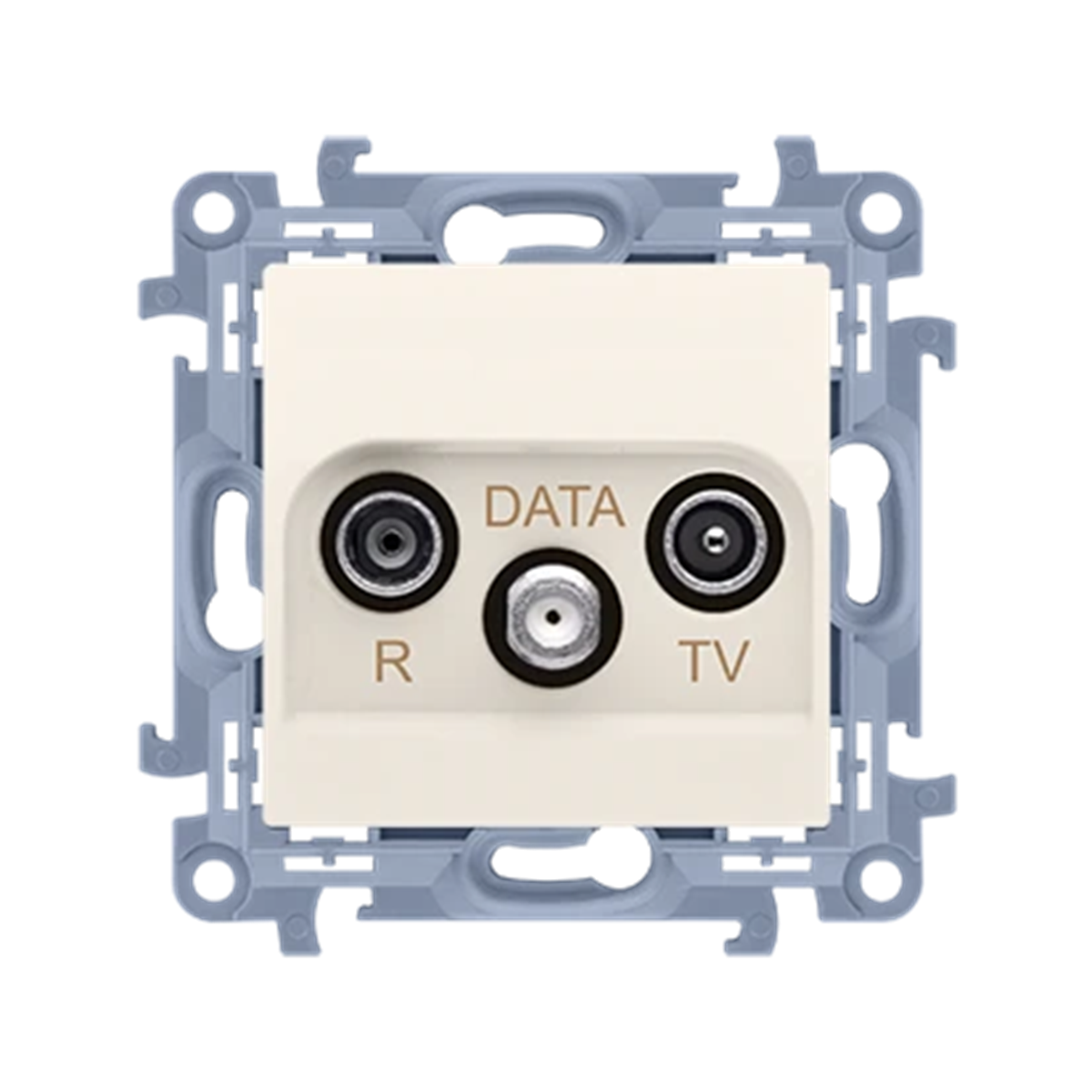

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 3

See full description

Price:

19,25 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

R-TV-DATA antenna socket

SERIES DESCRIPTION

Simon 10 is an economical modular series for investment where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

Halogen free

Yes
Number of sockets

3
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

Simon 10
Width [mm]

77
Type

Flush-mounted
Height [mm]

77
Frequency Range [MHz]

5-862
Accurate color

Creamy
Mounting depth [mm]

29
F-type input

NO
Exact material

PC

Depth [mm]

41
Color

Beige
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10
Version

Final
Surface protection

Natural
Surface finish

Shiny
Backlight

NO
Variant

R TV DATE
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

End socket
Number of outlets

3

Tap loss at 860 MHz

10 dB
Frequency

5 ... 862 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,103	0,103	1,124
Width (m)	0,077	0,110	0,190
Length (m)	0,077	0,046	0,230
Depth (m)	0,041	0,160	0,100
