Side mounting profile 42U for EmiterNet cabinets (2 pcs.) EM/MP42U

local index:
AES003EMSO
Catalog No:
EM/MP42U
EAN code:
5906764109018
Manufacturer: EMITER
Height [U]: 42
Large-size product
Price:
50,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

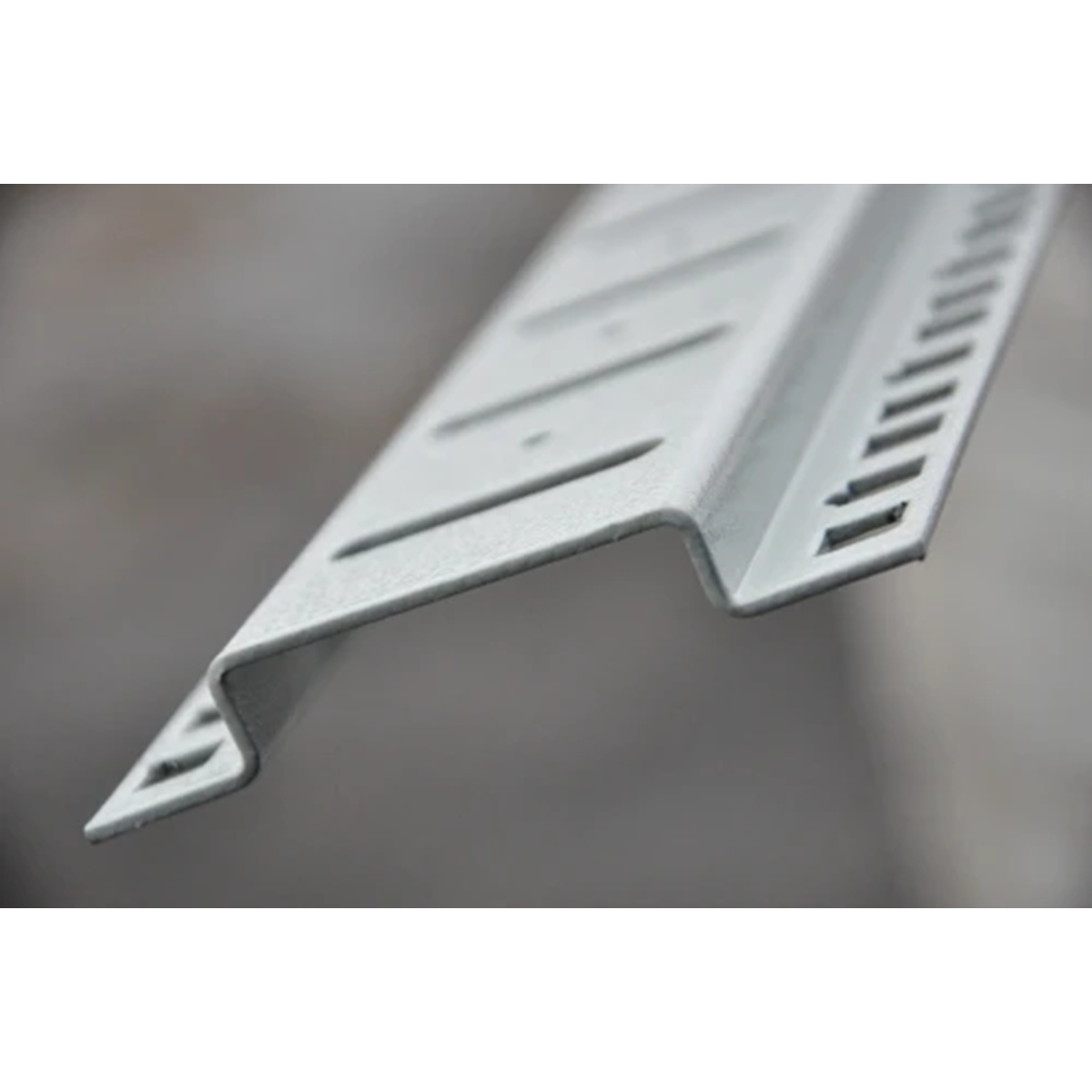

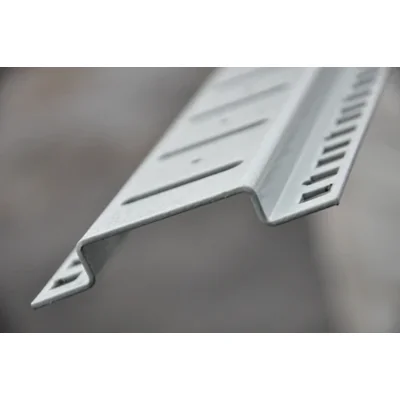

Side mounting profiles (in the shape of a double Z) are intended for EmiterNet floor-standing ICT cabinets. They are used to expand the cabinets with additional mounting and reinforcing profiles. Then you get a telecommunication cabinet with 6 mounting profiles. Depending on the type of cabinets, they are mounted either directly to the crossbeams (in cabinets 600 mm wide) or through additional spacer profiles (in cabinets 800 mm wide) available separately. The set includes 2 pcs of profiles.


Mechanical:

  • dimensions (length x width x depth) 1870 x 95 x 14 mm
  • material: painted steel
  • color: RAL 7044

Technical data

  • Height [U]
    42

Other technical data

  • Number of height units
    42
  • Material
    Steel
  • Length
    1870 mm
  • Profile height busbar
    14 mm
  • Model
    482.6 mm (19 inch)
  • Surface finishing
    Lacquered
  • Mounting method
    Screw mounting

Files to download
