Shutter switch with key, 3-position, "I-0-II" 2 contacts N/O white BMWZK.01/11

local index:
MMO082KONT
Catalog No:
BMWZK.01/11
EAN code:
5902787820534
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of keys: key
Price:
97,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

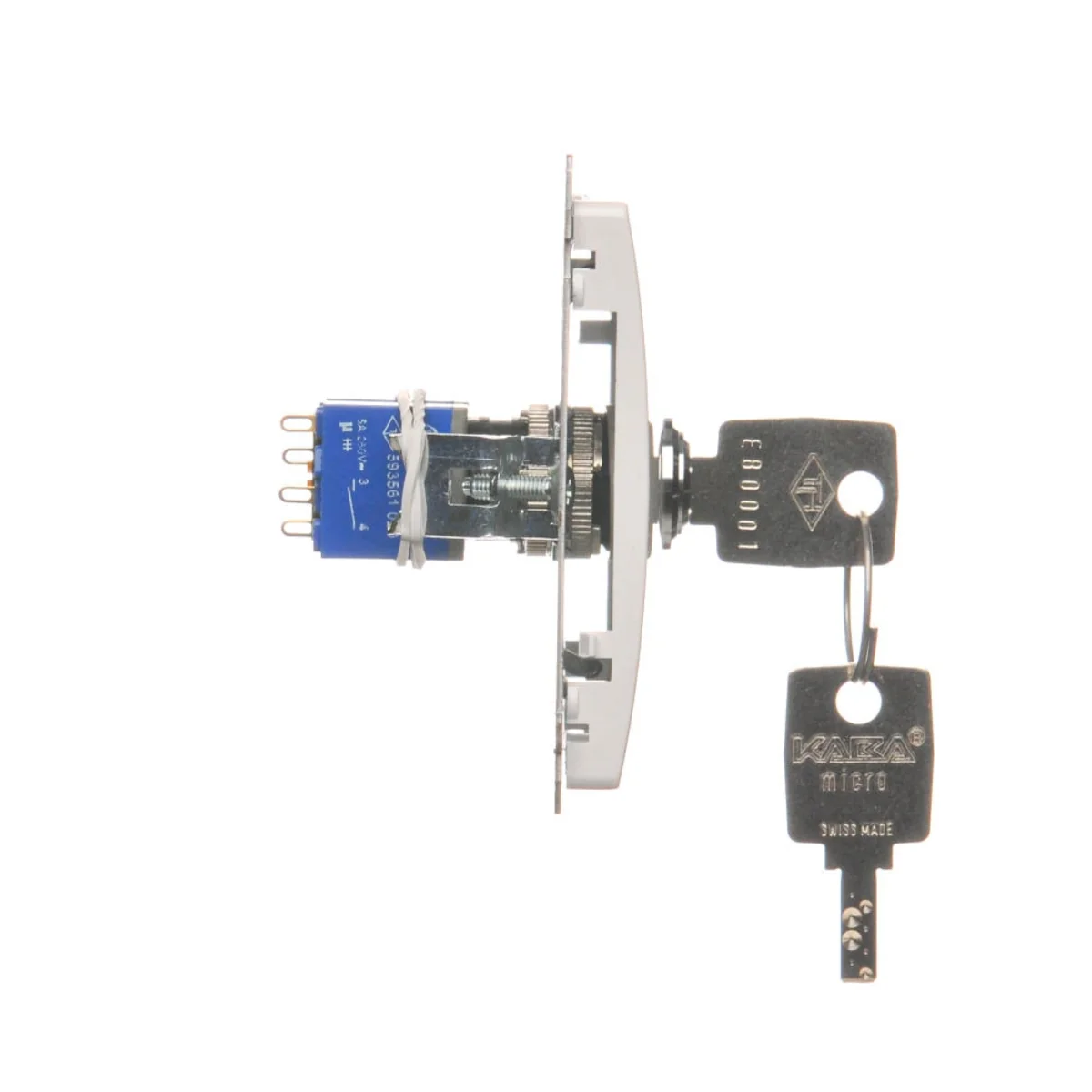

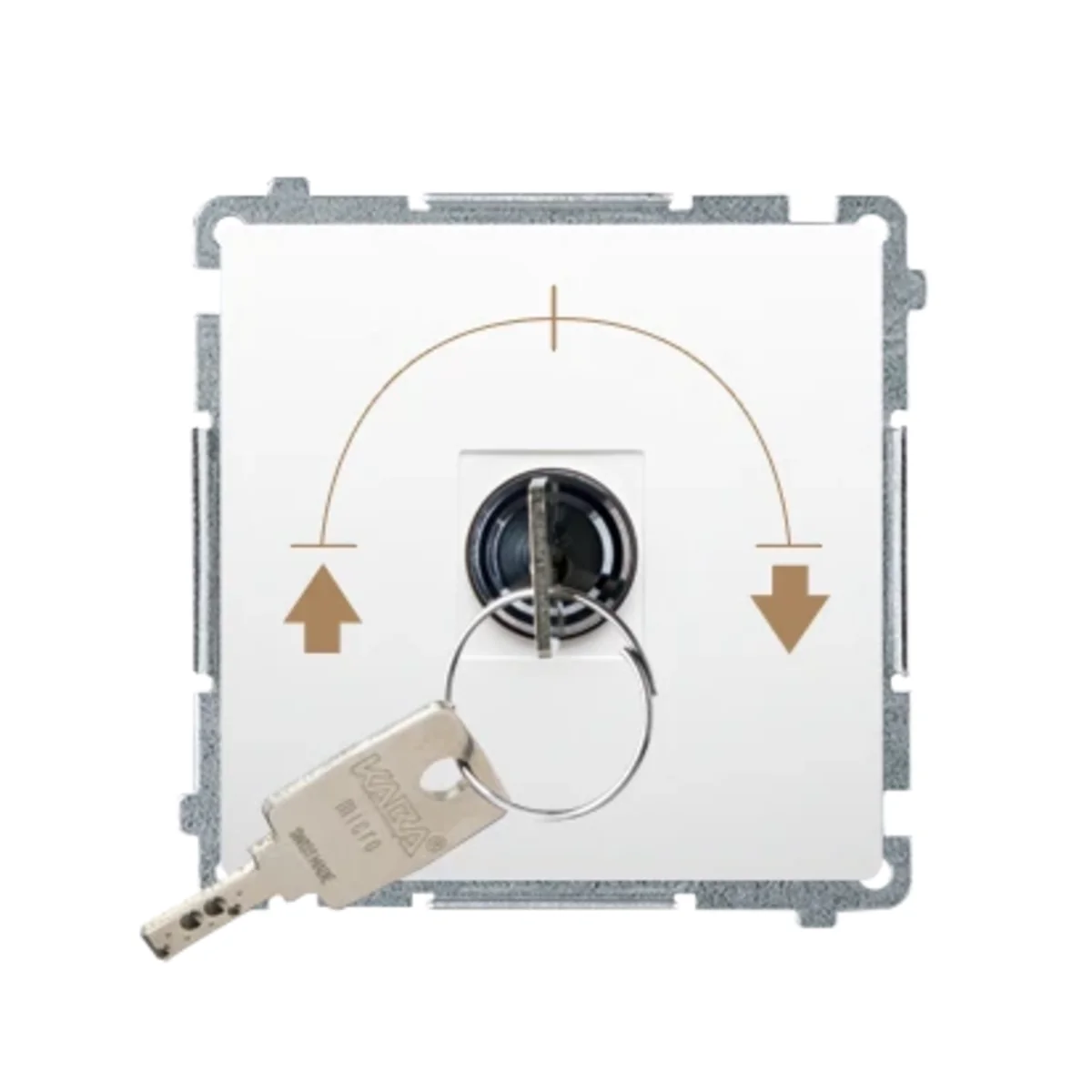

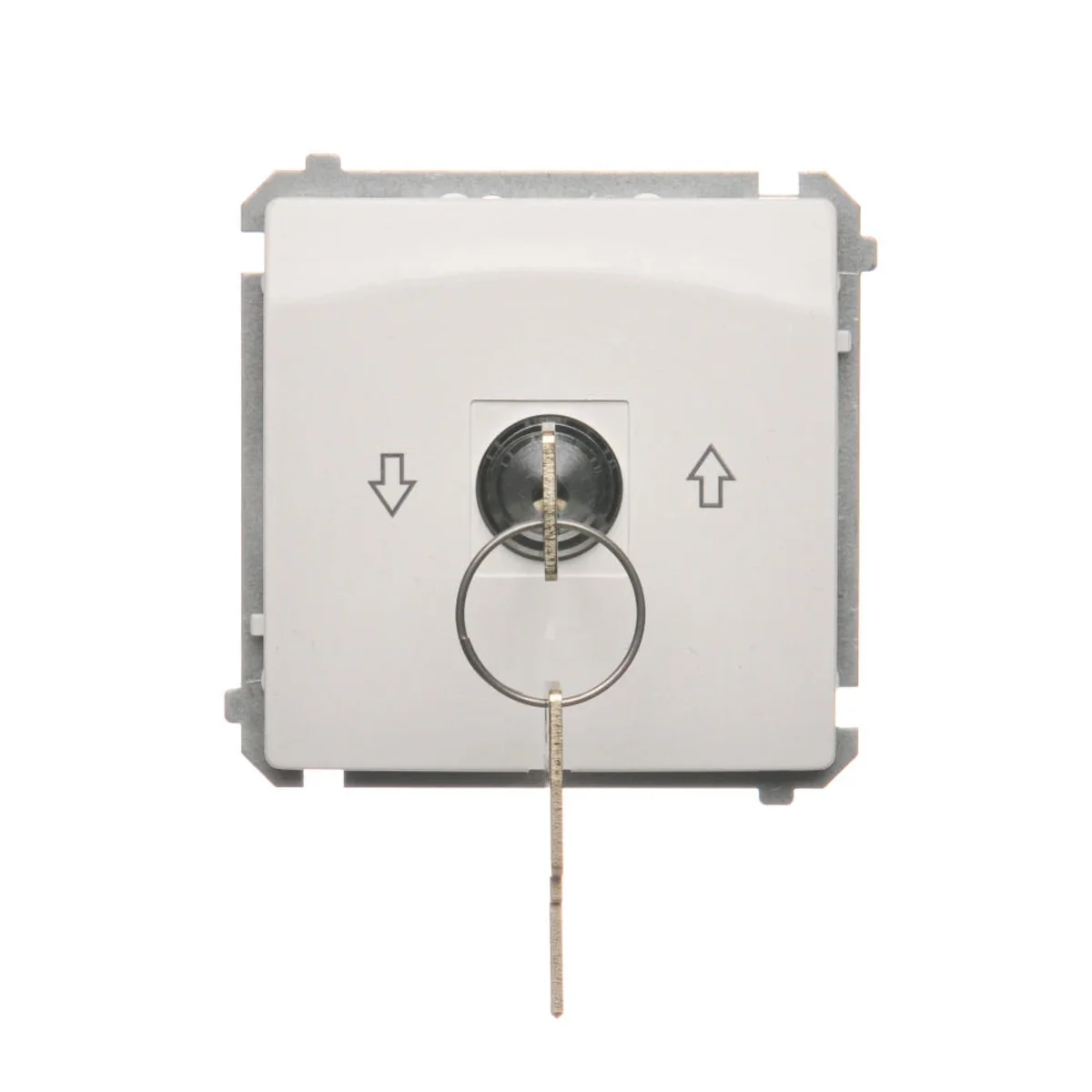

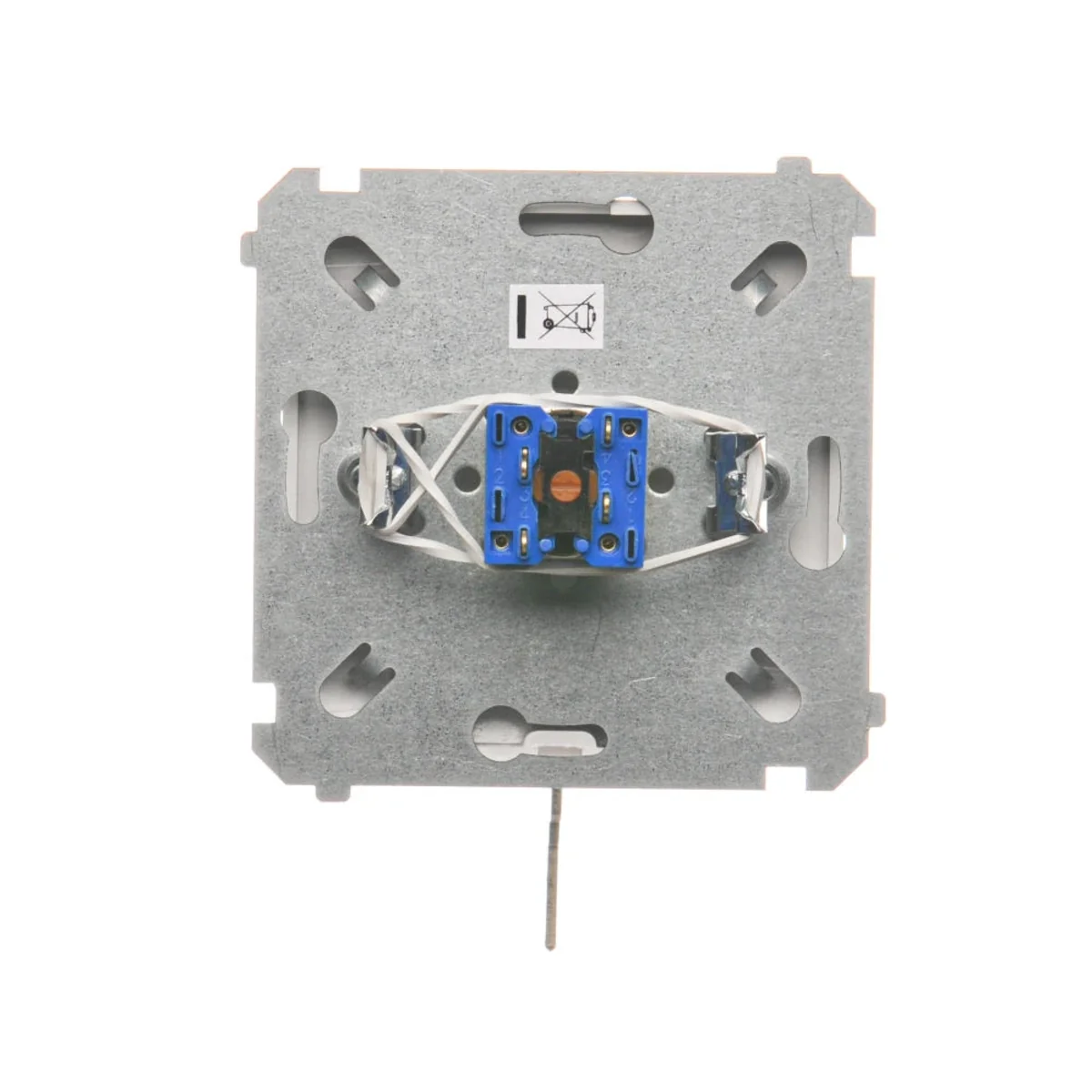

Shutter key switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMWZK.01/11.



FEATURES

  • 3 position "I -0-II".
  • For soldering.
  • The key can be removed in any position.
  • The product comes with 2 pieces of keyów.
  • Bistable switch.



SERIES DESCRIPTION

Simon Basic is a series of electrical equipment , which is based on a classic look and functionality. The shutter connector characterizes the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    key
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    47
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    5
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Single
  • Surface protection
    Natural
  • Backlight
    NO
  • Variant
    Three-position
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20
  • Method of operation
    Key
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,096 0,096 1,064
Width (m) 0,075 0,085 0,190
Length (m) 0,075 0,055 0,290
Depth (m) 0,047 0,115 0,100
