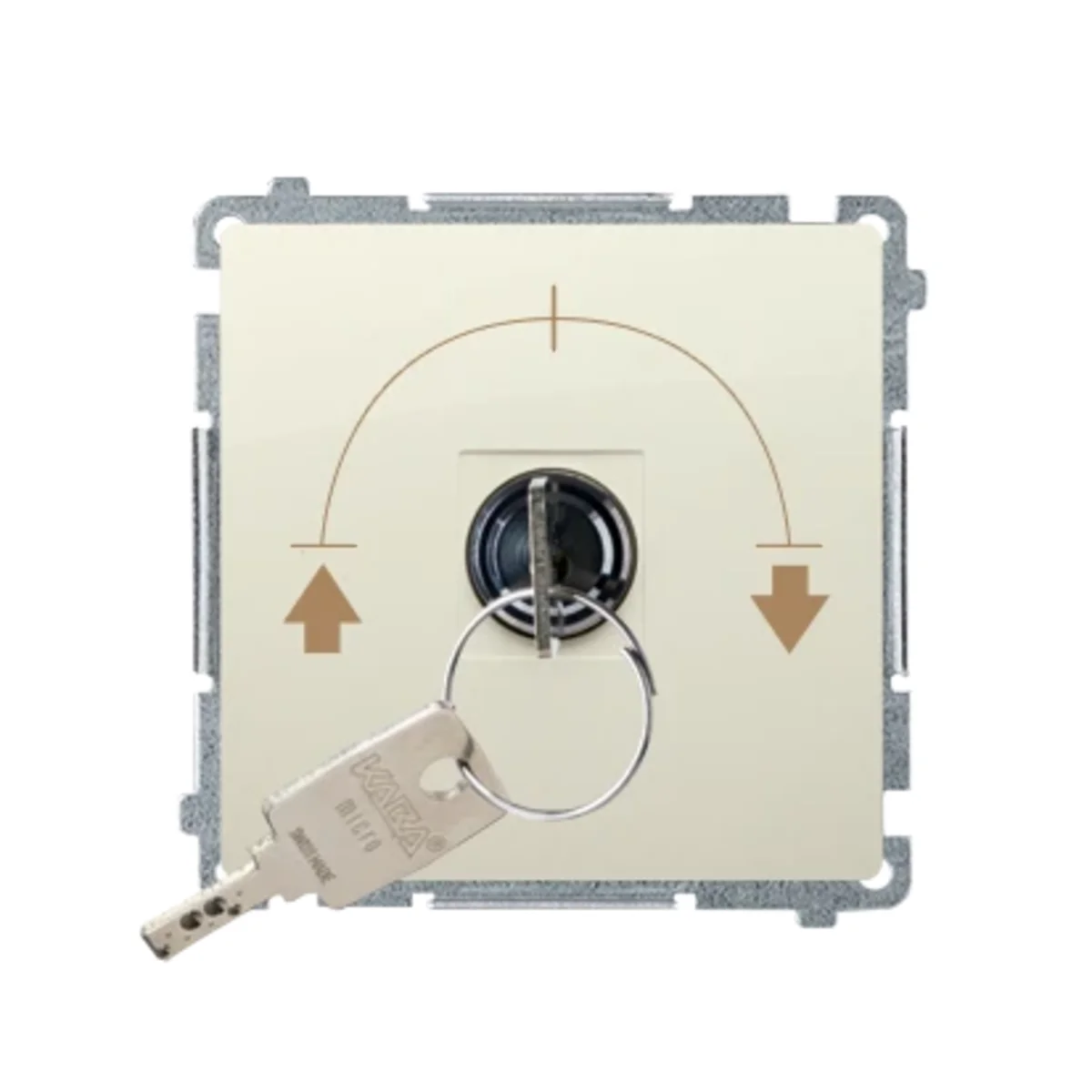

Shutter switch momentary 5A 250V beige BMWZK.01/12

Místní index:
MMO029KONT
Katalogové číslo.:
BMWZK.01/12
Výrobce: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of keys: key
Cena:
634,19 zł
gross / kusů.
(včetně DPH 23%)
Není skladem
Na zakázku
Přidat do žádosti o cenovou nabídku
Vytisknout

Popis produktu

Shutter key switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMWZK.01/12.



FEATURES

  • 3 position "I -0-II".
  • For soldering.
  • The key can be removed in any position.
  • 2 pieces of keyóincluded with the product.
  • Bistable switch.



SERIES DESCRIPTION

Simon Basic is a series of electrical equipment , which is based on a classic look and functionality. The shutter connector characterizes the features of this unique series.

Technické údaje

  • Halogen free
    Yes
  • Number of keys
    key
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    47
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    5
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Single
  • Surface protection
    Natural
  • Backlight
    NO
  • Variant
    Three-position
  • Exact material
    PC
