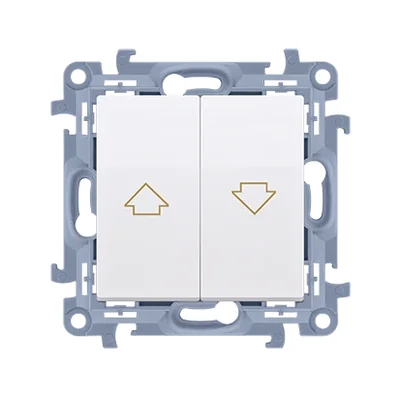

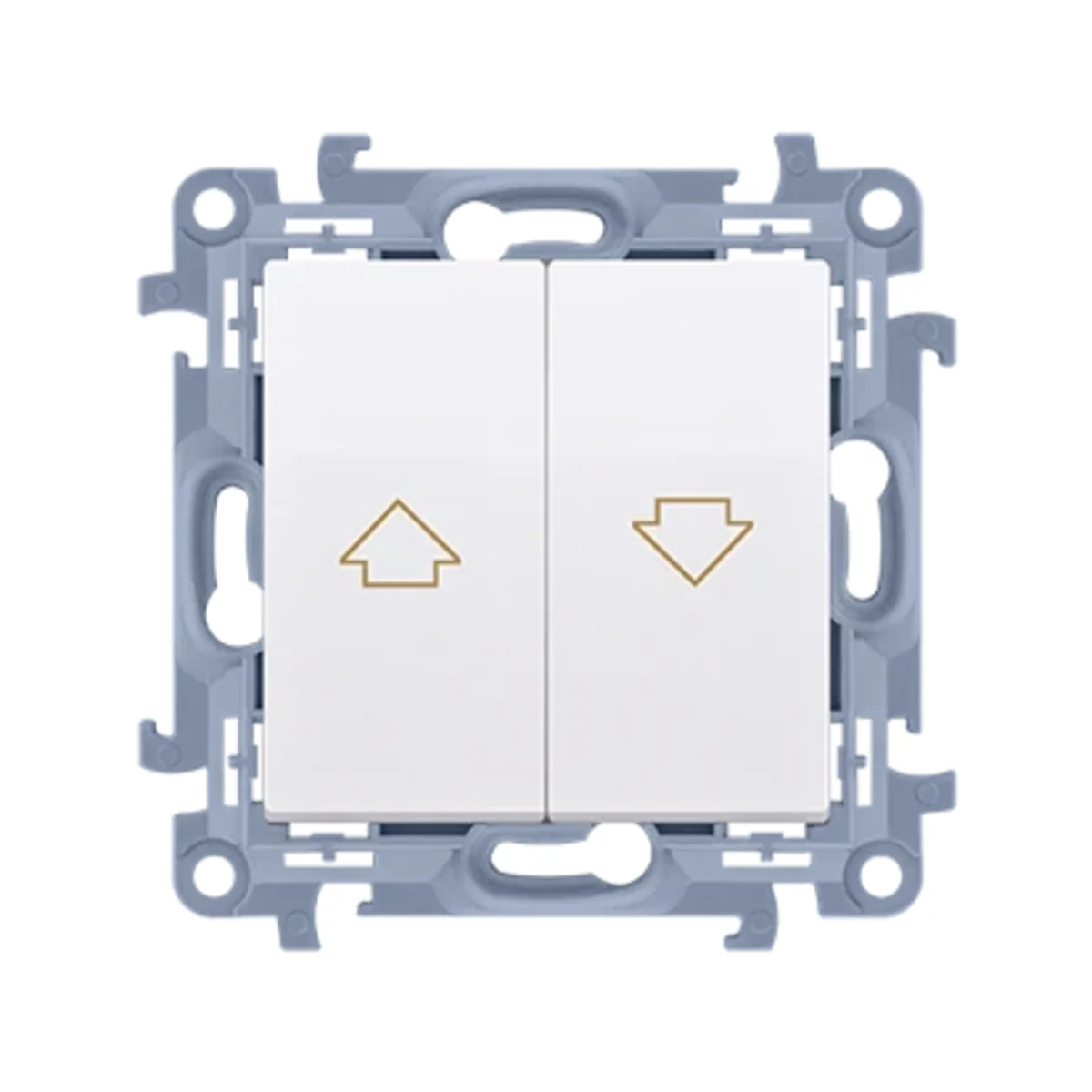

Shutter switch (module) 10A 230V white CZW1.01/11

local index:
MMO093KONT
Catalog No:
CZW1.01/11
EAN code:
5902787841652
Manufacturer: KONTAKT-SIMON
Depth [mm]: 42
Number of keys: 2
Color: White
Price:
6,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Louvre connector from the Simon 10 series, from the manufacturer Contact Simon. The product catalog number is CZW1.01/11.

  • To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.



SERIES DESCRIPTION

Simon 10 is an economical series of electrical equipment, the colors of which are limited to white and cream. The shutter connector characterize the features of this unique series.

Technical data

  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 10
  • Symbol
    Blinds
  • Type
    Flush-mounted
  • Height [mm]
    77
  • Surface finish
    Shiny
  • Mounting depth [mm]
    26
  • Variant
    Two-position
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Width [mm]
    77
  • Version
    Single
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    Yes

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mechanical controllable
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Model
    1-pole switch
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,060 0,060 0,689
Width (m) 0,077 0,110 0,190
Length (m) 0,077 0,047 0,230
Depth (m) 0,042 0,160 0,100
