Shutter key switch 1-pole (module) 3-position "I-0-II" 2 contacts N/O 5A 230V. anthracite (metallic) DWZK.01/48

Name: Shutter key switch 1-pole (module) 3-position \"I-0-II\" 2 contacts N/O 5A 230V. anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MMO056KONT
Price: 91.45 PLN

local index:

MMO056KONT

Catalog No:

DWZK.01/48

EAN code:

5902787828783

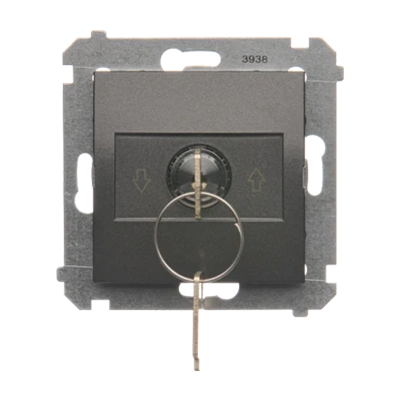

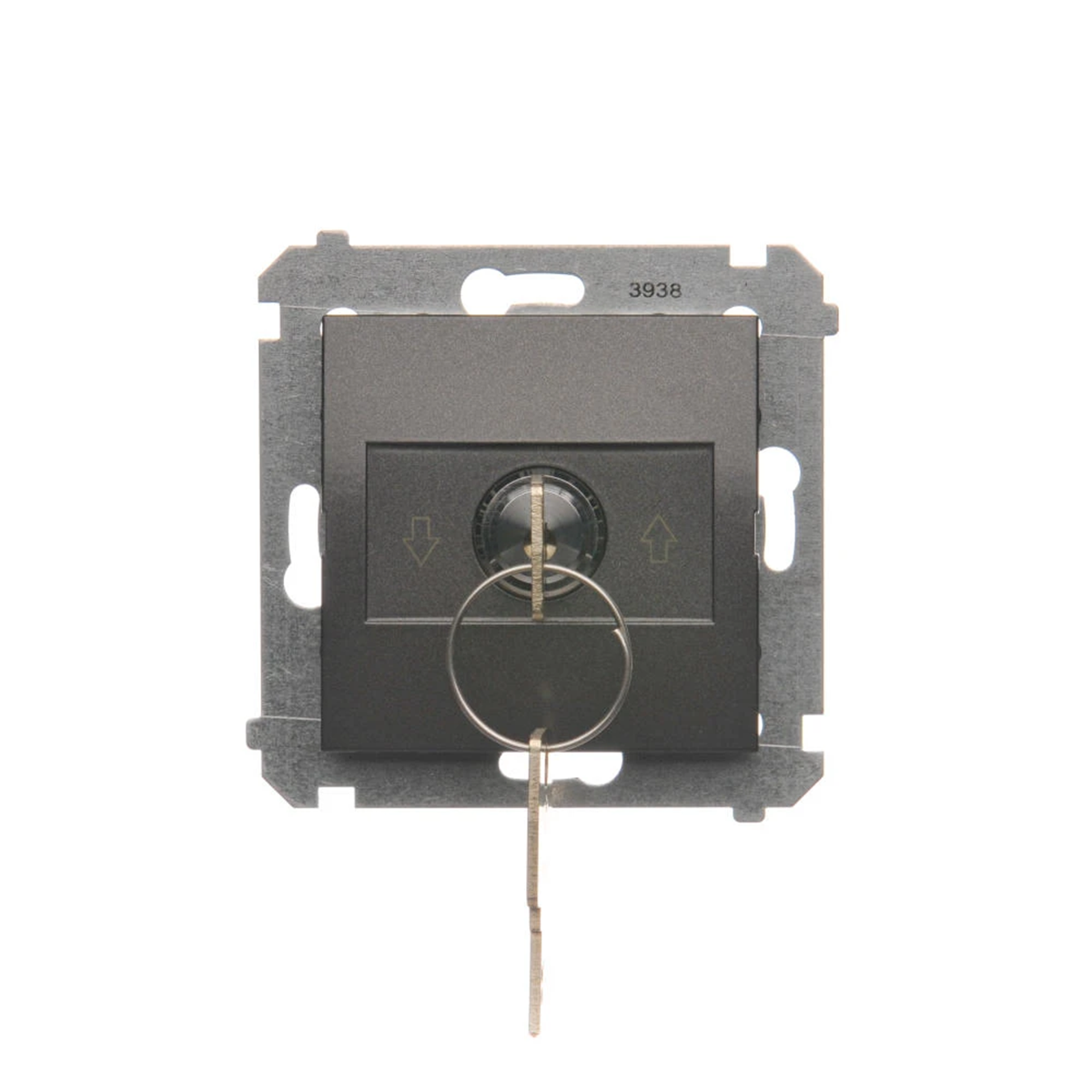

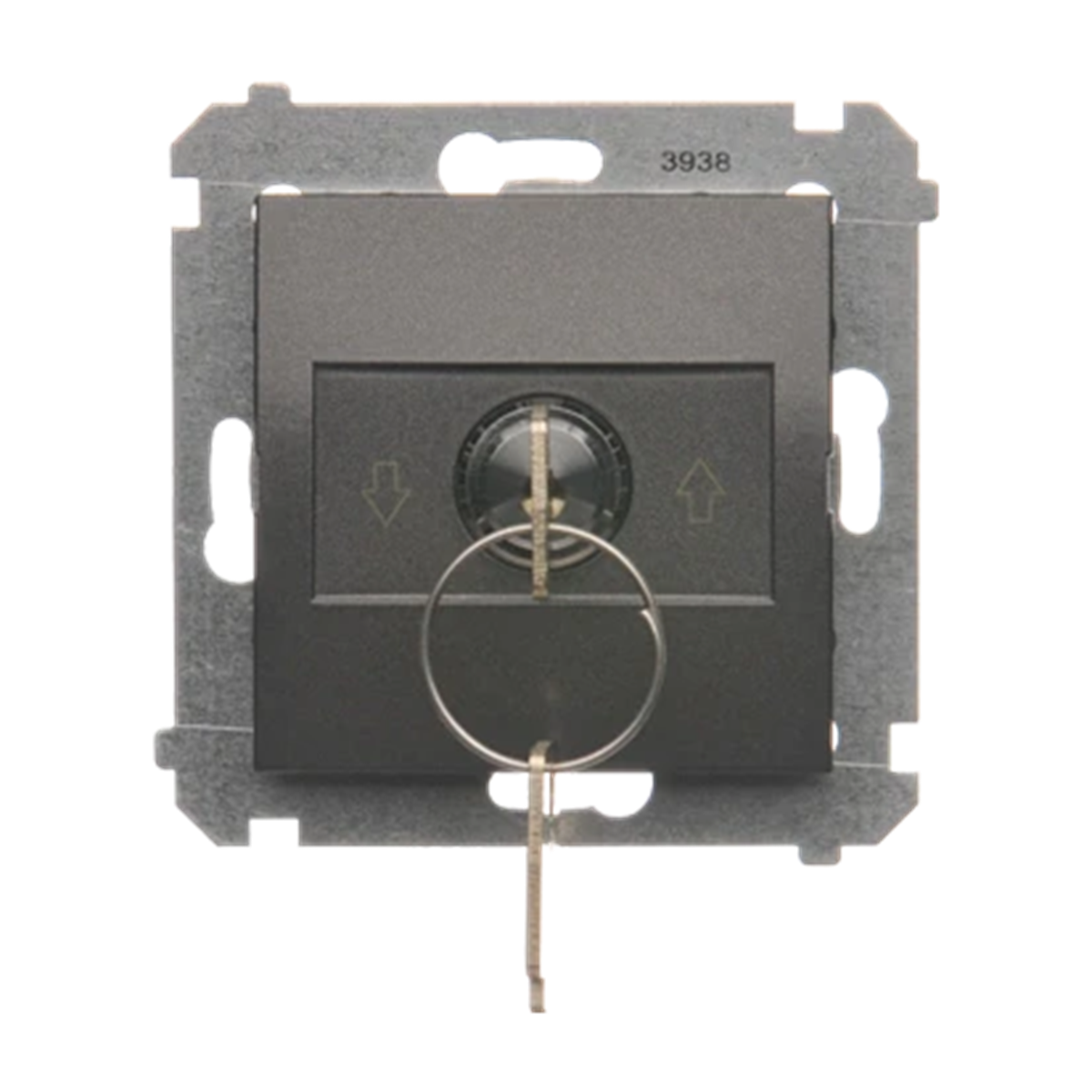

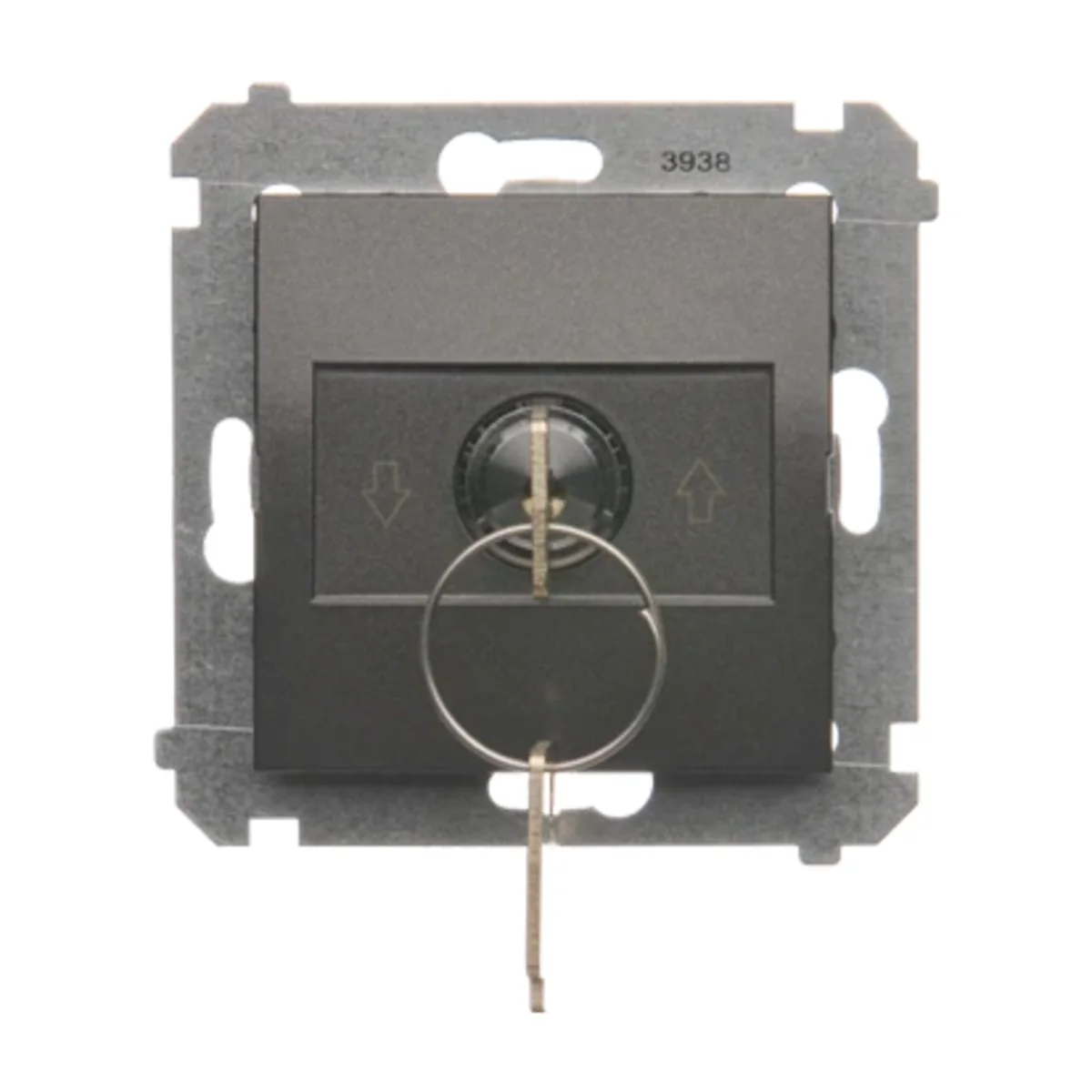

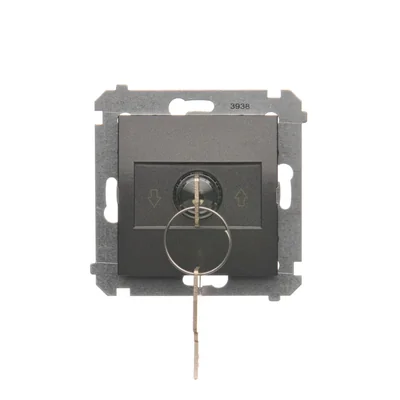

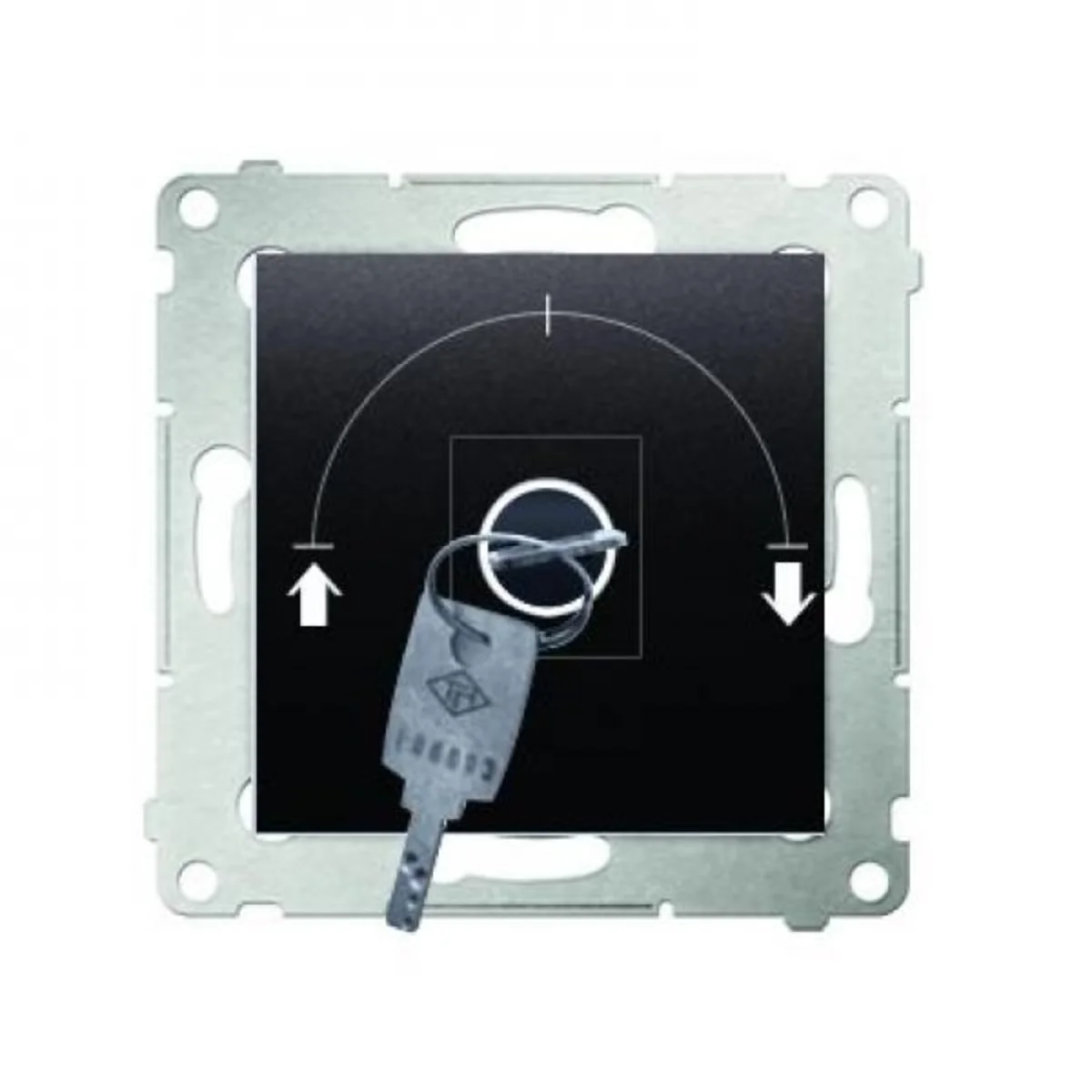

Shutter key switch 1-pole (module) 3-position "I-0-II" 2 contacts N/O 5A 230V. anthracite (metallic)

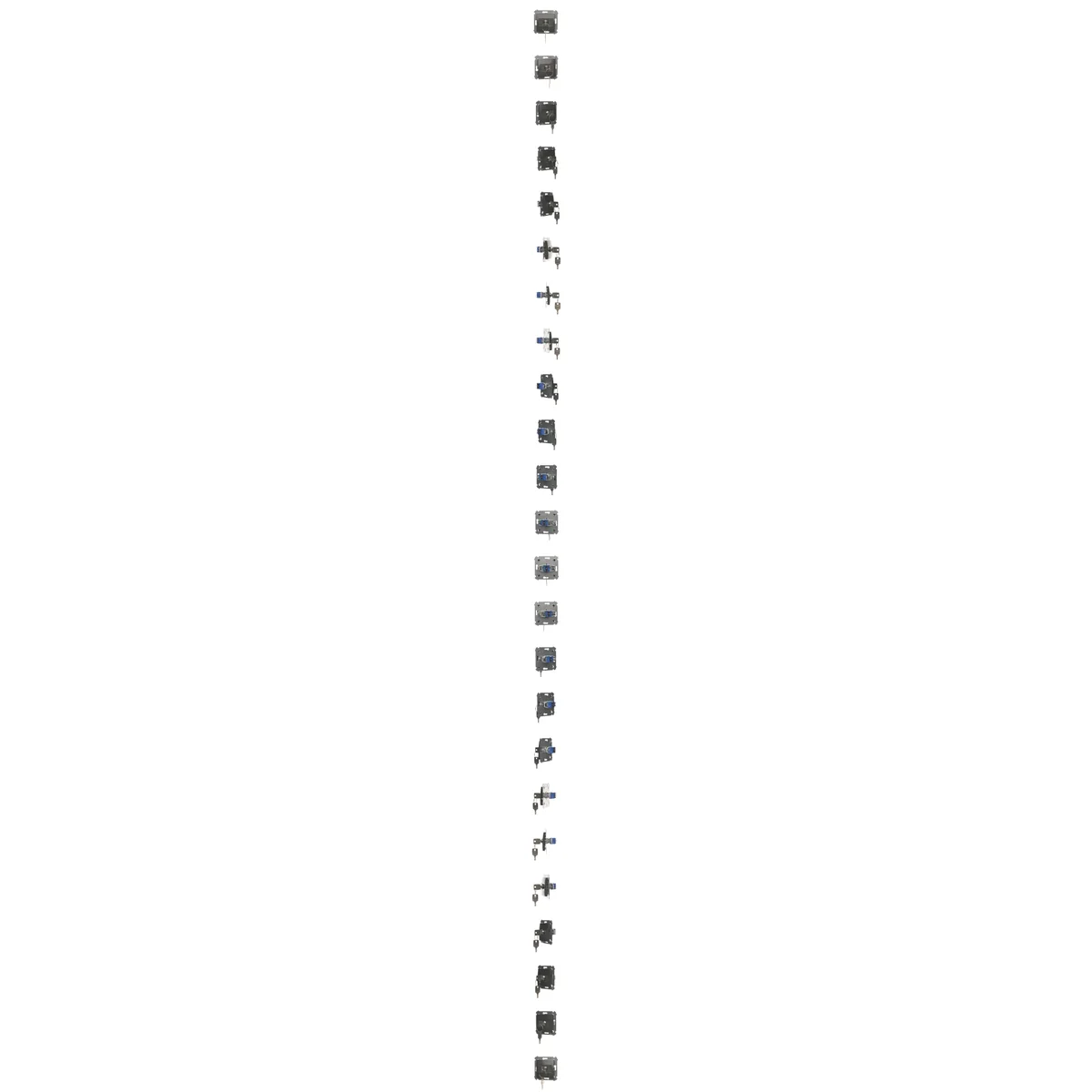

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 47

Number of keys: key

See full description

Price:

91,45 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Shutter key switch from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DWZK.01/48.

FEATURES

3 position "I- 0-II".
For soldering.
The key can be removed in any position.
The product comes with 2 pieces of keyów.
1-pole switch (bistable).

SERIES DESCRIPTION

Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The shutter key switch characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

key
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Variant

Three-position
Exact material

PC

Depth [mm]

47
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated current [A]

5
Family

Simon 54
Width [mm]

75
Version

Single
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

31
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Method of operation

Key
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Model

1-pole switch
Mechanical controllable

Yes
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Nominal voltage

230 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,090	0,090	1,002
Width (m)	0,075	0,085	0,190
Length (m)	0,075	0,055	0,290
Depth (m)	0,047	0,115	0,100
