Shutter button (module) 10A 230V white screw terminals BMZ1.01/11

Name: Shutter button (module) 10A 230V white screw terminals
Brand: KONTAKT-SIMON
SKU: MMO088KONT
Price: 35.42 PLN
Availability: InStock

local index:

MMO088KONT

Catalog No:

BMZ1.01/11

EAN code:

5902787570675

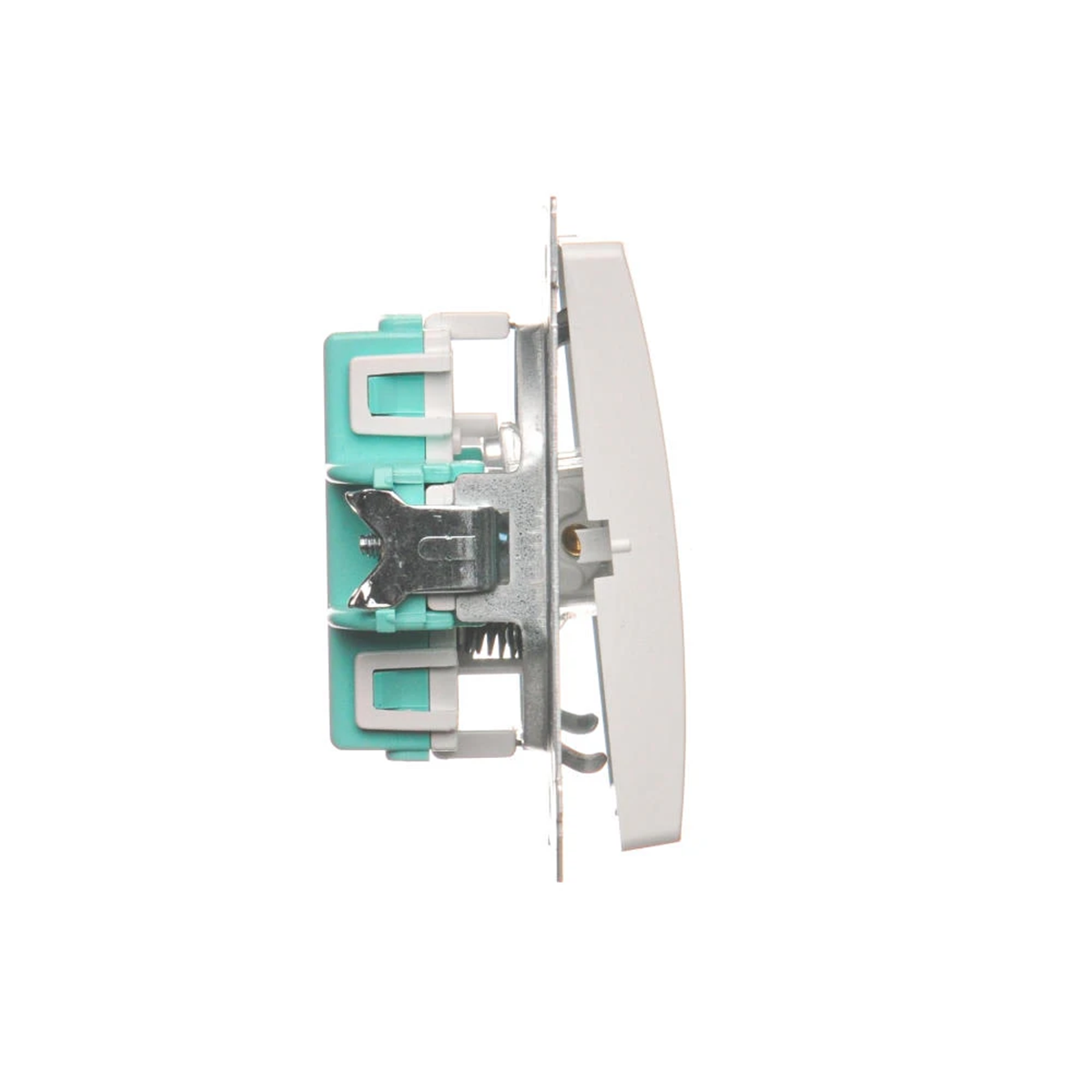

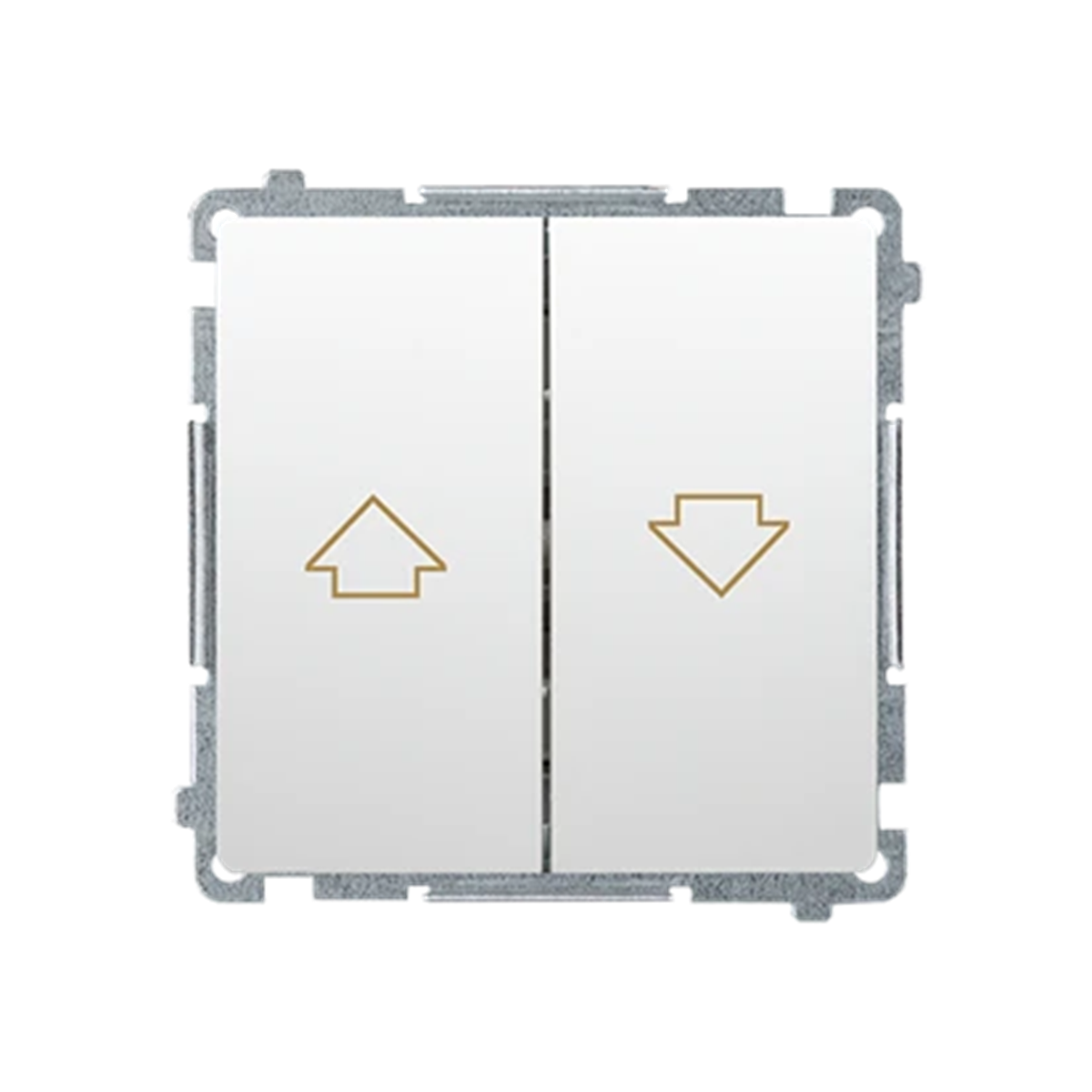

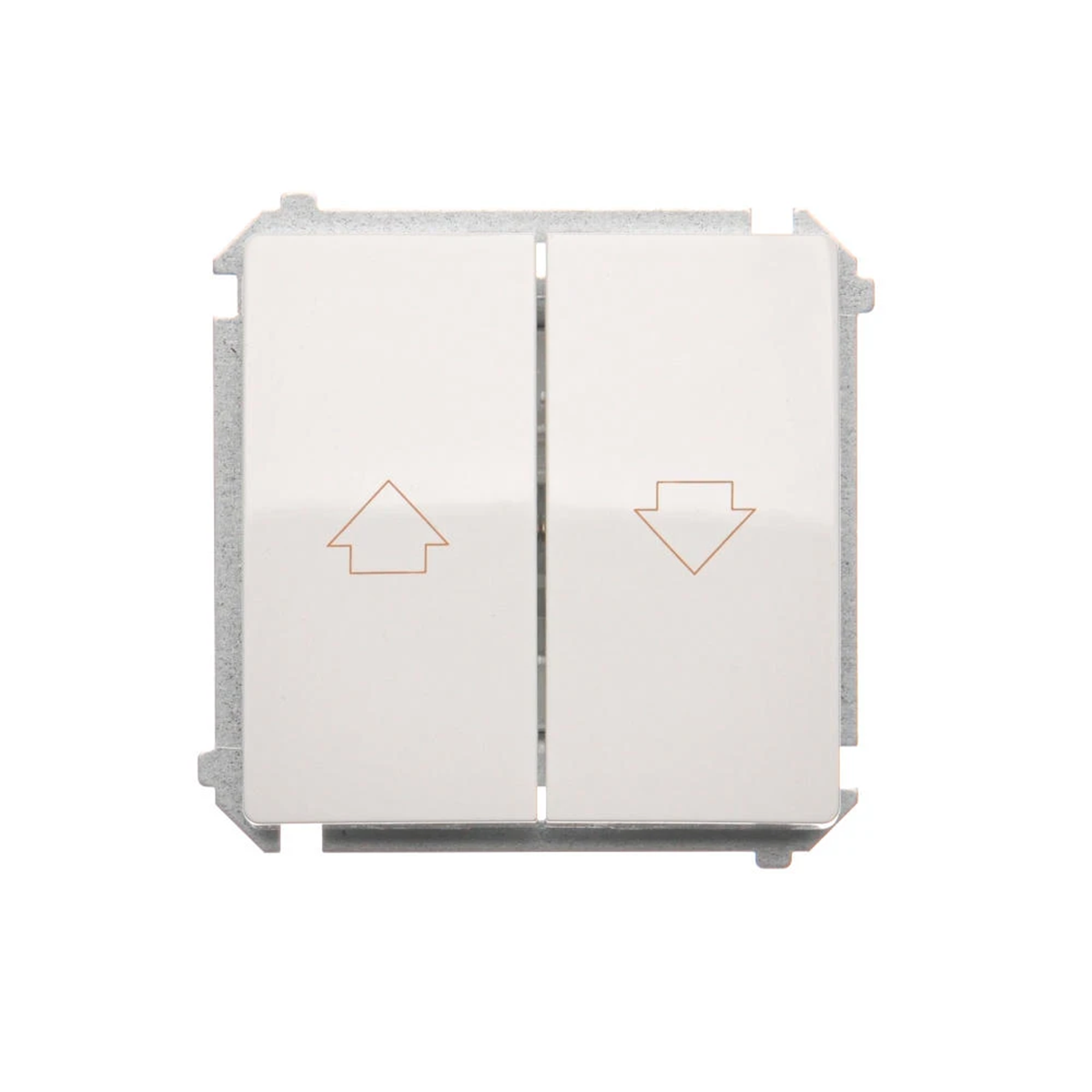

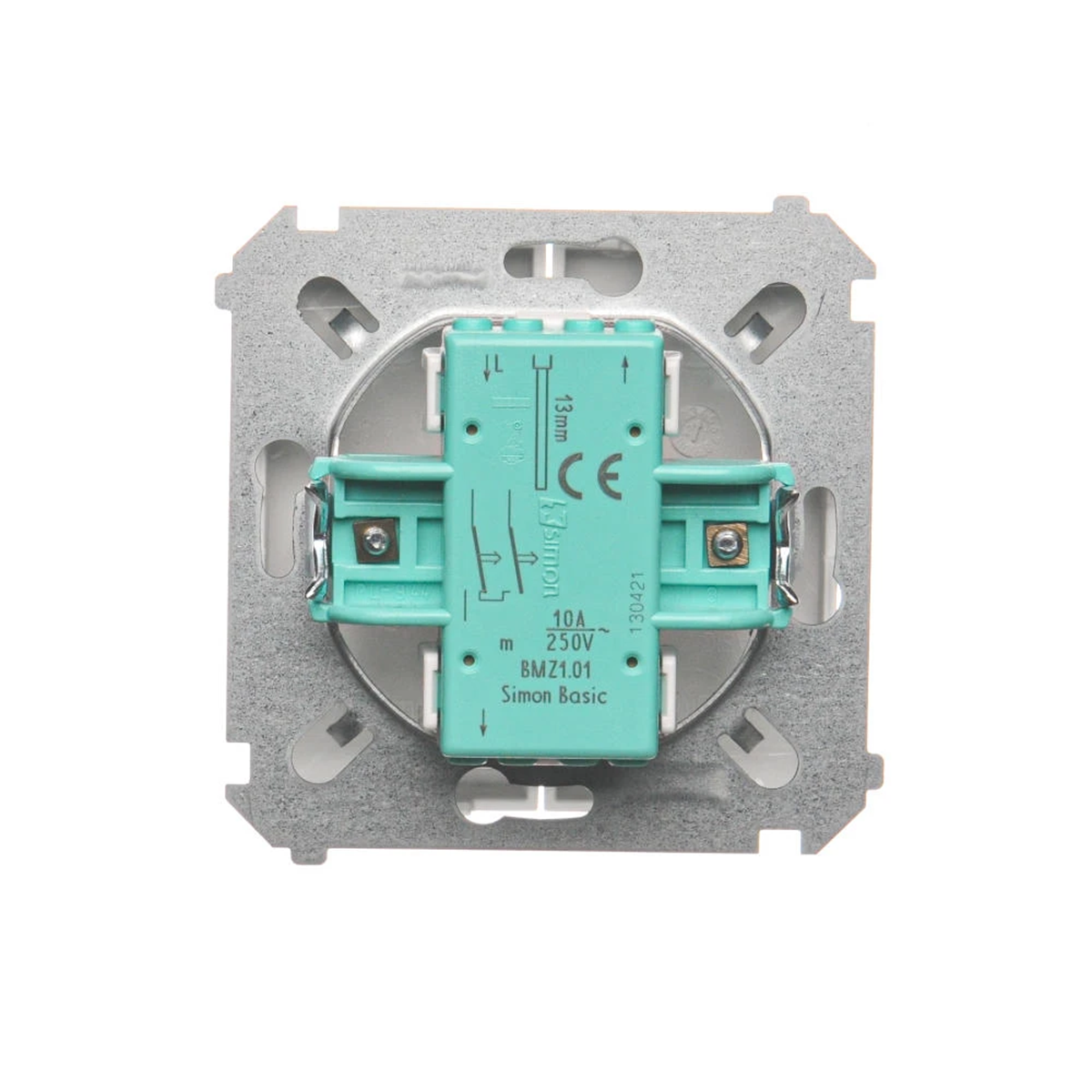

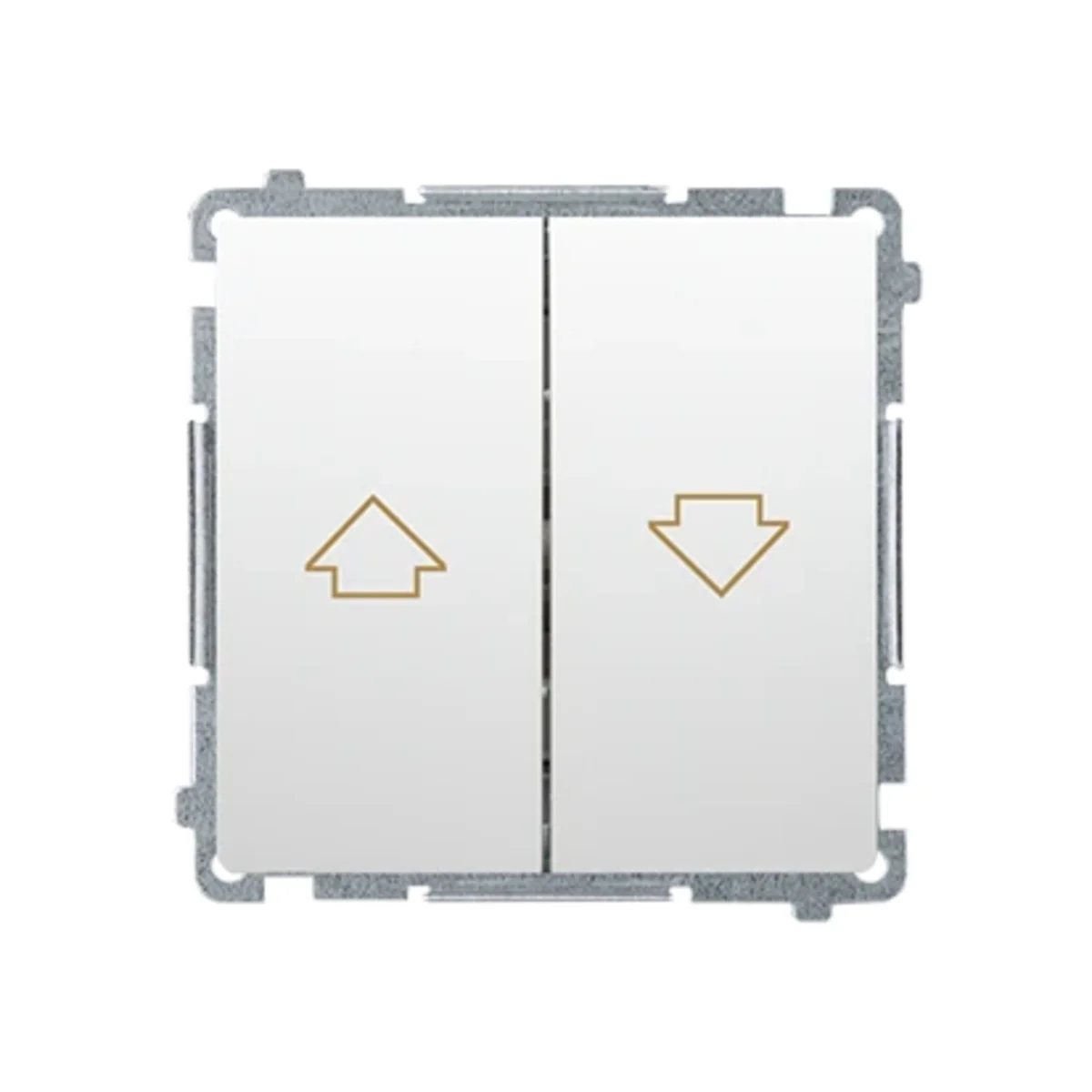

Shutter button (module) 10A 230V white screw terminals

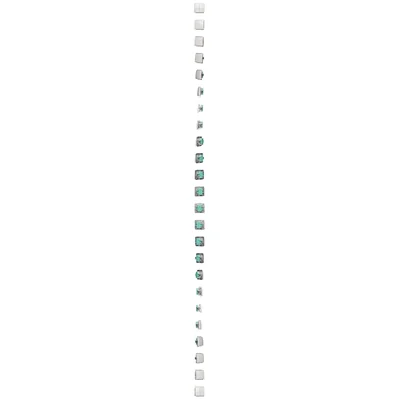

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 2

See full description

Price:

35,42 zł

gross / pcs.

(including VAT 23%)

Accessible 91 pcs.

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Louvre button from the Simon Basic series, from the manufacturer Contact Simon. The product's catalog number is BMZ1.01/11.

To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/...
To obtain the IP44 splash-proof class, additionally use a gasket under the keys: NU1W.

SERIES DESCRIPTION

Simon Basic is a series of electrical equipment that is based on classic design and functionality. The shutter button characterize the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

2
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Width [mm]

75
Version

Single
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON BASIC
Symbol

Blinds
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

24
Variant

Two-position normally open
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Mechanical controllable

Yes
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

Manufacturer details

Manufacturer

Kontakt-Simon S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
E-mail

info@kontakt-simon.com.pl

Bulk packaging

A kind of package	Paczka	Karton
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,077	0,855
Width (m)	0,110	0,190
Length (m)	0,045	0,230
Depth (m)	0,160	0,100
