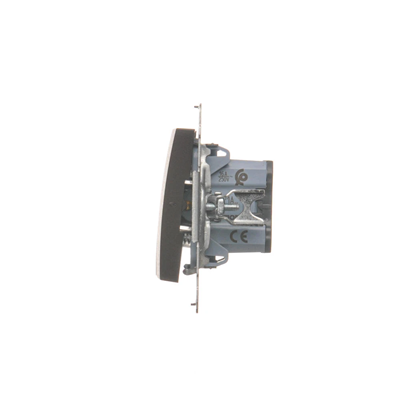

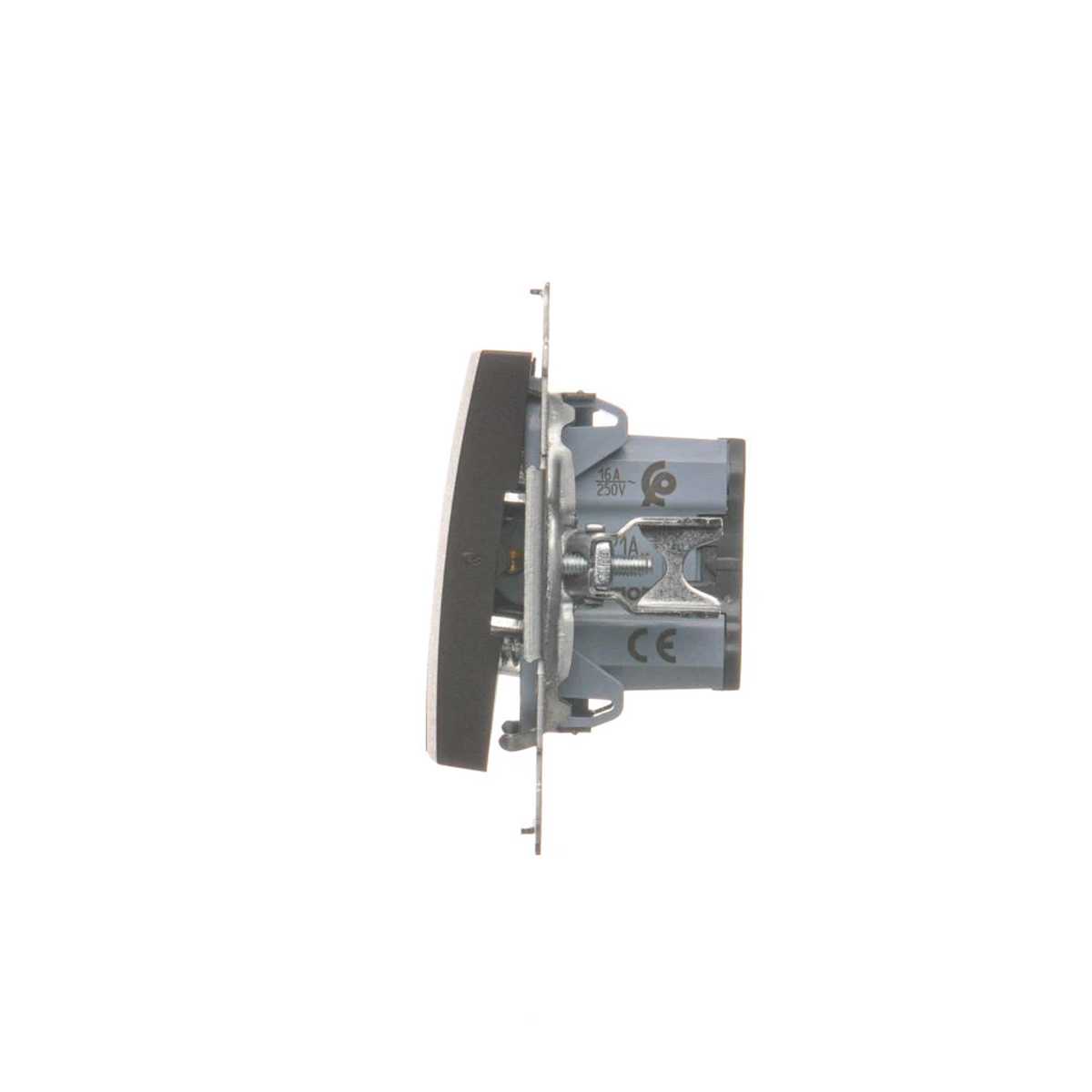

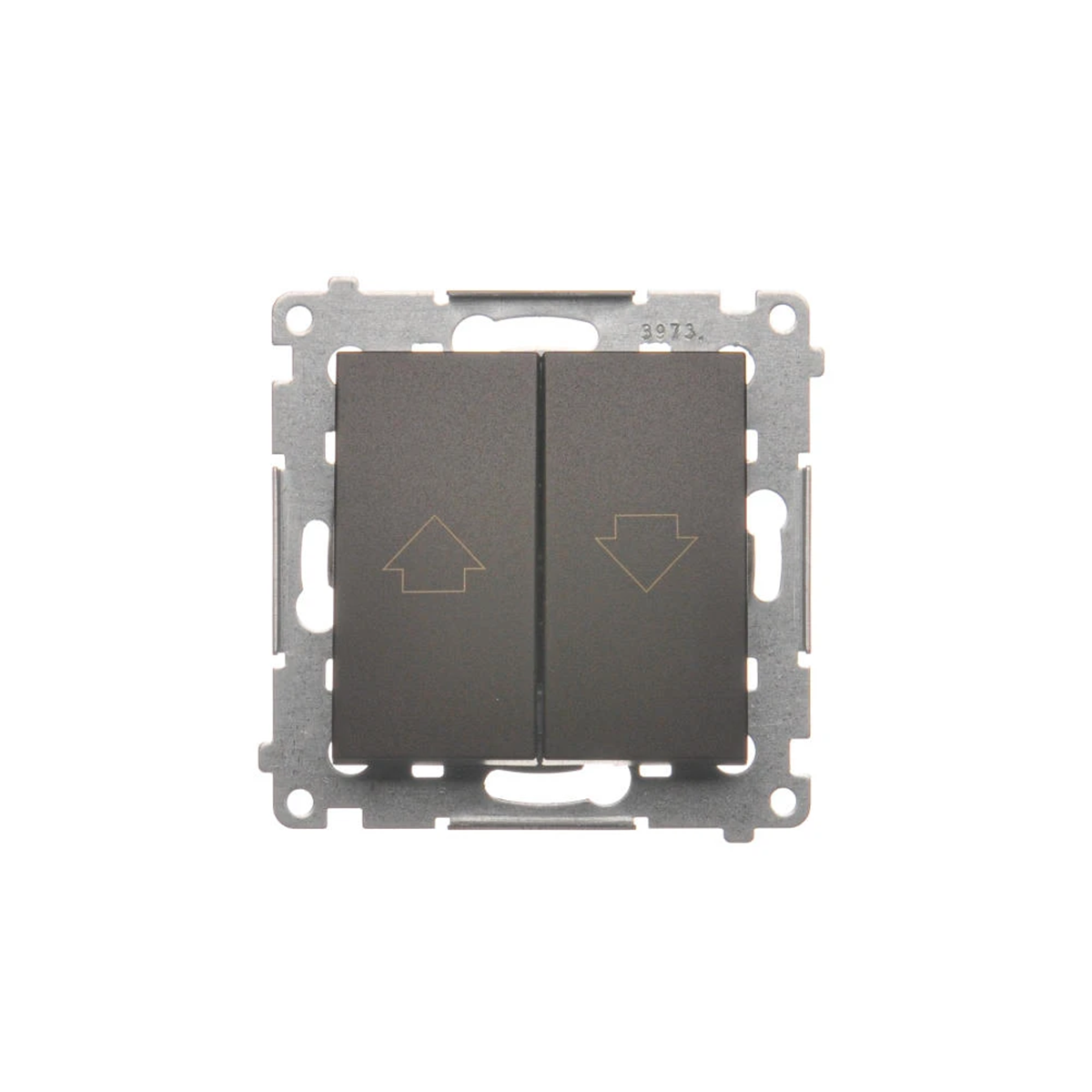

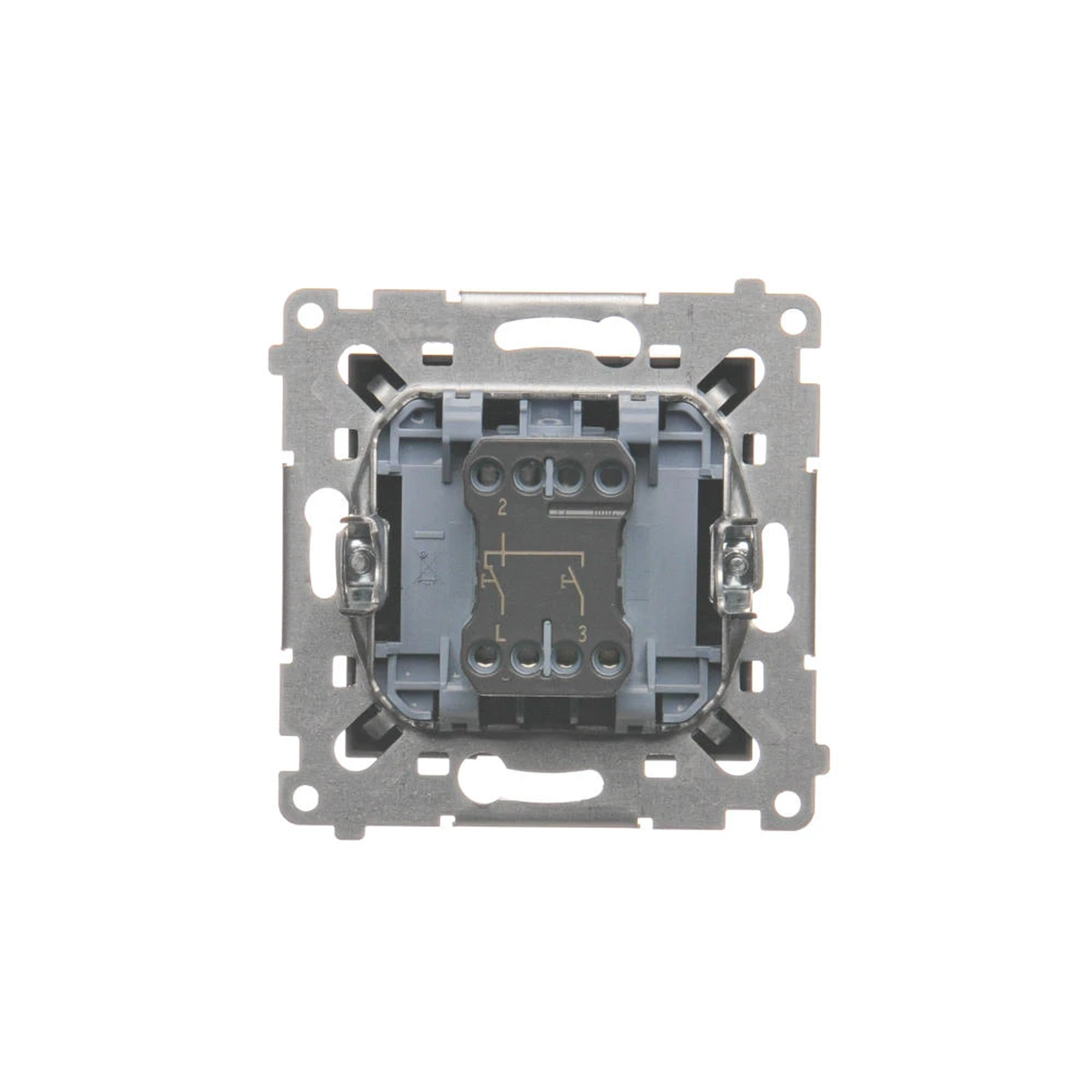

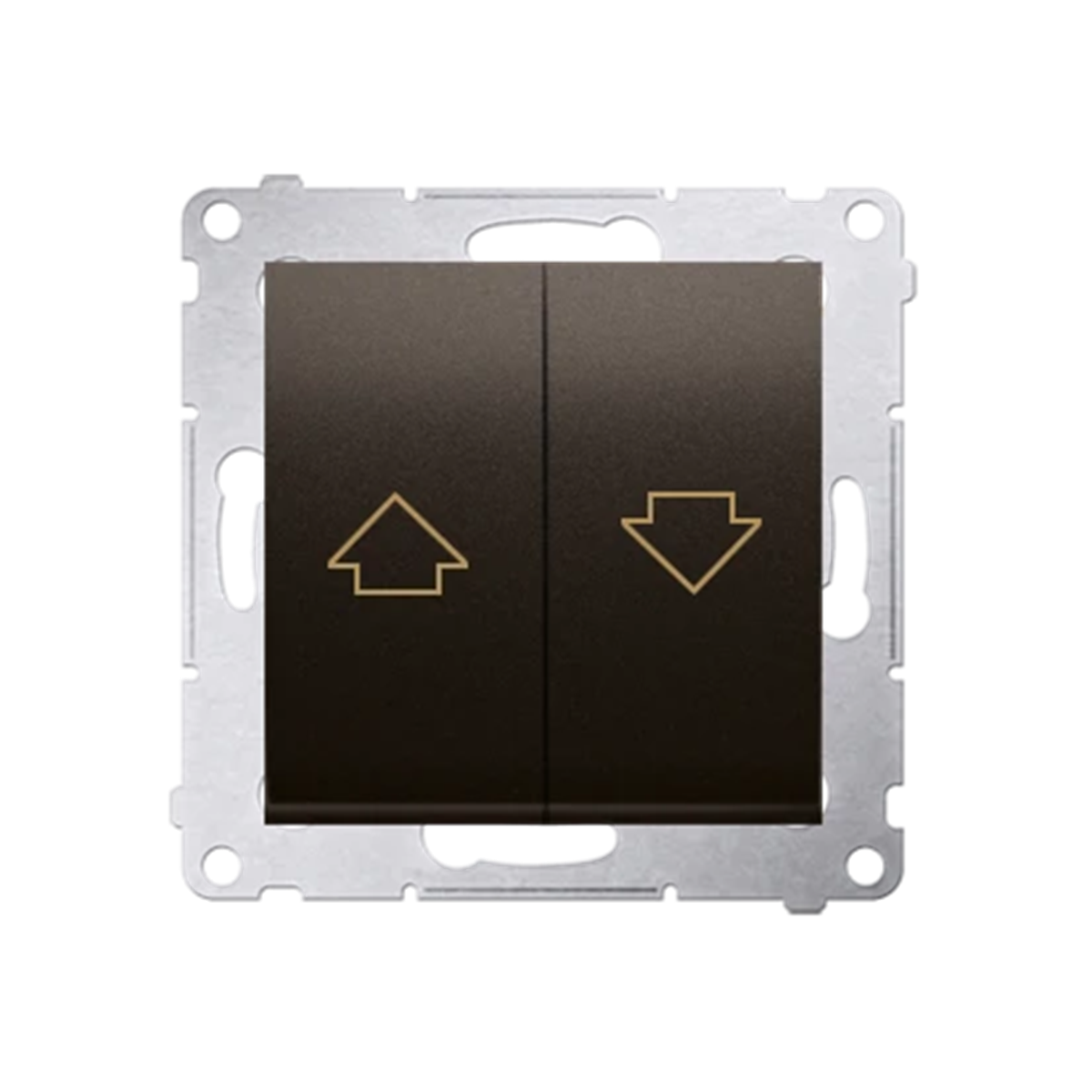

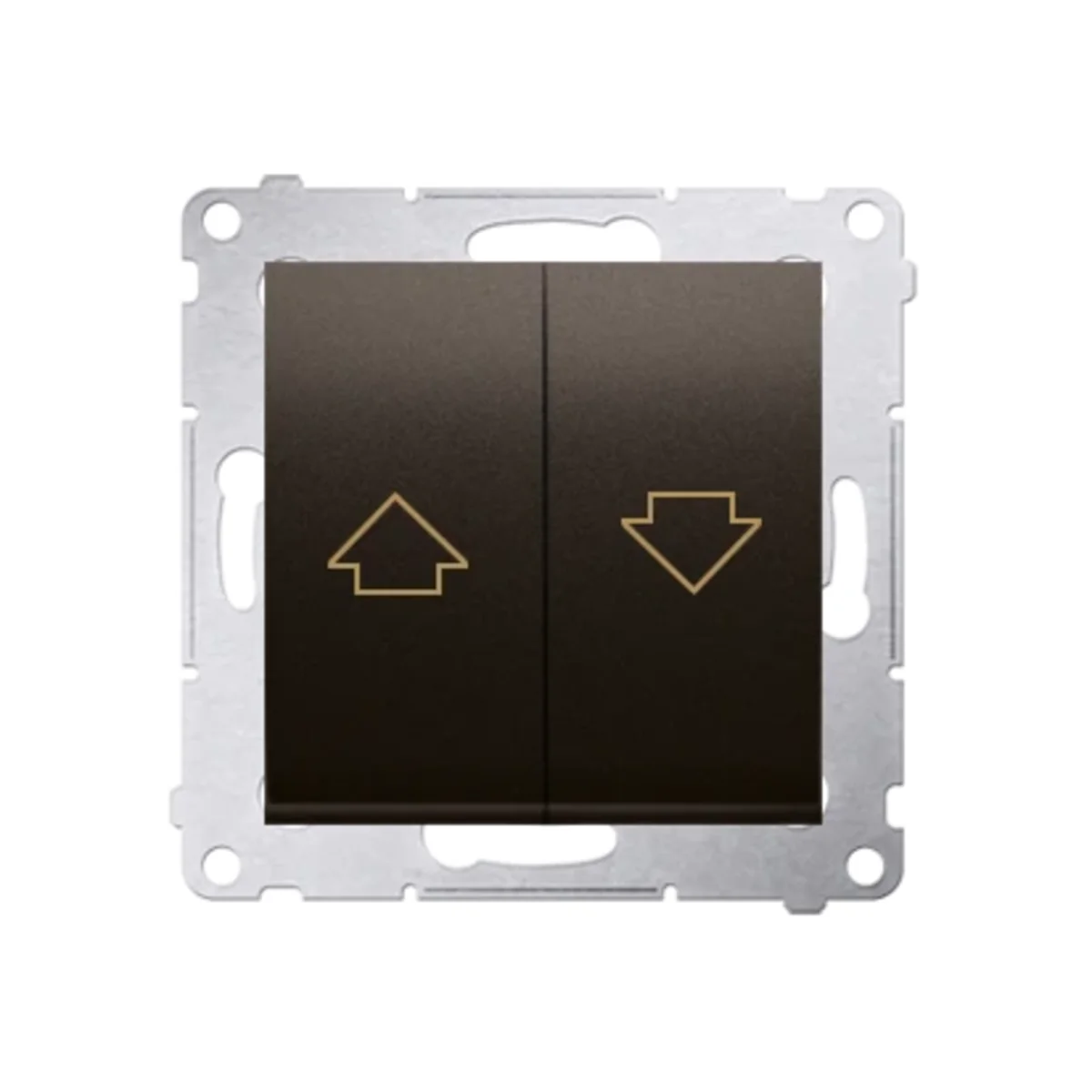

Shutter button 16AX 250V matt bronze DZP1A.01/46
local index:
MMO065KONT
Catalog No:
DZP1A.01/46
EAN code:
5902787862336
Price:
12,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Louvre button from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DZP1A.01/46.
FEATURES
- Single.
- To obtain the IP44 splash-proof class, use a gasket under the keys and a frame gasket.
- Installation of roller shutter buttons requires additional wiring.
< h3>SERIES DESCRIPTION
Simon 54 is a series of modern installation accessories, distinguished by reliable and easy-to-install mechanisms and a variety of colors. The shutter button characterizes the features of this unique series.
Technical data
-
Halogen freeYes
-
Number of keys2
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
Width [mm]75
-
VersionSingle
-
Surface protectionvarnishing
-
Accurate colorMetallic bronze matt
-
Mounting depth [mm]33
-
VariantTwo-position normally open
-
Exact materialPC
-
Depth [mm]45
-
ColorBrown
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 54
-
SymbolBlinds
-
TypeFlush-mounted
-
Height [mm]75
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
-
PKWIU27.33.11.0
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,059 | 0,059 | 0,679 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,050 | 0,230 |
| Depth (m) | 0,045 | 0,160 | 0,100 |
