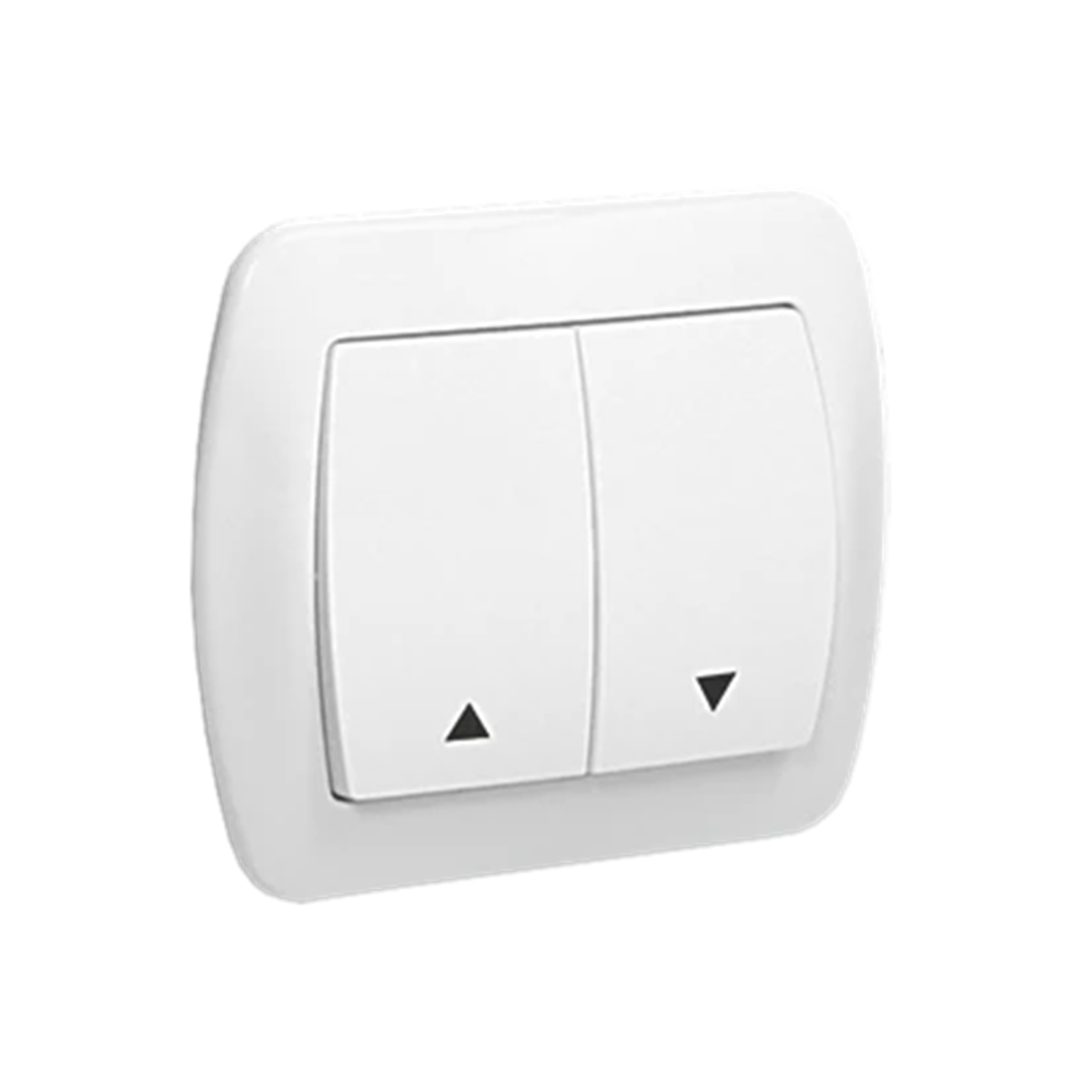

Shutter button 10A 250V white screw terminals AZ1/11

local index:
MMO016KONT
Catalog No:
AZ1/11
EAN code:
5902787569334
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 2
Price:
6,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Jalouver button from the Simon Akord series, from the manufacturer Contact Simon. The product part number is AZ1/11.



FEATURES

  • Single.
  • < li>Rocker switch.
  • Non-stable push button.



SERIES DESCRIPTION

Simon Akord is a minimalist monoblock, i.e. non-frame series. The shutter button characterize the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Width [mm]
    90
  • Version
    Single
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • For the frame system
    NO
  • PKWIU
    27.33.11.0
  • Depth [mm]
    37.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON CHORD
  • Symbol
    Blinds
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24.5
  • Variant
    Two-position normally open
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Nominal voltage
    250 V
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,063 0,063 -
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,043 0,230
Depth (m) 0,038 0,165 0,100
