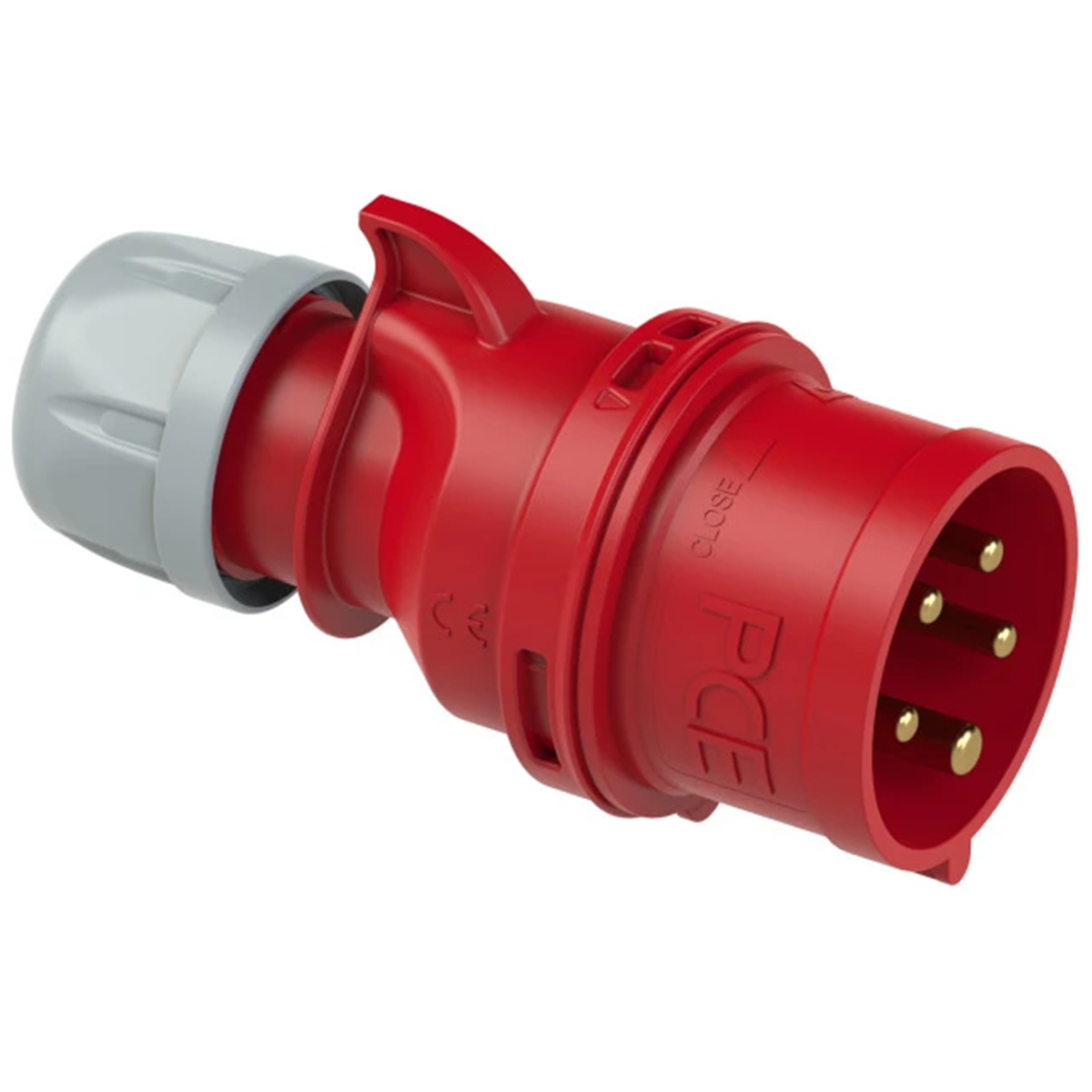

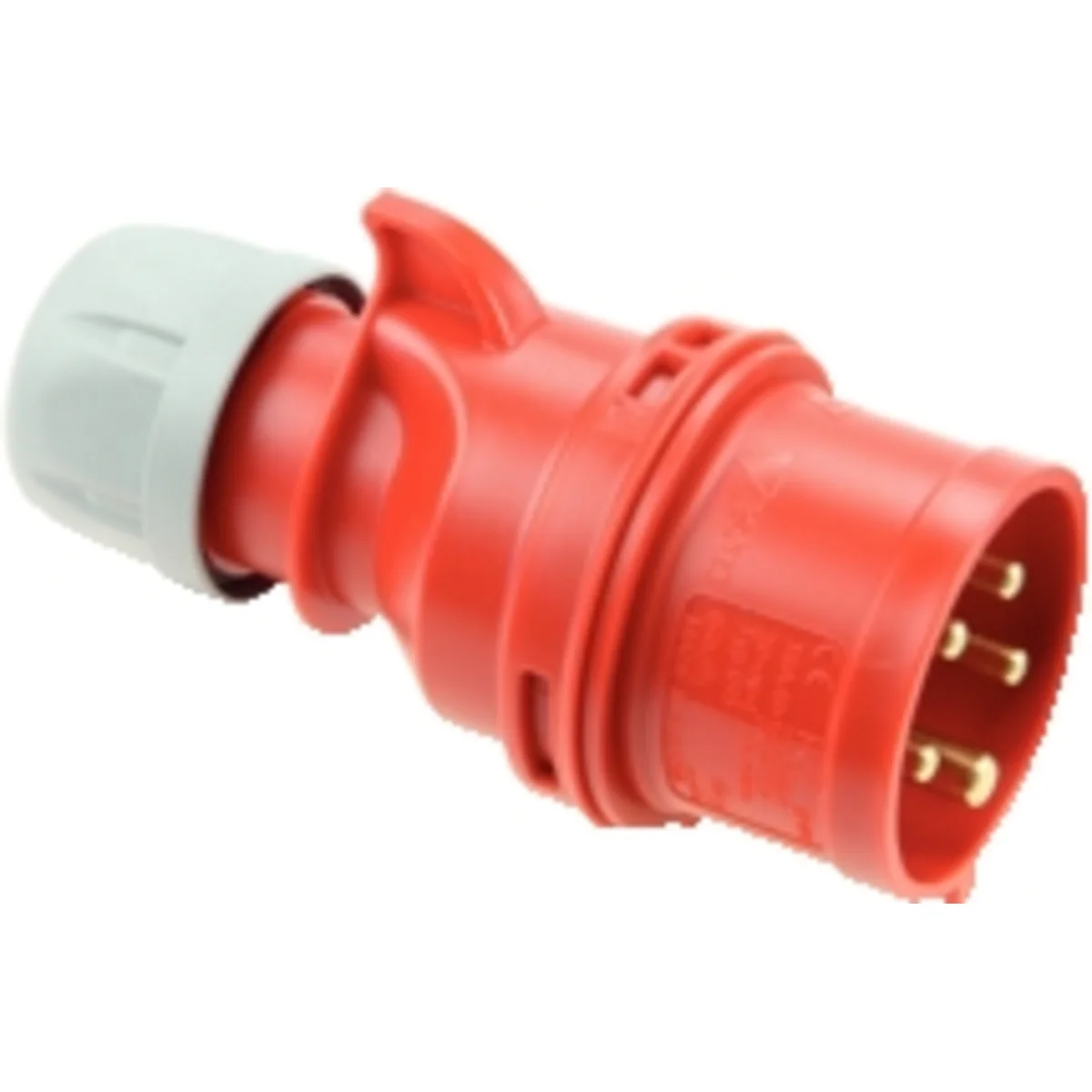

SHARK IP44 32A 400V 3P+Z+N portable plug 025-6
local index:
MKP007PCEQ
Catalog No:
025-6
EAN code:
9003399125447
Price:
23,70 zł
gross / pcs.
(including VAT 23%)
86,81 zł gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Portable plug made of PA11 plastic.
Technical data
-
Rated frequency [Hz]50/60
-
Rated voltage [V]400
-
Hose [mm²]2.5-6
-
Level of securityIP44
-
Cable diameter [mm]11:5-22
-
Weight [g]273
-
Number of contacts5
-
Rated current [A]32
-
Clamping force [Ncm]110
-
Contactbrass
-
Connection typescrew terminals
-
PKWIU27.33.13.0
Other technical data
-
IEC-amperage32 A
-
Voltage according to EN 60309-2400 V (50+60 Hz) red
-
Identification colourRed
-
Connection systemScrewed terminal
-
Insert directionStraight
-
Contact materialCuZn
-
Number of poles5
-
Clock hour position6 h
-
Degree of protection (IP)IP44
-
Cable entryGland nut
-
MaterialPlastic
-
Surface treatment contactsUntreated
Manufacturer details
-
ManufacturerPCE Polska Sp. z o.o.
-
Address58-200 Dzierżoniów Podwalna 8A Polska
-
