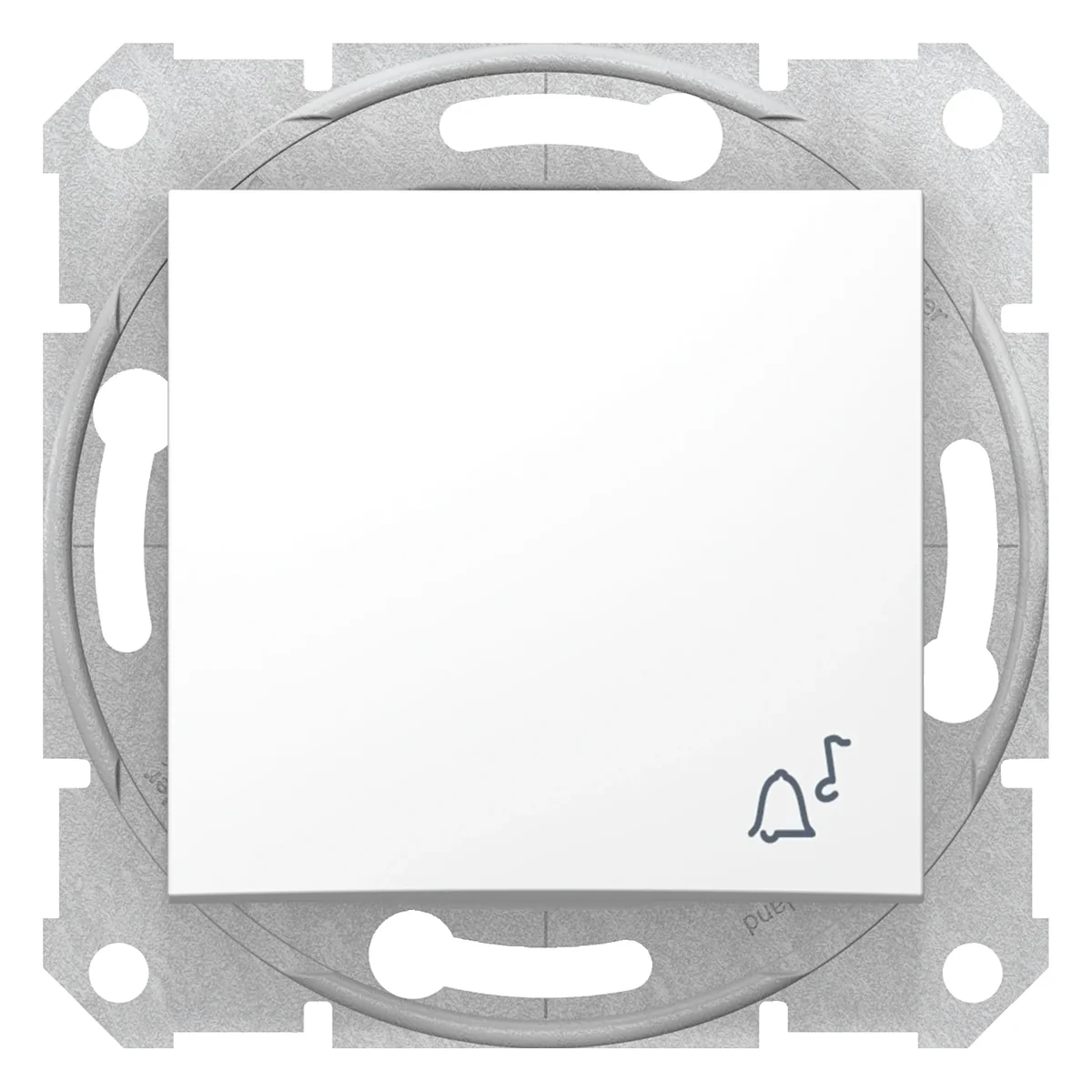

SEDNA Bell button white SDN0800121

local index:
MMZ148SCHN
Catalog No:
SDN0800121
EAN code:
8690495032949
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 37
Number of keys: 1
Color: White
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
2,88 €
gross / pcs.
(including VAT 23%)
Last lowest price: 2,87 € gross
Base price: 10,48 € gross -73%
Delivery in 3h
Accessible 14 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Print

Product description

Single pole "bell" series Sedna, from the manufacturer Schneider Electric. Product catalog number it is SDN0800121. Cream color.



FEATURES

  • To be equipped with a frame.
  • Symbol "bell" on the switch.
  • Length of insulation stripped from the cable: 13 mm.
  • ABS thermoplastic with increased resistance to UV radiation.
  • Simple, quick assembly and disassembly of wires in the terminals.
  • Conical entries leading the wires to the terminals.
  • Long solid claws. Metal guides keep the claws in the right position.
  • Galvanized, solid mounting frame with cuts for easy positioning.
  • A clear diagram and marking of the terminals for easy connection.
  • Waysó ;b mounts:
    • Claws, working range of claws: 51…70 mm
    • Screws



SERIES DESCRIPTION

The Sedna electrical installation equipment is characterized by high quality and distinctive shape. A wide range of colors means that everyone will find something for themselves. Sedna is the perfect choice for your home, flat or apartment. They are also a perfect solution for offices, hotels and boarding houses.

Technical data

  • Depth [mm]
    37
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SEAT
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Exact material
    ABS
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Backlight
    NO
  • Variant
    Bell
  • Protrusion depth [mm]
    12
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Feedback-signal contact
    No
  • With lighting
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Colour
    White
  • Label space/information surface
    No
  • With signal lamp
    No
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    42 mm
  • Model
    Single push button
  • Number of poles
    1
  • Number of rockers
    1
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • Transparent
    No
  • Imprint
    Symbol "bell"
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    71 mm
  • Min. depth of built-in installation box
    40 mm
