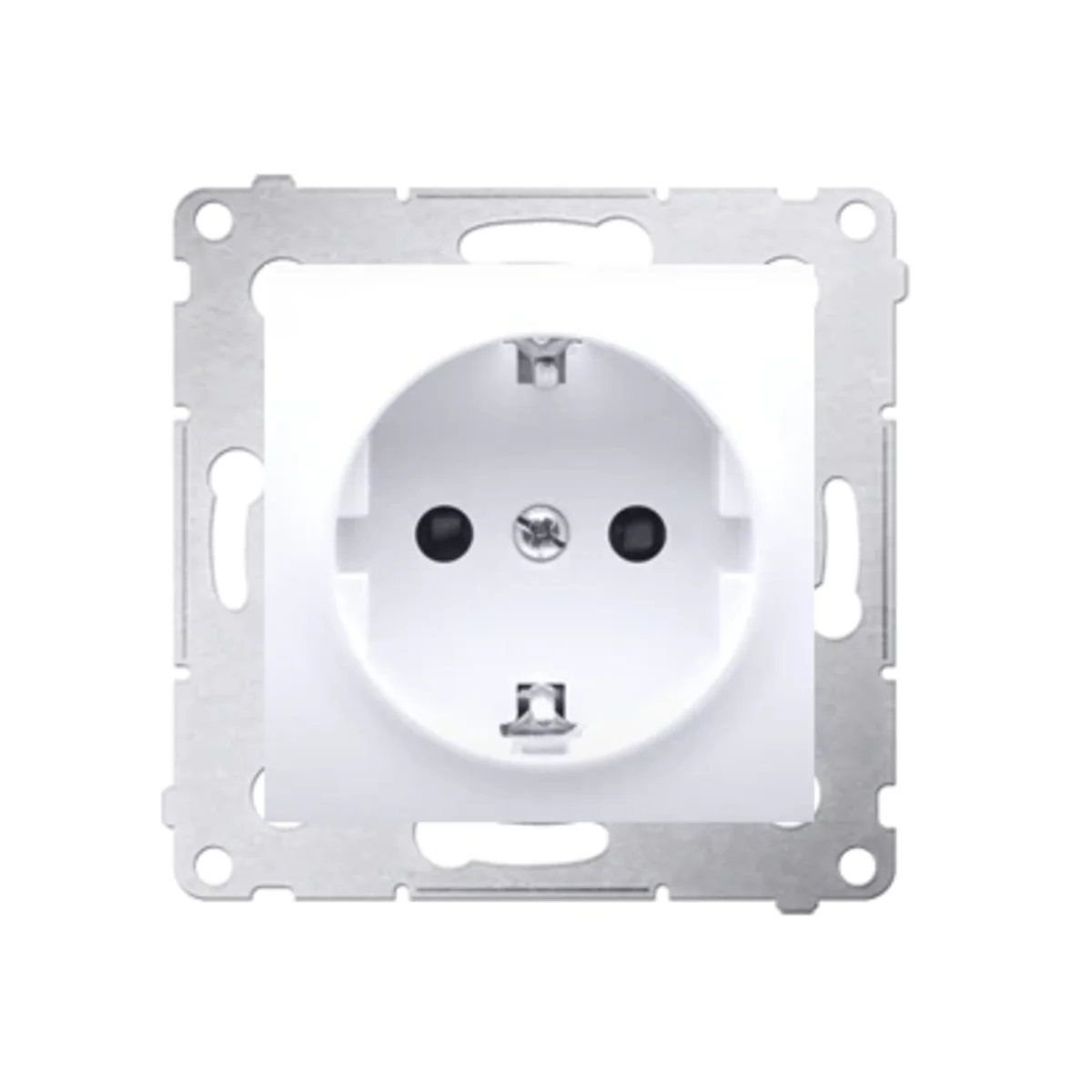

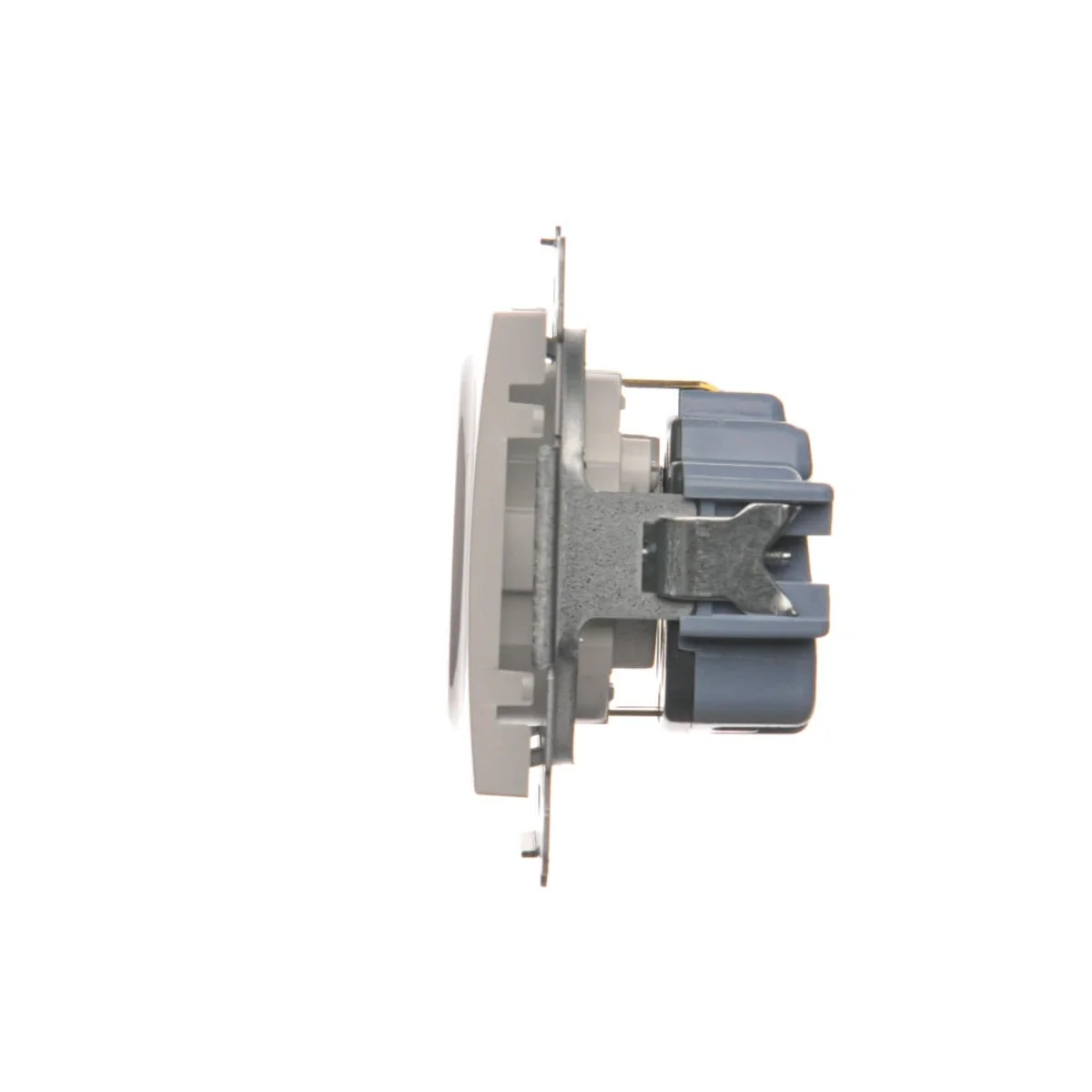

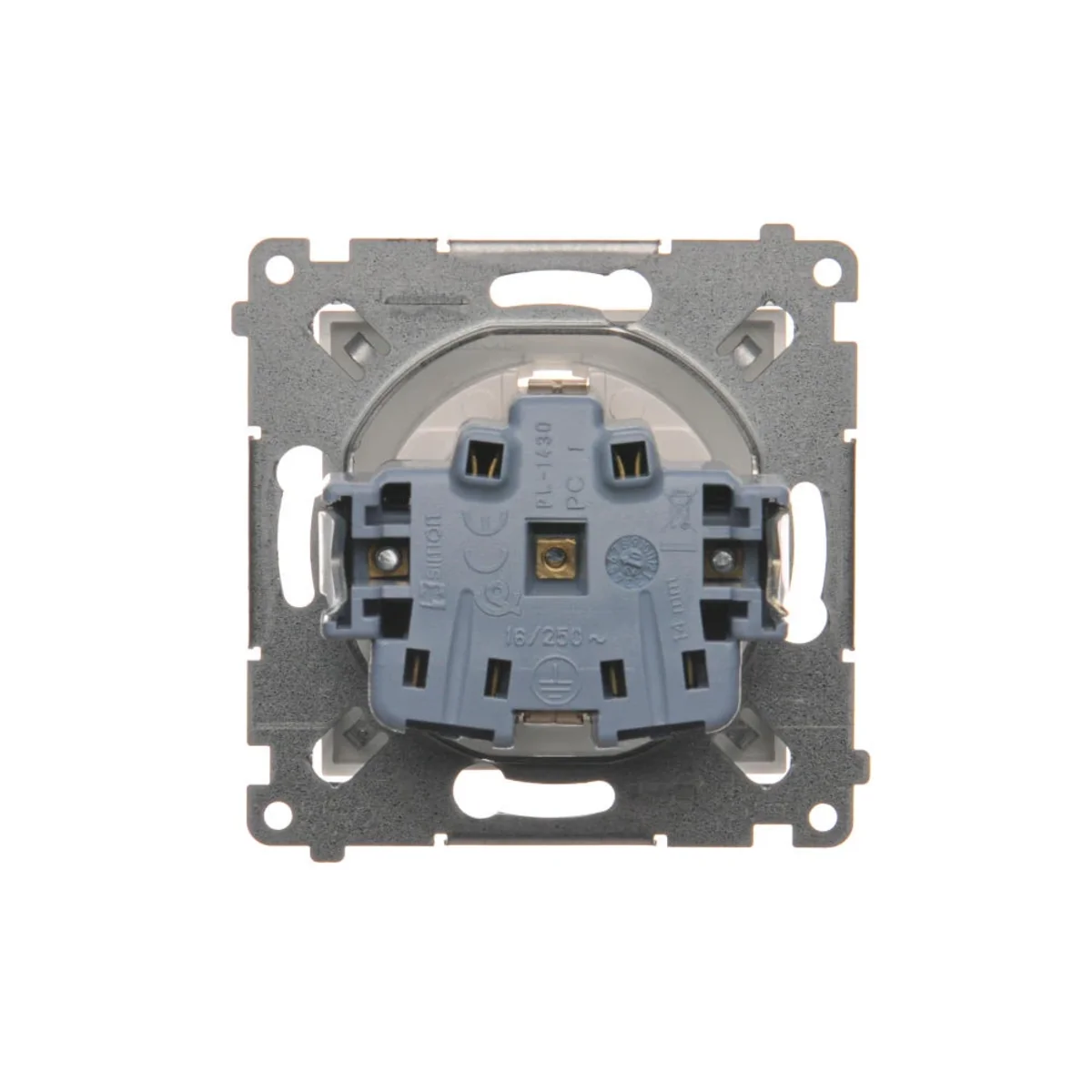

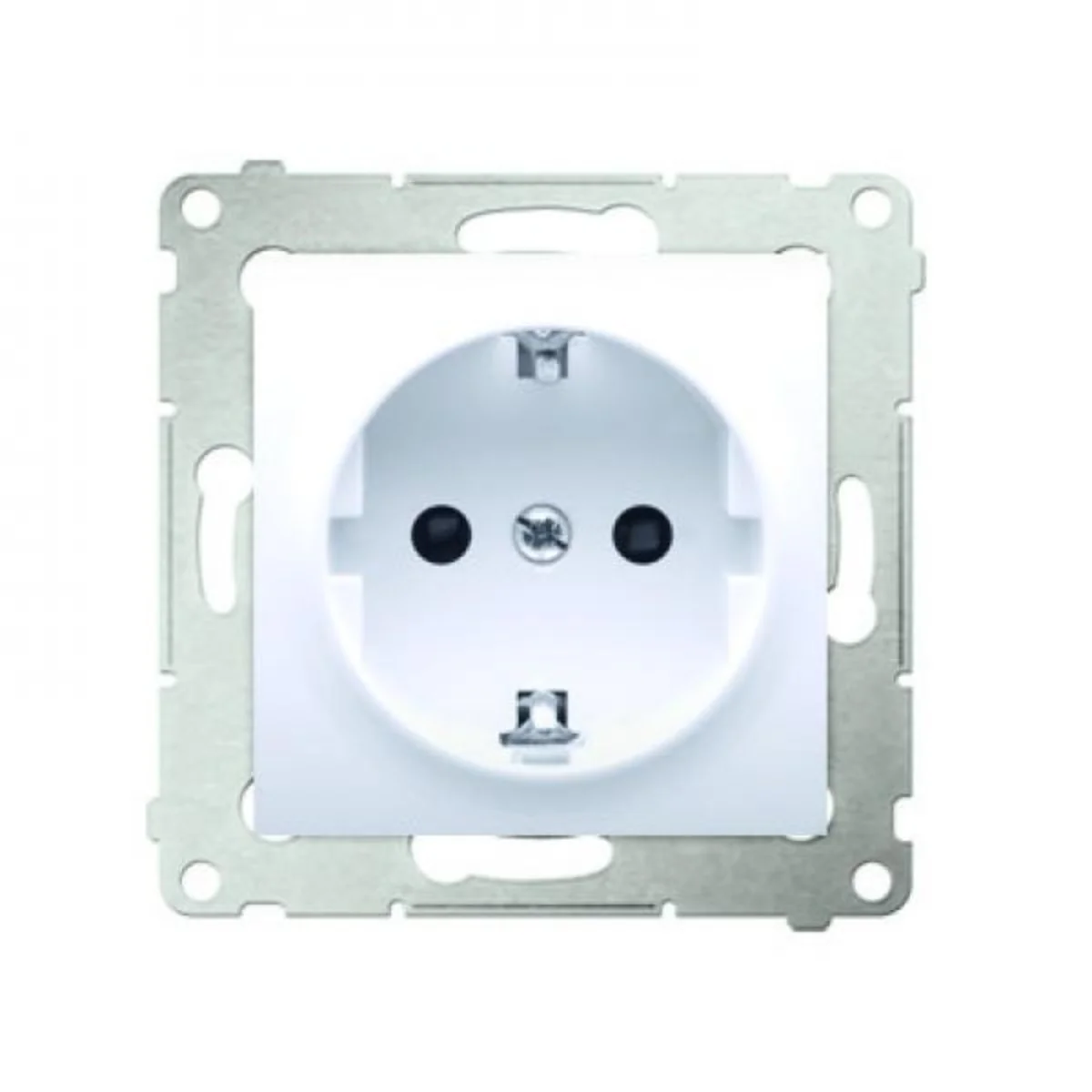

Schuko socket with shutters (module) 16A, 250V, screw terminals, white DGSZ1Z.01/11
local index:
MEE309KONT
Catalog No:
DGSZ1Z.01/11
EAN code:
5902787823962
Price:
3,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGSZ1Z.01/11.
FEATURES
- Single.
- With schuko grounding.
- With shutters for current paths.
- Module without frame< /strong>; for frames from the Nature and Premium series.
- Screw clamps.
- Colour white.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20< /strong>.
- flushmount.
- Dimensions: 75 x 75 mm (height x width).
- Material PC.
SERIES DESCRIPTION
SIMON 54 is a modern line electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]75
-
Surface finishShiny
-
Mounting depth [mm]31.5
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPC
-
Depth [mm]42.5
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 54
-
Width [mm]75
-
Groundschuko
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,068 | 0,068 | 0,769 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,047 | 0,230 |
| Depth (m) | 0,043 | 0,160 | 0,100 |
