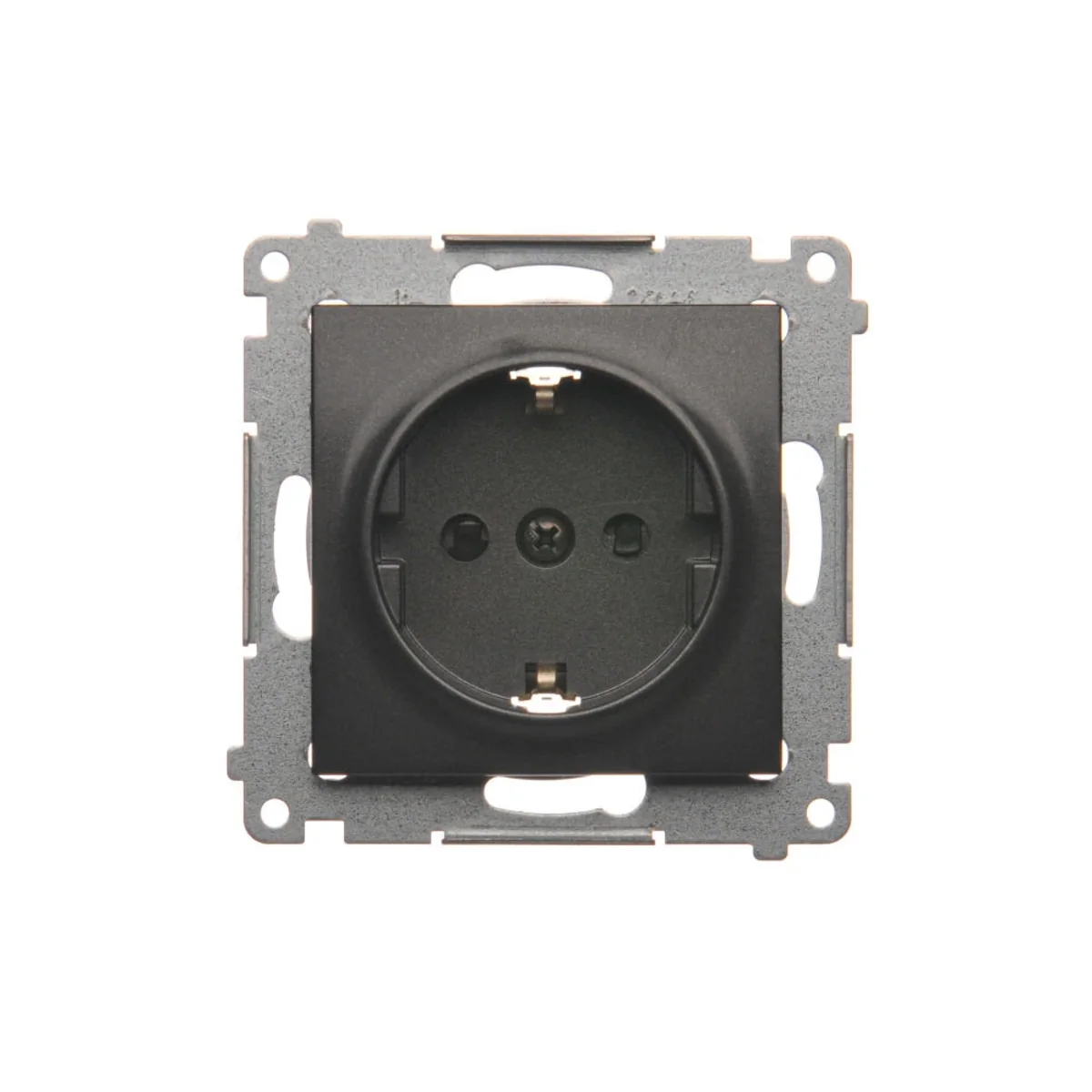

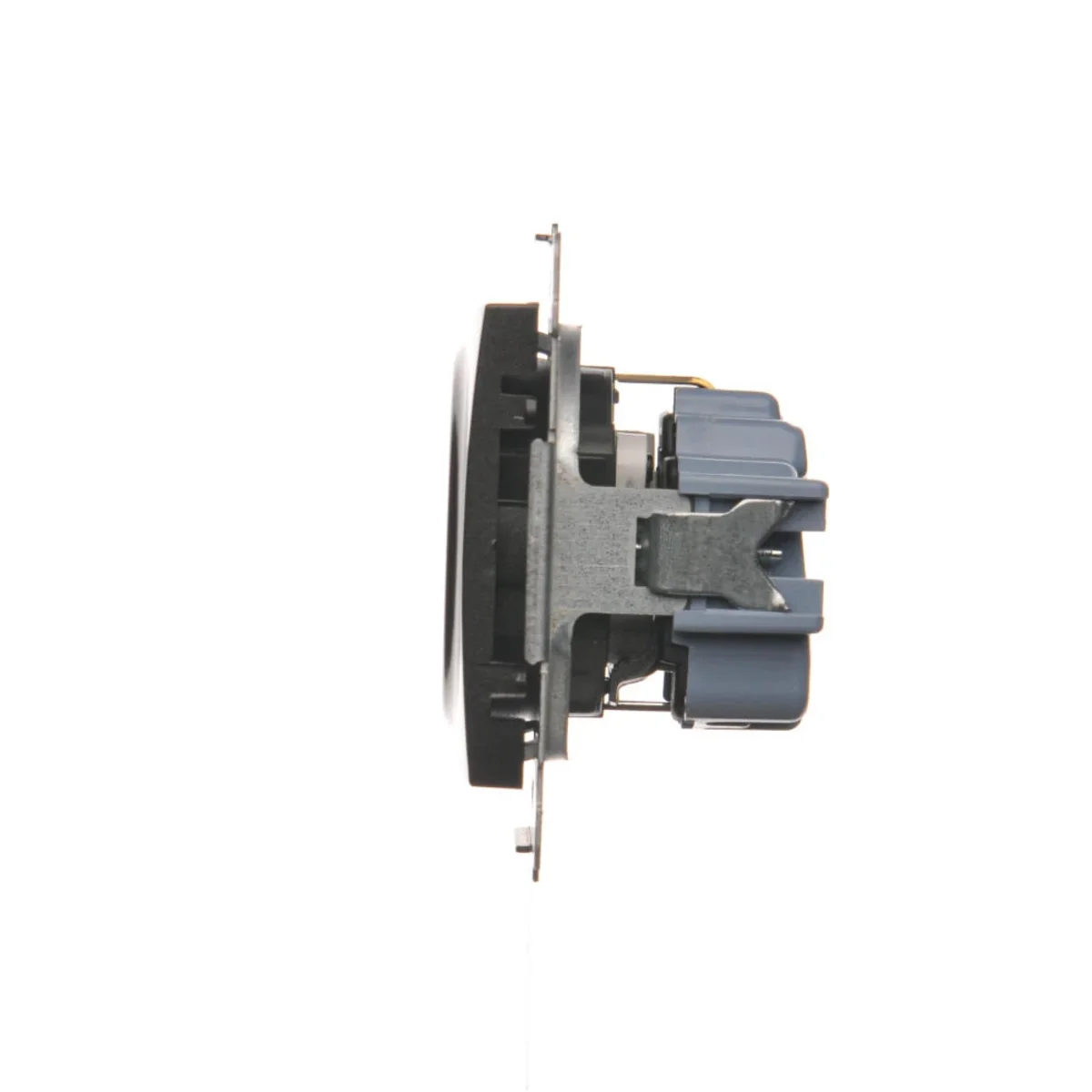

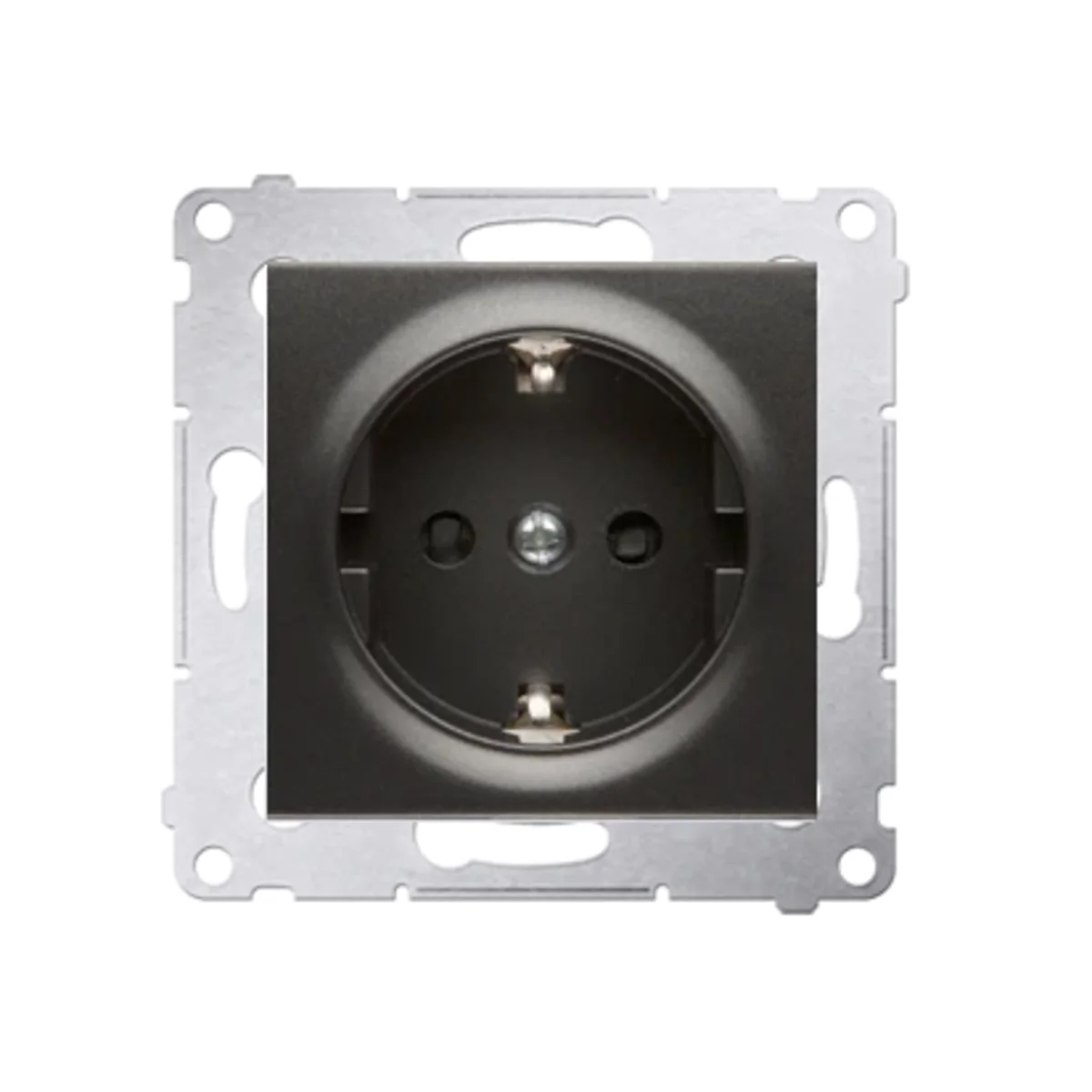

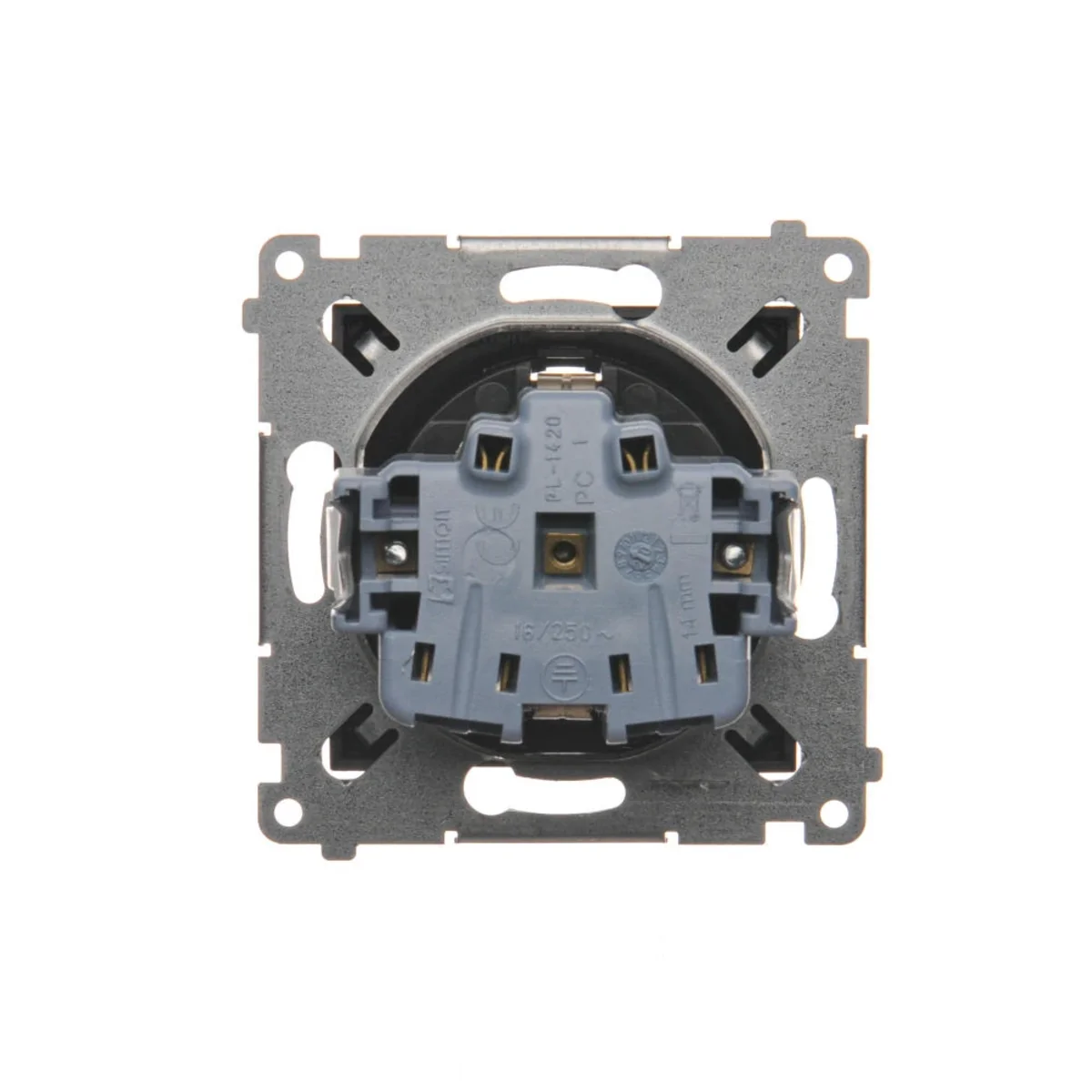

Schuko socket with shutters (module) 16A, 250V, quick connectors, anthracite (metallic) DGSZ1CZ.01/48

local index:
MEE308KONT
Catalog No:
DGSZ1CZ.01/48
EAN code:
5902787824051
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 42.5
Number of sockets: 1
Price:
6,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGSZ1CZ.01/48.



FEATURES

  • Single.
  • With schuko earthing.
  • With shutters for current paths.
  • Module without frame< /strong>; for frames from the Nature and Premium series.
  • Quick connectors.
  • Colour anthracite, metallic .
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20 .
  • flush mounting.
  • Dimensions: 75 x 75 mm (height x width).
  • Material PC.



SERIES DESCRIPTION

SIMON 54 is a modern a line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    42.5
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 54
  • Width [mm]
    75
  • Ground
    schuko
  • Surface protection
    varnishing
  • Accurate color
    Metallized anthracite
  • Mounting depth [mm]
    31.5
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,072 0,072 0,809
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,047 0,230
Depth (m) 0,043 0,160 0,100
