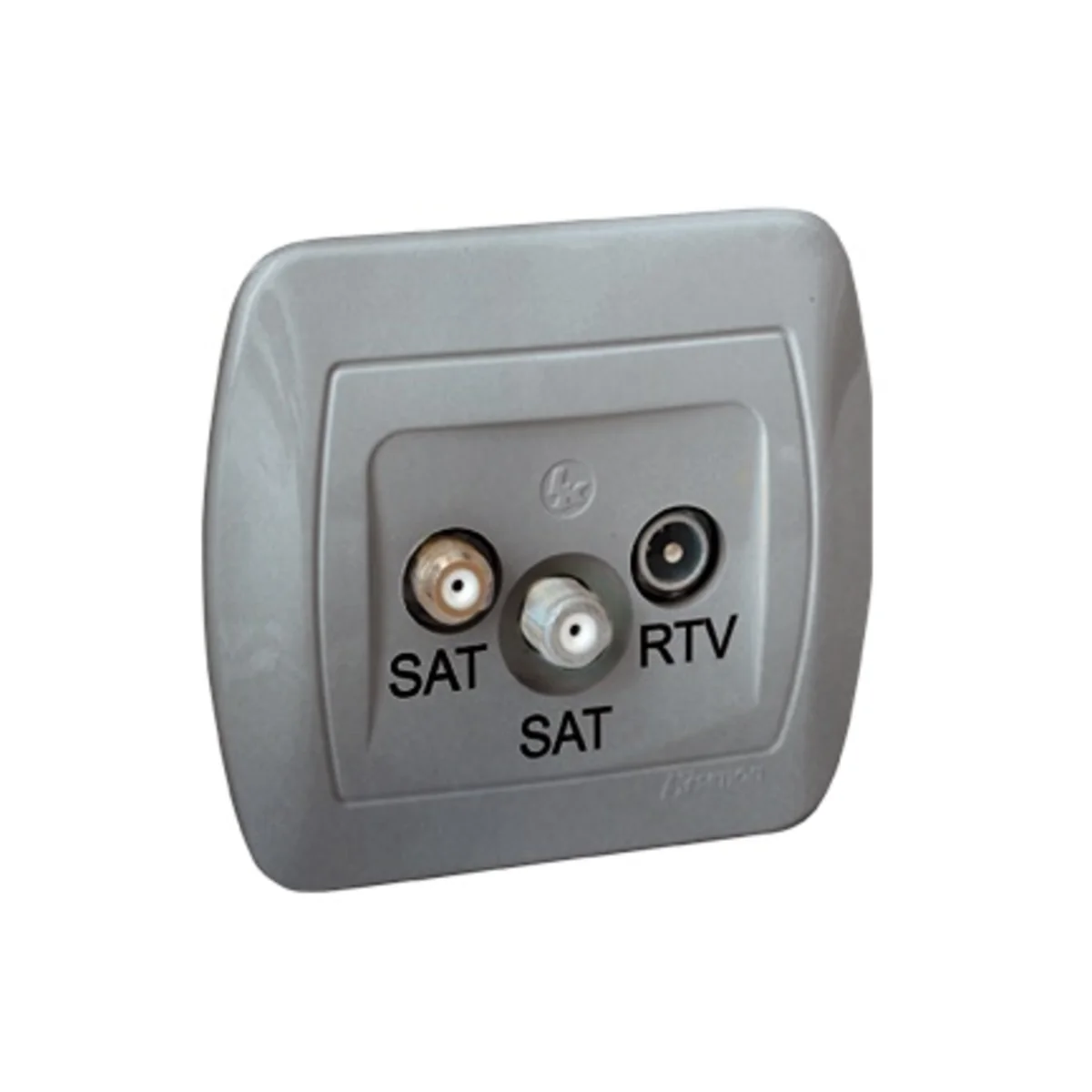

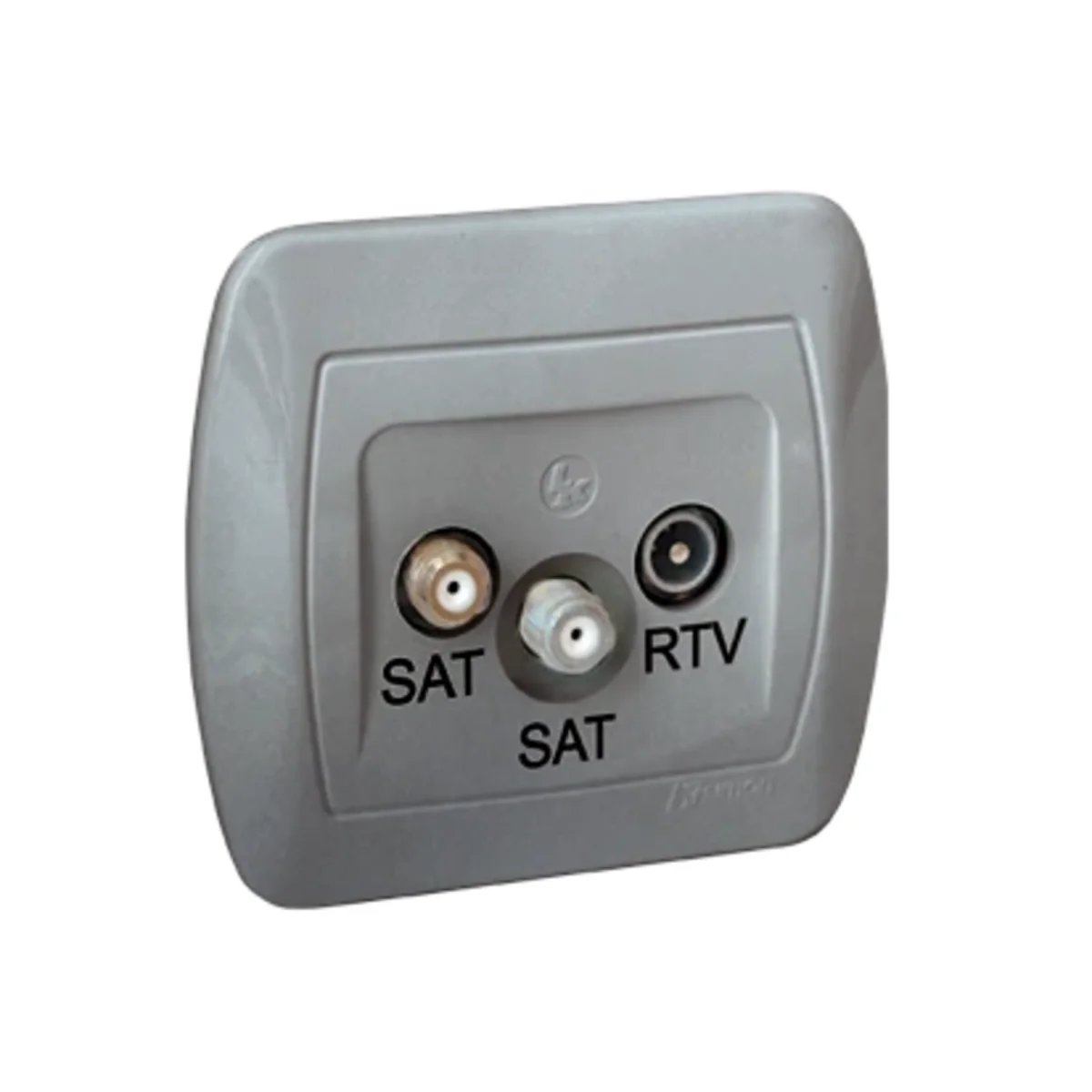

SAT-SAT-RTV terminal socket, silver (metallic) AZAR+SAT3.1-P2/26

local index:
MEA057KONT
Catalog No:
AZAR+SAT3.1-P2/26
EAN code:
5902787818456
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of sockets: 3
Price:
32,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

SAT-SAT-RTV Antenna Socket



SERIES DESCRIPTION

Slightly longer base and spine line relative to the sides ;w and clearly rounded frame corners distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    3
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Frequency Range [MHz]
    5-2400
  • Accurate color
    Aluminum metallised
  • Mounting depth [mm]
    29
  • Variant
    RTV sat sat2
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 1 Connections for 2150 MHz: 2
  • Version
    Final
  • Surface protection
    varnishing
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    PC

Other technical data

  • Model
    End socket
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for remote power supply
    yes
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    3
  • Frequency
    5 ... 2400 MHz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,109 1,176
Width (m) 0,110 0,190
Length (m) 0,046 0,230
Depth (m) 0,160 0,100
