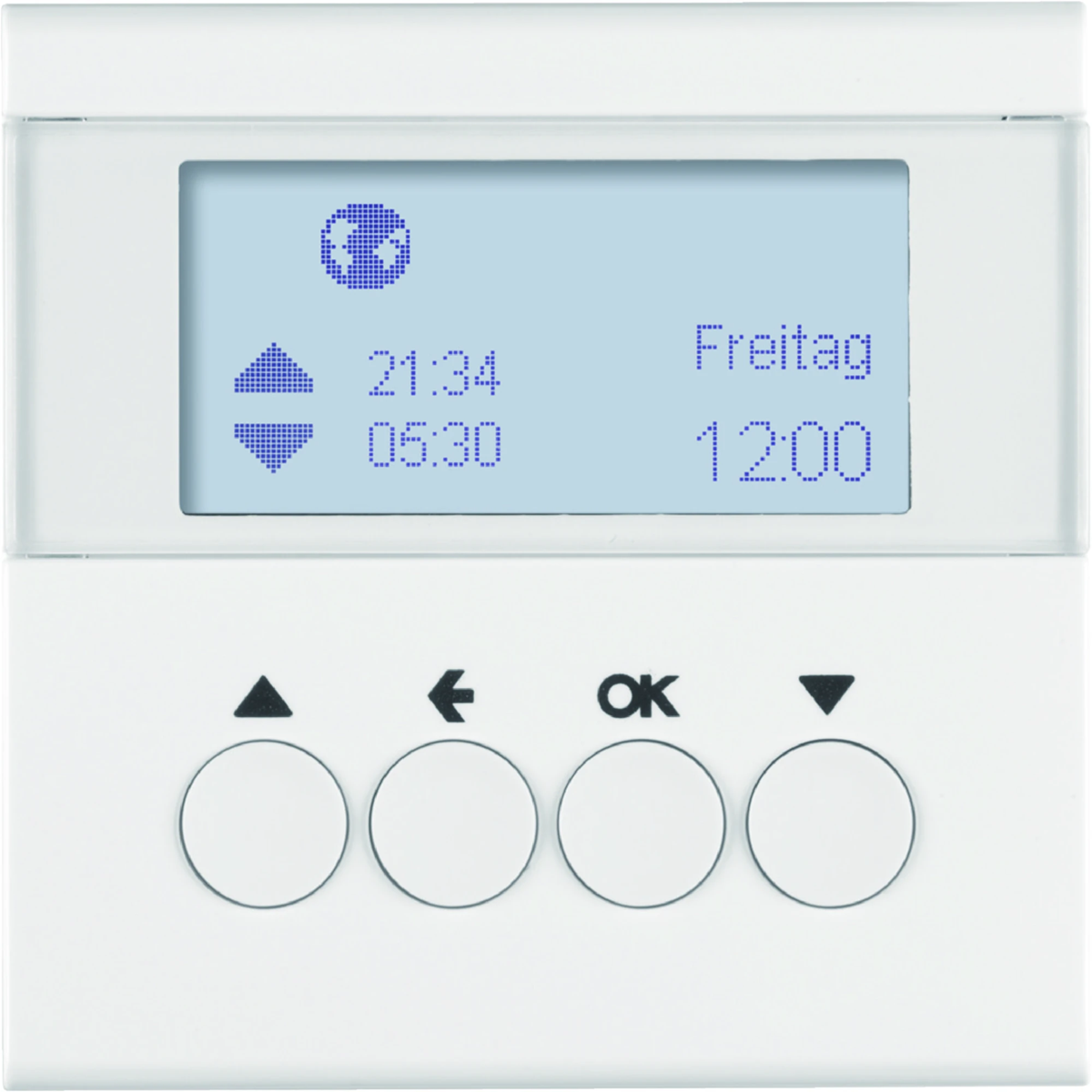

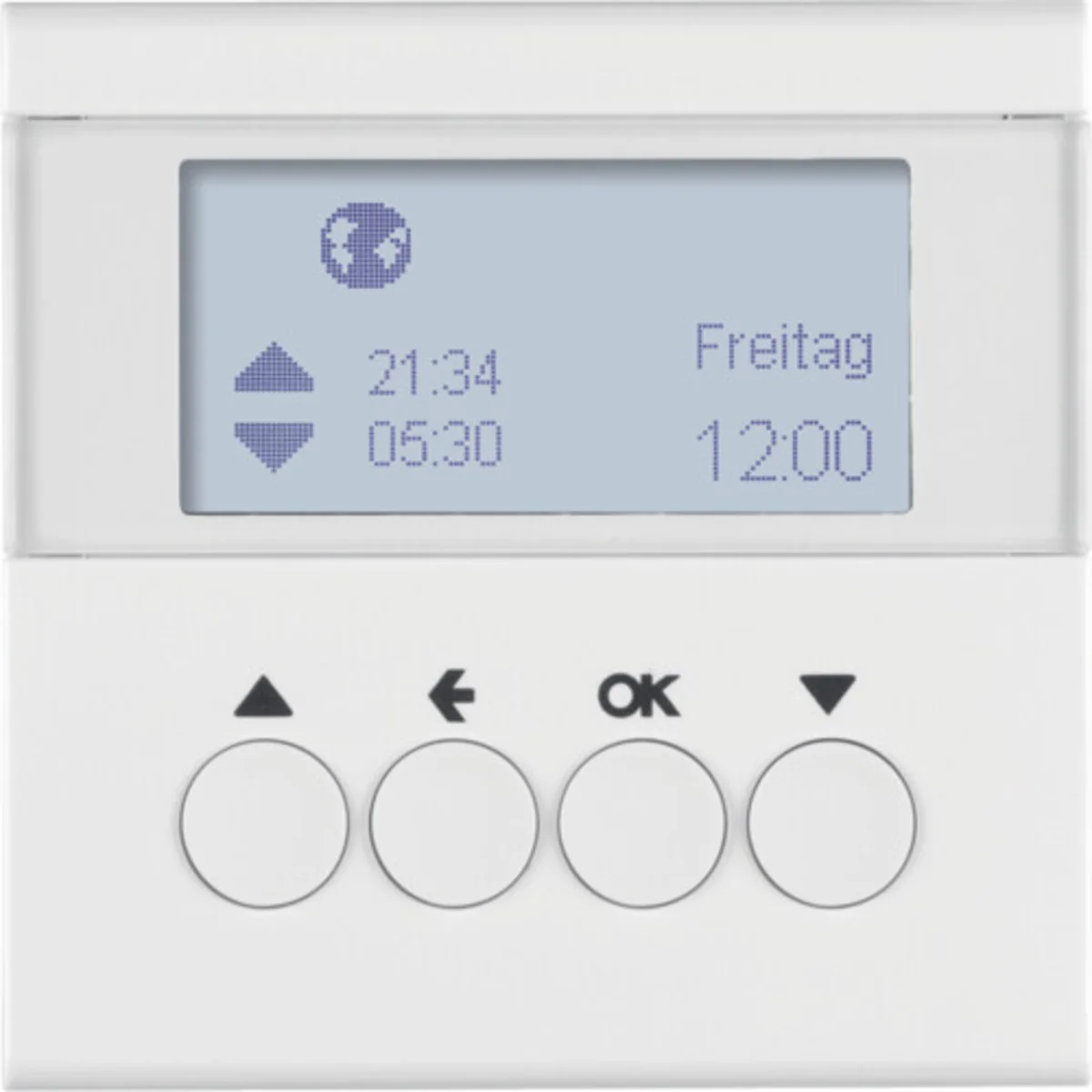

S.1/B.3/B.7 Shutter time switch with white glossy display 85741189

local index:
MWL014BERK
Catalog No:
85741189
EAN code:
4011334375043
Manufacturer: BERKER
Switching time [s]: < 0.6s
Material: Plastic | Metal
Rated voltage [V]: 12
Price:
200,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Louver time switch with display, Berker S.1/B.3/B.7 series.

Features:

  • reset function (factory settings)
  • with button lock
  • party function, automatic commands, radio commands and extension commands are not executed (lock)
  • manual/automatic switchover

Controls and indicators:

  • LCD backlit during operation
  • cap/mechanism compatibility indication on display
  • adjustable LCD contrast

Settings:

  • with automatic winter/summer time changeover (disabled)
  • astronomical program for sunrise/sunset switching sun with the possibility of entering the city/country and individual adjustment
  • holiday program causing random selection of travel times in automatic mode

Technical data

  • Switching time [s]
    < 0.6s
  • Rated voltage [V]
    12
  • Operating temperature range [°C]
    from -5 to 45
  • Power reserve [h]
    24
  • PKWIU
    26.52.24.0
  • Material
    Plastic Metal
  • Family
    S.1 B.3 B.7
  • Minimum slat adjustment time [ms]
    250
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)

Other technical data

  • Assembly arrangement
    Control end-piece
  • With brightness sensor connection
    No
  • Suitable for rain sensor
    Yes
  • With Astro program
    No
  • With memory function
    Yes
  • Random generator
    Yes
  • Mounting method
    Other
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Max. switching power
    0 W
  • Nominal voltage
    12 V
  • Type of fastening
    Clamp mounting
  • Integrated timer
    Yes
  • Suitable for wind sensor
    Yes
  • With glass breaking detector connection
    No
  • Substation input
    Yes
  • Twilight value adjustable
    0 ... 0 lx
  • Switch-off protection
    No
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Suitable for degree of protection (IP)
    IP20
  • Autonomy
    24 h
  • Frequency
    0 ... 0 Hz

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,067 0,087 3,567 134,134
Width (m) 0,056 0,084 0,300 0,800
Length (m) 0,030 0,070 0,225 1,050
Depth (m) 0,056 0,085 0,400 1,200
