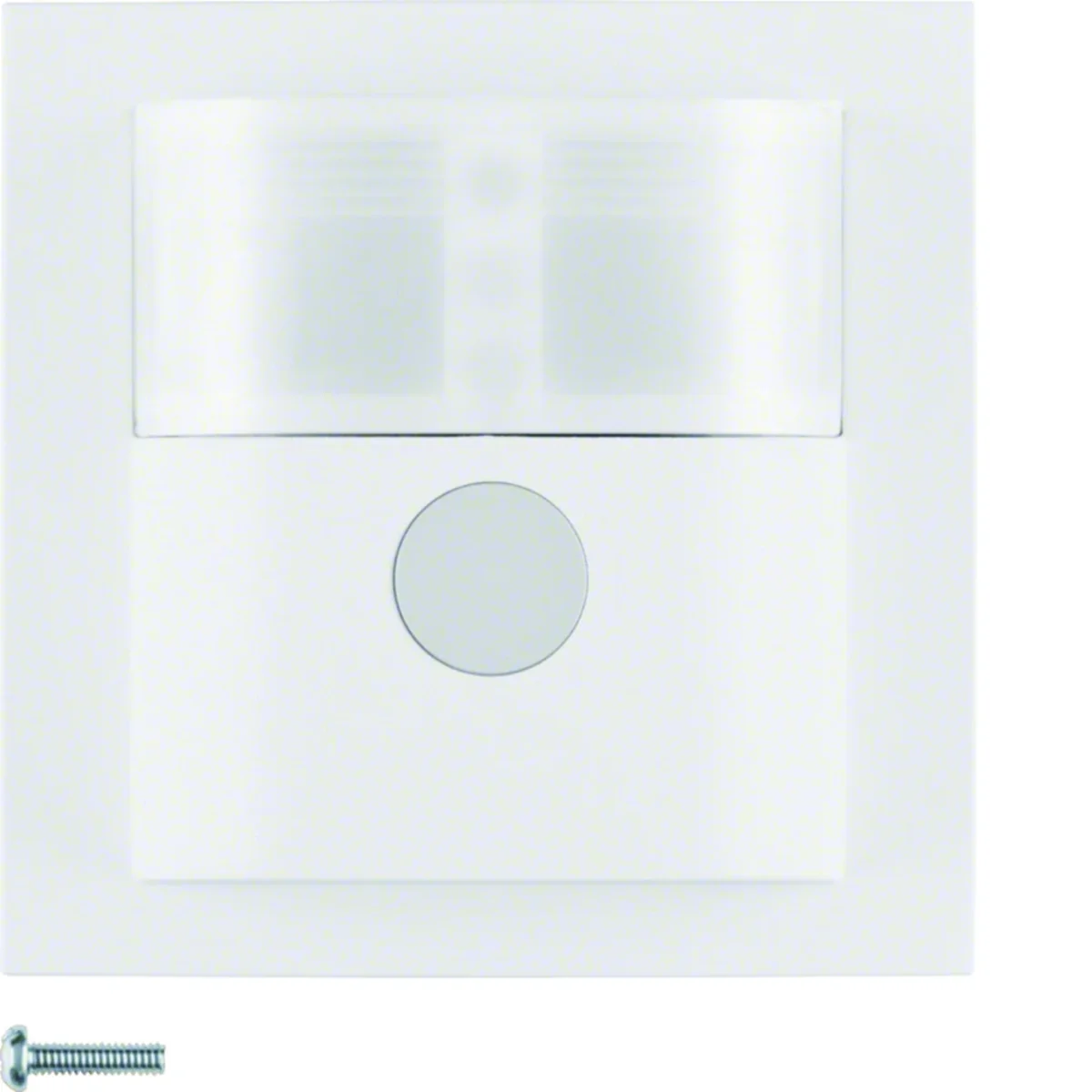

S.1/B.3/B.7 Motion sensor cap 1.1m white matte 85341188

local index:
MAP374BERK
Catalog No:
85341188
EAN code:
4011334373537
Manufacturer: BERKER
Detection angle [°]: 45-90
Color: White
Shape: Square
Price:
89,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motion sensor cap series Berker B.Kwadrat/B.3/B.7.

Features :

  • microprocessor control
  • function of programming the activation level of lighting intensity activated by means of a button
  • with a button lock
  • function " party" activated for 2 hours
  • with memory function to simulate presence

Controls and indicators:

    < li> with on/off/automatic button

LED control:

  • with operation and status LEDs red /green/orange
  • Tip and mechanism compatibility LED indicator

Technical data

  • Detection angle [°]
    45-90
  • Shape
    Square
  • Installation
    Flush-mounted
  • Type
    For the motion sensor
  • Level of security
    IP20
  • Accurate color
    Snow white
  • Operation brightness level [%]
    10 - 100
  • Lateral range [m]
    ≈ 8
  • For modular equipment
    Not applicable
  • Color
    White
  • Material
    Plastic
  • Detection field
    12x16
  • Family
    B.SQUARE
  • Operating temperature range [°C]
    from -5 to 45
  • Number of detection planes
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Straight range [m]
    ≈ 12
  • PKWIU
    27.40.30.0

Other technical data

  • Model
    Movement sensor
  • Constant light control
    No
  • Networkable
    Yes
  • Creep-under protection
    No
  • Max. reach sideways
    8 m
  • Diameter reach on floor
    0 m
  • Response value luminosity adjustable
    Yes
  • Dim function with dimmer basic element
    Yes
  • Staircase light controller
    No
  • Material quality
    Thermoplastic
  • Suitable for degree of protection (IP)
    IP20
  • Min. switch-on time
    180 s
  • Switch-off delay self-learning
    No
  • Colour
    White
  • Mounting method
    Flush-mounted
  • HVAC-control
    Yes
  • Suitable for wireless transmission
    No
  • Mounting height
    1.1 m
  • Max. reach frontally
    12 m
  • Response value sensitivity adjustable
    Yes
  • Teach-function for response value luminosity
    Yes
  • Animal zone
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Operation mode switch
    Yes
  • Max. duty cycle
    3 min
  • Detection angle horizontal
    45 ... 90 °
  • RAL-number (similar)
    9010

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,035 0,105 4,230 155,360
Width (m) 0,056 0,090 0,295 0,800
Length (m) 0,045 0,075 0,230 1,050
Depth (m) 0,056 0,090 0,395 1,200
